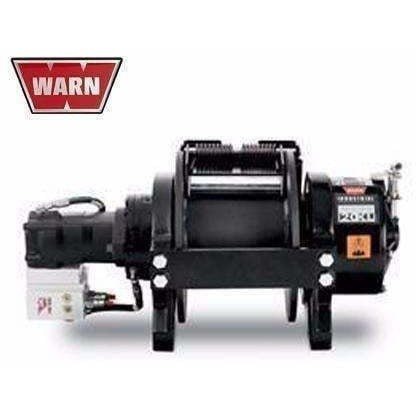

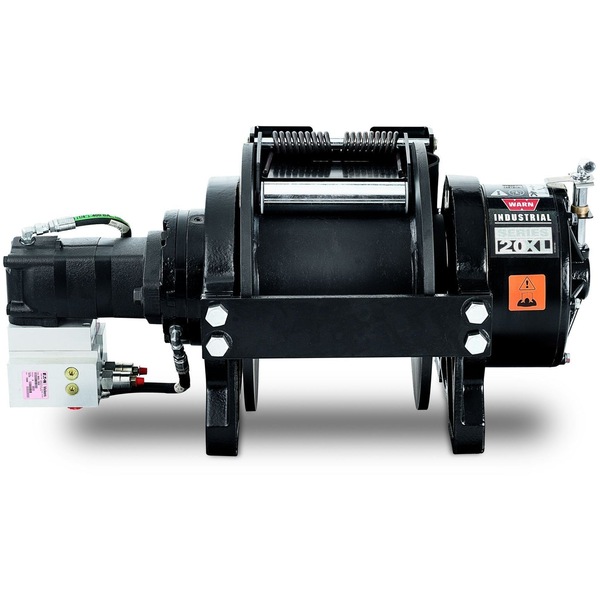

SERIES 20XL Great for big jobs, Trailers, or Severe-Duty Applications

8.0 cubic-inch high-performance motor with 20,000 lbf. capacity
Spring-applied disc brake designed to hold the full-rated load
Hardened aircraft-grade nickel chromoly two-stage planetary geartrain for speed and reliability
Available in air and manual clutch options
Available in standard and long-drum versions
Meets SAE J706 and CE specifications

PN 74750 (Standard Drum, Air Clutch)

20XL HYD SPECS/PART NUMBERS

Rated Pulling Force: 20,000 lbf (9,072 kgf)

Drum Barrel Diameter: 5.75 in (146 mm)

Drum Flange Diameter: 12.25 in (311 mm)

Distance Between Flanges, Short Drum: 8.0 in (203 mm)

Distance Between Flanges, Long Drum: 14 in (356 mm)

Recommended Maximum Wire Rope Diameter: 9/16 in (14.3 mm)

Recommended Minimum Wire Rope Breaking Strength: 33600 lbf (15241 kgf)

Approximate Shipping Weight for 74750 & 77550: 297 lb (135 kg)

Approximate Shipping Weight for 77560 & 77570: 322 lb (146 kg)

Duty Cycle (intermittent per SAE J706section 6.2): 2760 ft (841.2 m)

Mounting Bolt Torque: 159 ft*lbf (216 N*m)

Maximum Layers of Wire Rope: 5

Gear Reduction: 28.5:1

Brake Type: Spring Applied Disk

Contactor / Remote Type: N/A

Standards Compliance:
SAE J706
CE Machinery Directive 98/37/EC and 2006/42/EC

ACCESSORIES (STANDARD DRUM)

Fairlead SRS-XL-STD: PN 77532

Wire Rope Assembly 9/16''x140' EIPS: PN 77451

Snatch Block XL-60K LB: PN 80858

FIRST LAYER PERFORMANCE
Line Load	Pressure Drop at 15 GPM	Pressure Drop at 20 GPM	Duty Cycle
lbf	kgf	psi	BAR	psi	BAR	min/10min
0	0	870	60.0	1055	72.7	N/A
5000	2268	1256	86.6	1500	103.4	N/A
10000	4536	1855	127.9	2070	142.7	N/A
15000	6804	2470	170.3	2630	181.3	N/A
20000	9072	2985	205.8	3000	206.8	N/A
