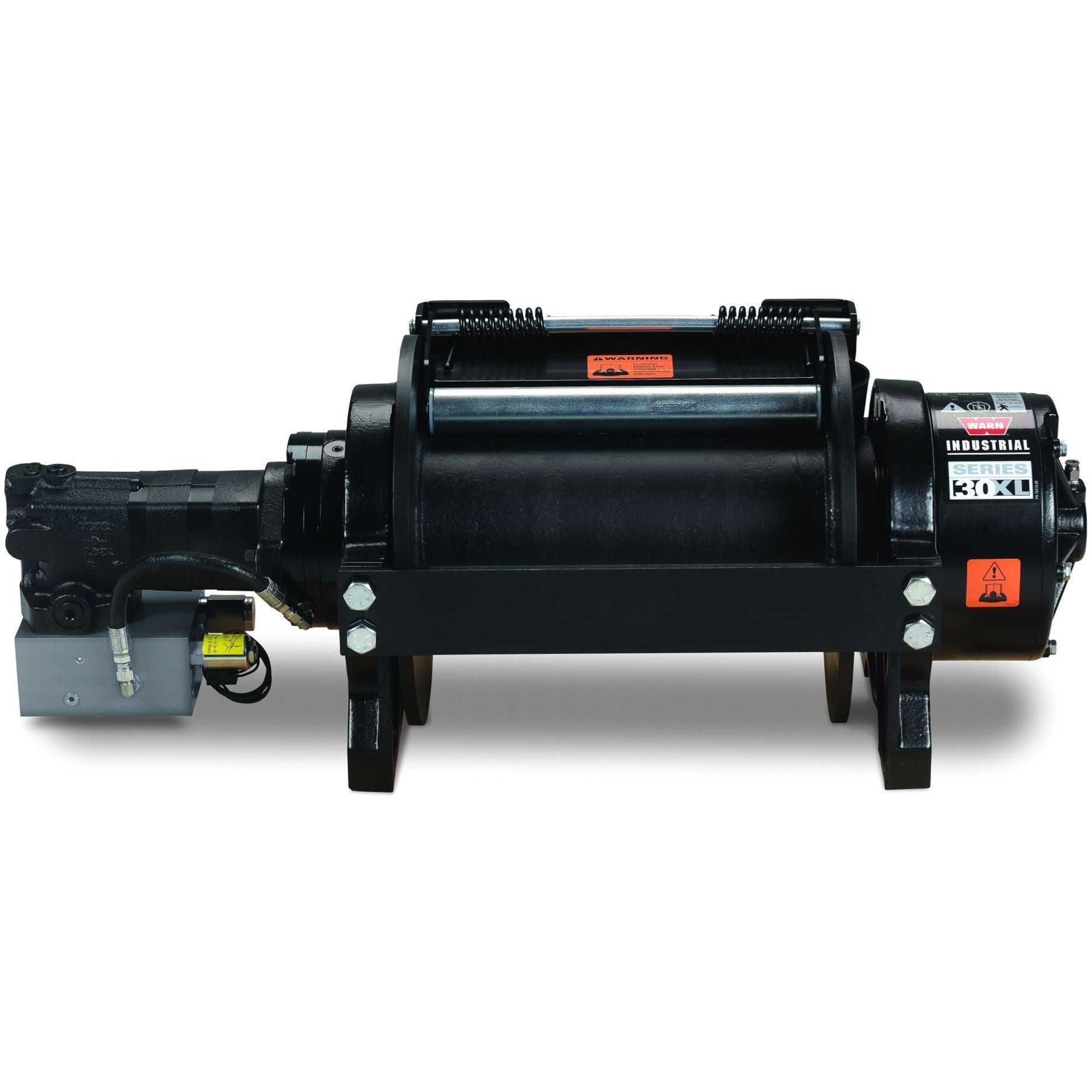

Warn Series 30XL Hydraulic Winch 30000lb / 13608kg (includes tensioner & air clutch)

Warn Series 30XL Hydraulic Winch 30000lb / 13608kg (includes tensioner & air clutch)

Hurry! 2 items left!

$12290

Collect 12290 Everyday Rewards points

$89.00 Australia-wide (per-item)

Sold & shipped by Winchworld

Secure ways to pay at checkout

(0)

For hydraulic winching applications, no product performs better than a Warn Industrial winch. Powerful hydraulic Motors allow for extended duty. Hardened steel, two-stage Planetary Gear Trains deliver efficient and reliable operation plus fast line speeds. Like their electric cousins, these products comply with world-wide quality and safety standards.

12 Cubic Inch High Performance Motor With 30,000 Pounds Capacity, Great For Trailers, Roll Back Carriers, And Severe Duty Applications
Spring Applied Disc Brake Designed To Hold The Full Rated Load
Hardened Aircraft Grade Nickel Chromalloy Two Stage Planetary Gear Train For Speed And Reliability
Meets SAE J706 And CE Specifications
Limited Lifetime Warranty on Mechanical Components, Limited 5 year Warranty on Electrical Compon

Specifications:

TYPE	Hydraulic
MOUNT TYPE	Vehicle Mounted
RECOMMENDED USE	Industrial
VOLTAGE	Not Applicable
MOTOR HORSEPOWER	Not Applicable
ELECTRICAL CONTROL TYPE	Not Applicable
THERMAL SHUTOFF	No
DRIVE GEAR TYPE	Planetary
GEAR REDUCTION RATIO	36:1
FREE SPOOLING	Yes
BRAKE TYPE	Spring Applied Disc
LINE DIAMETER (IN)	No Rope
LINE LENGTH (FT)	No Rope
LINE MATERIAL	No Rope
FAIRLEAD TYPE	No Fairlead
CONFORMS TO J706 STANDARDS	Yes
REMOTE TYPE	No Remote
MOUNTING HOLE QUANTITY	8
OPERATION TYPE	Automatic
MOUNTING PATTERN LENGTH (IN)	18 Inch
MOUNTING PATTERN WIDTH (IN)	7-1/2 Inch
INCLUDES MOUNTING HARDWARE	No
COLOR	Black
MAX LINE PULL/ LINE SPEED	30000 Pound/ 21.9 Feet Per Minute
