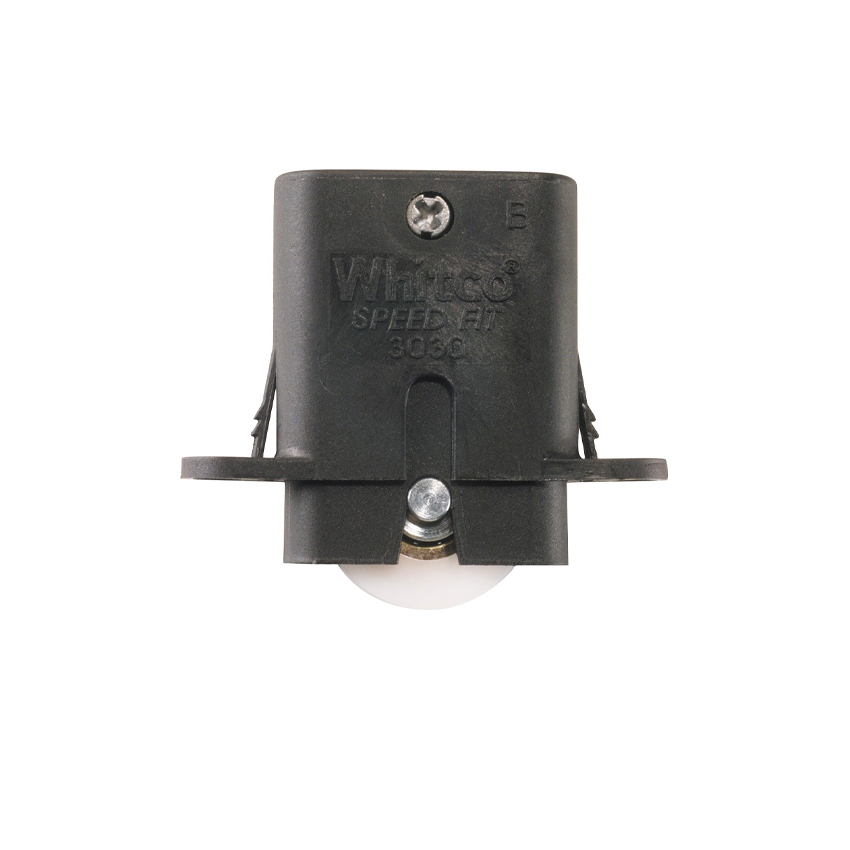

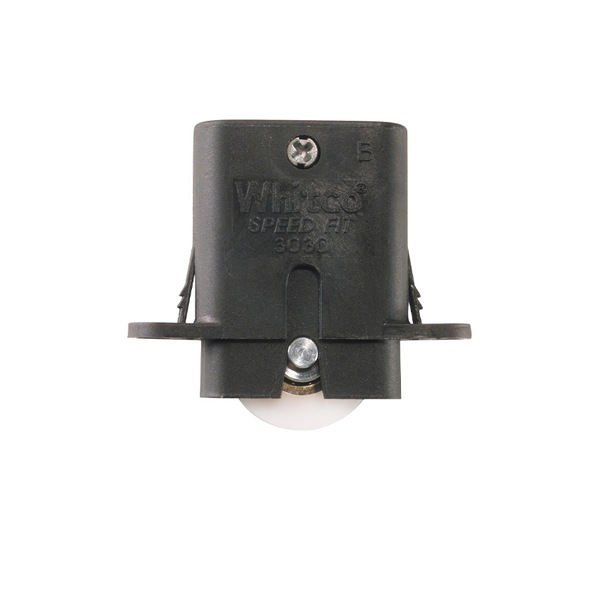

Whitco Sliding Screen Door Roller Spring Loaded Black W862600

Whitco Sliding Screen Door Roller Black
W862600

Please Note: Screws are NOT included

Includes:

• 1 x Sliding Screen Door Roller

Features:

• For use on Sliding Screen and Sliding Security Screen Doors.
• 'Speed Fit' applicator lugs
• Offset wheel function*
• Fully adjustable under load
• Spring Loaded Large 11mm adjustment
• Adjustable from both sides Quick insert rim
• Inner case will not dislodge
• A + B identification for offset applications
• Retrofits existing rollers Suits both top and bottom rails

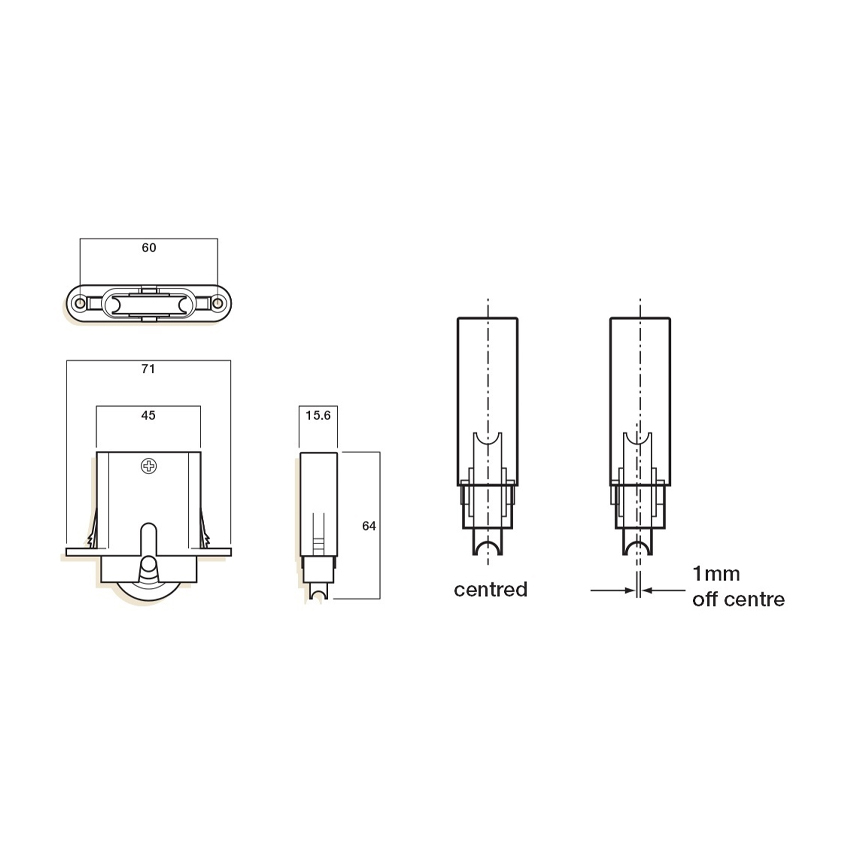

Offset Wheel Function

To offset the door in order to reduce scraping or clashing with another door panel simply remove only the roller from the unit, rotate it 180 degrees, then replace it back into the unit. This will offset the panel or door 1mm.

Note: If the offset is incorrectly placed remove the entire unit, rotate it 180 degrees and then replace the entire unit.
