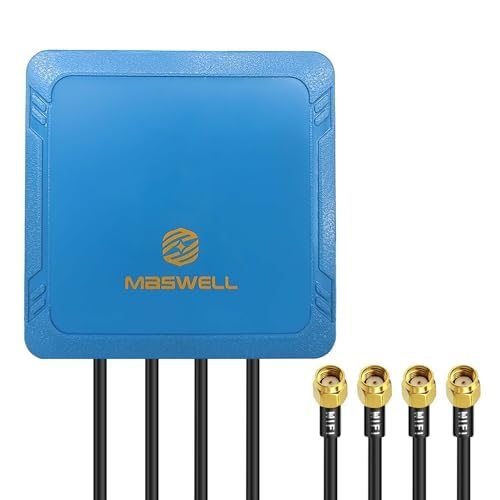

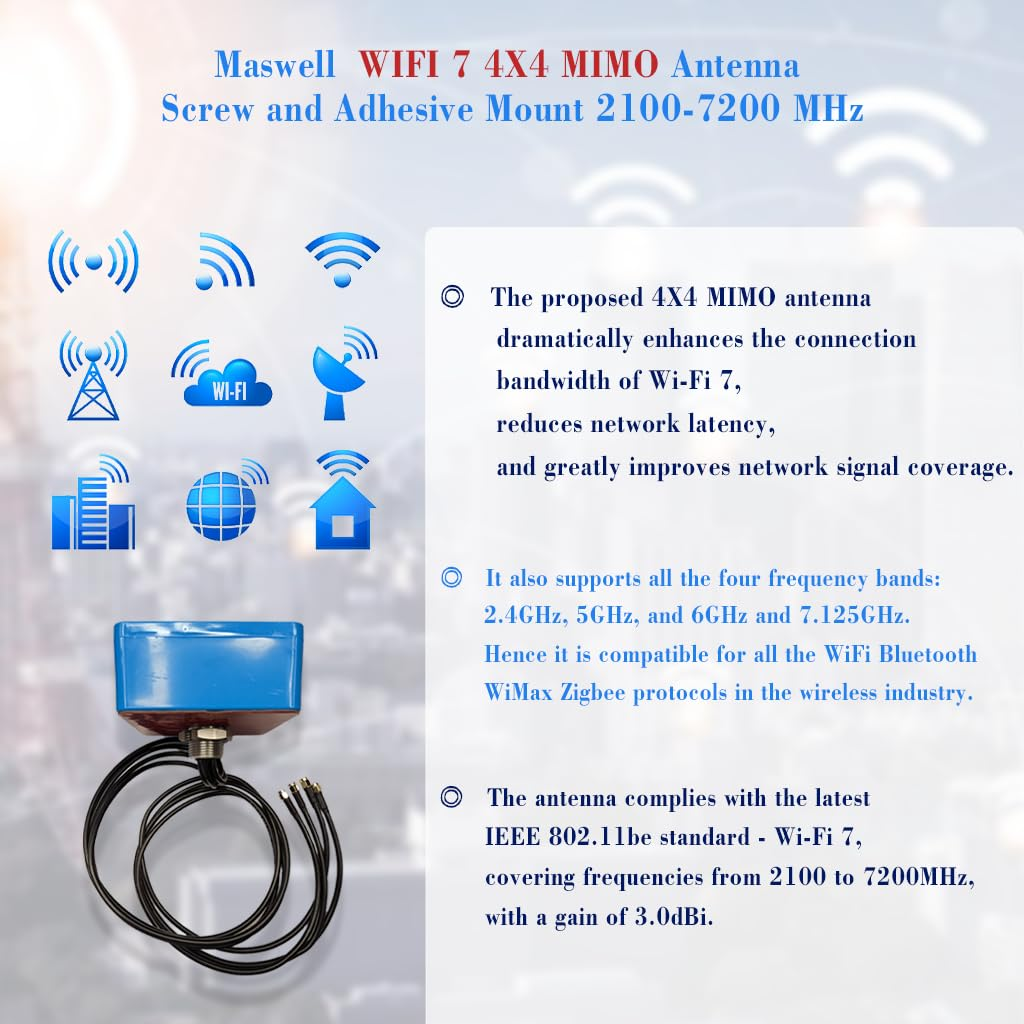

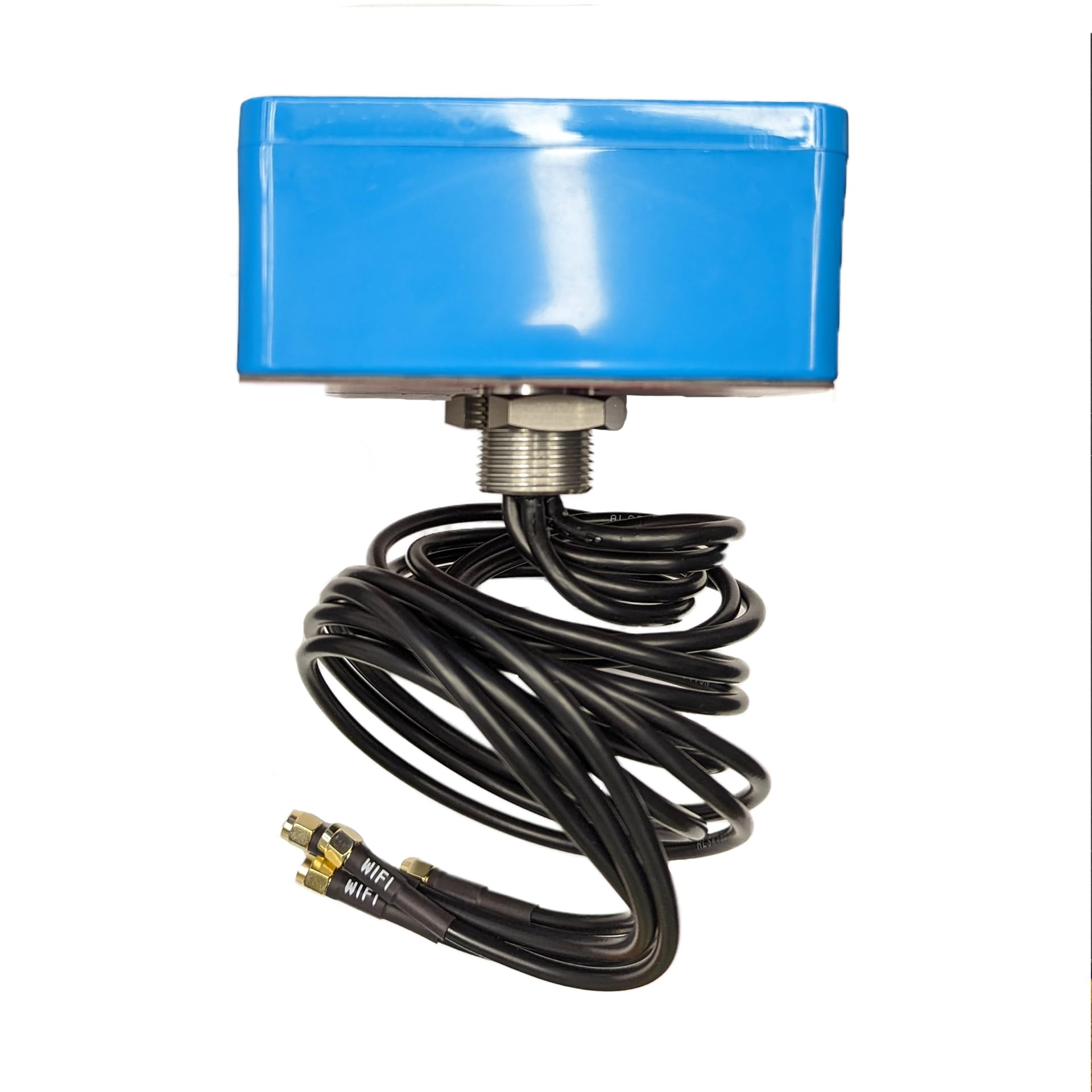

WiFi 7 WiFi 6E Antenna 4X4 MIMO 2100-7200 MHz Omnidirection Bluetooth M2M IoT

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Hurry! 5 items left!
$145

Collect 145 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by RF Outlet
Secure ways to pay at checkout

Brand Maswell

ITEM ID: AN.AG50.4WiFi.7125.40

All WiFi Bands Supported: WiFi 2.4GHz, WiFi 5GHz, WiFi 6 and WiFi 6E at 7.125GHz 4X4 MIMO version

All Bluetooth Zigbee Wimax bands Supported

M2M Communication, Router signal reception, Vending Machine and IoT Boxes outdoor and indoor applications.

IP66 waterproof standard passed: EN 60529:1991+A1:2000+A2:2013+AC:2019 and GB/T4208-201

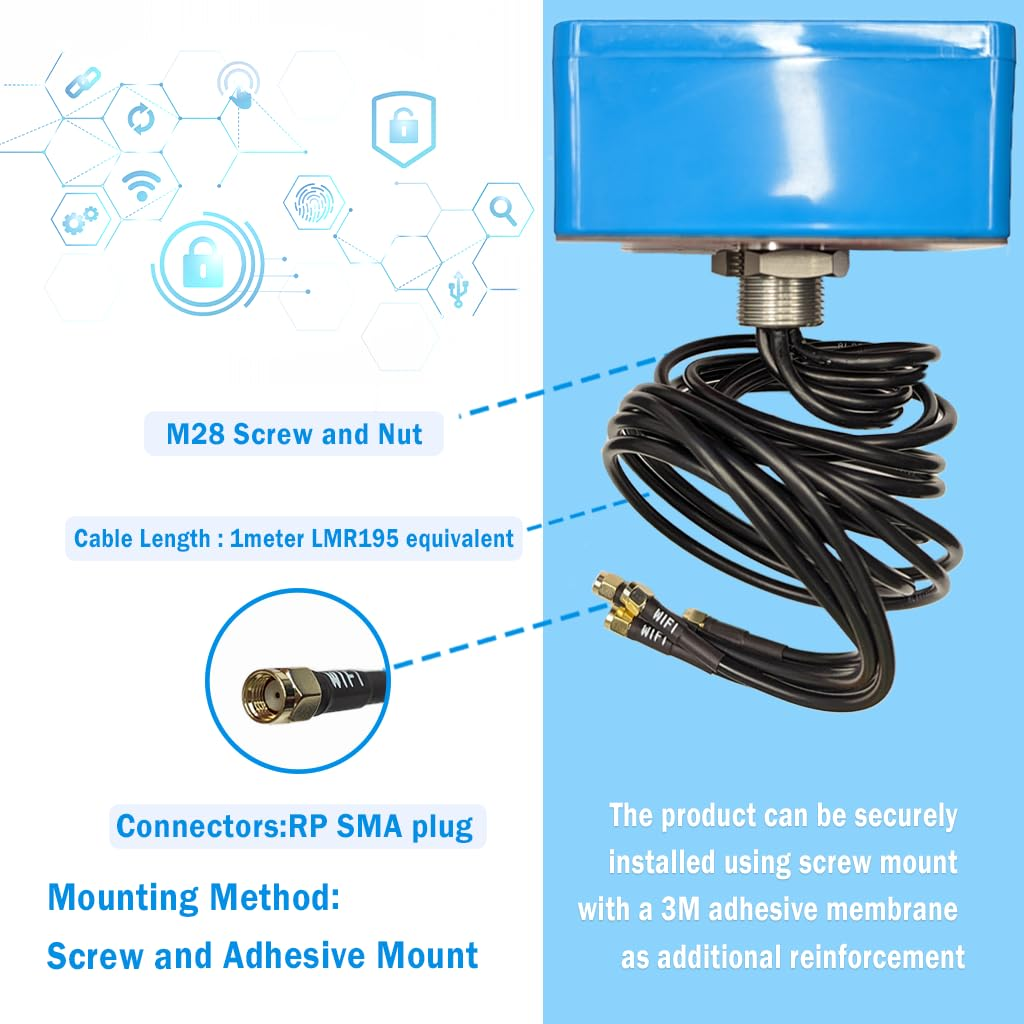

  • Screw Mount with 3M adhesive under the radome

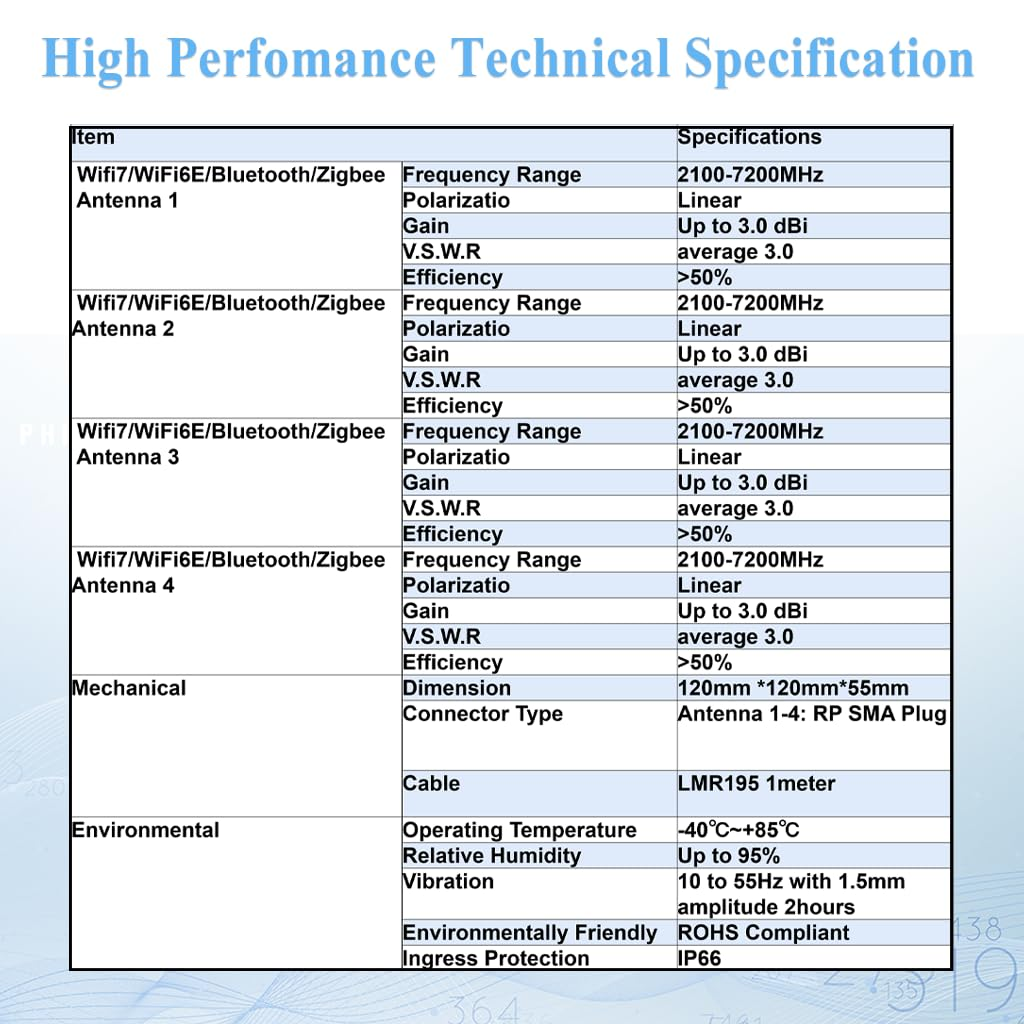

Specifications:

Specifications

Antenna1-Antenna 4:

Operation Frequency 2100-7200MHz

Gain: medium Gain Up to 3dBi Omnidirectional

V.S.W.R(5m) 2 : 1

Band Width 5100Mhz
Impendence 50 ohm

Polarization Type Linear

Cable LMR195 (1m)
Connector RP SMA plug for all 4 leads

Working Temp -40Degrees Celsius~+85Degrees Celsius

Humidity 55%~75%RH

UV Stabilized Yes

Waterproof IP66: EN 60529:1991+A1:2000+A2:2013+AC:2019 and GB/T4208-201

Size: 120mm *120mm*55mm

Mounting type: M28 Screw and 3M adhesive

  • Works for 2.4GH WiFi, WiFi 5G ,WiFi 6, WiFi 6E and all the Bluetooth Wimax Zigbee equipment
  • Square shape with M28 screw and 3M adhesive mounting.

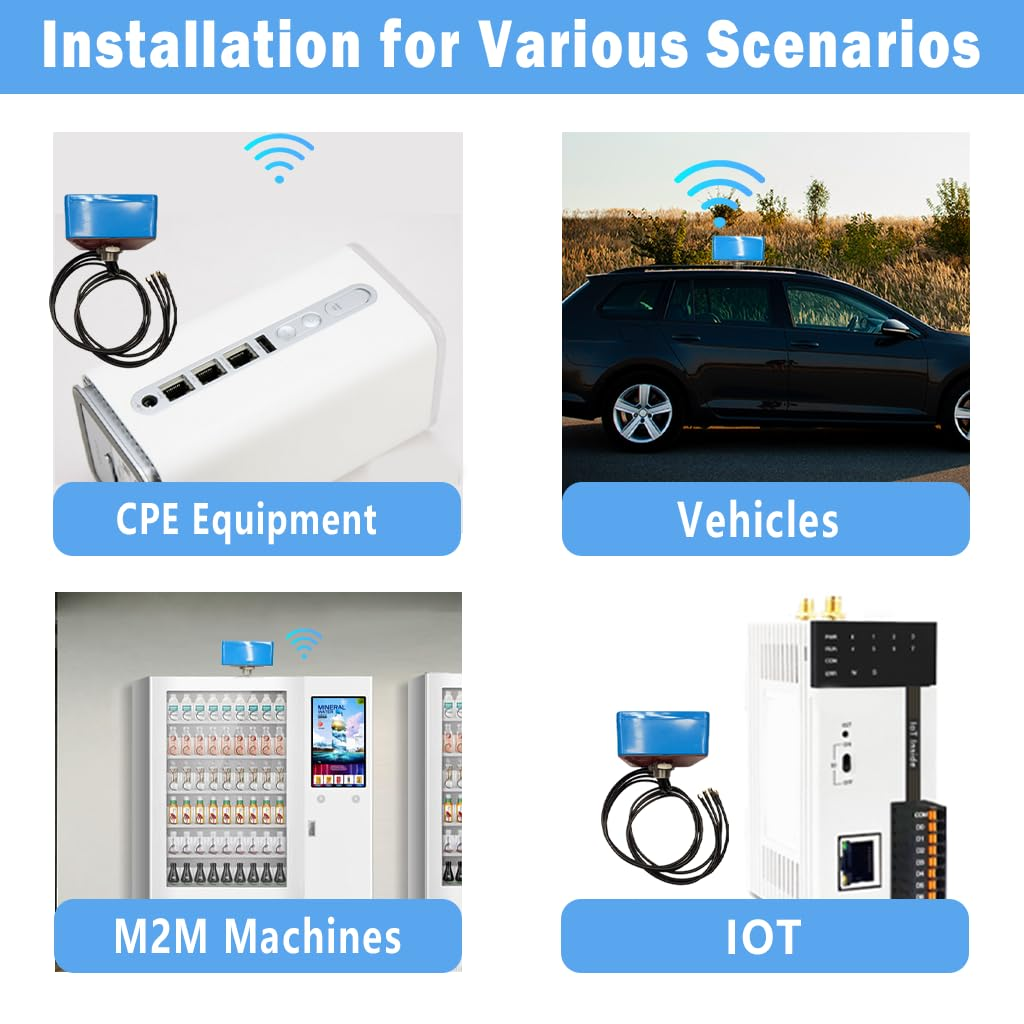

  • Suitable for various routers indoor/outdoor wifi/bluetooth/zigbee/wimax signals transmitting and reception
  • IP 66 waterproof: for all outdoor environment
  • Compatible with M2M communication for Vending Machine IoT Box Vehicular Equipments,
  • WiFi 6E @7.125GHz Suitable!

GTIN: 735942985411
