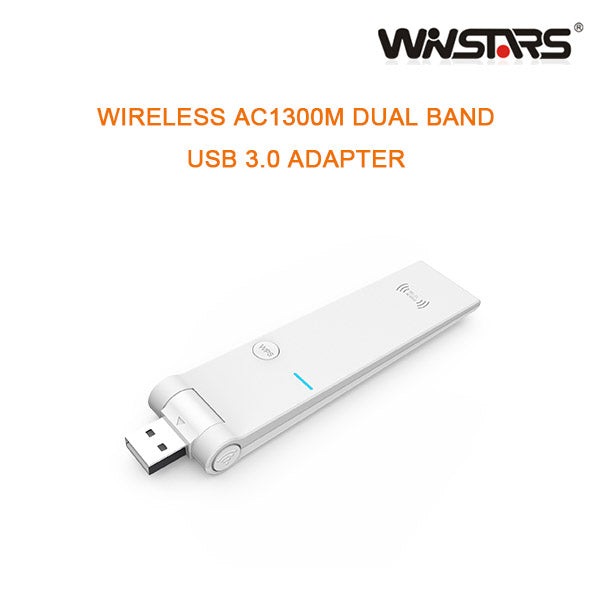

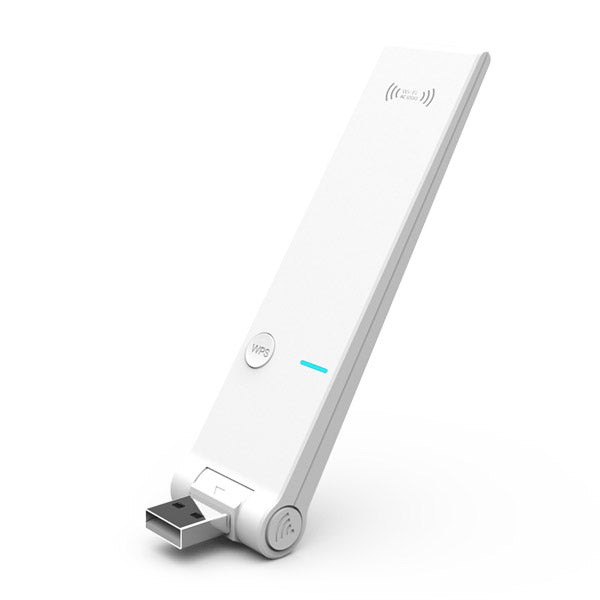

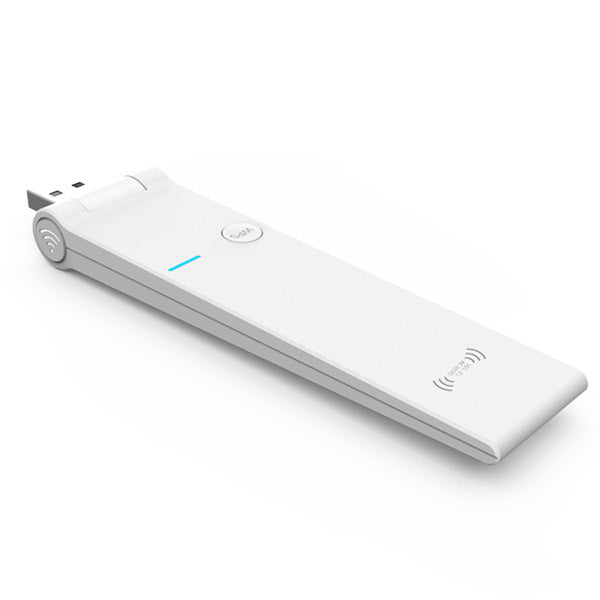

WINSTAR WIRELESS AC1300M DUAL BAND USB 3.0 ADAPTER

Image 1
Image 2
Image 3
Image 4
$56.98

Collect 56 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping
Sold & shipped by Auzzi Store
Secure ways to pay at checkout

Features



1300 (867+400)Mbps wireless speed



Support 2.4GHz & 5GHz WLAN networks



Dual Band connections for lag-free HD video streaming and gaming



SuperSpeed USB 3.0 port, backward compatible to USB 2.0



Complies with IEEE 802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b standards



20MHz & 40MHz & 80MHz bandwidth transmission



OFDM with BPSK, QPSK, 16QAM, 64QAM, 256QAMmodulation



Supports Windows XP / Vista / 7 / 8 / 8.1/10, MAC



Specification



Hardware



Ports: USB 3.0



Button: WPS



LED: 1 X Link/ Active



Chipset:RTL8812AU



Flash: N/A



SDRAM: N/A



Power Supply: USB 5V



Power Plug: N/A



Power Consumption:



Rated Voltage/ requency /current:DC 5V about 500mA



Wireless



Standard:IEEE802.11ac,IEEE 802.11a, IEEE 802.11b,IEEE 802.11g,IEEE 802.11n



Modulation:



11ac/n: 16QAM, 64QAM 128QAM 256QAM with OFDM



11g: BPSK, QPSK, 16QAM, 64QAM, OFDM



11b: DQPSK, DBPSK, DSSS, CCK



Speed:



802.11ac: up to 867Mbps



802.11n: up to 400Mbps



802.11a: up to 54Mbps



802.11g: 54 M



802.11b: 11 M



Frequency band:5GHz and 2.4GHz



Power:



802.11b: 22dBm 2 dBm 802.11g: 16dBm 2 dBm



802.11n: 15dBm 2 dBm 802.11ac: 14dBm 2 dBm



Distance:Outdoors 300m, Indoor 100m(According to the actual environment change)



Safely 64/128-bit WEP, AES,TKIP,WPA,WPA2,802.1x,WPA-PSK,WPA2-PSK,MAC, WDS



Environmental



Operating Temperature:0oC~40oC



Storage Temperature:-10~70



Relative Humidity(Operational): 10%~90%,noncondensing



Relative Humidity(Storage):10%~90%,noncondensing



Software



Standard Version



RFC768 User Datagram Protocol(UDP)



RFC791 Internet Protocol(IP)



RFC792 Internet Control Message Protocol



RFC793 Transmission Control Protocol(TCP)



bandwidth 20MHz & 40MHz & 80MHz



Wireless Mode 11ac only, 11n only, 11g only & 11b only(option)



System Windows XP / Vista / 7 / 8 / 8.1/10, MAC



Product weight and dimensions



Item Weight: 0.25 KG



Product Dimensions: 98mm L x 28mm W x 10mm (L x W x H)



Package content



1 x Wireless-AC USB3.0 Aapter



1 x Quick Installation



1 x CD driver

MPN: V28-USBWIN688U3
