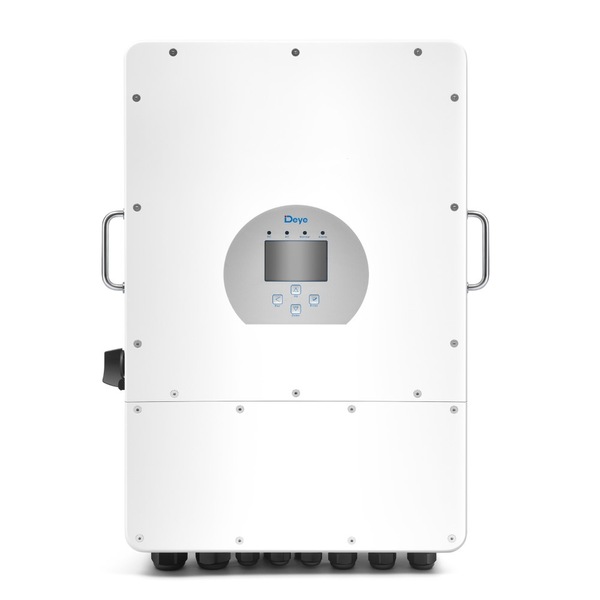

Deye 12KW 12000W Hybrid Solar Inverter MPPT Charger Regulator 48V Low Voltage

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
Hurry! 6 items left!
$6699

Collect 6699 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Ozzie Energy
Secure ways to pay at checkout
Profile

Power your home or business with confidence—on-grid, off-grid, or anywhere in between. The 12KW Deye Multi-Function Hybrid Inverter is a powerful, future-ready solution that seamlessly integrates solar generation, battery storage, and grid backup. Whether you're preparing for outages, optimizing energy costs, or going fully off-grid, Deye delivers unmatched flexibility, efficiency, and reliability in one compact system.

Features
  • 【Top-Tier Efficiency, Trusted Performance】With up to 97.6% maximum efficiency and 99.9% MPPT efficiency, Deye ensures every drop of solar energy is put to work. Save more, waste less, and enjoy seamless operation day after day.

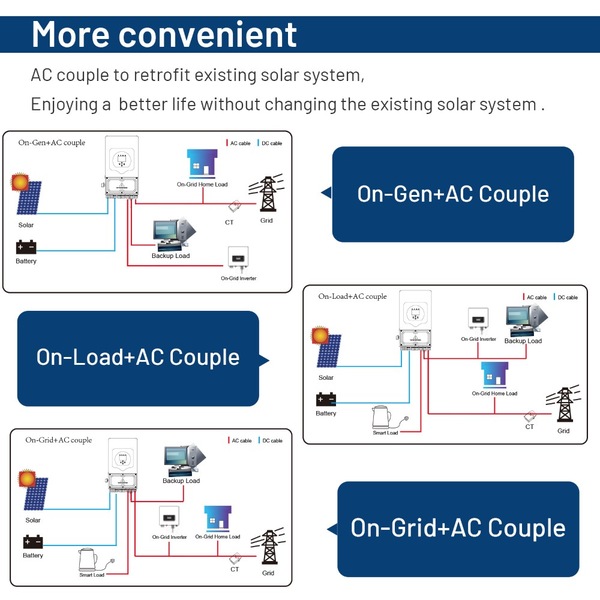

  • 【Unmatched Flexibility & Scalability】Supports up to 16 units in parallel, both on-grid and off-grid, plus multiple battery connections—perfect for everything from residential rooftops to commercial microgrids. Compatible with lithium and lead-acid batteries and even supports charging from diesel generators.

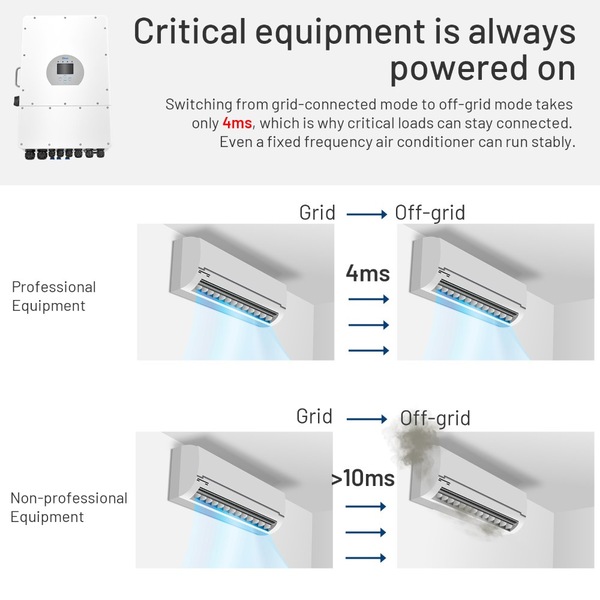

  • 【Ultra-Fast Switching】Enjoy a 4ms transfer time from grid to battery power—so fast, even traditional appliances like fixed-frequency air conditioners won’t blink. You stay cool, connected, and in control.

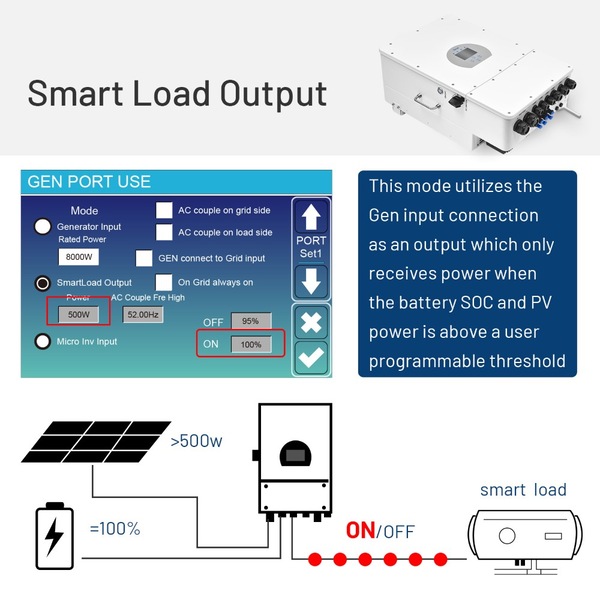

  • 【Smarter Energy Use】Intelligent features like Smart Load Management and Grid Peak Shaving help balance energy loads, lower peak demand charges, and maximize your system ROI over time.
  • 【Reliable After-sales Support】With IP65 waterproof protection, -40°C to +60°C operating range, and smart cooling, the Deye inverter is ready for real-world use. Backed by a 10-year warranty and full certification for Australian standards (AS/NZS 4777.2), it’s ready to power your future with peace of mind.

Specifications
  • Quick Look

    • Rated Output: 12KW
    • Battery Voltage: 48V
    • Max Efficiency: 97.6%
    • Warranty: 10 Years

  • Battery Input Data

    • Battery Type: Lead-acid or Lithium-ion
    • Battery Voltage Range (V): 40~60
    • Max. Charging Current (A): 240
    • Max. Discharging Current (A):240
    • Charging Curve: 3 Stages / Equalization
    • External Temperature Sensor:Yes
    • Charging Strategy for Li-Ion Battery: Self-adaption to BMS

  • PV String Input Data

    • Max. DC Input Power (W):15600
    • Rated PV Input Voltage (V):550 (160~800)
    • Start-up Voltage (V):160
    • MPPT Voltage Range (V):200-650
    • Full Load DC Voltage Range (V):350-650
    • PV Input Current (A):26+13
    • Max. PV ISC (A): 39+19.5

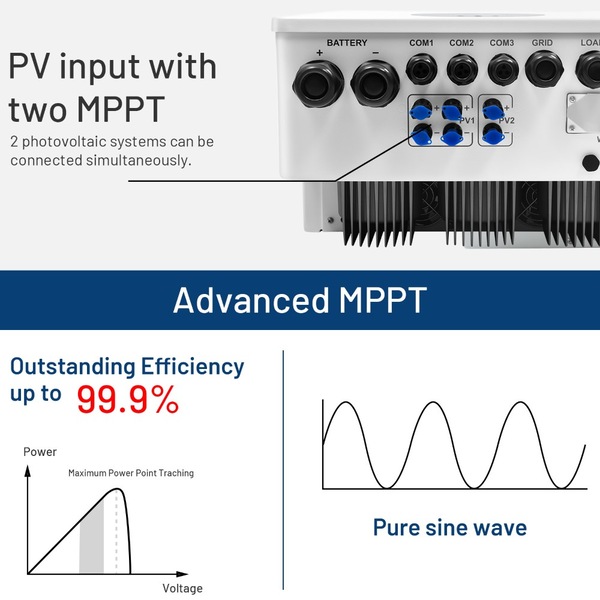

    • Number of MPPT / Strings per MPPT: 2/2+1

  • AC Output Data

    • Rated AC Output and UPS Power (VA): 12000
    • Max. AC Output Power (W): 12000
    • AC Output Rated Current (A):17.4
    • Max. AC Current (A):17.4
    • Max. Continuous AC Passthrough (A):45
    • Peak Power (off grid) :2 time of rated power, 10 S
    • Power Factor:0.8 leading to 0.8 lagging
    • Output Frequency and Voltage:50Hz; 3L/N/PE 400V/340V-440V 415V/353V-456.5V

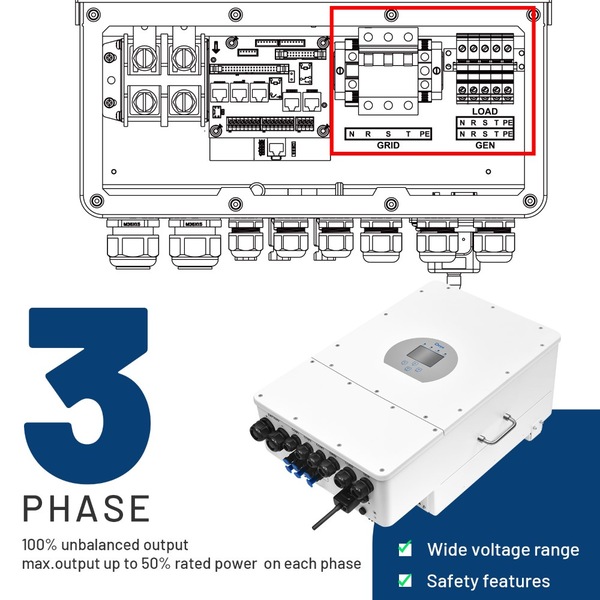

    • Grid Type: Three Phase
    • DC injection current (mA):THD<3% (Linear load<1.5%)
    • Efficiency:
    • Max. Efficiency:97.60%
    • Euro Efficiency:97.00%
    • MPPT Efficiency: 99.90%

  • Certifications and Standards

    • Grid Regulation : AS/NZS 4777.2
    • Safety EMC / Standard: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2

  • General Data

    • Operating Temperature Range (°C):-40~60°C, >45°C derating
    • Cooling : Smart Cooling
    • Noise (dB): <45 dB
    • Communication with BMS:RS485; CAN
    • Protection Degree: IP65
    • Installation Style: Wall-mounted
    • Warranty: 10 Years

  • Dimensions & Weight

    • Weight (kg):33.6
    • Size (mm):422W x 702H x281D

  • Package List

    • 1x 12KW Deye Hybrid Inverter

    Future-Proof Your Energy—Go Hybrid with Deye Today!
    Reliable. Scalable. Smart. Whether you're optimizing your energy bills or preparing for grid instability, the Deye Hybrid Inverter is your all-in-one solution. Don't settle for less—upgrade your solar power system today.

GTIN: 9355348000351

Estimated Delivery Time Frame:3-12 business days

Ask a Question About This Product

Reference ID: 1243138

More from this brand

Deye
