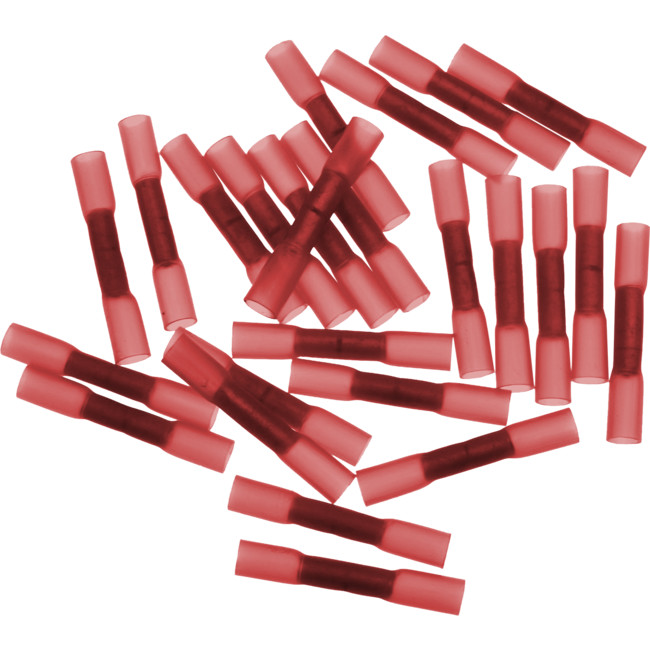

CABAC WPS1.25K-25 25Pk Water Proof Sleeve - Red Glue & Heatshrink Insulation

Image 1
Hurry! 2 items left!
$32.95

Collect 32 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Radio Parts
Secure ways to pay at checkout
Water Proof Splice Kit

Kit packs are useful to a smaller user, who only wants a few terminals to complete a job.Supplied in handy merchandiser zip lock bags,they can be re-sealed.

Pre-insulated Terminal Features
  • High quality product meeting International Standards
  • Funnel entry terminals allow easy conductor entry,minimising substandard crimps
  • Long term electrical integrity
  • Voltage rating 300V
  • Full technical back up including QA
  • Conforms to AS 3169 and AS4437

Note: All terminals should be crimped onto the conductor with a quality crimper that is designed to crimp the specific terminal type.

Technical Data
Conductive Material
(Quick Connect Range)
Brass 30% Zinc, 70% Copper
Tensile Strength 580 MPa
Ductile Rating 6% min
Final Metal State Annealed
Working Temperature
Pre-Insulated -40°C to +105°C
Brass 145°C
Tin plated 160°C
Conductive Material
(Except Quick Connect Range)
Copper 99.9% Pure
Tensile Strength 200 MPa
Ductile Rating 35% min
Final Metal State Fully Annealed
Oxygen Content 50ppm max
General Electrical Properties
Total Conductivity 99.5% IACS
Total Resistivity 1.738 micro-ohm cm
Electroplating
Material Tin
Tin Content 99.9%
Other Metals Lead + Antimony
Plating Thickness 2.5 microns

Insulation
Material PVC for all except nylon 6 or nylon 66 for FIQC
Breakdown Voltage 1.5kV (min)
Insulation Resistance Above 100 meg ohms
Working Voltage Up to 300V AC/DC
Conformant Standards
AS4437, AS3169 Australia
CSA Canada
IEC Europe
UL Nema USA
Demko Denmark
DIN VDE Germany
Kema Holland
JIS Japan; Nemko Norway
ASE Switzerland
BS United Kingdom
Torque Recommendations

For hardware being metric 8.8 tensile grade.

Thread Dia. (mm) Torque (Nm)
3 2
4 3
5 5
6 9
8 22
10 44
12 77
Nominal Pull Out Force

Pull out should be checked for each tool/terminal combination.

Wire Size (mm’) Pull Out Force kg (N)
0.25 4.6 (45)
0.50 6.0 (59)
0.75 8.6 (84)
1.00 10.1 (100)
1.50 13.2 (130)
2.50 19.6 (192)
4.00 26.5 (260)
6.00 35.2 (345)

Weight: 0.03
