X-Rite I1Basic Pro 3 Plus Spectral Color Accuracy Display Measurement

i1Basic Pro 3 Plus is an affordable, professional-level spectral color measurement solution including display and projector profiling and print quality assurance.

Overview:

The Standard of Color Perfection

Designed for imaging professionals who rely on accurate color for their displays and projectors who want to track and verify monitor and print quality and who need to capture spot color measurement, the i1Basic Pro 3 Plus is the answer.

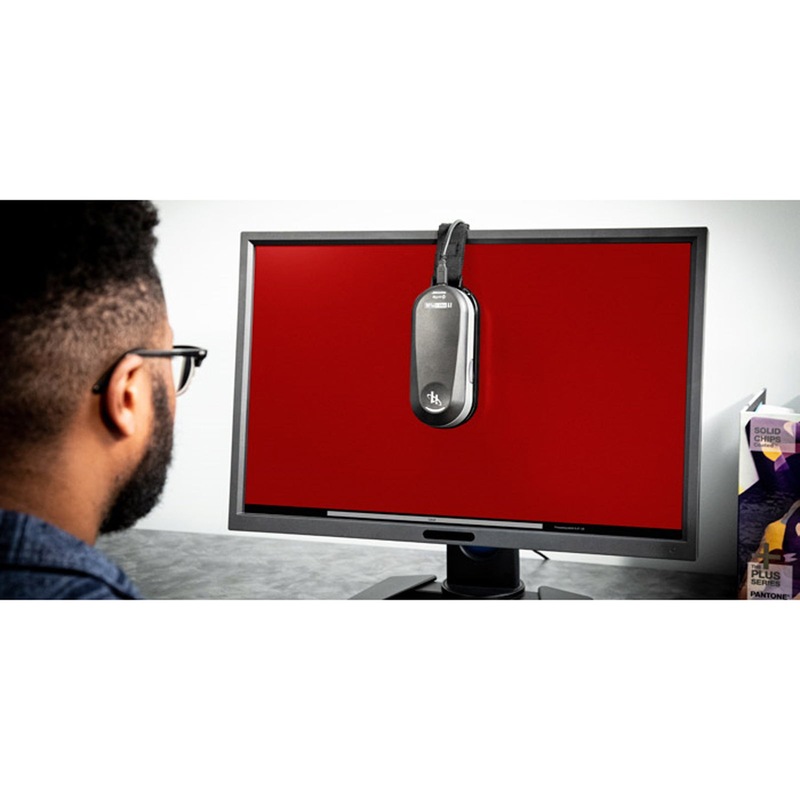

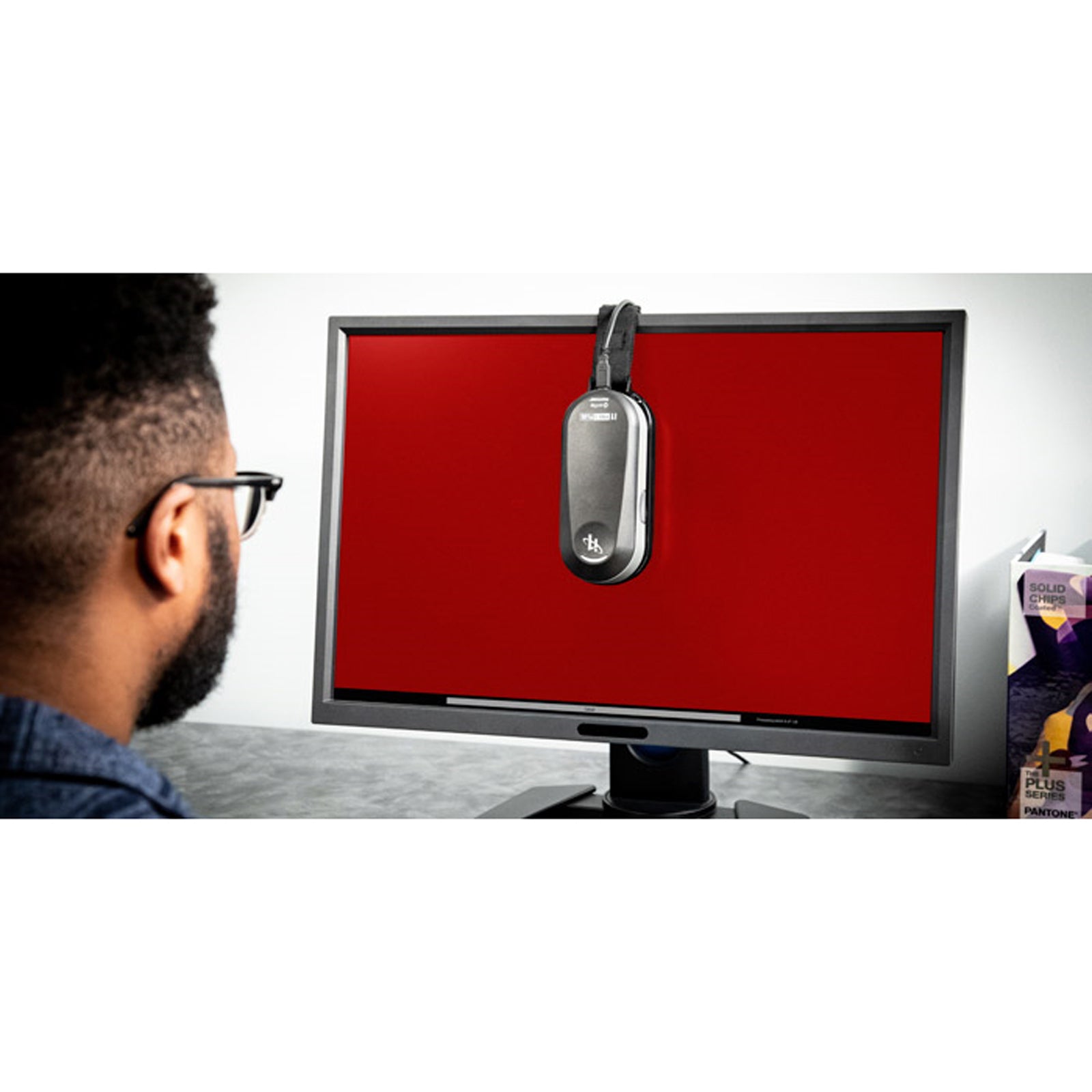

The i1Basic Pro 3 Plus calibrates and matches multiple displays, including up to four displays connected to a single computer as well as unlimited multiple monitors connected to different computers for consistent color viewing.

With the i1Basic Pro 3 Plus, you can quickly and easily create custom monitor and projector profiles that ensure the colors you view are true, verify soft proofs and print quality with built-in Quality Assurance (QA) tools, and easily capture and manage spot colors.

Benefits:

Large aperture (8mm) with support for high brightness levels (up to 5000nits), improve emissive measurement, resulting in the best possible calibration and profiling of monitors and projectors.

Full support for the latest video standards, including NTSC, ITU-R-Rec.BT.709 and PAL SECAM broadcast video standards.

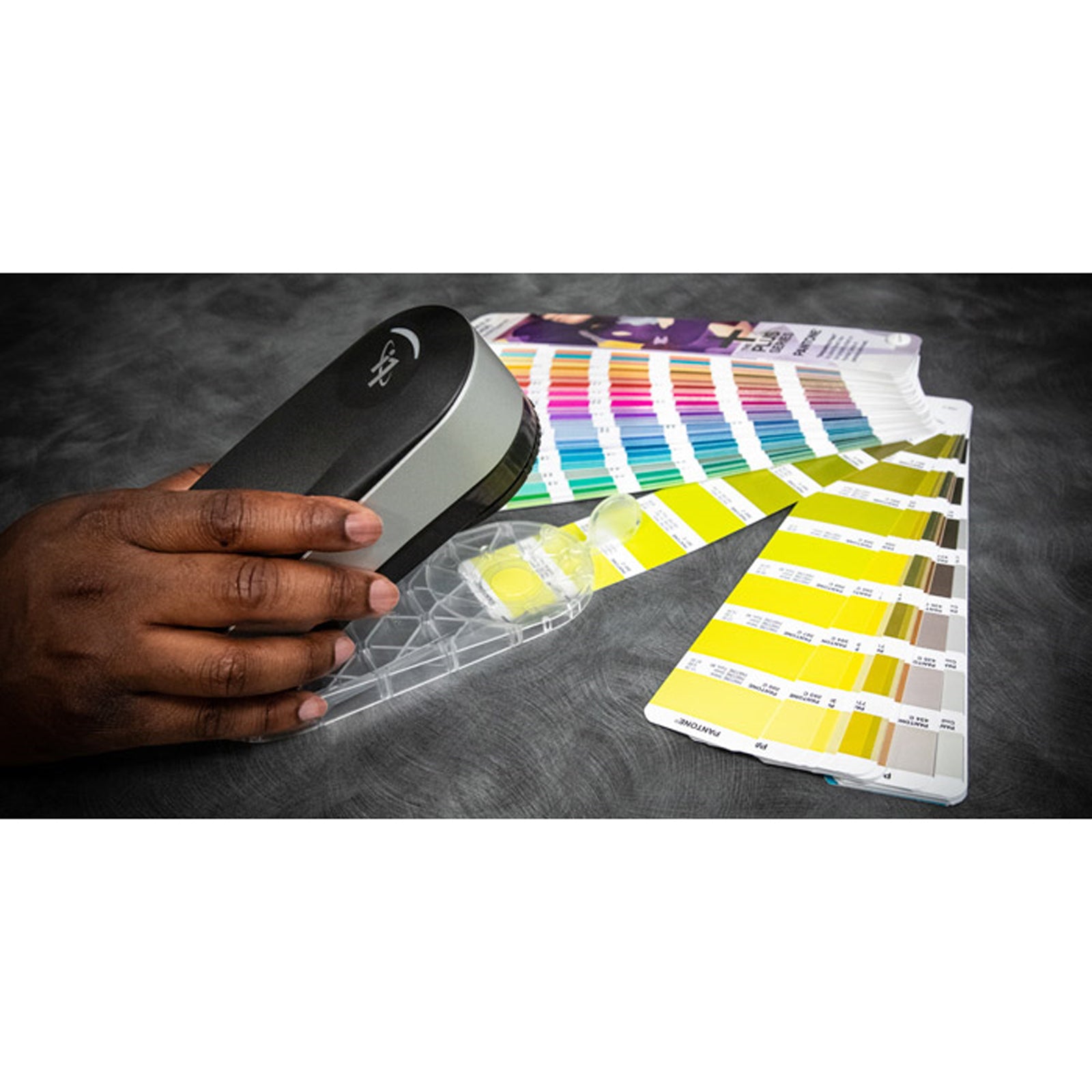

PANTONE Color Manager software enables accurate capture and management of spot colors and helps users build palettes of best match PANTONE colors that are auto-extracted from their own images.

Easy upgrade to i1Publish software to add complete printer (RGB, CMYK, CMYK + any four) profiling and quality control functionality, and camera profiling capabilities.

For increased automation, use the optional i1iO automated hands-free chart reader or add an i1iSis 2 automated chart reader for creating printer profiles.

Specifications

Aperture: Measurement aperture: 8 mm (0.31") diameter (effective measurement aperture during scanning is depending on the patch size and measurement speed)

Available Disk Space: 2GB

Calibration: Manual on external ceramic white reference (included)

Communication Interface: USB 1.1

Connectivity: Powered USB port

Dimensions (length, width, height): i1Pro device: 162 mm x 69 mm x 64 mm (6.4" x 2.7" x 2.5")

Display Resolution: 1024x768 pixels or higher

Experience Level: Intermediate to Advanced

Humidity: 30 to 85% RH (non-condensing)

Illumination Spot Size: 12 mm (0.47")

Inter-Instrument Agreement: 0.4 E00* average, 1.0 E00* max. (deviation from X-Rite manufacturing standard at a temperature of 23oC (73.4oF) on 12 BCRA tiles (D50, 2o)

Internet Connection: Required for software install, download and automatic update

Languages Supported: Chinese (Simplified), English, French, German, Italian, Japanese, Korean, Portuguese, Spanish

Light Source: i1Pro3 Plus LED Illumination (including UV)

Macintosh: MacOS X 10.11x, 10.12x or 10.13x (with latest upgrades installed)

Measurement Conditions

M0 - UV included - ISO 13655:2017

M1 - D50 - ISO 13655:2017

M2 - UV excluded Filter - ISO 13655:2017

M3 - Polarization - ISO 13655:2017

Measurement Frequency in Scanning Mode: 400 measurements per second

Measurement Geometry: 45o:0o ring illumination optics, ISO 13655:2017

Measurement Spot: 8mm (0.315")

Media Thickness: 1mm or less

Memory: 2GB Minimum

Number of Displays Supported per Workstation: Up to 4

Operating Temperature Range: 10oC to 35oC 50oF to 95oF

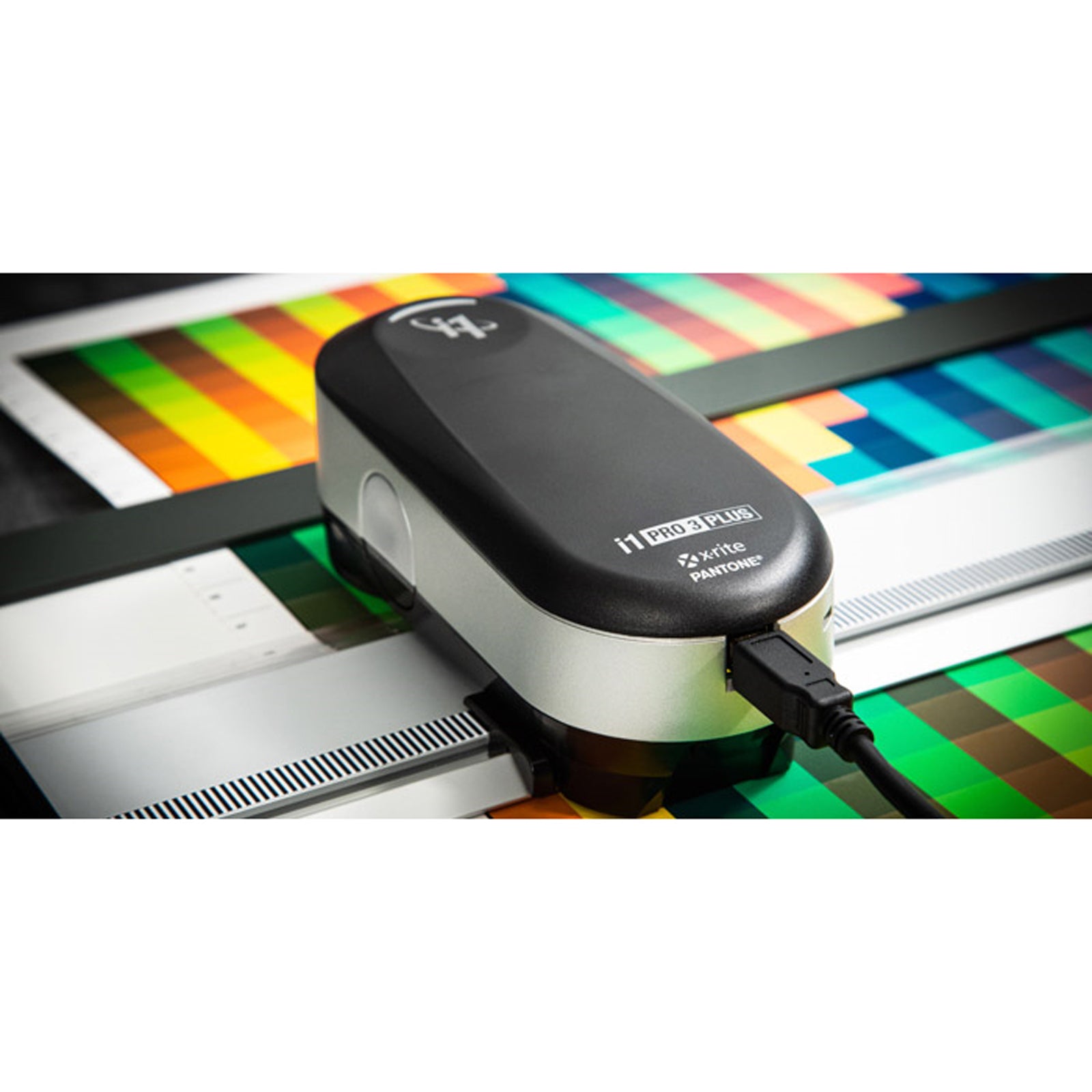

Patch Size: Minimal Patch Size in Scanning Mode: 16 x 16 mm (0.63" x 0.63") (Width x Height) with sensor ruler 20 x 16 mm (0.79" x 0.63") (Width x Height) without sensor ruler

Photometric Range: 10nm; Sampling interval 3.5nm

Processor: MAC: Intel Core 2 Duo CPU or better; WINDOWS: Intel(R) Core 2 Duo or AMD Athlon(TM) XP or better

Scan Length: Maximum 515mm (20.28")

Scanner Target Support: Yes

Scanning Capability: Yes

Security: User must have Administrator rights to install and uninstall the application

Short Term Repeatability - White

Reflectance: 0.1 E94* (D50,2o, mean of 10 measurements every 3 seconds on white)

Spectral Analyzer: i1(R) technology with built-in wavelengths check; Holographic diffraction grating with 128-pixel diode array

Spectral Range: 380 - 730 nm

Spectral Reporting: 380 ... 730 nm in 10 nm steps

Storage Temperature Range:

-20o to 50oC

-4o to 122oF

Supported Profile Format: ICC version 2, version 4.3, & iccMax

User Experience: Choose between a 'basic', wizard-driven interface or an 'advanced', user-driven interface for highest level professional results

Video Card: MAC: Latest drivers for video card installed

WINDOWS: Latest drivers for video card installed, dual display support requires either 2 video cards or a dual head video card that supports dual video LUTs being loaded

Warranty: Twelve months from the date of sale, unless different local regulations apply. Product registration is required to receive X-Rite technical support during the warranty period. Registration can occur directly through the software, on our website, or via phone. Users are encouraged to register their product within the first 30 days of use.

Weight: i1Pro device: 285 g (10.1 oz)

Windows: Windows 7, 8, 8.1, 10 (with latest Service Pack installed)

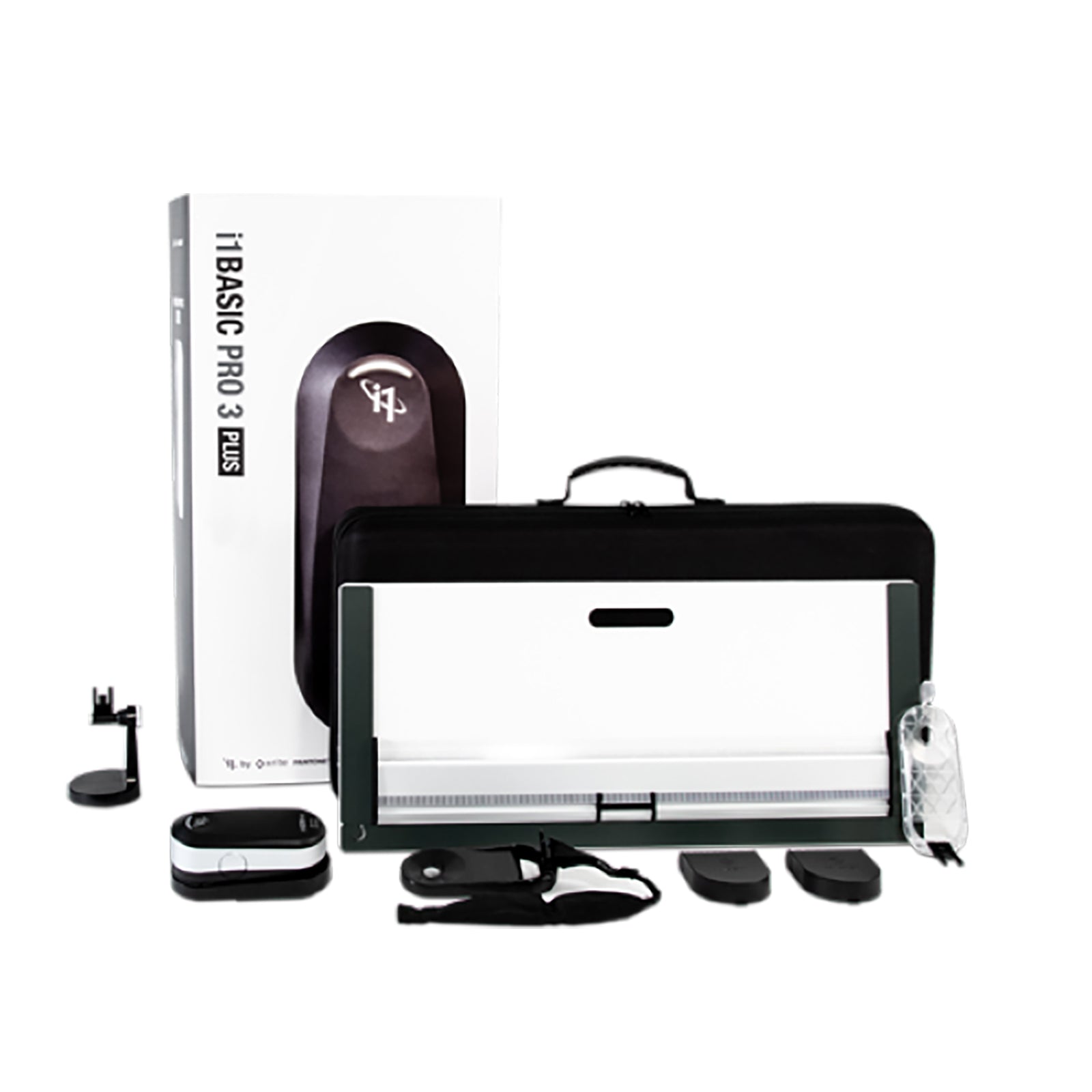

IN THE BOX:

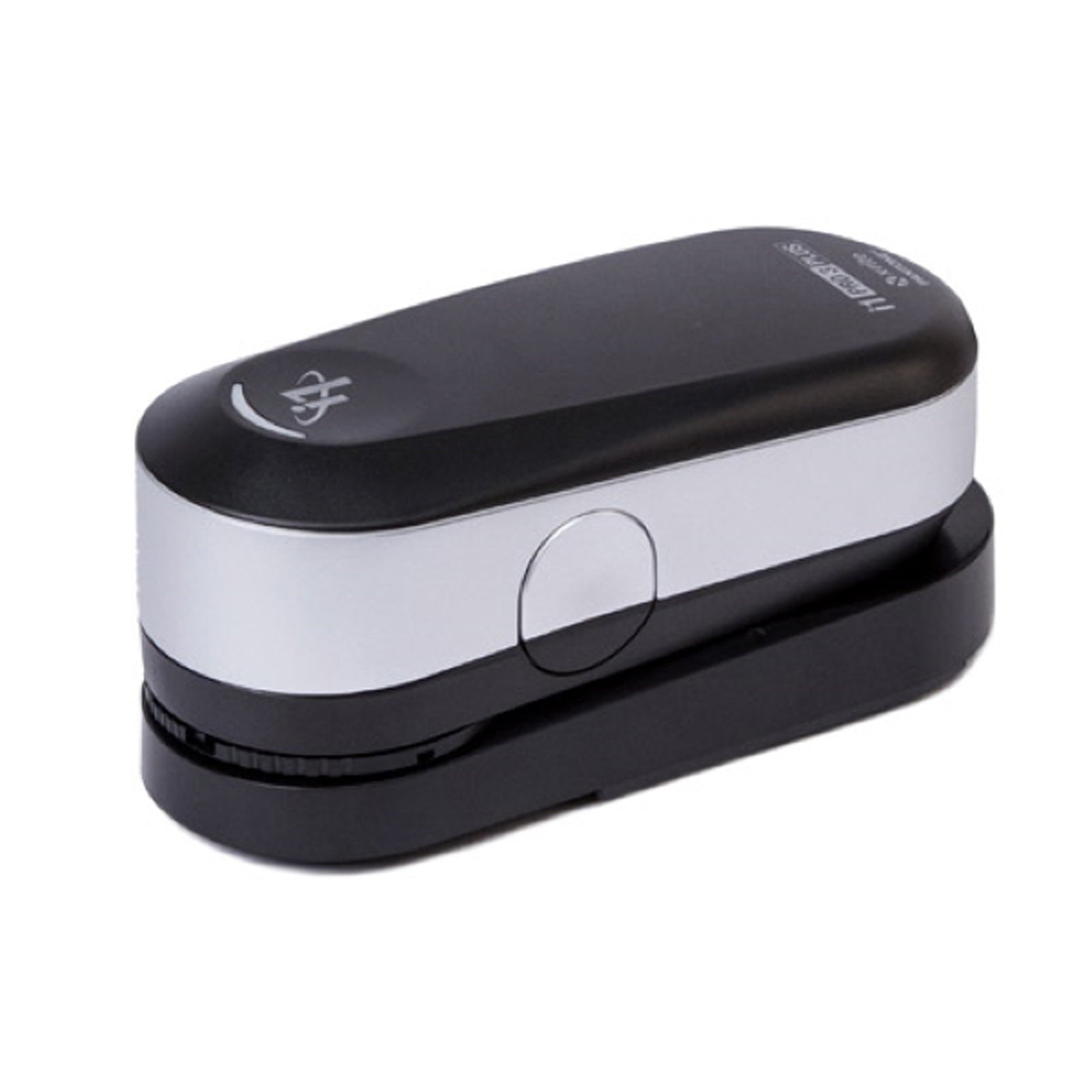

i1Pro 3 Plus spectrophotometer (measurement device)

calibration plate, polarizing filter

ambient light measurement head

monitor holder

positioning target

XL scanning ruler

XL backer board

USB cable

i1Pro.....
