Highlights:

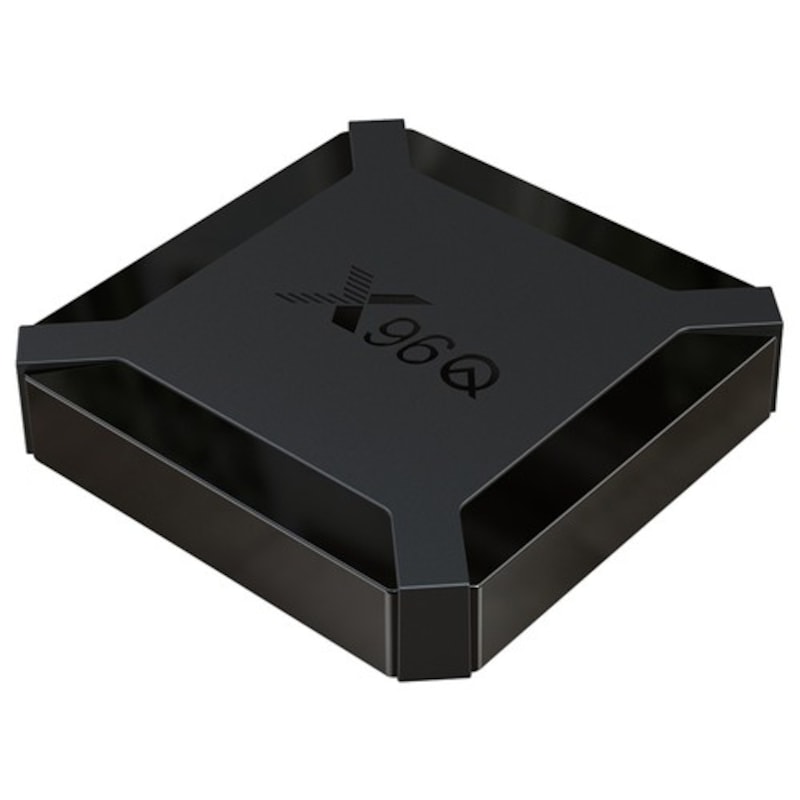

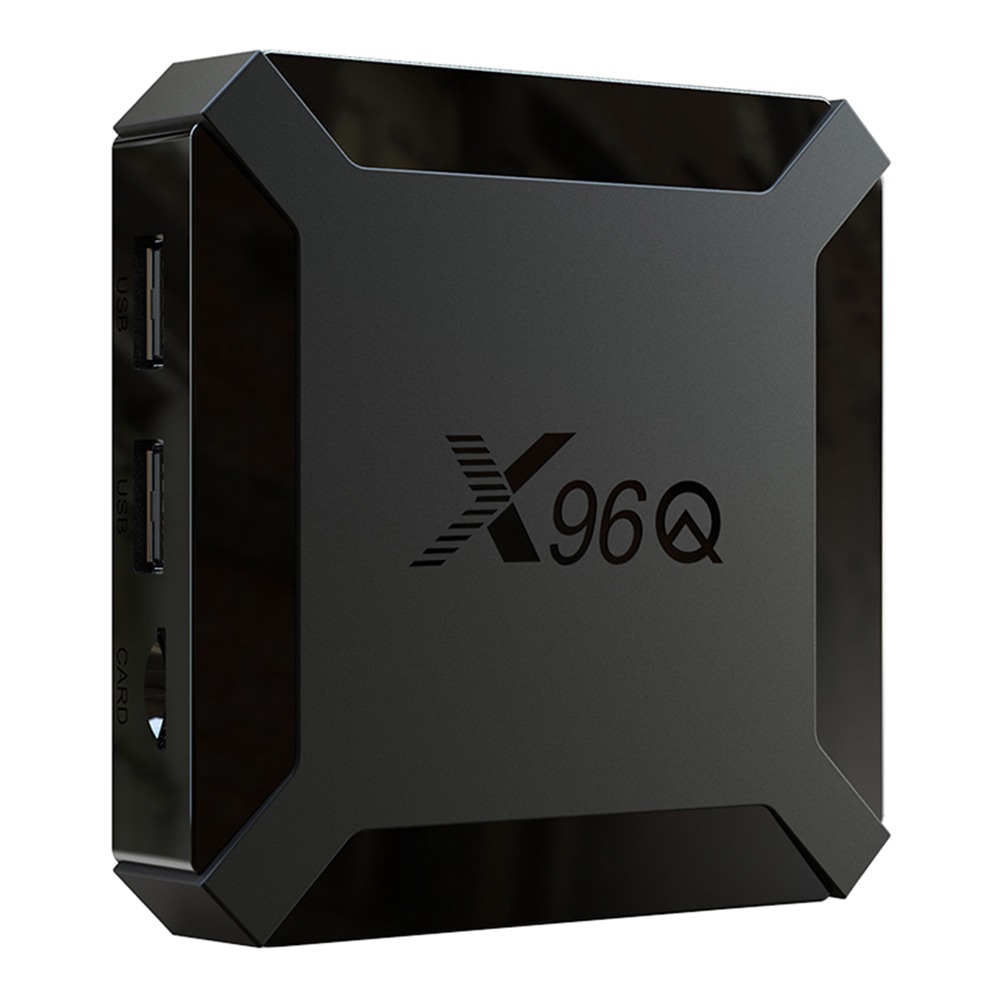

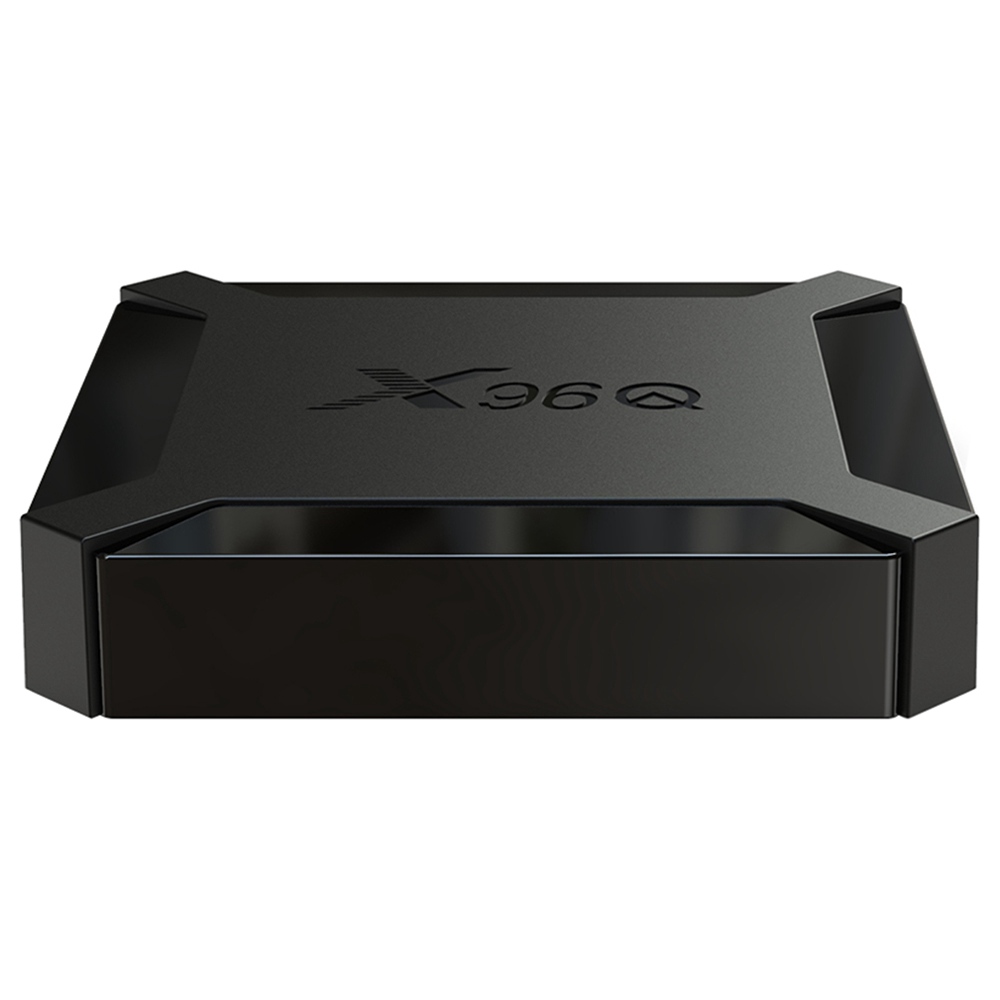

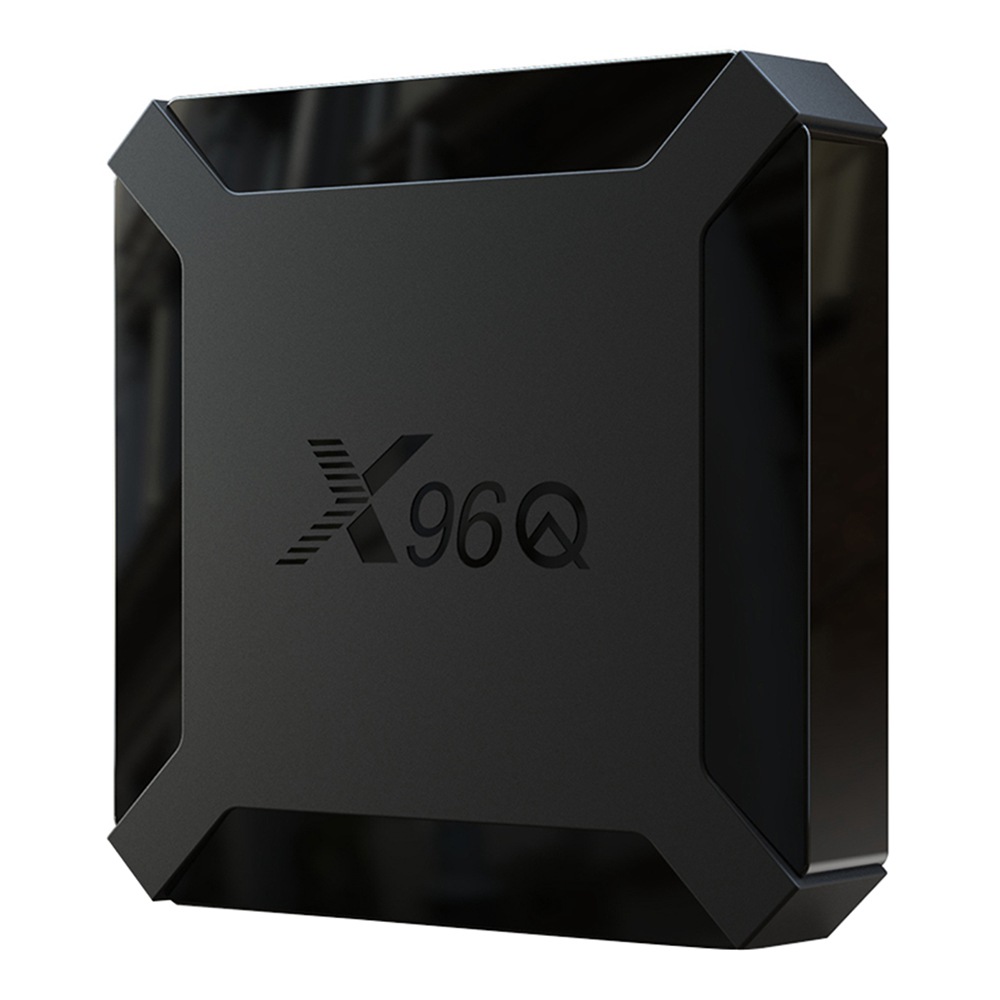

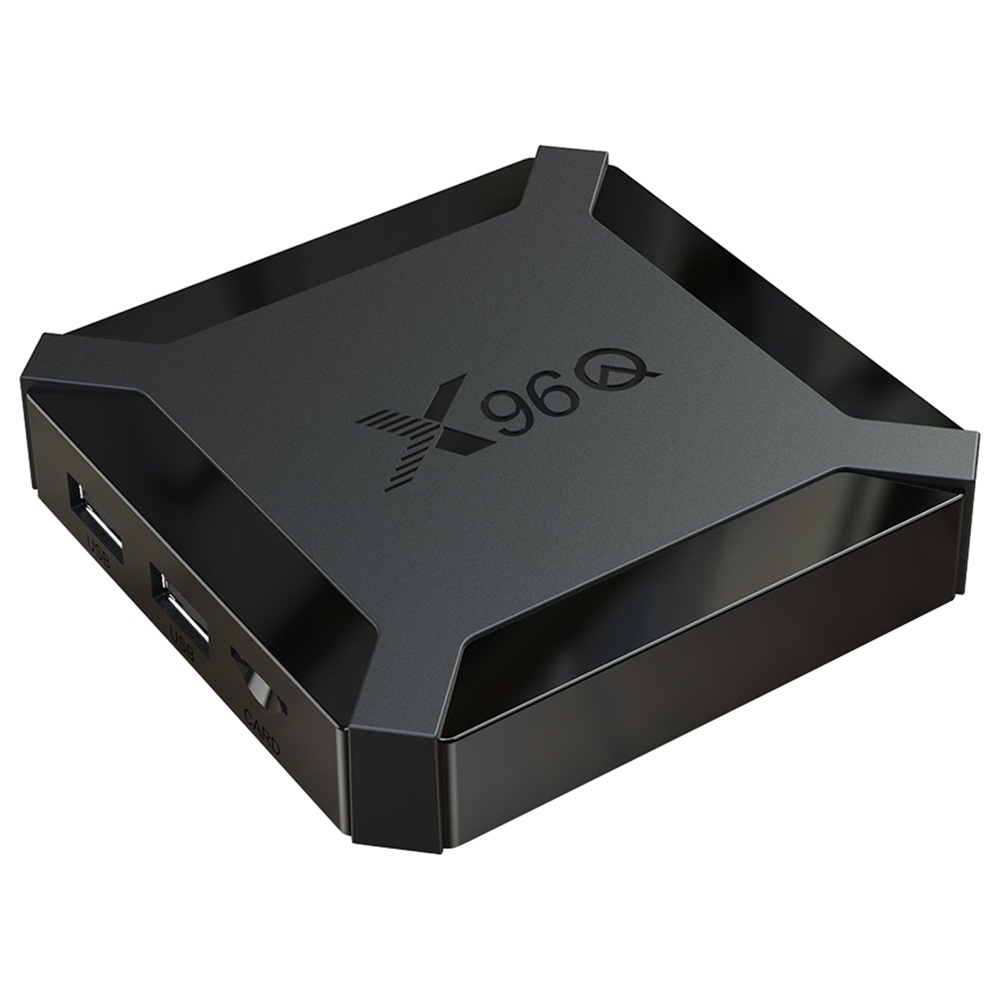

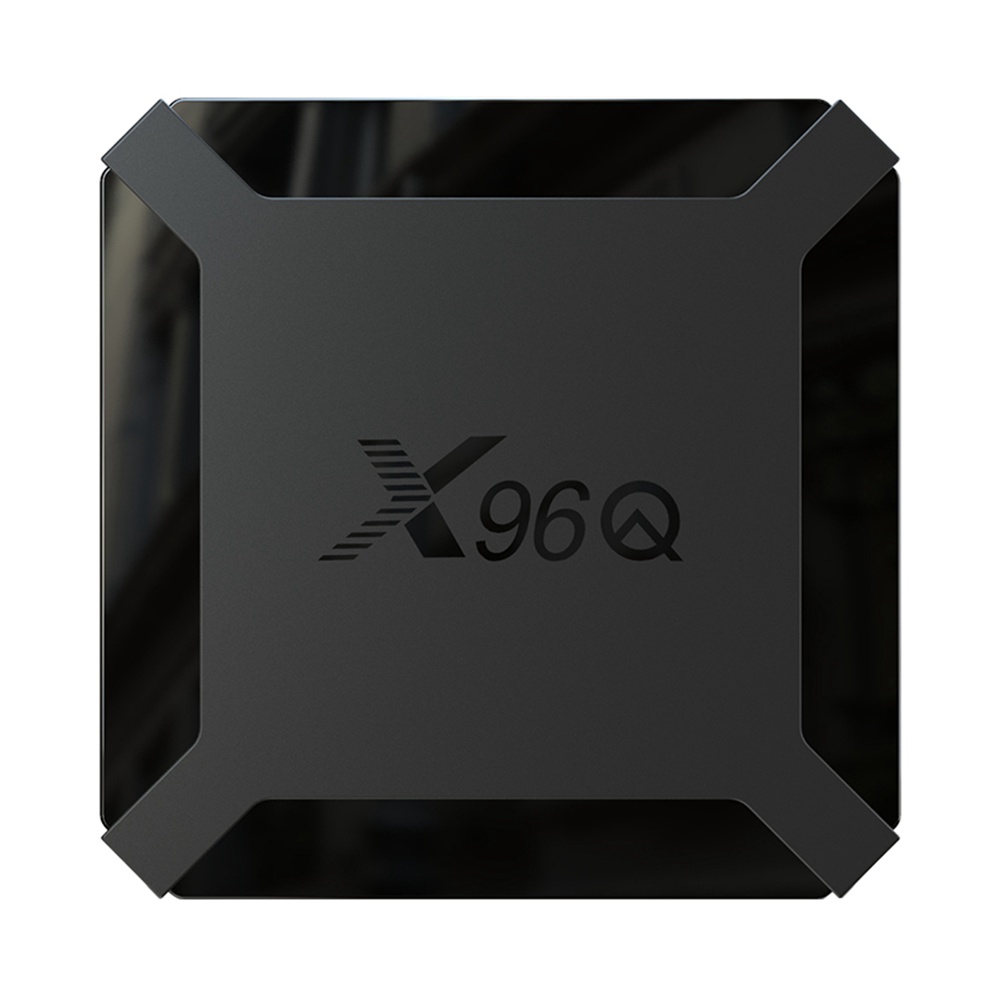

Allwinner H3 is a popular quad-core Cortex-A7 processor for years, but now the latest Allwinner H313 quad-core Cortex-A53 processor has been found in some TV boxes running Android 10, namely X96Q with 2 variants.

The Allwinner H313 SoC a Quad Core with ARM Cortex-A53 processors integrates Mali-G31 MP2 GPU with native decoding of h.265 and VP9 codecs and support for HDR10 video.

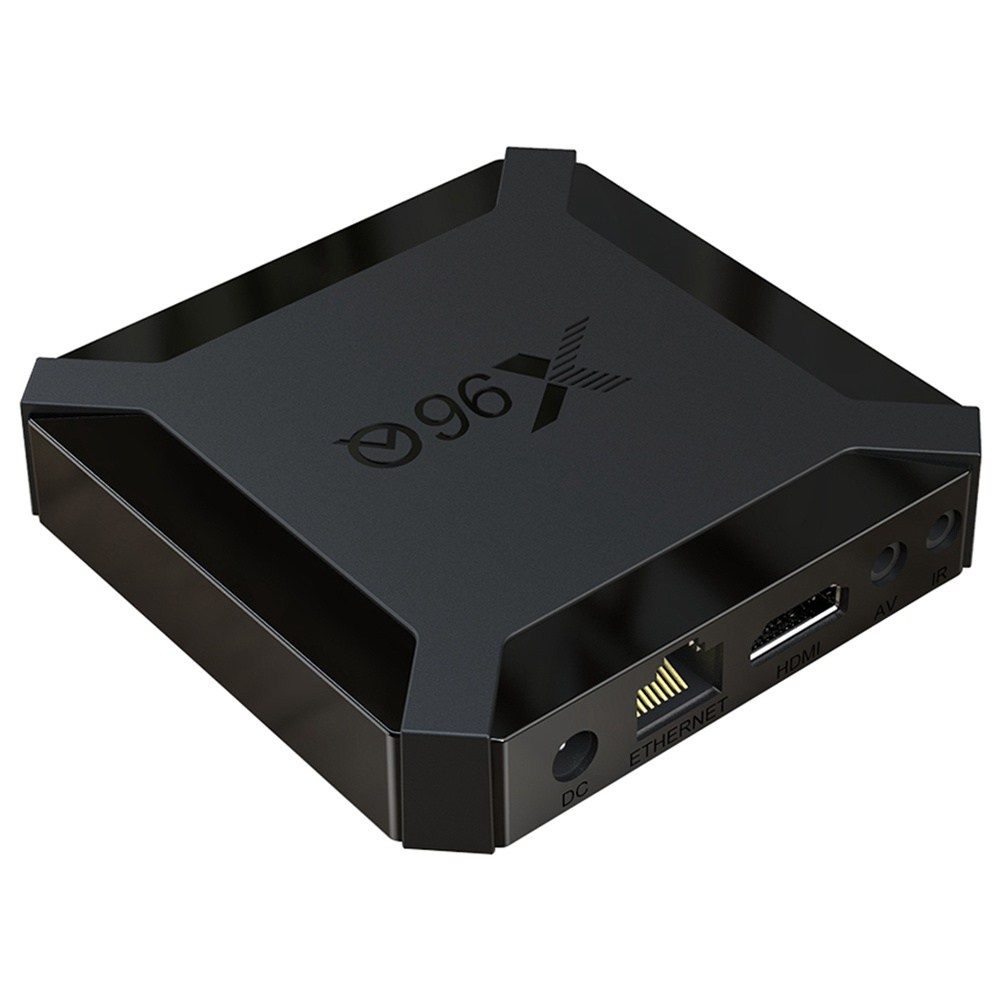

In addition to the chipset mentioned, the X96Q TV Box is available with 2GB-4GB DDR4 RAM and 16GB-64GB eMMC flash storage.As for connectivity, the X96Q has an HDMI 2.0a interface, 10/100 network connector, a USB 2.0 port, another USB 3.0, a 3.5mm jack through which you get analog audio and video output and a jack to connect the IR sensor.

Specification:

General

Brand: X96

Model: X96Q

Type: TV Box

GPU: MaliG31 OpenGL ES3.2

System: Android 10.0

CPU: Allwinner H313

Core: Quad CoreARM Cortex A53

RAM : 2GB DDR3

ROM: 16GB ROM

Media Supported

Decoder Format: H.264, H.265, VP9/VP6/VP8

Audio format: MPEG-1, MPEG-2 (L1/L2/L3), MP3, AAC-LC, HE AAC V1/V2, APE, FLAC, OGG, AMR-NB, AMR-WB, G.711 (u/a) decoding • G.711(u/a), AMR-NB, AMR-WB, AAC-LC encoding • 3~5m far field sound acquisition, supports speech enhancement, acoustic echo cancellation and direction of speaker estimation. • Virtual surround sound

Video format: Allwinner Video Engine (AVE) with dedicated hardware decoders and encoders

Support multi-video decoder up to 4Kx2K@60fps 1x1080P@60fps

Supports multiple “secured” video decoding sessions and simultaneous decoding and encoding

Video/Picture Decoding - H265/HEVC Main/Main10 profile@Level5.2 High-tier ;4K@60fps, up to 6Kx4K@30fps - H264/AVC BP/MP/HP@level5.1, MVC, 4K@30fps - VP9, ??Profile 0/2, 4K@ 30fps - VP6/VP8, 1080P@60fps - MPEG1/MPEG2 SP@ML, MP@HL, 1080P@60fps - MPEG4 SP@level 0~3, ASP@level 0~5, GMC, short header format, 1080P@60fps - AVS /AVS JIZHUN profile@level 6.0, 1080P@60fps - VC-1 SP@ML, MP@HL, AP@level 0~3, 1080P@60fps - Supports Frame Buffer Compression(FBC) - Output pixel format configurable,YUV420/ YV12/NV12/... - Real-time image decoding- Maximum resolution up to 65536 x 65536 - Integrated JPEG hardware decoder - Configurable output pixel format- YUV420/YV12/NV12/...

Photo Format: HD JPEG, BMP, GIF, PNG, TIF

Support 5.1 Surround Sound Output: Yes

Product Details

5G WiFi: No

WIFI: 802.11 b/g/n

Bluetooth: No

Power Supply: Adapter

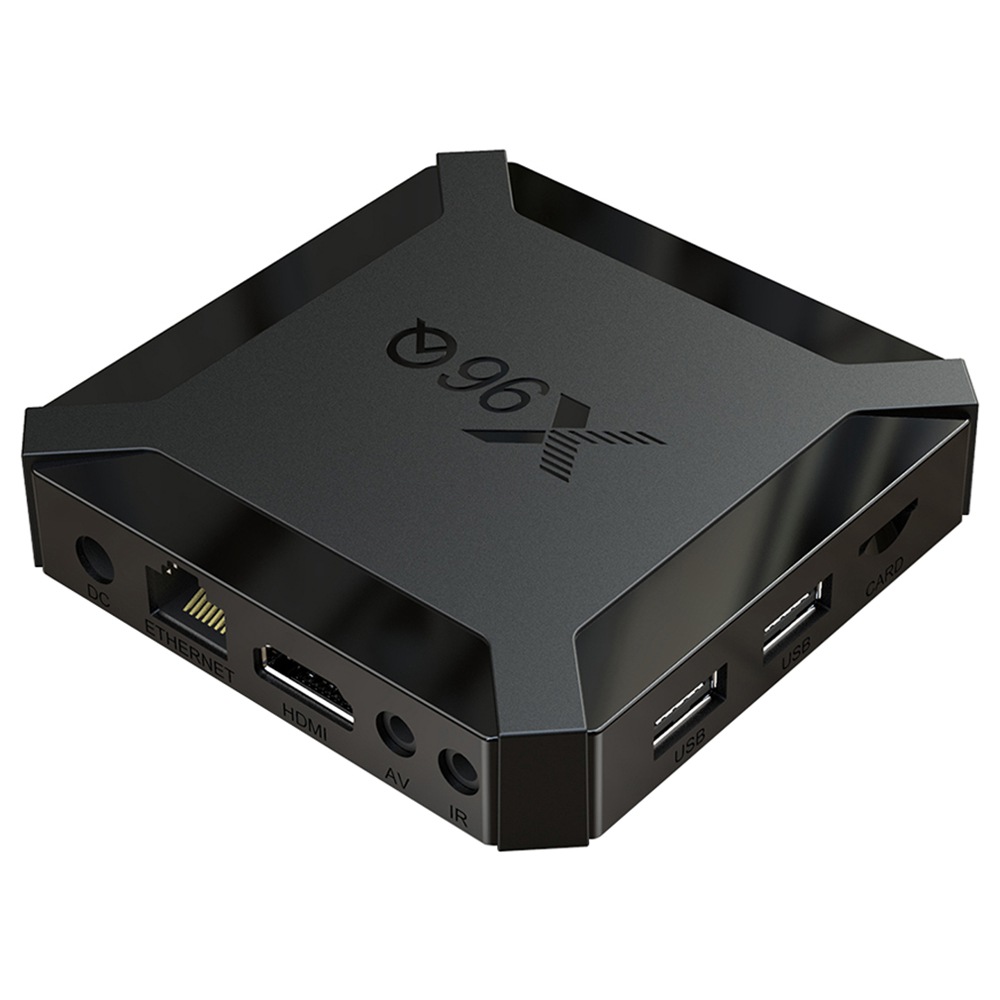

Interface: AV,DC 5V,Ethernet,HDTV Out,IR,TF card,USB2.0

Language: Multi-language

HDMI Version: 2.0

Other Functions: DLNA Miracast

HDMI Function: HDCP

Power Consumption: 10W

RJ45 Port Speed: Support 10/100Mbps

Power Requirement

Power Type: External Power Adapter

Power Input Vol: 5V

Power Adapter Input: 100-240V / 50-60Hz

Power Adapter Output: 5V 2A

Battery Information

Remote Controller Battery: 2 x AAA Battery ( not included )

Dimensions and Weight

Product weight: 0.1780 kg

Package weight: 0.350 kg

Product size (L x W x H): 8.84 x 8.84 x 1.86 cm

Package size (L x W x H): 17.00 x 11.50 x 5.50 cm

Package Contents

Package Contents: 1 x TV Box, 1 x HDMI Cable, 1 x IR Remote, 1 x English User Manual, 1 x Power Adapter
