Main Features

Description:

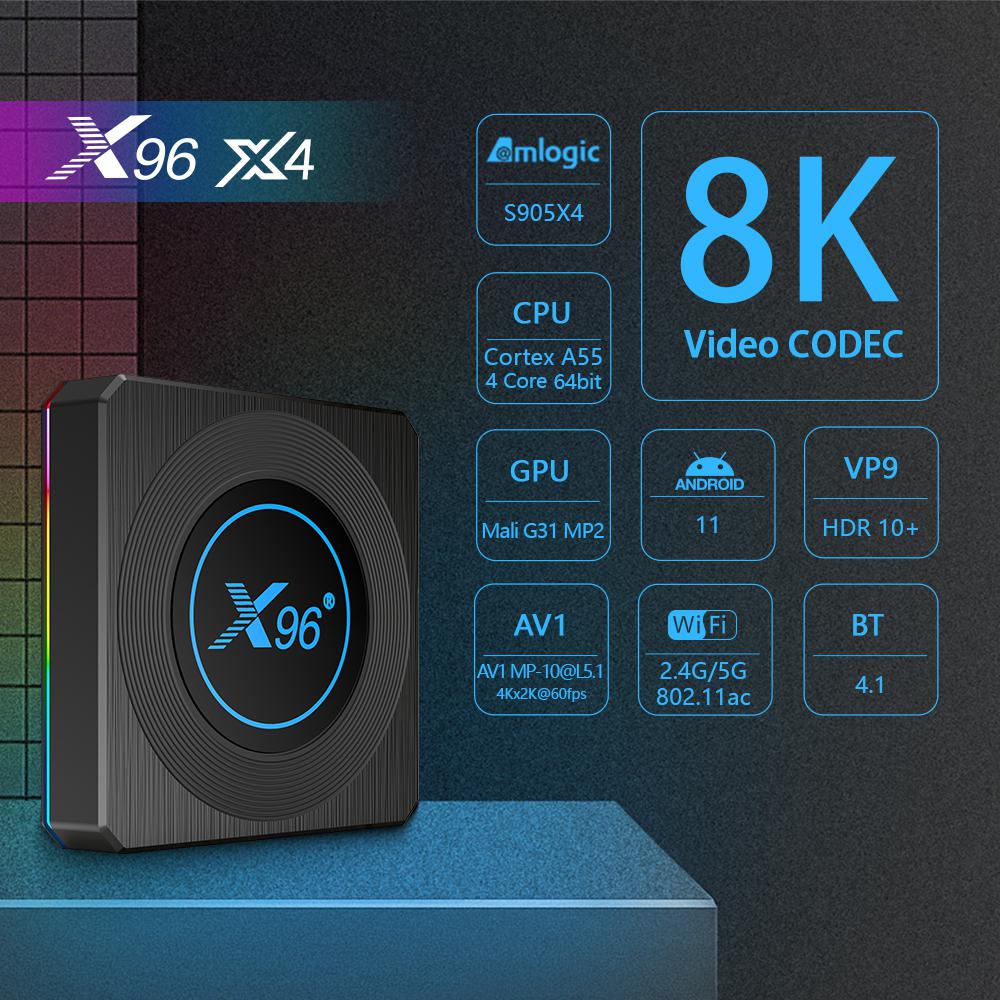

Amlogic S905X4
Quad Core ARM Cortex A55
ARM Mali-G31 MP2
Android 11H.265 HEVC OpenGL ES 1.1/2.0/3.2, OpenCL
2.0, Vulkan 1.1 support USB 3.0
Specifications:
CPU:
Chipset Amlogic S905X4
Architecture Quad Core ARM CortexA55
GPU:
Chipset ARM Mali-G31 MP2
Architecture OpenGL ES 1.1/2.0/3.2��OpenCL 2.0��Vulkan 1.1 support
RAM:
ROM
External storage:
USB Storage Devices USB2.0, USB3.0 Support
Micro SD card Supported
Operating system:
OS Version Android 11
Language Multi-Language
Multimedia:
Video Amlogic Video Engine (AVE) with dedicated hardware decoders and encoders
Support multi-video decoder up to 4x1080P@60fps
Supports multiple ��secured�� video decoding sessions and simultaneous decoding and encoding
Video/Picture Decoding
VP9 Profile-2 up to 8Kx4K@24 fps
H.265 HEVC MP-10@L5.1 up to 8Kx4K@24 fps
AVS2-P2 Profile up to 8Kx4K@24 fps
MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496)
WMV/VC-1 SP/MP/AP up to 1080P@60fps
AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps
MPEG-2 MP/HL up to 1080P@60fps (ISO-13818)
MPEG-1 MP/HL up to 1080P@60fps (ISO-11172
RealVideo 8/9/10 up to 1080P@60fps
Multiple language and multiple format sub-title video support
MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918
Supports JPEG thumbnail, scaling, rotation and transition effects
Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats
Audio Supports MP3, AAC, WMA, FLAC, Ogg.
Image HD JPEG��BMP��GIF��PNG��TIF
Network service
Wi-Fi:
Type Support WiFi IEEE 802.11 b / g / n / ac
Frequency Support 2.4G and 5G
Antenna Type Two external antennas
Bluetooth:
Bluetooth Support BT4.X

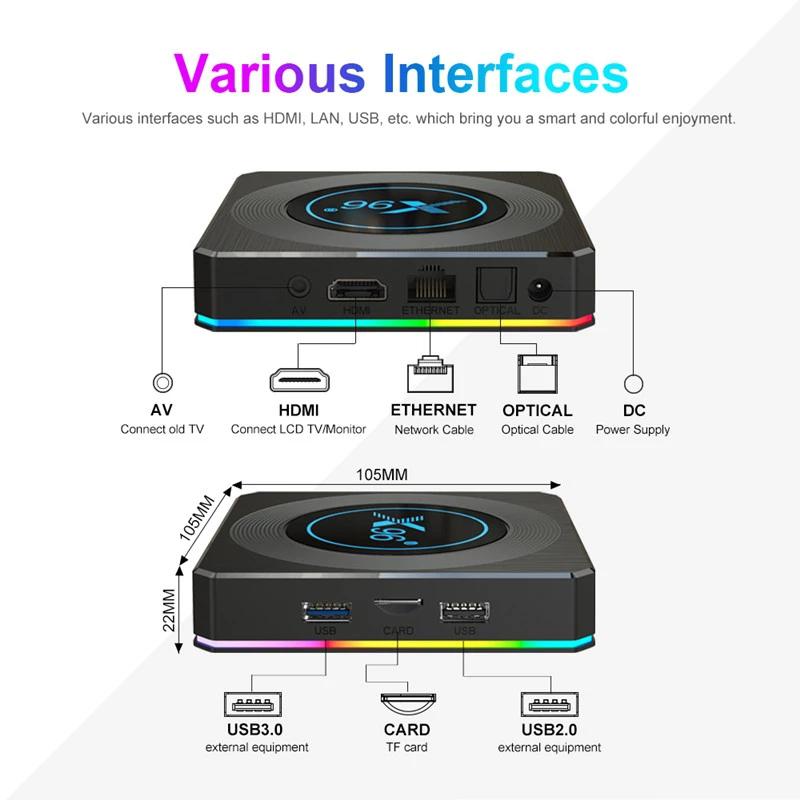

Interface
Charge DC connector DC IN(5V/2A)
Video output HDMI-compatible 4K*2K UHD Output, HDMI-compatible 1.4/2.0
IR Reciver 3.5mm Earphone jack Remote Reciver Connect
Micro SD External memory Support
USB port USB host *1 USB3.0 *1 USB2.0 normal type
Ethernet Ethernet 1000M Ethernet

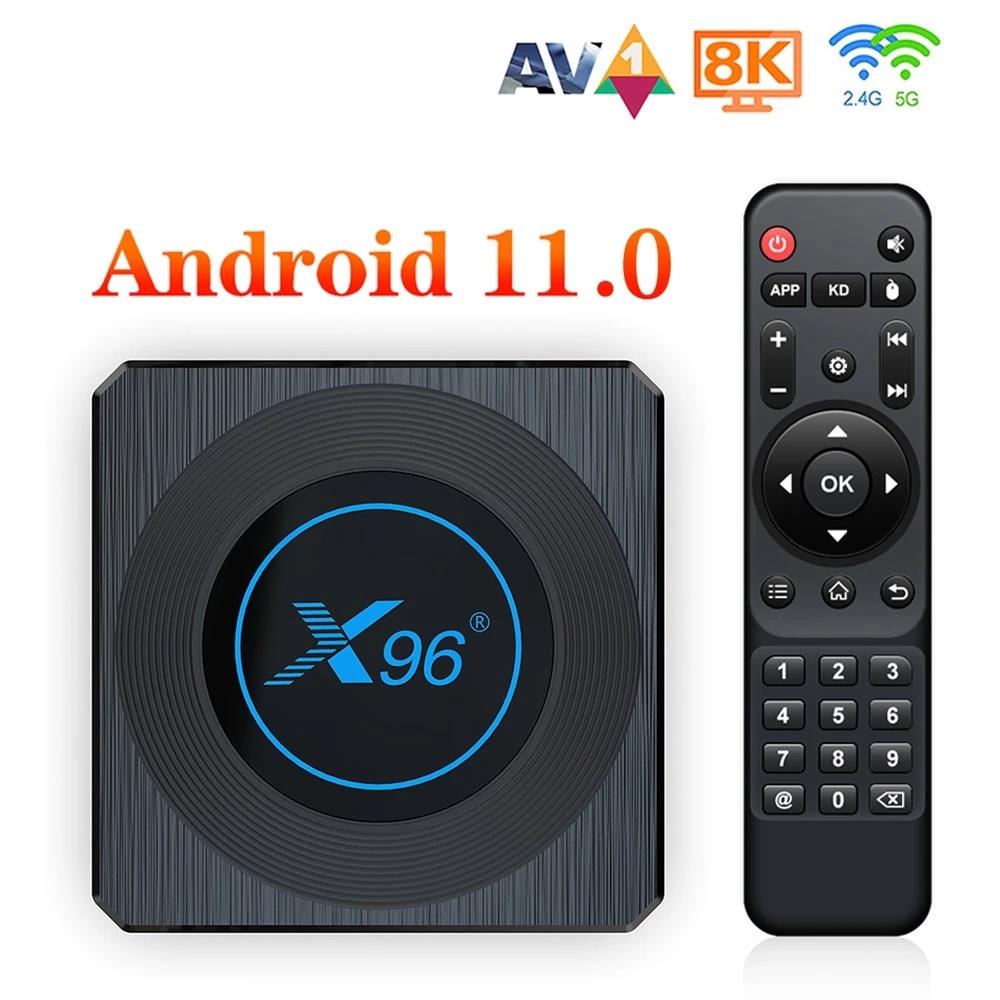

Package Included:

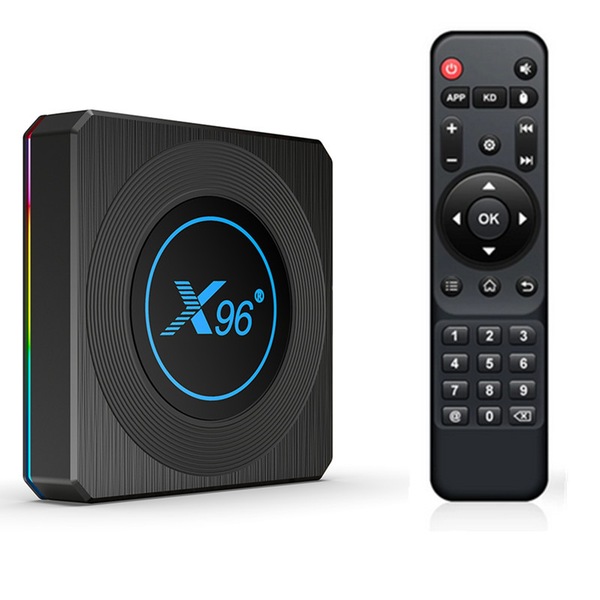

Set-top box*1
Power cord*1
HDMI cable*1
Remote control*1
Manual *1

Specification

Weight

0.5

Power

DC 5V,2A

Model Number

X96X4 4gb

OS

Android

Memory

4G DDR3

Remote Control

Included

Internal Storage

64GB eMMC

Max. Extended Capacity

TF Card Up To 256GB

Video Output

HDMI 2.0
