Highlights:

1. Upgraded chipset Amlogic S905W2 Quad Core ARM Cortex A53 to make the TX box running stable and smooth to load movies, pictures and games without buffer.

2. AV1 new generation coding format, higher picture quality and less bandwidth consumption.

3. Latest OS Android 11, with the newest UI and multi-apps supported, brings you a better user experience.

4. Enjoy fast, smooth TV streaming in any room in the house with our best 2.4G/5G Wi-Fi or choose to wire up over Ethernet.

5. Strong video decoder supports to multiple formats up to 4Kx2K@60fps, and supports multiple “secured” video decoding sessions and simultaneously.

Specification:

General

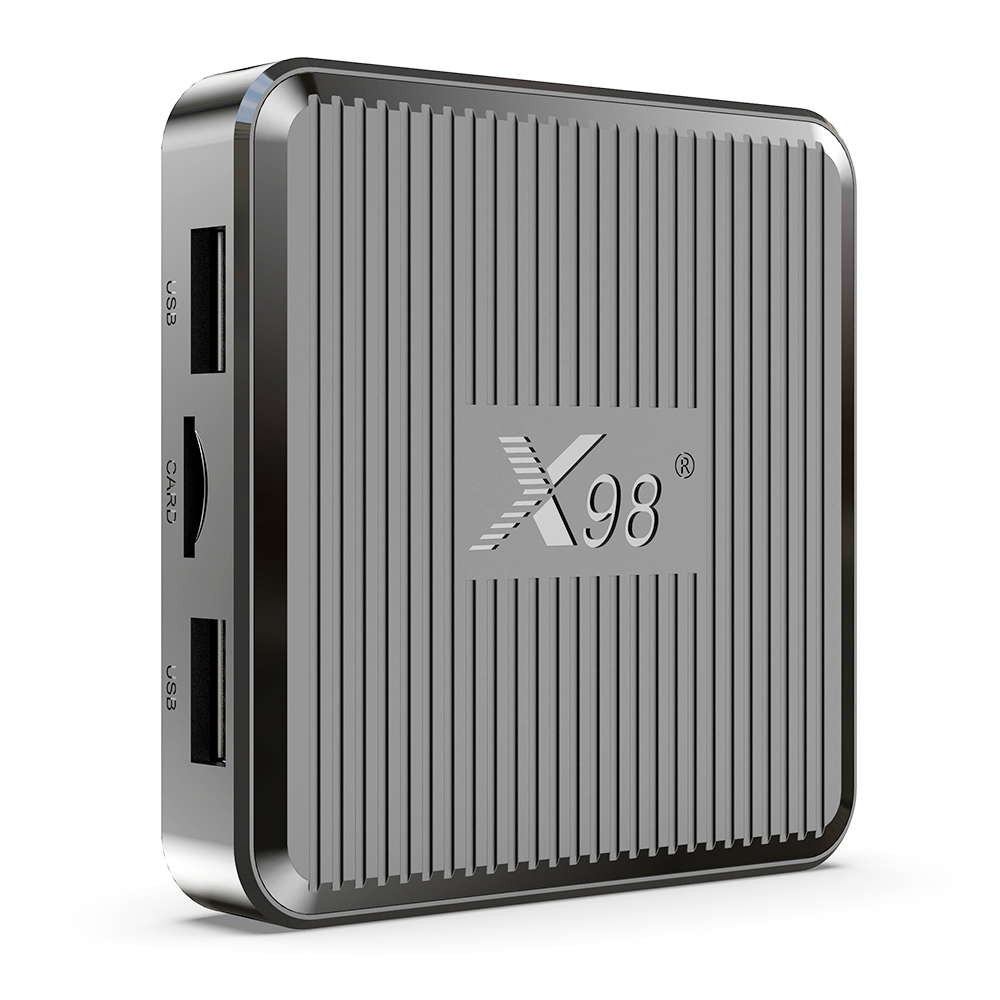

Model: X98Q

Type: TV Box

GPU: MaliG31 MP2

System: Android 11.0

CPU: Amlogic S905 W2

Core: Quad CoreARM Cortex A53

RAM : 2G DDR3

ROM: 16G ROM

Media Supported

Decoder Format: H.264, H.265, VP9/VP6/VP8

Audio format: MPEG-1, MPEG-2 (L1/L2/L3), MP3, AAC-LC, HE AAC V1/V2, APE, FLAC, OGG, AMR-NB, AMR-WB, G.711 (u/a) decoding • G.711(u/a), AMR-NB, AMR-WB, AAC-LC encoding • 3~5m far field sound acquisition, supports speech enhancement, acoustic echo cancellation and direction of speaker estimation. • Virtual surround sound

Video format: Allwinner Video Engine (AVE) with dedicated hardware decoders and encoders  Support multi-video decoder up to 4Kx2K@60fps 1x1080P@60fps  Supports multiple “secured” video decoding sessions and simultaneous decoding and encoding  Video/Picture Decoding - H265/HEVC Main/Main10 profile@Level5.2 High-tier ;4K@60fps, up to 6Kx4K@30fps - H264/AVC BP/MP/HP@level5.1, MVC, 4K@30fps - VP9, Profile 0/2, 4K@ 30fps - VP6/VP8, 1080P@60fps - MPEG1/MPEG2 SP@ML, MP@HL, 1080P@60fps - MPEG4 SP@level 0~3, ASP@level 0~5, GMC, short header format, 1080P@60fps - AVS /AVS JIZHUN profile@level 6.0, 1080P@60fps - VC-1 SP@ML, MP@HL, AP@level 0~3, 1080P@60fps - Supports Frame Buffer Compression(FBC) - Output pixel format configurable,YUV420/ YV12/NV12/... - Real-time image decoding- Maximum resolution up to 65536 x 65536 - Integrated JPEG hardware decoder - Configurable output pixel format- YUV420/YV12/NV12/...

Photo Format: HD JPEG, BMP, GIF, PNG, TIF

Support 5.1 Surround Sound Output: Yes

Product Details

5G WiFi: Yes

WIFI: 802.11 b/g/n/ac

Bluetooth: No

Power Supply: Charge Adapter

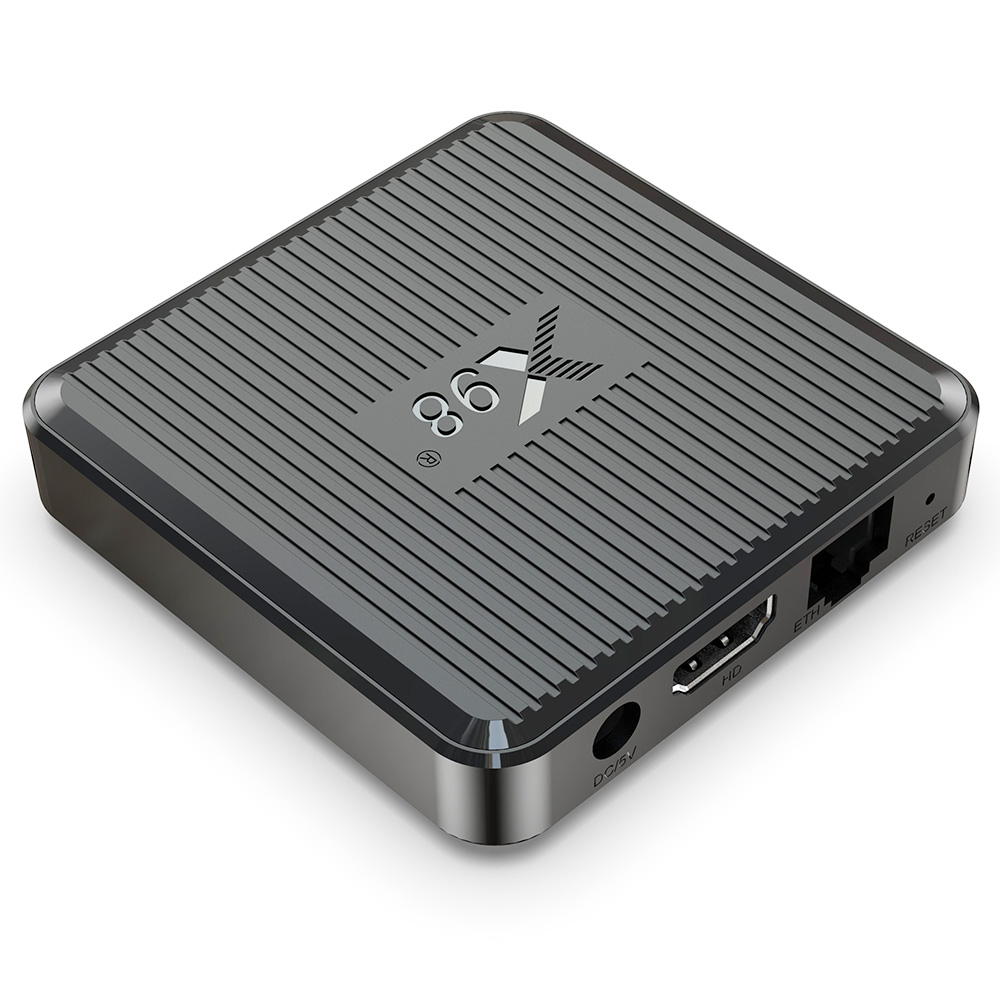

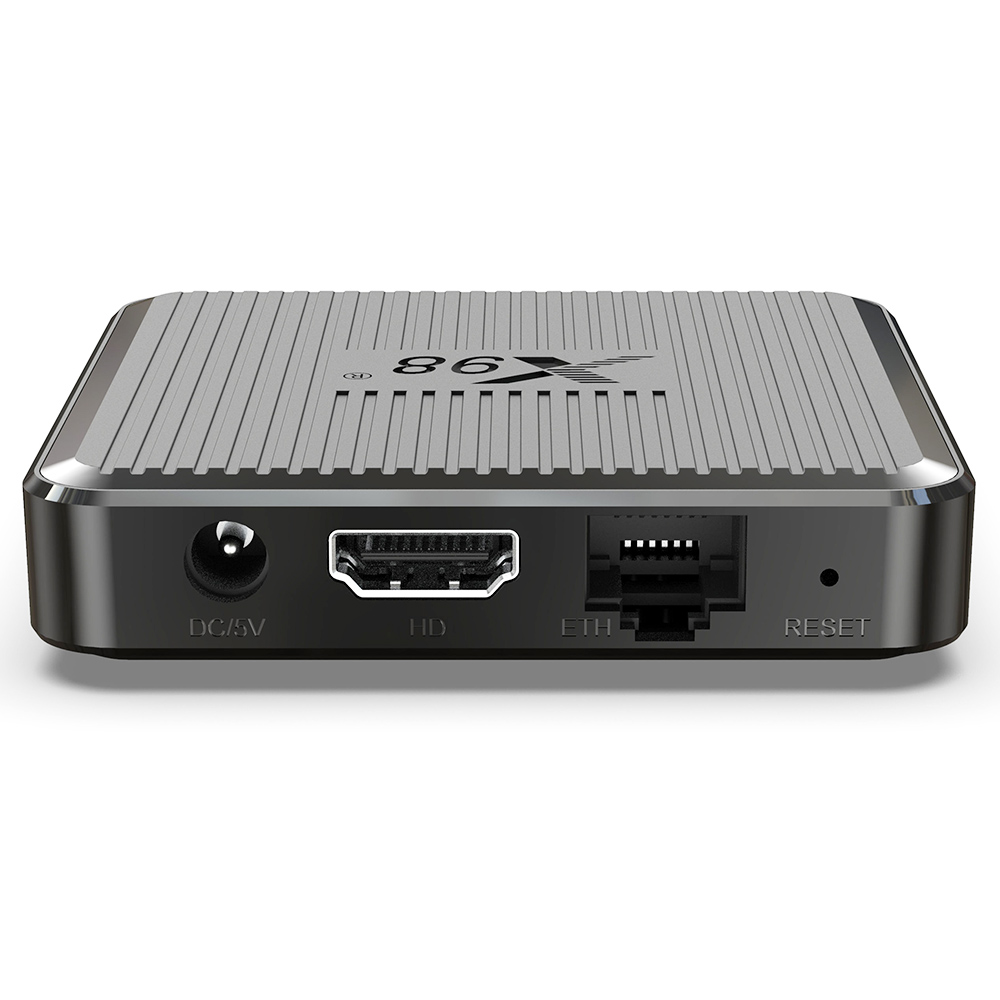

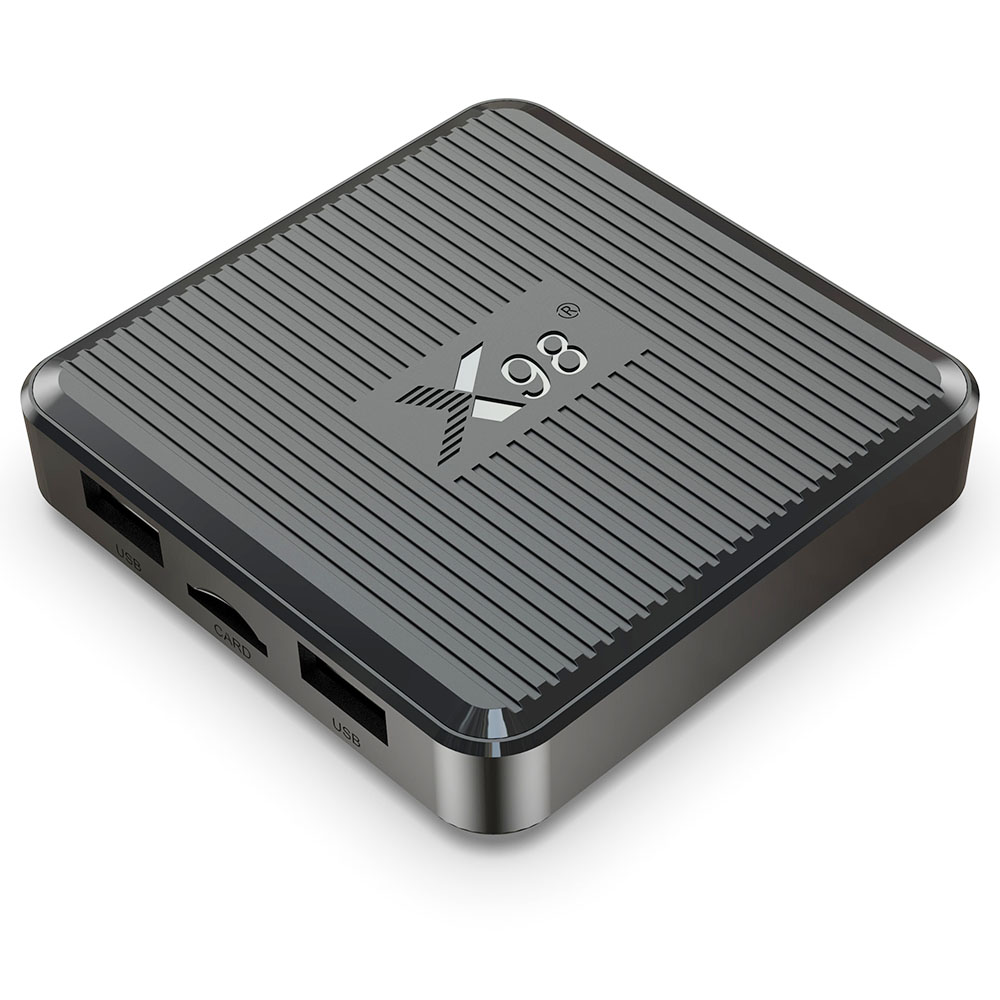

Interface: DC 5V,Ethernet,HDTV Out,TF card,USB2.0

Language: Multi-language

HDMI Version: 2.1

Other Functions: DLNA,Others

HDMI Function: HDCP

Power Consumption.: 10W

RJ45 Port Speed: Support 10/100Mbps

Power Requirement

Power Type: External Power Adapter Mode

Power Input Vol: 5V

Power Adapter Input: 100-240V / 50-60Hz

Power Adapter Output: 5V 2A

Battery Information

Remote Controller Battery: 2 x AAA Battery ( not included )

Dimensions and Weight

Product weight: 0.090 kg

Package weight: 0.298 kg

Product size (L x W x H): 7.70 x 7.70 x 1.60 cm

Package size (L x W x H): 15.50 x 10.00 x 5.50 cm

Package Contents

Package Contents: 1 x TV Box, 1 x HDMI Cable, 1 x IR Remote, 1 x English User Manual, 1 x Power Adapter
