AMC XIA30B 30W Rms Per Channel Stereo Amp High Current -Black- Toroidal Transformer 30W RMS

AMC XIA30B 30W Rms Per Channel Stereo Amp High Current -Black- Toroidal Transformer 30W RMS

1 Review 4 1 Review
SOLD OUT

Overview

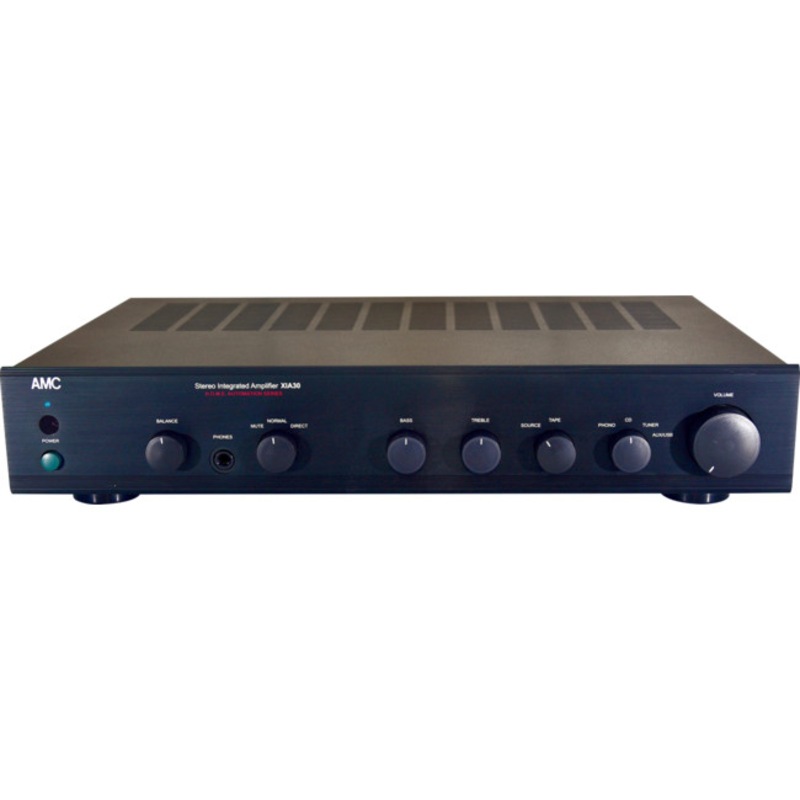

XIA 30 - AMC Black XIA30 30W RMS Stereo Integrated Amplifier

The XIA 30 is small in size yet high current amplification@ 30 amps load to load and are designed to get you right into HiFi with out comprimising quality.

Employing Toroidal transformers and motorised volume controls, with a phono pre-amp for both MM and MC cartridgesyour vinyl will come alive

Key Features
  • Unique phono stage design that employs two audiophilegrade op-amps per channel that provide very low THD, TIM and noise, together with switchable MM/MC sensitivities.
  • The high overload tone control stage can be completely by-passed with the DIRECT switch to give naturalsound quality.
  • Special designed passive tone control circuit to givenatural sound quality.
  • Uses audiophile grade components throughout, providing exceptional accuracy to phono and tone control responses.
  • Power amplifiers with 30 Amp high peak output currentdevices to offer capabilities to drive almost all types of speaker systems.
  • Power amplifiers with special designed perfect virtual image topology to make it possible to be without output relays.
    • The topology connects amplifier outputs to speaker systems without relay contacts to offer best possible sound quality.
  • Using high output current devices with optimized power supply designs, the power amplifiers can be protectedwith a fuse on the power supplier side
    • in order to delivery extremely high output current on demand to give superb sound quality.
  • Universal power transformer.
  • Heavy duty gold plated speaker binging posts and phono connectors for ultra reliable connections.

_

Specifications
SPECIFICATIONS MODEL - XIA 30
  • Rated Power into 8 ohms
30/45 watts
  • Rated T.H.D 20Hz - 20KHz
0.05%

INPUT SENSITIVITY FOR 1W/rated Power

_
  • High Level Inputs
23mV/150mV
  • Phono Input MM
0.5mV/2.7mV
  • Phono Input MC
0.05mV/0.27mV

INPUT IMPEDANCE

_
  • High Level Inputs
20K ohms
  • Phono Input MM/MC
47K ohms/100pF

Frequency Response

_
  • Tone Bypass 20Hz-20KHz
+/- 0.5dB
  • Normal 20Hz-20KHz
+/- 1.0dB
  • High Input Levels -3dB
10Hz/60KHz
SIGNAL TO NOISE RATIO ( ref 1W/8 ohms ) _
  • High level Inputs " A " WTD
88dB
  • Seperation 20Hz-20KHz
>65dB
TONE CONTROL RANGE _
  • Bass at 100Hz
+/- 10dB
  • Treble at 10KHz
-8/+11dB
  • Overall Feedback
26/29dB
PHYSICAL PROPERTIES _
  • Dimensions ( W x H x D )
430 x 82 x 288mm
  • Net Weight
6.4Kgs
  • Warranty
3 Years

_

About AMC
Power, Punch, Defined that is - AMC

Most people won't know who AMC is as a brand, that is ofcourse, if your not an audio enthusiast.

AMC since 1970 has forged a reputation for being a powerful and reliable electronics manufacturer in the HiFi and Music streaming business.

They are responsible for some of the worlds most famous brands and high end esoteric electronics.

You see, AMC, is a design and engineering company as well as manufacturer of high end hifi components.

With a design philosophy of 25 year reliability, and state of the art manufacturing facility, for the value therereally is none better.

Catering for the domestic and also for the commercialmarket, we know nearly everyone in the world have been listening to something that AMC has manufactured.

Utilising Toroid Transformers, High Current Capacitors and Metal Oxide Resistors, their amplifiers and multi-room sound systems are possibly one of the very best available .

3 Year Warranty sets them apart from most brands out there, and with their construction you know you are in for agreat experience.


Weight: 7.5
