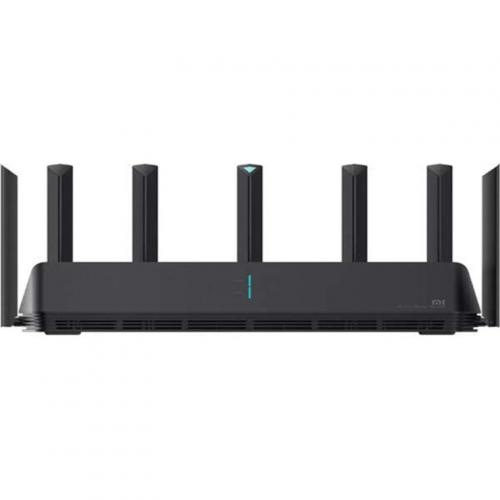

Xiaomi AIoT AX3600 Gigabit Wi-Fi 6 Mesh Router (Fibre Ready, Support VLAN, Support AP Mode)

Xiaomi AIoT AX3600 Gigabit Wi-Fi 6 Mesh Router (Fibre Ready, Support VLAN, Support AP Mode)

2 Reviews 5 2 Reviews
SOLD OUT

Xiaomi AIoT AX3600 Gigabit Wi-Fi 6 Mesh Router (Fibre Ready, Support VLAN, Support AP Mode)

Mi AIoT Router AX3600
Wi-Fi 6 deluxe flagship model. The pioneer router in 5G era


3-Gigabit wireless rate
Theoretical combined dual-frequency Wi-Fi rate Up to 2976 Mbps*
Qualcomm six-core chip
Stable Internet connection for multi-tasking Easier to use
OFDMA + MU-MIMO
Lower latency when multiple devices are operated simultaneously
512 MB memory
Stable connection to 248 devices*
6-channel external high-performance signal amplifier
Better coverage with no need for wall penetration
AIoT Dedicated Antenna
Xiaomi one-click network connection for smart devices
WPA3 network encryption
Enhanced wireless connection security
*2976 Mbps is the maximum theoretical wireless speed when the 2.4 GHz and 5 GHz bands are used concurrently. Actual speeds may vary depending on the surroundings.
*Integrated access to 2.4 GHz Wi-Fi/5 GHz Wi-Fi/LAN for 248 devices under test condition

Comparison of Wi-Fi 6 and Wi-Fi 5 Routers - A giant leap forward in web experience
Wi-Fi 6 (802.11ax) is the latest generation in Wi-Fi standards. Compared to the previous generation of Wi-Fi 5 (802.11ac) in terms of transfer rates, coverage and data latency, it has been vastly improved. Especially when multiple end devices are connected at the same time, the Wi-Fi 6 router can significantly reduce and lower end-device latency and unresponsiveness.

*The above performance enhancements are only perceptible with devices that support Wi-Fi 6 (802.11ax). All the values are theoretical, technical values.

Qualcomm six-core enterprise-class professional chip for more stable operation
The IPQ8071A enterprise-class professional chip-powered by the Qualcomm quad-core 64-bit A53 CPU dual-core network acceleration engine-offers a much better DMIPS capability than other router manufacturers Speed specification chip solution for more processing power and more stable operation.
- Fast Speed: *20% faster data forwarding speed
- Interference-Proof: *33% better performance with Qualcomm Wi-Fi 6 chip
- Low Latency: *Latency 36.8% lower
- Stable Connection: *248 access devices, CPU utilization less than 20%

*The above data is from the results found by the Xiaomi Laboratory

Wi-Fi speeds of up to 3000 Mbps. 155% faster than mainstream Wi-Fi 5 rates
The Mi AIoT Router AX3600 offers two bands of 2.4 GHz and 5 GHz, each with 802.11ax technology and no mutual interference. The two bands offer a combined dual-band wireless speed of up to 2976 Mbps*. The 2.4 GHz frequency band features longer transmission for better coverage and better wall-penetrating performance. The 5-GHz frequency band provides low interference and high speed for smooth HD video playback and smoother experience when playing large online games.

*2976 Mbps is the maximum theoretical wireless speed when the 2.4 GHz and 5 GHz bands are used concurrently. Actual speeds may vary depending on the surroundings.

6-channel external high-performance signal amplifier
Two and four external high-performance signal amplifiers (PA and LNA) are installed in the 2.4-GHz band and 5-GHz band respectively. The PA (Power Amplifier) effectively increases the signal transmitting power, allowing the router to transmit signals further and stronger through walls. The LNA (Low Noise Amplifier) increases the signal reception sensitivity, allowing the router to receive a weaker signal from further away.


512 MB of memory, allowing up to 248 devices to connect at the same time*
A flagship router is a complex environment that must be capable of supporting multiple people playing games, family gatherings, and house parties with multiple devices. The AX3600 has 512 MB of memory and supports up to 248 devices connected simultaneously, making it the simple solution for a variety of locations.

*Integrated access to 2.4 GHz Wi-Fi/5 GHz Wi-Fi/LAN for 248 devices under test conditions

AIoT Smart Antenna,Quickly discover a Xiaomi smart device by entering it into the network
Equipped with an "AIoT Smart Antenna," open the Mi Home app to discover uninitialized Mi smart devices*. Connect to the network and access a wide range of smart features with the touch of a button. You can help your parents configure their new devices quickly, even when you're away from home.

*Supports most Wi-Fi-enabled devices that connect via the Mi Home app

Supports multiple mesh networking* Wi-Fi 6 throughout the house
Enjoy high-speed Wi-Fi 6 throughout the house. Instead of dealing with dead spots from a single router, multiple mesh groups* can easily handle all kinds of complex home layouts to seamlessly cover the house. Plus, you can enjoy high-speed Wi-Fi 6 everywhere you go with support for the 802.11k/v protocol. Actual experience depends on the actual environment and user end device capability.

Note:The router will support Mesh functions within 2020 through an OTA update.

With OFDMA technology* for transmitting data to multiple devices
OFDMA technology is one of the biggest differences between AX3600 and traditional routers, allowing the AX3600 to send data to multiple end devices with only one transmission (up to eight end devices*), whereas traditional routers will need to transmit data from multiple end devices in turn. OFDMA allows highly efficient transfer and reduced latency so multiple devices can be used simultaneously.

*This feature requires end devices to support OFDMA
*Theoretical data from Qualcomm, where eight end devices are connected

Dimensions


Package contents

Dimensions
L×W×H (per unit)
408 mm × 133 mm × 177 mm
Product color
Black
Hardware configuration
Processor
IPQ8071A 4-core A53 1.4 GHz CPU
Network processing unit
Dual-core 1.7 GHz NPU
ROM
256MB
Memory
512MB
2.4G Wi-Fi
2 × 2 (supports up to IEEE 802.11ax protocol, theoretical maximum speed of 574 Mbps)
5G Wi-Fi
4 × 4 (supports up to IEEE 802.11ax protocol, theoretical maximum speed of 2402 Mbps)
Product antenna
6 external high-gain antennas + 1 external AIoT antenna
Product heat dissipation
Natural heat dissipation

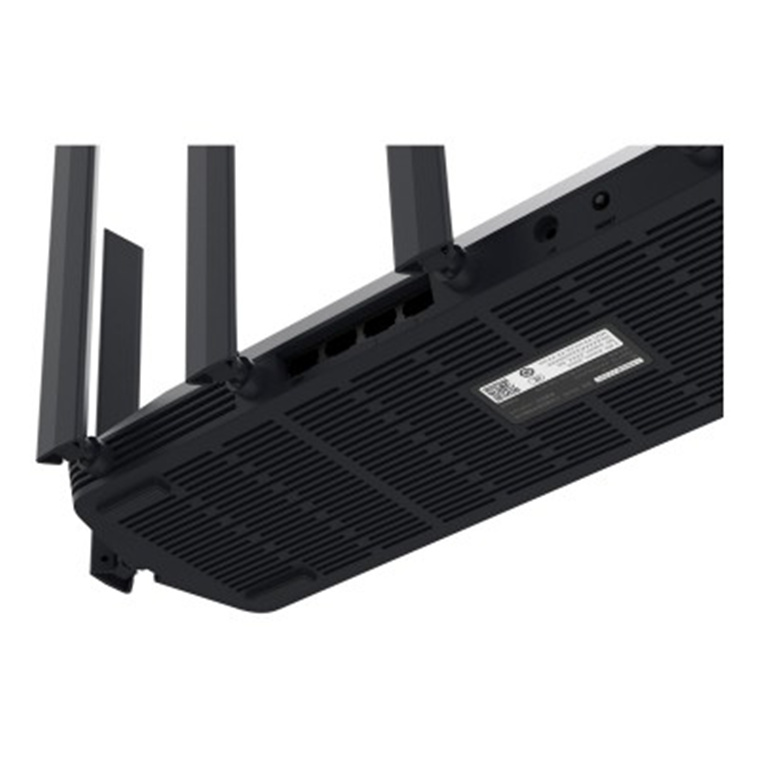

Total ports
1× 10/100/1000M self-adaptive WAN port (Auto MDI/MDIX)
3× 10/100/1000M self-adaptive LAN ports (Auto MDI/MDIX)
LED indicator light
7× (SYSTEM light ×1, INTERNET light ×1, LAN light ×4, AIoT status light ×1)
System reset button

Power input port

Protocol standards
IEEE 802.11a/b/g/n/ac/ax, IEEE 802.3/3u/3ab
Wireless specifications
Dual band
2.4 GHz and 5 GHz
Modulation
11b: DSSS: DBPSK(1 Mbps), DQPSK (2 Mbps), CCK(5.5/11 Mbps)
11a/g: OFDM: BPSK (6/9 Mbps), QPSK (12/18 Mbps), 16QAM (24/36 Mbps), 64QAM (48/54 Mbps)"
11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM. Rate set: MCS0 to MCS15
11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM. Rate set: MCS0 to MCS9 (supports 4 streams)
11ax: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM.
Rate set: MCS0 to MCS11 (supports 4 streams)"
Software specifications
Operating system
Mi Wi-Fi ROM intelligent router operating system based on a highly customized version of OpenWRT
WiFi Encryption
WPA-PSK/WPA2-PSK/WPA3-SAE encryption, wireless access control (blacklist and whitelist), SSID hiding, smart unauthorized access prevention
Network Security
Access control (blacklist, whitelist), guest network, DoS, SPI firewall, IP and MAC address binding, IP and MAC filtering
Management applications
Supports web, Android, iOS
Product accessories
User manual

Networking cable

Product power supply
1×(112 V/2 A)
Working Environment
Working environment
Temperature: 0°C to 40°C
Operating humidity
10%-90% RH (no condensation)
Storage temperature
-40°C to +70°C
Storage humidity
5%-90% RH (no condensation)
GTIN: 6934177722134
