Xiaomi Ultra Short Throw Laser TV Projector , Native 1080p, [SJL4005GL]

Xiaomi Ultra Short Throw Laser TV Projector , Native 1080p, [SJL4005GL]


Xiaomi Ultra Short Throw Laser TV Projector , Native 1080p,

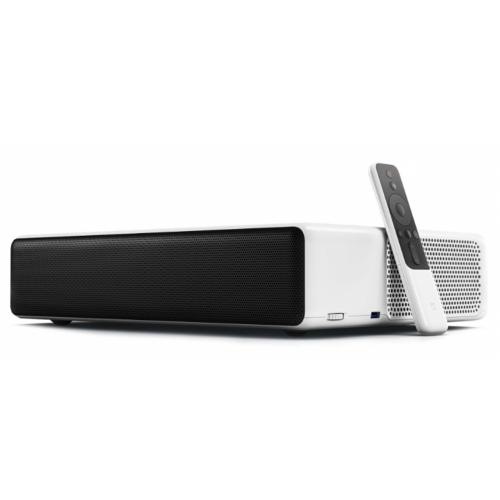

Mi Laser Projector 150"
Ultra-short throw distance, a massive screen for your home
- Ultra-short throw distance
- Massive 150" projection area
- ALPD 3.0 laser light source technology
- High color accuracy and brightness. 3000:1 native contrast
- Source content just as you would with Mi TV*

* Xiaomi Laser Projector can show traditional cable TV programs through a TV receiver such as a TV set top box or IPTV set top box. It cannot directly receive broadcast television signals.

Winner of Japan's 2017 Good Design Award
The Japan Good Design Award, iF Design Award, Red Dot Award and IDEA Award are known as the four major global design awards.
This is the world's first ultra-short throw projector with advanced laser display (ALPD) technology, which delivers up to 150 inches of full HD quality images from a distance of 50 centimeters, with 1500 lumens and 3000:1 contrast Quality, and product life up to 20,000 hours. To achieve user-friendly design goals, the high-tech product uses a compact, minimalist "box" design language, and carefully maintains consistency between the host style and the Bluetooth remote control design. Control the host from any corner of the room. Voice assistant quickly find programs and other interactive ways for the user to bring a new movie viewing experience.
- Good Design Award Judging Panel


A massive screen for your home
Xiaomi Laser Projector can project a screen as large as 150 inches.
Bring the private theatre into your home.


Massive 150" projection area - Turn your home into a private cinema
Easily adjust screen size to anywhere between 80-150 inches.
Experience the immersive pleasure of watching a movie, listening to a concert, or playing a game on a massive screen.


Ultra-short throw distance - Project a large screen, even from close range
Uses a 0.233:1 ultra-short throw lens design to do away with the inconvenience of the long-distance projection needed by traditional projectors. The Mi Laser Projector can be positioned 5cm to 50cm away from the display surface on a TV cabinet or mounted to a wall. There is no need to deal with difficult wiring or obstructions.


Cinema-quality
Xiaomi Laser Projector features 3000:1 native contrast, comparable to what is found in commercial cinemas. With red light ratios as high as 16-18%, colors are vivid and bright.


ALPD 3.0 laser light source technology
Features new ALPD 3.0 laser display technology by Appotronics*, which leads the market in screen color, contrast, and brightness. Not only are pictures bright and clear, the ALPD 3.0 allows us to enhance product life and reduce the machine's size.

* Appotronics is the world's leading high-brightness laser phosphor technology innovator. More than 3,000 theatres use this technology around the world.

85%+ NTSC colour range - Broad color range and distribution
Color is an important part of the entire projection screen. If the colour range is too small, the projector cannot display the film's true colors. Xiaomi Laser Projector uses innovative five-stage color wheel technology for red light projection rates of 16-18% *. The NTSC color range of 85% provides rich and accurate color reproduction.

* Conventional projectors usually only use a three or four-stage color wheels. Red light projection rates usually fall below 10%

3000:1 native contrast - Even darker scenes are projected clearly
We often complain that it can be hard to clearly see important details in a cinema because dark pictures are not projected clearly. Xiaomi Laser Projector features 3000:1 native contrast, well over the 2000:1 standard in cinemas. It also features 1920x1080 resolution and support for HDR, so details are clear, even in the dark.


Upgrade to Ansi 1600 lumen
The projector's offers brightness of up to 1600 lumens.

* fL is the Chinese cinema-wide standard for measuring brightness. A brightness of 14 fL is generally accepted for 2D cinema projection in China, and 4.5 fL for 3D pictures.

TI DLP digital light processing technology
Features DLP digital light processing technology from Texas Instruments. This technology is based on the DMD chip for visual digital information display. Using this technology, Xiaomi Laser Projector can show the picture more clearly and vividly. At the same time, details in the picture are vivid with a high restoration rate.


5.4um pixel DMD chip
2.07 million reflective lenses, so that every inch of the big screen is clear and crisp
The chip has more than 2.07 million 5.4um reflectors, each like a small mirror that flips ± 17 ° independently at a rate of 16.66 million cycles per second, converging the different colors of the beam onto an ultra-short focal laser lens for a high-definition viewing experience.


Lamp life of over 25000 hours - Watch movies every day of the year.
Appotronics ALPD 3.0 laser light source technology can effectively ensure lamp life of 25,000 hours or more, equivalent to the time needed to watch more than 10,000 movies (each 2 hours in length).


Dual full frequency + dual high frequency high fidelity speakers
Mi TV-exclusive sound system
A good picture needs to be accompanied by good sound. Xiaomi Laser Projector features the same custom speaker system developed for Mi TV, with built-in high power double full frequency + dual high-fidelity speakers. It has a unique inverted sound tube design and supports DOLBY, DTS dual decoding, so that you can have a cinema-level audio-visual experience right at home.



Anti-direct-viewing sensor
Automatic detection helps avoid damage from direct laser beams into the human eye.
The projection reflection imaging principle helps to effectively reduce fatigue and the human eye's exposure to radiation. Lenses on both sides feature a human infrared sensor, so that the device can automatically detect the approach of a human body and lower laser projection brightness to a minimum to avoid direct laser beams into the human eye.


All new, high-powered cooling system
Effective cooling extends the life of the machine
There is no need to worry about overheating or safety due to prolonged use of Xiaomi Laser Projector. The new cooling system, equipped with three large fans, modules designed with special air channels to optimize airflow, and a heat pipe with heat sink convergence quickly and efficiently dissipates heat.


Exquisitely bright, rounded design. Stylishly fits in anywhere
Xiaomi Laser Projector, like other Mi Smarthome products, features an elegant white outer surface for a clean and delicate effect. It has the footprint of a 15-inch laptop, and features rounded corners for safety.


Richly configured interface - Accomodates a variety of external devices
Xiaomi Laser Projector has a total of 10 expansion interfaces. Computers, speakers, microphones, game consoles, etc. can all be connected to meet your entertainment needs.


New remote control design
Ergonomic design features the same material used to manufacture the main projector.
To ensure the same beautiful overall design as that of the laser projector, the remote control has been completely redesigned. The remote features a compact, ergonomic design while retaining the functionality of the original Mi TV remote control.





For more information: https://www.mi.com/global/mi-laser-projector-150/
*All data above is from laboratory measurements. Different use cases may produce different results.

Basic Information
Name
Mi Laser Projector 150"
Model
MJJGYY02FM
Product Dimensions
410mm × 291mm × 88mm (main machine)
Product Weight
7.0 kg
Product Color
White
Optical Parameters & Quality Specifications
Display Technology
0.47 inch DMD
Standard Resolution
Full HD (1920x1080)
Compatible Resolution
4K
Light Source Technology
ALPD 3.0
Brightness Mode
Light source brightness of 1600 lumens
Optional: highlighting, viewing, standard
Automatic: energy-saving mode, human eye protection mode
Brightness uniform value
JBMA > 80%
Color Range
NTSC 80% ~ 85%
Central Contrast Ratio
2500:1 ~ 3500:1
Color Warmth
Standard, Cool, Warm
Projection Parameters
Projection Ratio (TR)
0.233 : 1
Screen Size
Recommended best viewing size is 80 - 150 inches
System Specifications
CPU
T962X Cortex-A53 quad-core 1.5GHz /64-bit
RAM
2GB DDR4
Built-in storage
16GB eMMC high-speed flash memory
System Functions
Operating System
Certified AndroidTV
Android System
Android 9.0
Wi-Fi
Dual-band 2.4 / 5GHz
Bluetooth
Bluetooth 4.0 / BLE low power
Dynamic images
Support HDR
Switch mode
Power on, off
Keystone
Four & eight keystone correction
Lens focus
Moto Focus
Sound
Sound Effects
DOLBY
Speaker speaker
Full frequency * 2 + high frequency * 2
Remote Control
Bluetooth remote control
Bluetooth, voice, touch
Port
Backend Interface
Ethernet port x1, SPDIF x1 (coaxial / optical), Audio out x1, AV 3.5x1, USB Flash Drive Port x1
HDMI2.0 / ARC x1, HDMI2.0 x2
Side connector
USB Flash Drive Port x1
Key Light
Breathing effect
White (power on, off, start)
Safety and Eye Protection
Laser TV eye protection
Anti-direct-viewing sensor
Temperature Protection
Software control
Automatic temperature control
Hardware detection
Overheat protection
Noise
Standard
Standard mode @ temperature of 25C <32 dB
Electrical Specifications
Power consumption
250W (max)
Power input
100-240V @50/60Hz
Standby power consumption
< 0.5W
Safety Certificate
Laser safety level
CLASS 1
Energy Efficiency Certification
Energy efficiency standards
Meet the C level national standard energy efficiency standards
Certification
Domestic and international
DOLBY, DTS, HDMI, BQB
Package Contents
Power cord
X 1
Remote control
X 1
Wipe the cloth
X 1
Manual / Three Guarantees
X 1
Protective film
Protective film chassis protective film; remote control protective film
Other
Storage temperature
-20 ~ 55C
Operating temperature
0 ~ 40C
Working humidity
20% ~ 80%
- MPN: SJL4005GL
GTIN: 6934177701788
