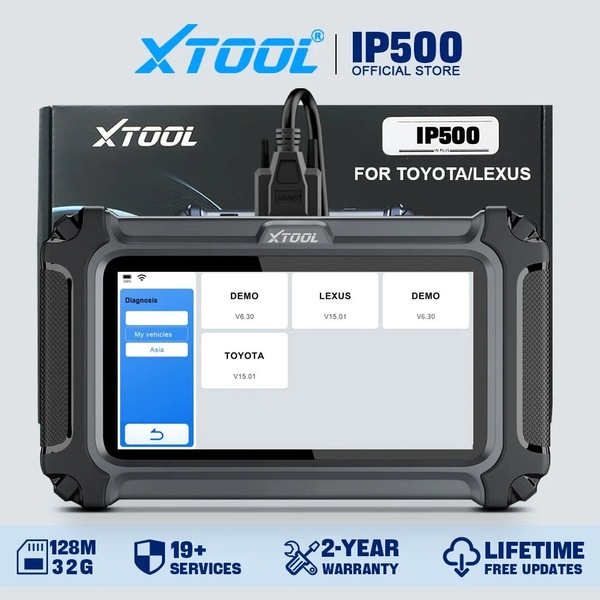

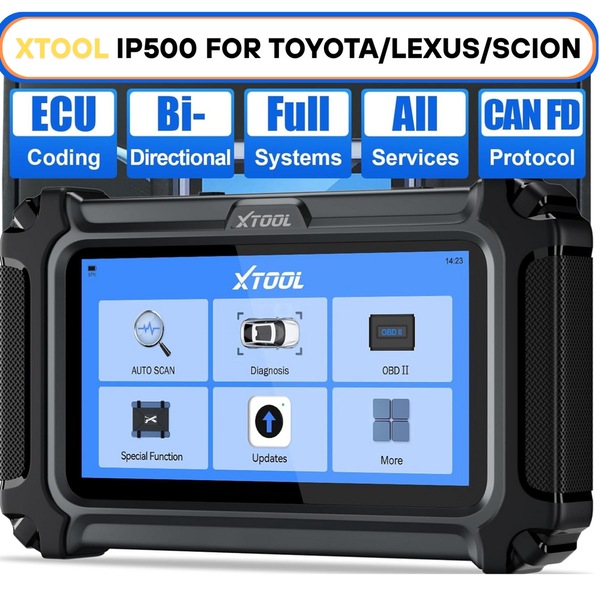

XTOOL IP500 Toyota OBD2 Diagnostic Scanner

• Full-System Diagnostics: Accesses all electronic control units (ECUs), including Engine (ECM), Transmission (TCM), ABS, SRS (Airbags), Body Control Module (BCM), TPMS, EPB, BMS, HVAC, and more, to read and clear diagnostic trouble codes (DTCs), view live data streams, and retrieve freeze frame data for comprehensive vehicle analysis.

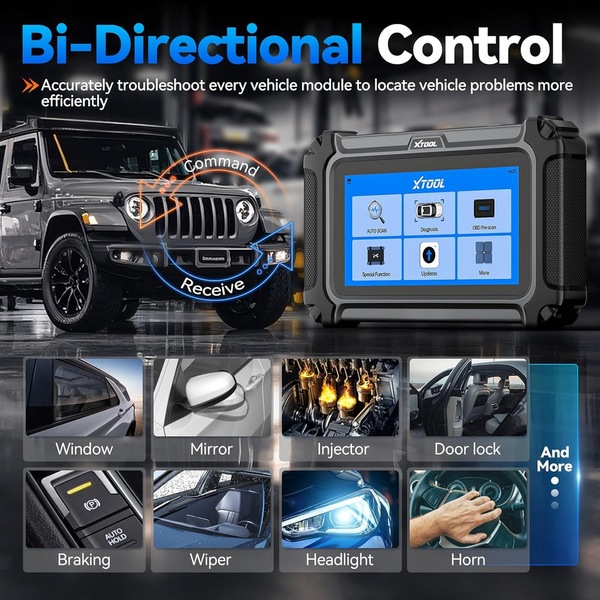

• Bidirectional Control: Sends commands to activate and test vehicle components such as headlights, fog lights, wipers, windows, mirrors, door locks, fuel injectors, throttle, radiator fans, and horns, allowing real-time verification of system functionality without manual disassembly.
• 19+ Special Functions: Performs advanced maintenance and calibration tasks, including ABS Bleeding, EPB Reset, SAS Reset, Throttle Reset, Injector Coding, BMS Reset, Gearbox Matching, Seat Calibration, A/F Reset, and more, for professional-grade vehicle servicing.
• Full OBD2 Functionality: Supports all 10 OBD2 modes, including reading/clearing codes, I/M readiness, oxygen sensor tests, EVAP system tests, and MIL reset, ensuring emissions compliance and readiness for smog checks.

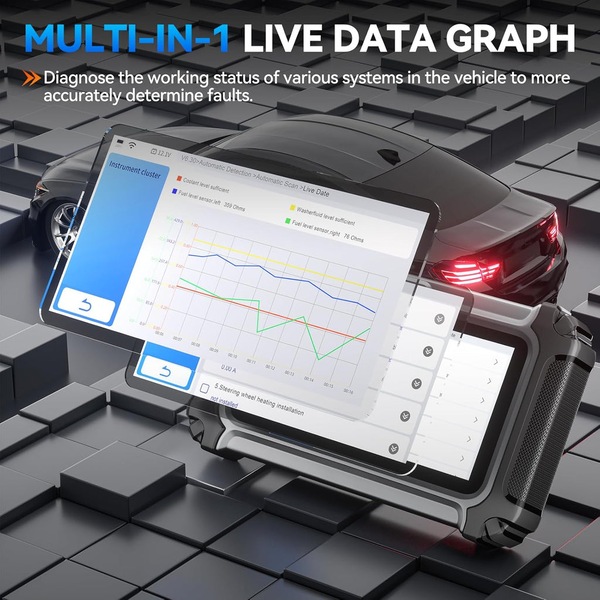

• Multi-in-One Live Data Graphing: Displays real-time data from multiple sensors (e.g., engine RPM, fuel pressure, coolant temperature, transmission fluid temperature) in color-coded, easy-to-read graphs, enabling quick identification of irregularities or performance issues.
• Fast Auto Scan & Auto VIN: Automatically detects the vehicle identification number (VIN) and scans all systems in minutes, streamlining the diagnostic process for rapid fault identification.
• Diagnostic Report Saving & Sharing: Generates detailed diagnostic reports that can be saved and shared with service centers or customers, facilitating long-term vehicle health tracking and professional documentation.
• Lifetime Free Wi-Fi Updates: Provides one-click software updates via Wi-Fi, ensuring compatibility with the latest Toyota, Lexus, and Scion models, new diagnostic techniques, and enhanced features, with no subscriptions or hidden fees.
• 15 Language Support: Available in English (default), French, Portuguese, Russian, Japanese, Korean, Italian, Arabic, Spanish, German, Polish, Finnish, Turkish, Vietnamese, and Traditional Chinese. Contact seller with serial number to switch languages.

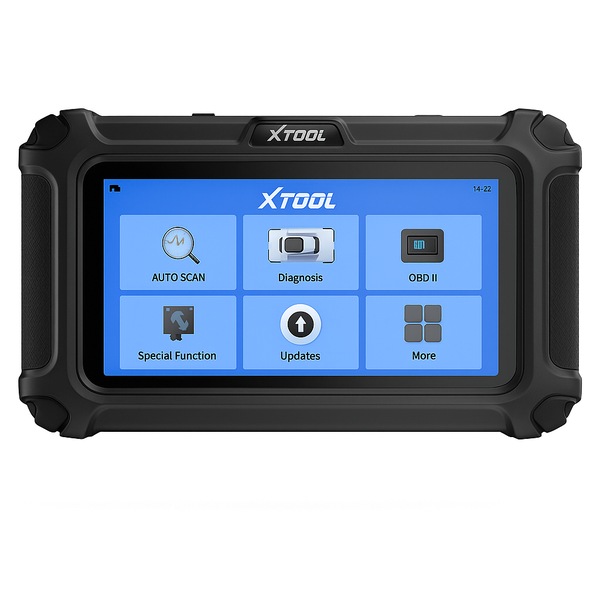

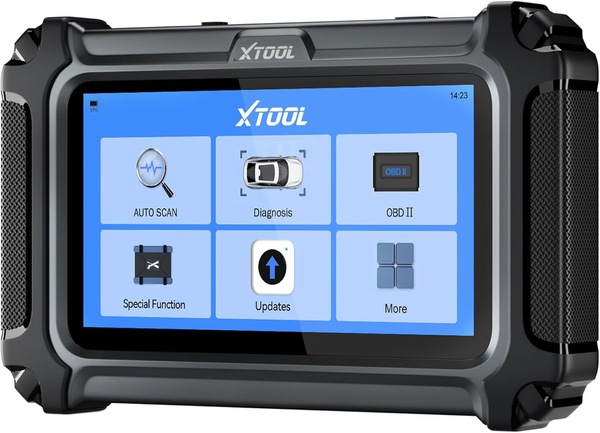

• Portable & Intuitive Design: Features a 5.45-inch HD touchscreen (1440x720 resolution), 1.2GHz dual-core processor, 3150mAh rechargeable battery, and 32GB storage (expandable to 128GB) for seamless operation in workshops, garages, or on-the-go.
• Rugged Build: Lightweight yet durable construction, designed to withstand the demands of daily use in automotive environments.

The XTOOL IP500 offers comprehensive diagnostics across all major vehicle systems, providing insights and control typically reserved for dealership-grade tools:

• Engine Control Module (ECM): Analyzes misfire data, fuel trims, oxygen sensor readings, and throttle performance to diagnose issues like poor acceleration or rough idling.
• Transmission Control Module (TCM): Monitors shift points, fluid temperature, and clutch operation, enabling resets after transmission repairs or fluid changes.
• Anti-lock Braking System (ABS): Reads/clears codes and performs bleeding to restore brake sensitivity after maintenance.
• Supplemental Restraint System (SRS): Diagnoses airbag faults, clears crash data, and ensures safety system functionality post-repair.
• Body Control Module (BCM): Tests and controls components like headlights, wipers, windows, door locks, and mirrors for proper operation.
• Tire Pressure Monitoring System (TPMS): Resets sensors after tire rotations or replacements to maintain accurate pressure readings.
• Electronic Parking Brake (EPB): Resets brakes after pad replacements or service for smooth operation.
• Battery Management System (BMS): Registers new batteries to the ECU, ensuring optimal charging and battery health monitoring.
• Heating, Ventilation, & Air Conditioning (HVAC): Diagnoses A/C compressor, clutch, and temperature sensor issues for reliable climate control.
• Additional Systems: Covers suspension, steering, and other auxiliary systems, providing a complete diagnostic overview.

The XTOOL IP500 supports a wide array of maintenance and calibration tasks, empowering users to perform professional-grade servicing on Toyota, Lexus, and Scion vehicles:

• ABS Bleeding: Removes air from the brake system to restore optimal braking performance after fluid changes or component replacements.
• EPB Reset: Resets electronic parking brakes after brake pad replacements or maintenance for proper operation.
• SAS Reset: Calibrates the steering angle sensor to ensure accurate wheel alignment and stability control.
• Throttle Reset: Relearns throttle position after cleaning or replacement, restoring smooth acceleration and idle performance.
• Injector Coding: Matches new fuel injectors to the ECU for precise fuel delivery and engine efficiency.
• BMS Reset: Registers a new battery to the ECU, ensuring accurate charge monitoring and extended battery life.
• Gearbox Matching: Adapts new or repaired transmissions to the ECU, optimizing shift points and performance.
• Seat Calibration: Adjusts seat position memory settings for driver comfort and convenience.
• A/F Reset: Resets air-fuel ratio parameters after sensor or exhaust system repairs for optimal combustion.
• Tire Size Reset: Updates the ECU to accommodate new tire sizes, ensuring accurate speedometer and traction control readings.
• Headlight Adjustment: Calibrates headlight aim for proper illumination and safety compliance.
• Crank Sensor Relearn: Recalibrates the crankshaft position sensor to improve misfire detection and engine timing accuracy.
• Power Balance: Tests individual cylinder performance to identify weak or imbalanced cylinders.
• A/C Relearn: Resets air conditioning system parameters after repairs to restore cooling efficiency.
• Rain/Light Sensor Reset: Recalibrates sensors for automatic wipers and headlights, ensuring proper functionality.
• Clutch Adaption: Adapts the clutch for smooth engagement after repairs or replacements.
• Language Change: Updates the vehicle’s display language to match user preferences.
• Suspension Adjustment: Calibrates suspension settings for improved ride quality and handling.
• Oil Reset: Clears the oil change indicator after routine oil and filter replacements.
• Note: Special functions vary by vehicle model. Confirm compatibility with your vehicle’s VIN before use.

The IP500 supports all 10 OBD2 modes, ensuring comprehensive emissions-related diagnostics for compliance and performance:

• Read Codes: Retrieves diagnostic trouble codes (DTCs) to identify specific issues within the vehicle’s systems.
• Clear Codes: Resets the check engine light and clears codes after repairs to verify fixes.
• Live Data: Monitors real-time parameters such as oxygen sensor voltage, coolant temperature, and engine RPM for dynamic analysis.
• Freeze Frame: Captures vehicle data at the moment a fault occurs, providing context for troubleshooting.
• I/M Readiness: Checks emissions system status to confirm readiness for smog inspections.
• O2 Sensor Test: Evaluates oxygen sensor performance to ensure efficient fuel combustion and emissions control.
• On-Board Monitor Test: Tests emissions-related components like the catalytic converter and EGR system.
• EVAP System Test: Checks for fuel vapor leaks in the evaporative emissions system.
• Vehicle Information: Retrieves VIN, ECU data, calibration IDs, and other vehicle-specific details.
• Component Test: Activates specific components like the fuel pump or EVAP system for targeted testing.

The XTOOL IP500 is compatible with 99% of Toyota, Lexus, and Scion vehicles from 1996 to the present, covering all OBD2-compliant models. Supported vehicles include, but are not limited to:

• Toyota: Corolla, Camry, RAV4, Prius, Tacoma, Highlander, Sienna, Tundra, 4Runner, Avalon, Yaris, Venza, Sequoia, Land Cruiser, Hilux, C-HR, Supra, GR86, Mirai, bZ4X, Crown, FJ Cruiser, Matrix, Solara, Verso, Aygo, Fortuner, Harrier, Paseo, Previa, Tercel
• Lexus: ES, GS, IS, RX, NX, GX, LX, RC, LC, LS, UX, CT, HS, SC, LFA, RC F, GS F, IS F
• Scion: tC, xB, xD, iQ, FR-S, iA, iM

Note: Certain models may not support all functions due to variations in vehicle configuration. Verify compatibility with your vehicle’s make, model, year, and VIN by contacting XTOOL technical support prior to purchase.

• Display: 5.45-inch HD touchscreen with 1440x720 resolution for clear, vibrant visuals.
• Processor: Dual-Core 1.2GHz for fast data processing and responsive operation.
• Battery: 3150mAh rechargeable via Type-C interface (charger plug not included), providing extended runtime for uninterrupted diagnostics.
• Storage: 32GB internal storage, expandable to 128GB via memory card (not included) for storing diagnostic reports and data.
• Connectivity: Type-C interface for charging and data transfer, ensuring quick and reliable connections.
• Weight: Lightweight design for easy portability in workshops or garages.
• Build: Rugged, durable construction to withstand daily use in demanding automotive environments.

The IP500 is designed for ease of use, with features that enhance efficiency and user experience:

• Fast Scan & Auto VIN: Quickly detects vehicle systems and automatically retrieves VIN, reducing setup time and ensuring accurate diagnostics.
• Save & Share Reports: Stores diagnostic reports for future reference or sharing with service centers, enabling trend analysis and professional record-keeping.
• Multi-in-One Live Data: Simultaneously displays data streams from multiple systems (e.g., engine, transmission, fuel) in a single view, saving time during complex diagnostics.
• Intuitive Interface: Streamlined navigation and responsive touchscreen make diagnostics accessible to both novices and experts.

• Specialized for Toyota Group: Optimized exclusively for Toyota, Lexus, and Scion, offering deeper system access than generic OBD2 scanners.
• Dealership-Level Capabilities: Provides advanced bidirectional control and special functions typically found in costly dealer tools.
• Cost-Effective Solution: Lifetime free updates eliminate ongoing subscription costs, delivering long-term value.
• User-Friendly Design: Combines powerful hardware with an intuitive interface, making it ideal for beginners and seasoned technicians alike.
• Versatile Applications: Perfect for diagnosing check engine lights, performing maintenance resets, or optimizing vehicle performance for road trips.
• Reliable Support: Backed by XTOOL’s 24/7 technical support for compatibility verification and troubleshooting assistance.

• Lifetime free Wi-Fi updates to keep the tool current with new models and features
• 24/7 online technical support for compatibility checks, setup assistance, and diagnostic guidance
