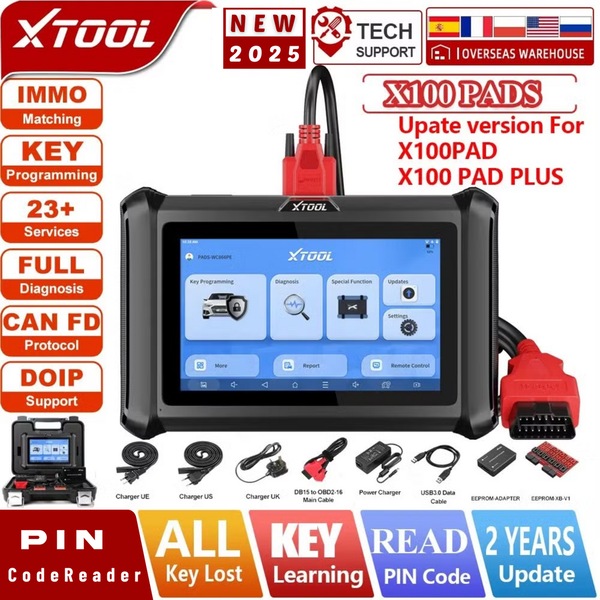

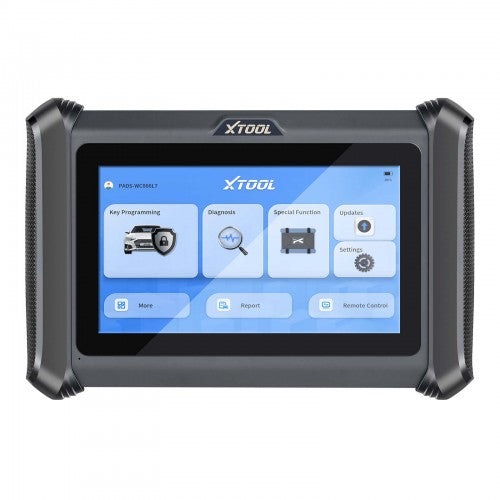

XTOOL X100 PADS OBD2 Diagnostic Scan Tool and IMMO Key Programming Automotive Scanner

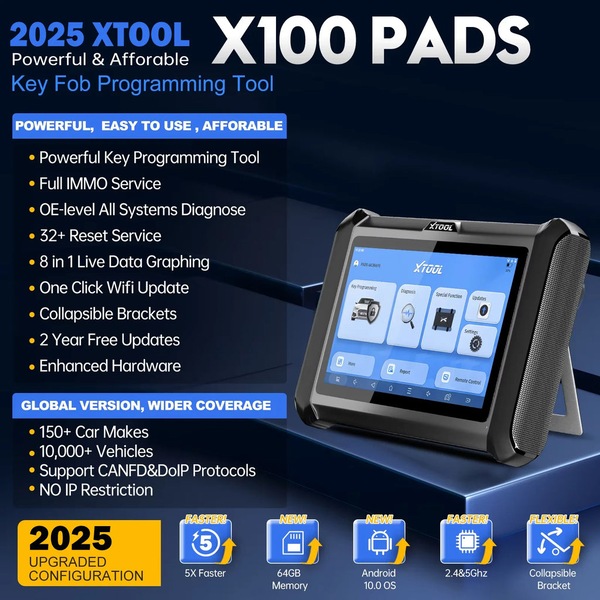

The XTOOL X100 PADS is a 2025 advanced tablet-based automotive diagnostic and key programming tool, upgraded from the X100 PAD and X100 PAD Plus. Running on Android 10 with a 7-inch touchscreen, this professional scanner is designed for auto mechanics, repair shops, car dealers, and DIY enthusiasts. It offers comprehensive immobilizer (IMMO) and key programming, full system diagnostics, and 23+ special maintenance functions, making it a must-have for workshops and DIY toolboxes. Supporting CAN FD and DoIP protocols, it covers over 95% of vehicles globally, including 2020+ GM models and BMW/Jaguar/Land Rover vehicles. With 8-in-1 live data graphing, Auto VIN scanning, and a multilingual interface (15 languages), the X100 PADS delivers powerful diagnostics and ease of use. It includes a 2-year free software update, 1-year warranty, and advanced hardware (2+64GB memory, 5000mAh battery, WiFi/USB connectivity). Note: Key programming for Benz, BMW, Audi, VW, Toyota smart key all-key-lost, and Chrysler PIN reading (requires X100 PAD3 + adapter) is not supported. The KC100 key programmer is not included and must be purchased separately.

Whether you’re programming a new key for a 2020 GM vehicle, resetting an oil light after service, or diagnosing an ABS fault, the X100 PADS streamlines automotive repairs with its intuitive interface and robust functionality. Its ability to read/write transponder keys, perform active tests, and export live data to CSV makes it ideal for both routine maintenance and complex diagnostics. To ensure compatibility, provide your vehicle’s VIN and model before purchasing.

The XTOOL X100 PADS is compatible with over 95% of 12V petrol sedans, SUVs, minivans, and light-duty trucks worldwide, covering more than 10,000 models across Asia, Europe, America, and China. It supports advanced diagnostics and key programming for a wide range of vehicles, but key programming is limited for specific models (e.g., no Benz, BMW, Audi, VW, Toyota smart key all-key-lost).

• Asia: Toyota, Lexus, Honda, Acura, Mazda, Nissan, Infiniti, Mitsubishi, Subaru, Suzuki, Kia, Hyundai, Daewoo, SSANGYONG, Proton, and more.
• Europe: Audi, VW, Skoda, Seat, Porsche, Opel, Citroen, Peugeot, Jaguar, Land Rover, Lincoln, Renault, Abarth, Alfa Romeo, Aston Martin, BMW, Ferrari, Fiat, Lancia, Maserati, Mini, Smart, Volvo, and more.
• America: GM, Cadillac, Buick, Chrysler, Ford, Chevrolet, Dodge, GMC, Hummer, Jeep, Pontiac, Saturn, Lincoln, and more.
• China: Great Wall, Chery, Brilliance-Auto, Geely, Lifan, Hafei, Changan, Landwind, BYD, JAC, and more.
• Australia: Ford, Holden.

To confirm compatibility for your vehicle, provide your VIN and model details to the seller. The X100 PADS supports CAN FD for GM 2020+ models and DoIP for BMW E/F/G chassis, Jaguar, and Land Rover, eliminating the need for additional adapters.

The XTOOL X100 PADS combines advanced IMMO/key programming, full system diagnostics, and 23+ special functions to address a wide range of automotive repair needs. Below are its core capabilities:

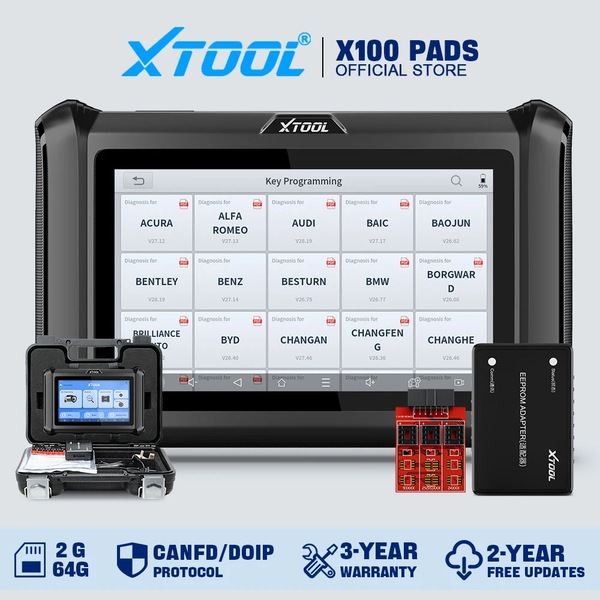

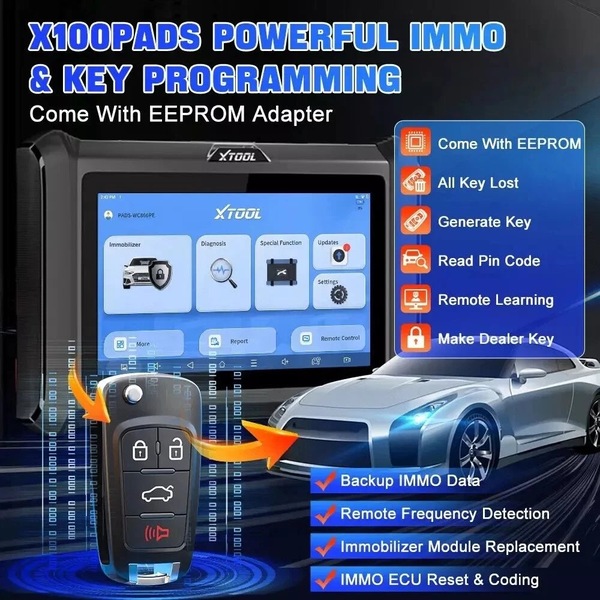

• Advanced IMMO/Key Programming (with EEPROM Adapter, KC100 Not Included): Perform comprehensive immobilizer and key programming tasks to secure vehicles and replace keys.
  • Disable lost keys to prevent unauthorized access.
  • Read PIN codes for key programming.
  • Add new keys or generate dealer keys.
  • Support all-key-lost scenarios (except Benz, BMW, Audi, VW, Toyota smart keys).
  • Perform key learning and remote learning with frequency detection.
  • Read/write transponder keys and Mercedes infrared keys.
  • Backup and restore IMMO data.
  • Replace IMMO modules and reset IMMO ECU.
  • Match keys for 2020+ GM vehicles.
  • Read/write EEPROM chips in immobilizer modules using the included adapter.

  Use Case: Program a new key fob for a 2020 GM vehicle after losing the original by reading the PIN code, generating a key, and performing key learning via OBDII. Note: KC100 is required for advanced IMMO tasks and must be purchased separately.

• Full System Diagnostics: Access all vehicle electronic control units (ECUs) for in-depth diagnostics across systems like ABS, SRS, engine, transmission, TPMS, brake, emission, fuel, light, and wiper.
  • Read and clear diagnostic trouble codes (DTCs) to resolve warning lights.
  • View live data streams (e.g., oil temperature, coolant temperature, engine speed) in text or graph format.
  • Retrieve freeze frame data to analyze faults at the time of occurrence.
  • Perform active tests to command components (e.g., fuel injectors, fans) for functionality checks.
  • Read ECU information for system identification.

  Use Case: Diagnose a check engine light on a 2018 Ford by reading DTCs, viewing live data (e.g., oxygen sensor readings), and clearing codes after repairs.

• 23+ Special Functions: Execute maintenance and reset functions to keep vehicles in optimal condition.
  • Oil Reset: Reset service intervals and turn off the oil light after an oil change.
  • EPB Reset: Reset electronic parking brake pads after replacement.
  • BMS Reset: Register a new battery to the vehicle’s ECU.
  • Throttle Relearn: Calibrate throttle settings for proper air intake.
  • ABS Bleeding: Cycle the ABS pump to remove air from the brake system.
  • Injector Coding: Program new injectors after replacement.
  • Gearbox Match: Reset adaptive shifting points in the transmission control unit.
  • Airbag Repair: Clear airbag crash data to reset the system.
  • Headlight Initialization: Calibrate adaptive headlights.
  • Air Suspension: Adjust suspension height for proper alignment.
  • Window Initialization: Restore power window memory after repairs.
  • TPMS Reset: Reset tire pressure monitoring system after sensor replacement or rotation.
  • SAS Adjustment: Calibrate steering angle sensor.
  • Gear Learning: Relearn crankshaft position for smooth engine operation.
  • Electronic Pump Activation: Activate fuel or oil pumps for priming.
  • Tire Upgrade: Adjust settings for performance tire changes.
  • Seat Calibration: Match seat positions to ECU memory.
  • Cylinder Adjustment: Balance cylinder performance.
  • Transport Mode: Disable transport mode for new vehicles.
  • DPF/GPF Regeneration: Perform diesel/gasoline particulate filter cleaning.
  • EPS Reset: Calibrate electric power steering.
  • Refresh Hidden Functions: Unlock manufacturer-specific features.
  • EEPROM Adapter: Read/write/backup immobilizer EEPROM chips.

  Use Case: Reset the oil light on a 2021 Toyota after an oil change or bleed the ABS system on a 2019 VW after brake pad replacement to ensure proper brake performance.

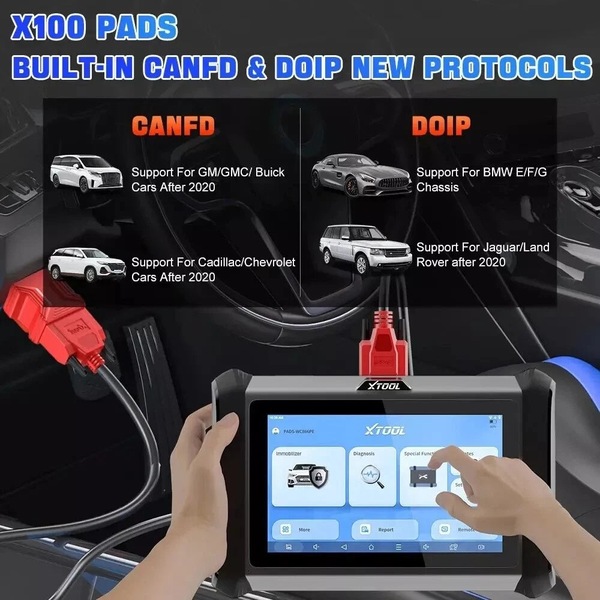

• CAN FD and DoIP Protocol Support: Ensure compatibility with modern vehicles.
  • CAN FD: Supports GM vehicles (2020+) like Buick, Chevrolet, Cadillac, and GMC for faster data transfer without adapters.
  • DoIP: Covers BMW E/F/G chassis, Jaguar, and Land Rover for high-speed diagnostics.

  Use Case: Diagnose a 2022 Chevrolet using CAN FD to access real-time TPMS data without additional hardware.

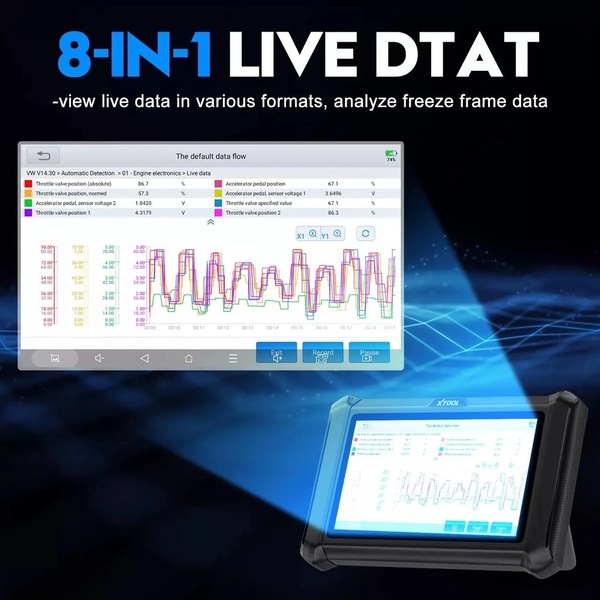

• 8-in-1 Live Data Display: Monitor and analyze vehicle performance in real time.
  • Read and graph 8 independent sensor data streams simultaneously.
  • Export live data to CSV for storage and comparison.
  • Record, playback, and view data for detailed analysis.

  Use Case: Graph engine RPM, coolant temperature, and fuel pressure on a 2020 Honda to diagnose an overheating issue, then export data for customer reports.

• Other Features: Enhance usability and functionality.
  • Fast Auto VIN Scan: Automatically identify vehicle details via VIN or allow manual entry for older models.
  • 2-Year Free Updates: Download new vehicle coverage and functions via WiFi for two years.
  • 15 Languages: English, Spanish, German, French, Italian, Finnish, Arabic, Japanese, Korean, Polish, Portuguese, Vietnamese, Russian, Simplified Chinese, Traditional Chinese (default English; provide serial number for language change).
  • Report Generation: Print or share diagnostic reports via Bluetooth to mobile devices, tablets, or computers.
  • Wide Vehicle Coverage: Supports 10,000+ models across 95% of global vehicles.
  • 1-Year Warranty: Ensures reliable after-sales support.

  Use Case: Generate a diagnostic report for a 2019 Chrysler after clearing SRS codes and share it with the customer via Bluetooth.

The X100 PADS features upgraded hardware for improved performance and portability:

• Product Name: X100 PADS
• Operating System: Android 10
• Processor: Quad-Core 1.5GHz
• Memory: 2GB RAM + 64GB storage
• Screen: 7-inch IPS touchscreen (1024x600 resolution)
• Battery: 5000mAh, rechargeable
• Connectivity: WiFi (2.4G/5G), USB 2.0 (supports KC100/KC501)
• Operation: Tablet touchscreen
• Upgrade Method: WiFi online upgrade (2 years free)
• Charging: Adapter (International chargers included)
• Protocols: CAN FD, DoIP
• Dimensions: Compact and lightweight for workshop use

The XTOOL X100 PADS addresses common automotive scenarios, enhancing efficiency and reducing repair costs:

• Key Programming: Replace a lost key on a 2021 Nissan by reading the PIN code, programming a new transponder key, and disabling the old key using the EEPROM adapter.
• Diagnostic Troubleshooting: Resolve an ABS warning light on a 2020 Hyundai by reading DTCs, performing an active test on the ABS pump, and clearing codes after repairs.
• Maintenance Resets: Reset the oil service light on a 2022 VW after an oil change or register a new battery on a 2019 GM vehicle to update the BMS.
• System Calibration: Relearn the throttle position on a 2021 Toyota after cleaning the throttle body to restore smooth idling.
• Data Analysis: Monitor live data (e.g., transmission fluid temperature, gear position) on a 2020 Ford during a test drive, export to CSV, and share a report with the customer.

Maximize your X100 PADS experience with these considerations:

• Compatibility Check: Provide your vehicle’s VIN and model to verify compatibility, especially for key programming and special functions.
• IMMO Limitations: Does not support key programming for Benz, BMW, Audi, VW, Toyota smart key all-key-lost, or Chrysler PIN reading (requires X100 PAD3 + adapter).

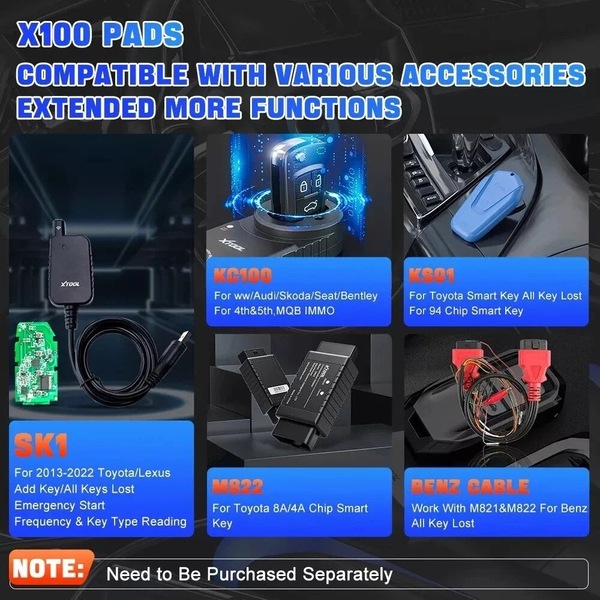

• KC100 Requirement: Advanced IMMO functions (e.g., chip reading) require the KC100 key programmer, sold separately.
• Troubleshooting Tips:
  • Failed Diagnostics: Ensure the OBDII cable is securely connected and the vehicle battery is above 12V.
  • Key Programming Issues: Verify the transponder key is compatible and the EEPROM adapter is properly connected.
  • Software Updates: Connect to WiFi for the latest vehicle coverage and functions during the 2-year free update period.
• Language Activation: Default language is English; provide the serial number to switch to another supported language.
• Support: Contact the seller for compatibility checks, language changes, or technical assistance.
