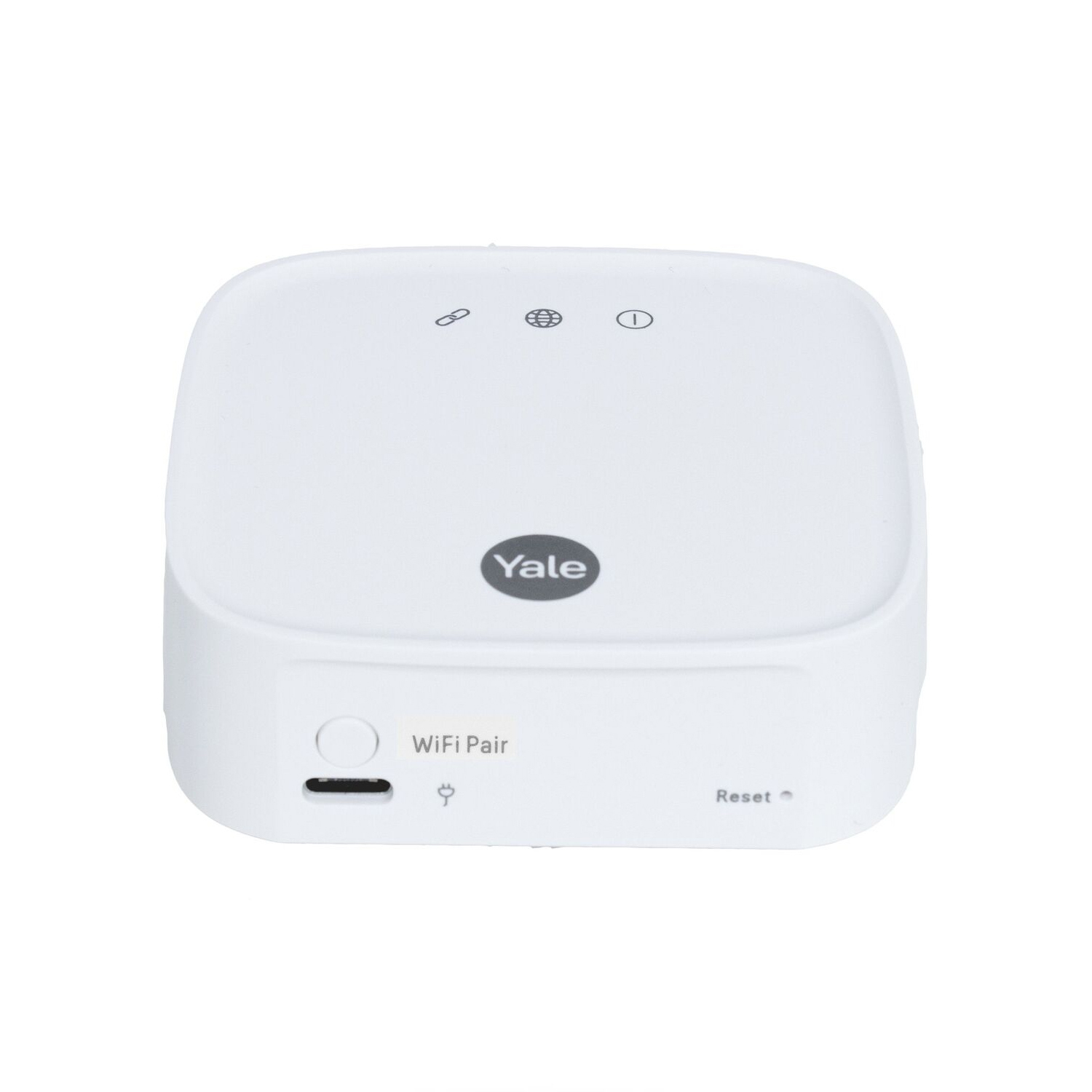

Yale Connect Plus Hub 2
YAR/SWAA/HUB/-I-D

Connect Plus Hub is commonly used in advanced automation systems to link and synchronize multiple actuators.

Connect Plus Hub Function - facilitates the connection and coordination of multiple actuators within an automated system.

• The Yale Connect Plus Hub 2 allows you to access multiple Yale smart home locks and window actuators from wherever you are.
• Monitor the status of your home, lock or unlock and more using your Yale Home App from anywhere.
• The Yale Connect Plus Hub 2 allows your Yale smart home devices to work with Amazon Alexa, Google Home and more.

Features:

• Monitor the status of your home, lock or unlock and more using the Yale Home App
• Grow your Yale Home Automation: Supports up to 16 Bluetooth and 30 Zigbee Yale smart home devices
• Coverage for the Entire home*: Designed to support Yale smart home devices throughout your home, freeing up power points by having multiple devices connected to the one Hub
• Integrate with voice assistants and smart home ecosystems including Amazon Alexa and Google Assistant for hands-free control
• Compatible with Yale Assure locks, Yale YDM mortice locks, Yale Unity locks, Yale Smartlatch2, Yale Smart safes and Yale Aeron window controllers
• QR code for quick access to Yale Home App

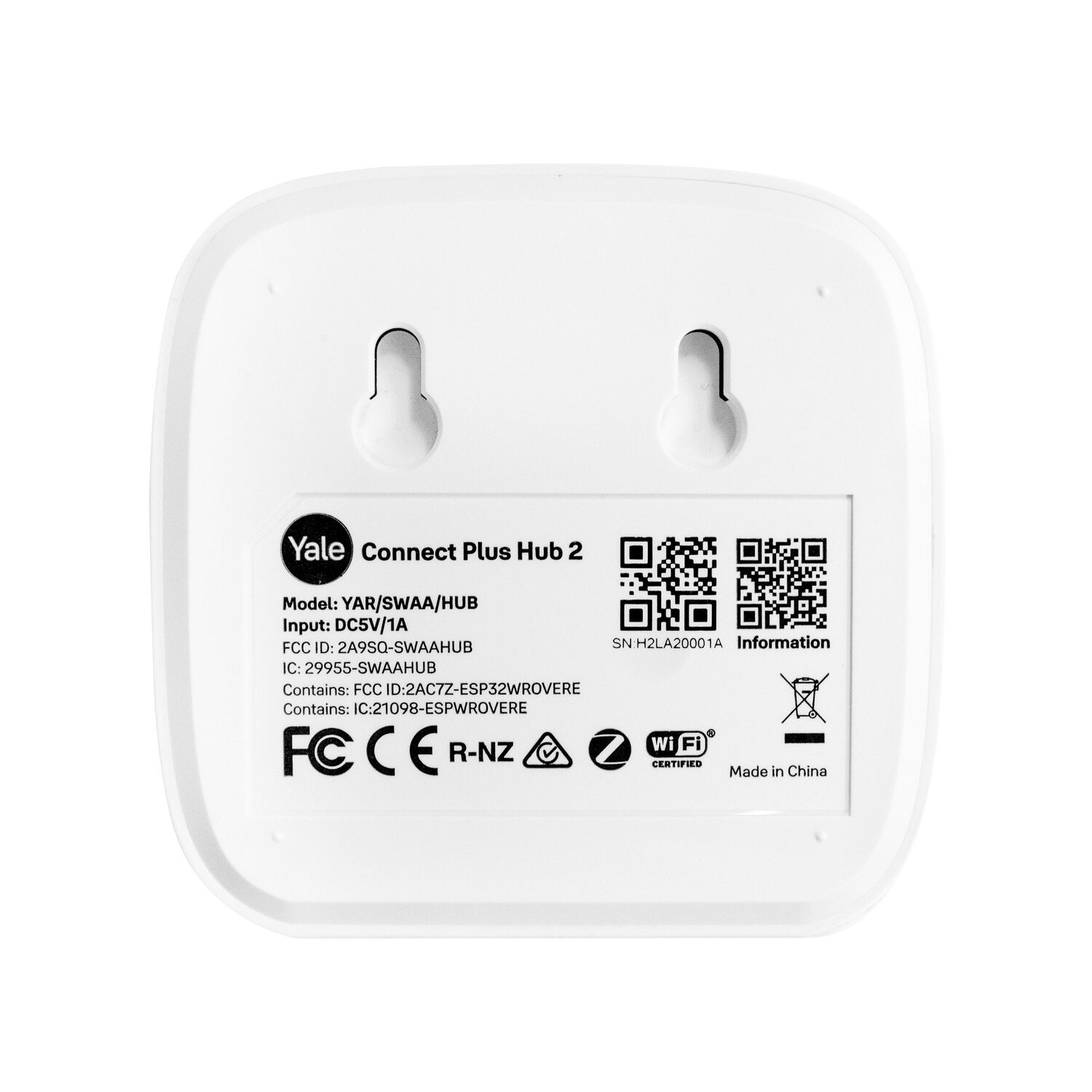

• Can be wall mounted
• Supplied in retail box

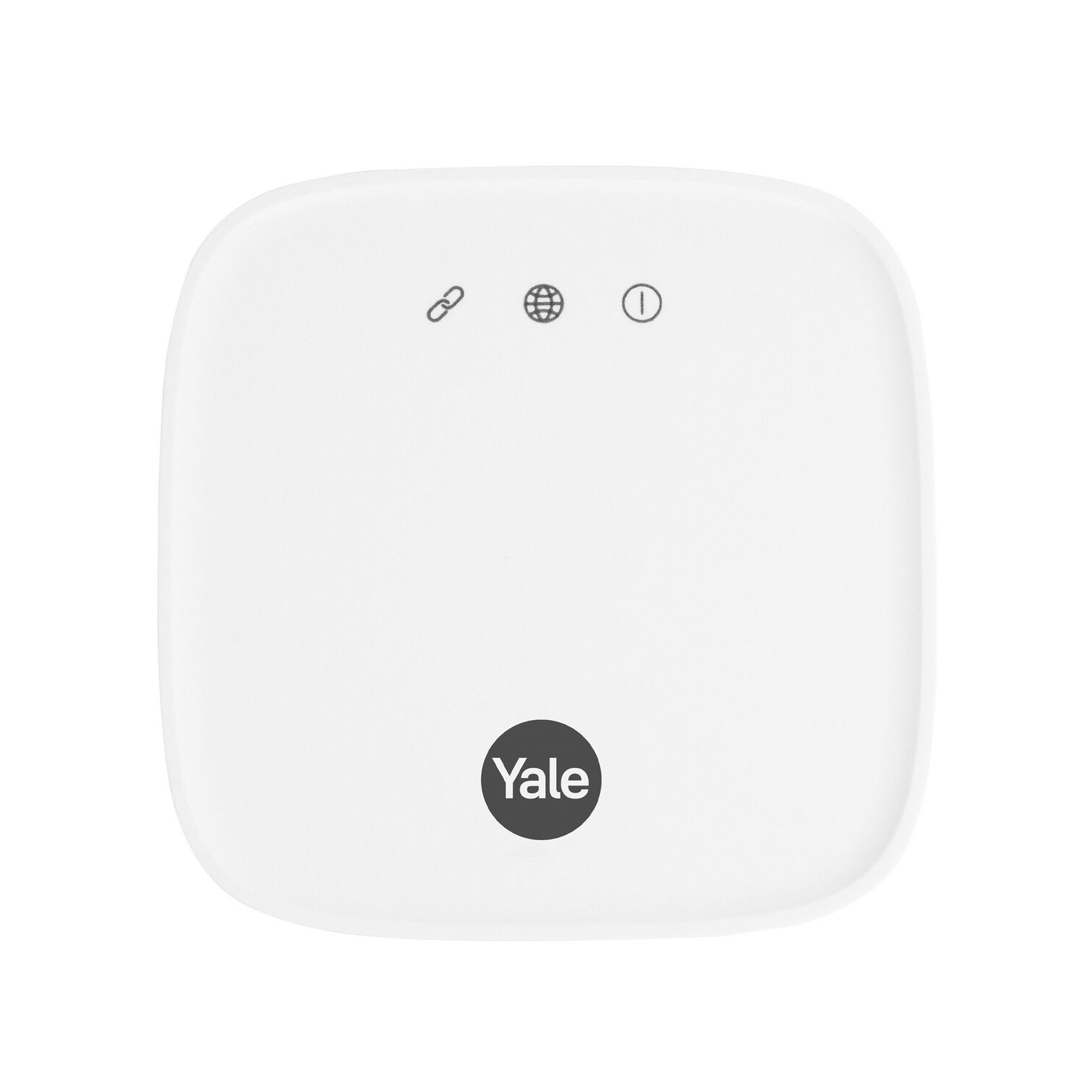

LED Indicator Functions:

• Power LED
  •  Solid LED = Hub is powered on
  • Slow flash LED = Hub is searching sub-devices
  • No LED = Hub is powered off
• Wi-Fi Connection
  • Solid LED = Hub is connected to Wi-Fi router
  • Slow flash LED = Hub is in Wi-Fi connect mode
  • Fast flash LED = Firmware is being updated
  • No LED = Hub can’t connect to Wi-Fi router
• Server Connection
  • Solid LED = Hub is connected to Yale Home Server but there is no data being communicated at the time
  • Slow flash LED = Hub is communicating with Yale Home Server
  • No LED = Hub can’t connect to Yale Home Server

Specifications

• Material: Plastic
• Body Size: 80mm x 80mm x 30mm
• Net Weight: 65g (Hub alone)
• WiFi: WiFi 802.11b/g/n 2.4GHz networks; please make sure your Wi-Fi router broadcasts a 2.4 GHz network
• Bluetooth: BLE 5.0 2.4GHz
• Zigbee: Zigbee 3.0 2.4GHz
• Power Adapter Included: USB-C / 5VDC, 1A
• Basic Function: Hub/Bridge for BLE and Zigbee multi-devices
• Certification: FCC/IC/BTSig/CE/RCM/RoHS
• Finish: White

Note:

• Indoor use only
• if all 3 LEDs blink consecutively then the Hub is currently undergoing a factory reset
• Please check if your specific Yale smart home device works with Alexa or Google Home on the Yale website before purchase.
• Home size, layout and building material can impact performance. Medium and larger sized home may require additional devices for full coverage.
