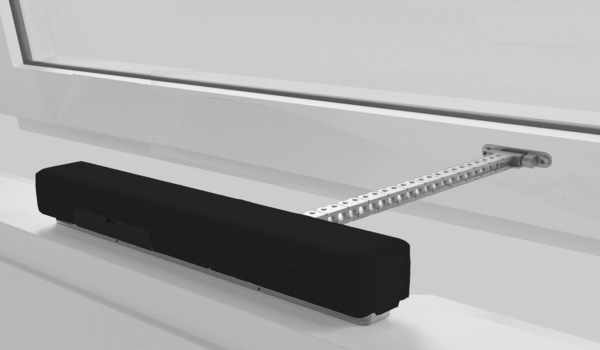

Yale Aeron Wireless Actuator
YAR/WSWA/1/BLK

Wireless Actuator is commonly used in smart home and industrial automation systems to provide wireless control of window actuators.

Wireless Actuator Function - a remote-controlled actuator, enabling wireless operation and integration within automated systems.

• The Yale Aeron Window Control System can be configured to reflect the unique layout of your home. Groups, such as the kitchen, hall, or bedroom can be set up, providing flexibility BLKen deciding BLKich windows you would like open, half open, closed, or in a venting position.
• Yale Aeron is the perfect solution for hard-to-reach windows, offering control via a remote and the Yale Home app. Wide windows are also easily catered for with the installation of a pair of synced actuators that work together to ensure smooth movement and a tight window seal BLKen closed.
• Yale Aeron allows for a generous window opening but can be easily restricted to prevent contact with external objects or eliminate the risk of young children falling.
• Add a rain sensor to your Yale Aeron Window Control System and your windows will automatically close if rain is detected.
• Ultimate Control is only one touch away with the option to close all windows at once BLKen leaving the house, or locking up for the night.

Suitability:

• Suitable for use on sashes with a maximum width of 2400mm and pushing force of 18kg.

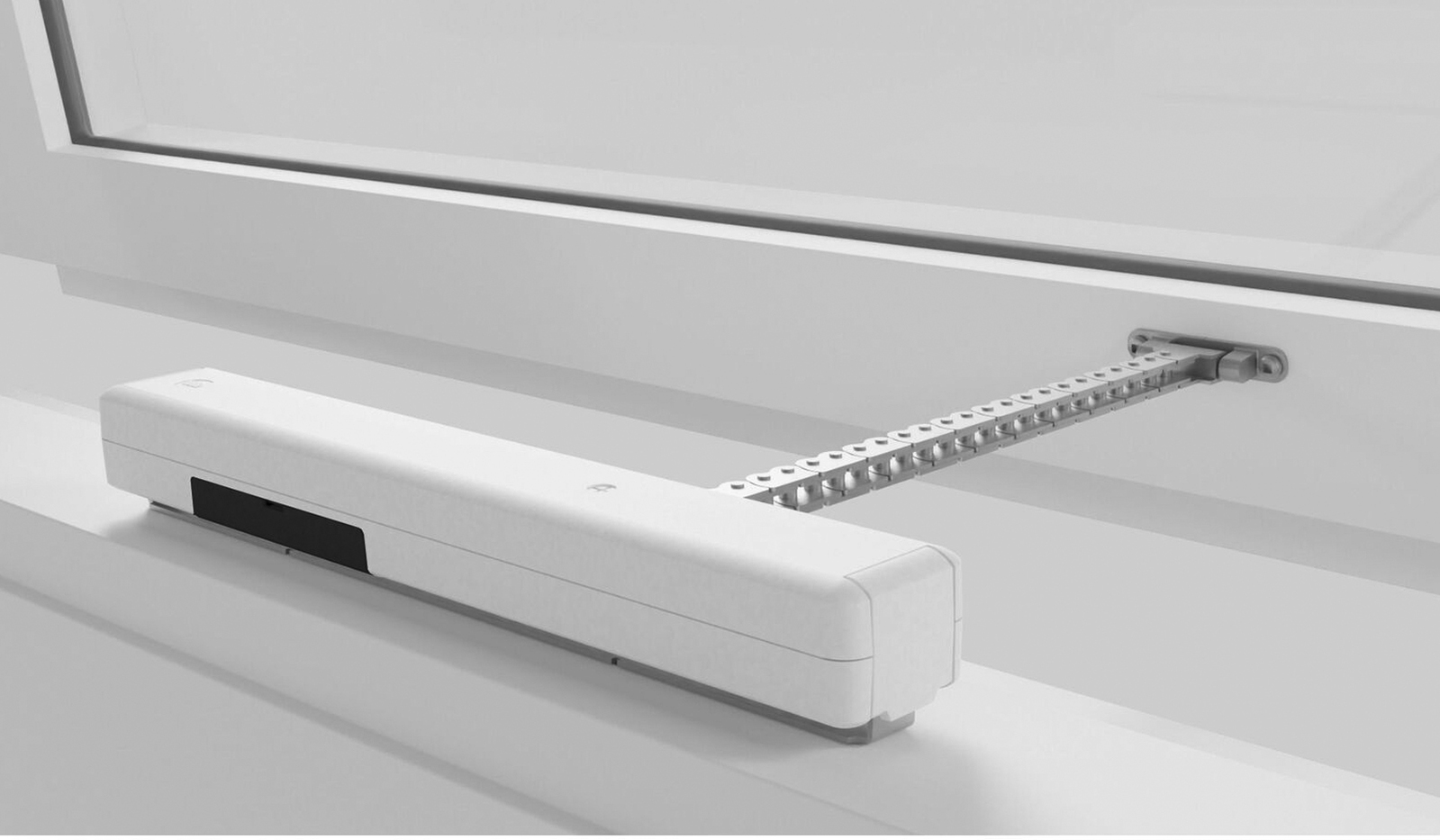

• Suitable for an awning or casement windows.
• Yale Aeron Actuators are only to be used on windows with hinges or non-friction stays.

Fixing Surfaces:

• Timber
• Aluminium

Specifications:

• Voltage: 24V DC
• Maximum Current Draw - Actuator: 600mA
• Maximum Current Draw - Rain Sensor and Adaptor: 350mA
• Operating Force Opening/Closing: 90N
• Maximum Opening Chain Stroke Length: 275mm
• Stroke Time/Closing Time: Approximately 40 seconds
• Temperature Environment: 0 - 50 Degrees Celsius
• Humidity Environment: 0 to 95%
• Material: Stainless Steel chain (Grade 304)

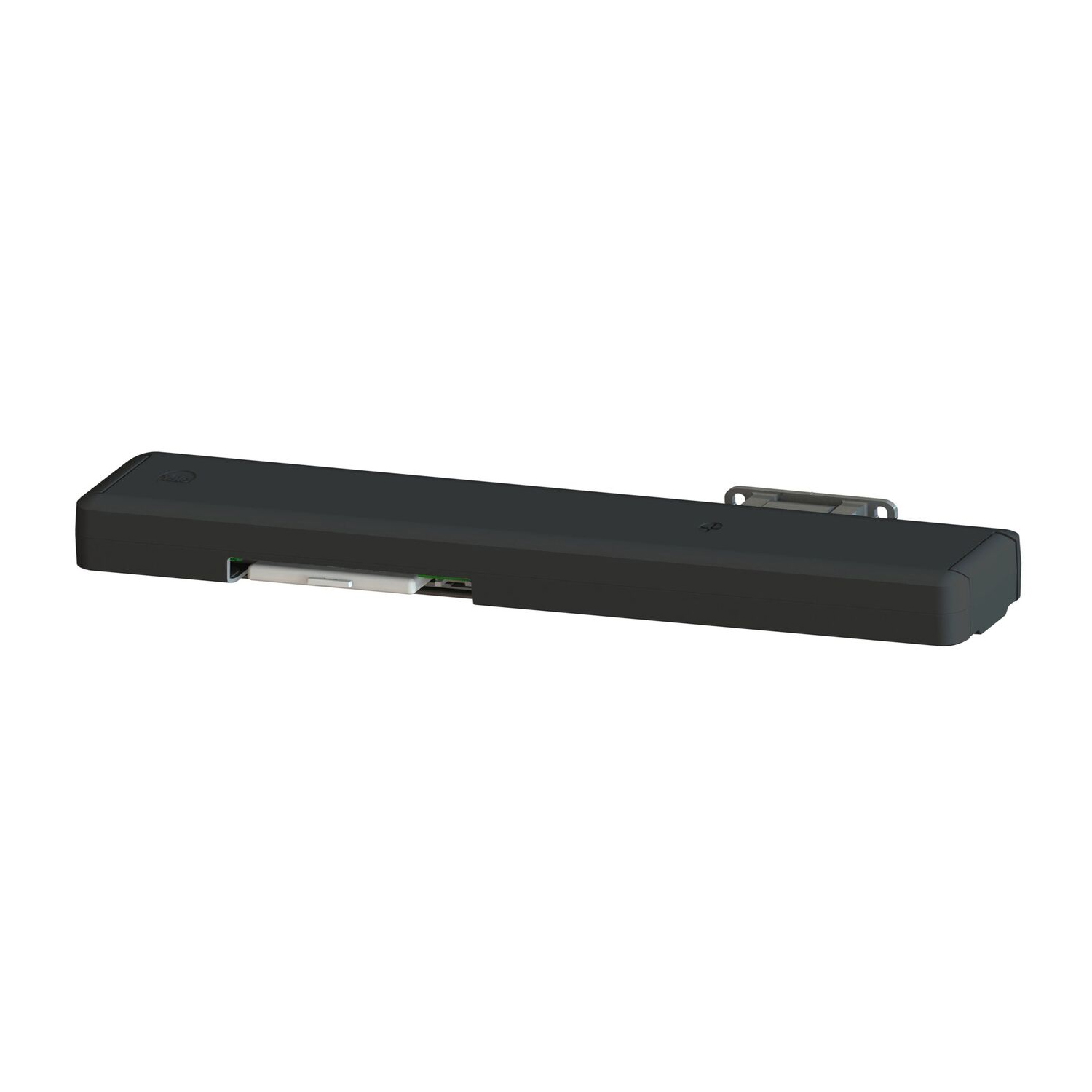

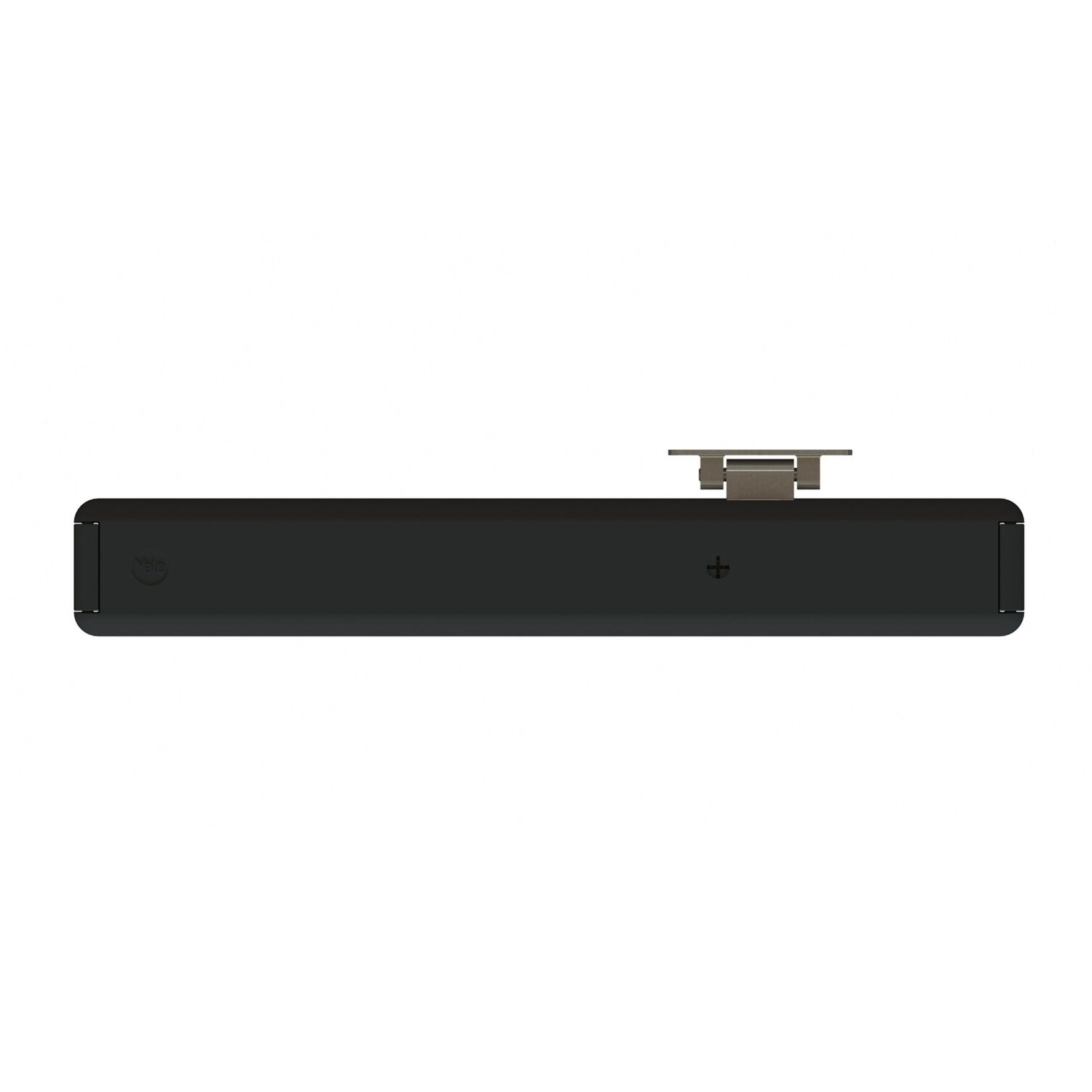

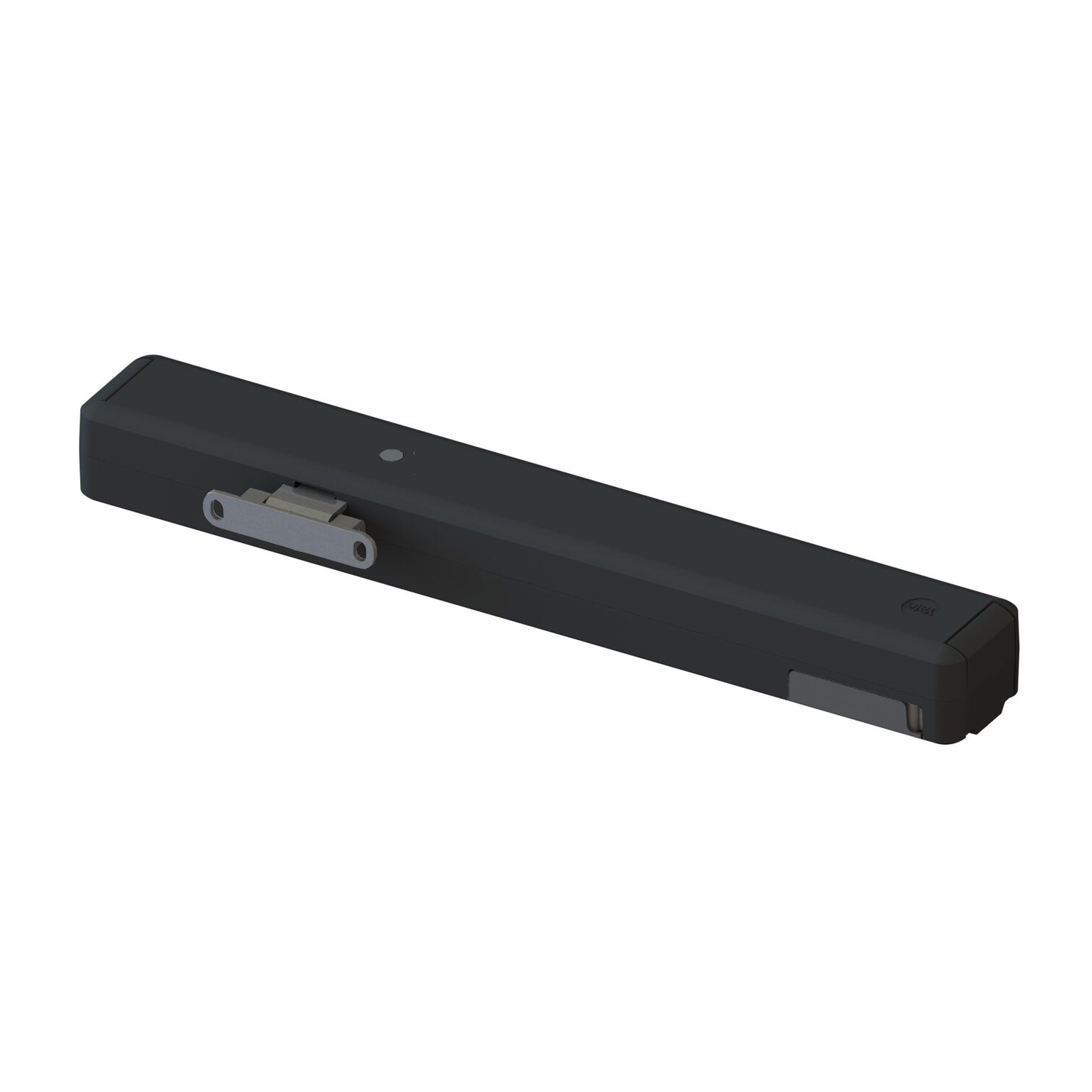

• Finish: Black
