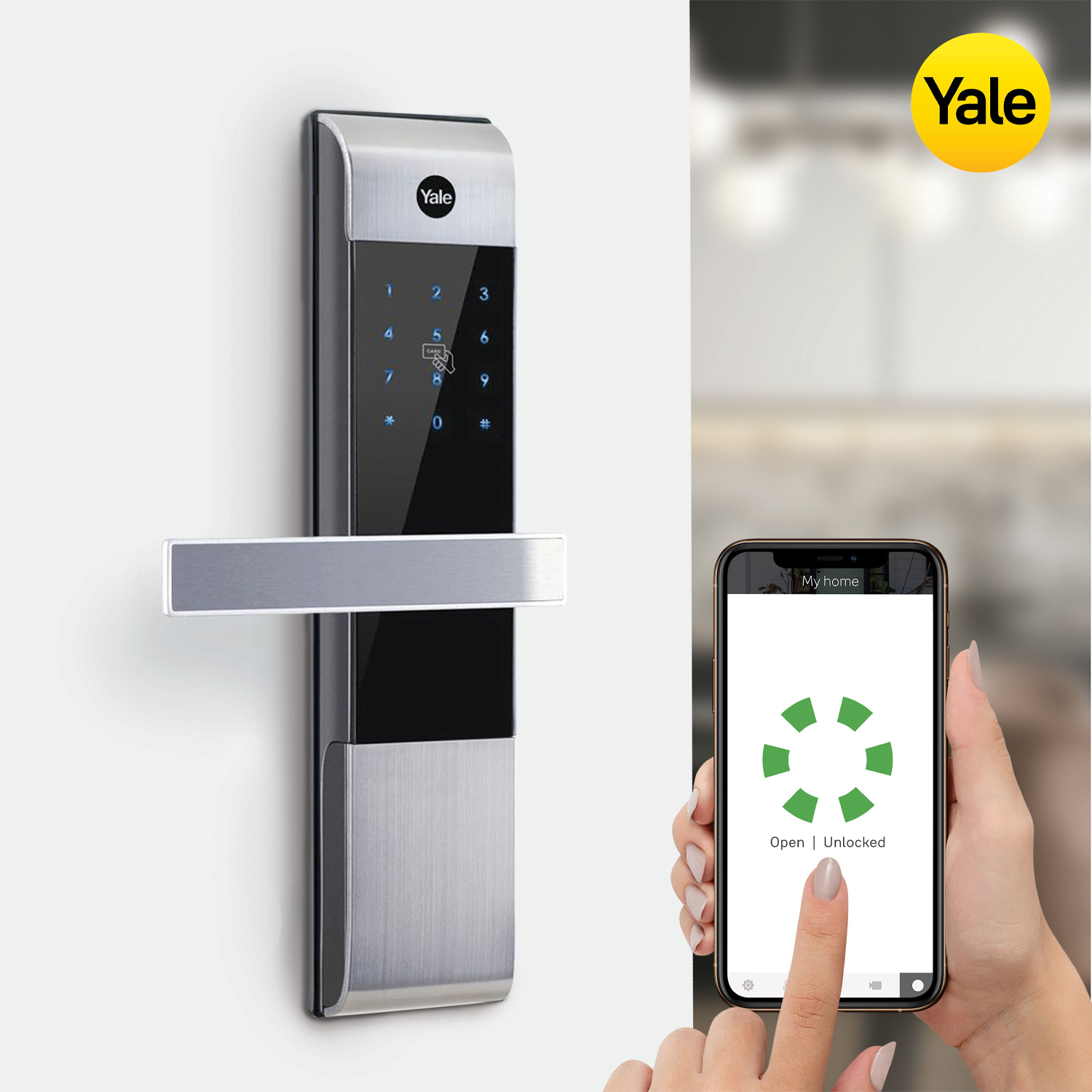

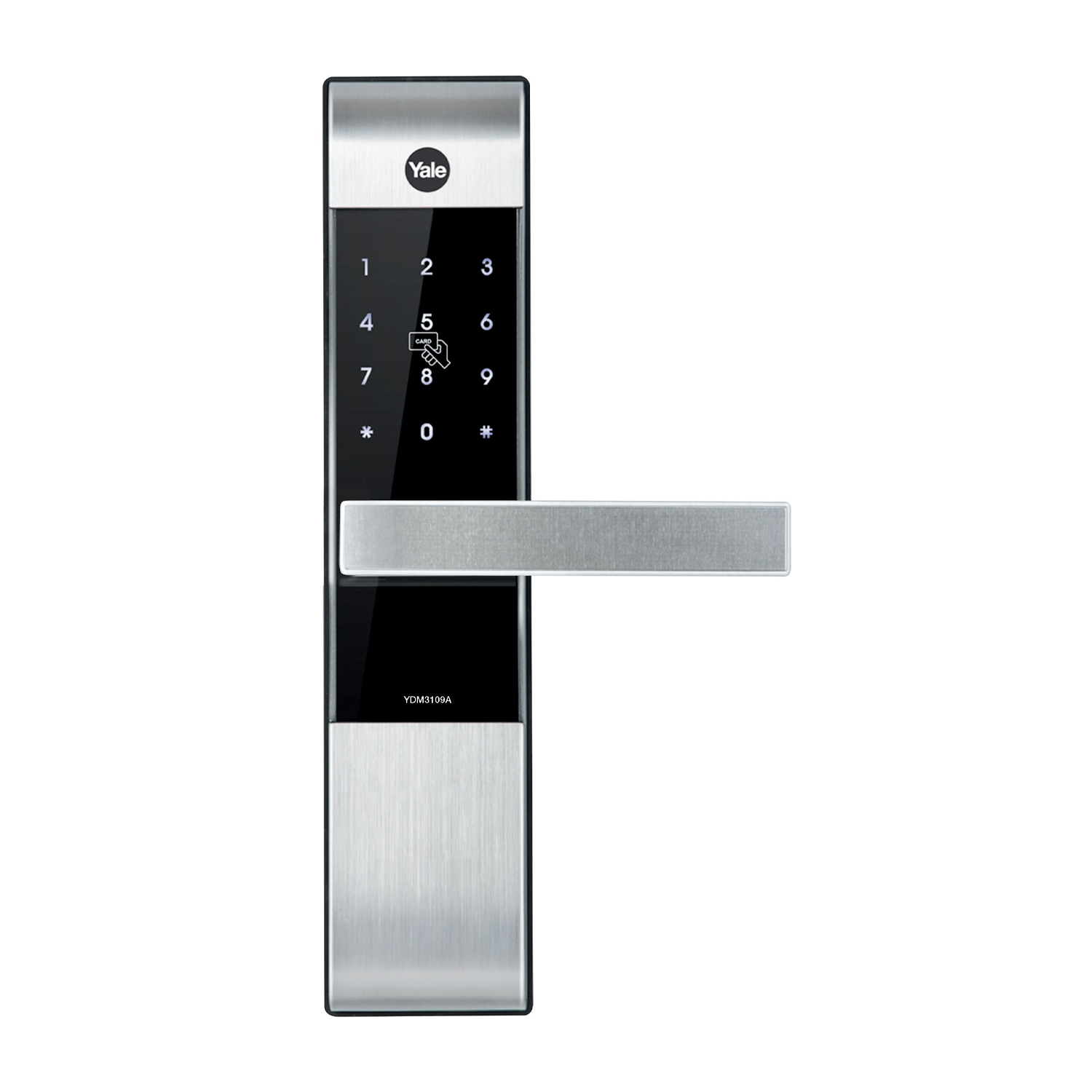

Yale Digital Smart Mortice Lock with Yale Home
SYDM3109A/60/HK/SIL

Digital Door Lock Function - The door can be unlocked by entering the correct code on the digital keypad (allowing keyless entry).

• Yale 3109A digital mortice lock is a truly exceptional product that seamlessly combines security with convenience.
• Lock provides users with a broad array of door access methods, including personalized PIN codes, RFID key tags, or a physical key, affording them the flexibility they require.
• Scramble code feature further elevates security levels by enabling users to input extra digits before or after the PIN code, effectively concealing the actual code.
• In addition, the safe handle button feature helps thwart small children from inadvertently opening the door, while the built-in door position sensor guarantees that the door is firmly shut prior to locking, obviating unintended locking when the door is ajar. The autolock sensor detects the door’s status and promptly throws the bolt, preventing anyone from following a user into their domicile.
• Privacy switch is a truly unique security feature that allows users to disable external authentication methods by switching ON from the inside, rendering it impossible to unlock the lock without employing the provided mechanical key.
  In the case of flat batteries, the easily accessible 9V battery backup terminal, conveniently located at the
  front of the lock behind the bottom cover, ensures that users are never left stranded.
• Even in times of urgency, the 9V batteries are always readily available. To amplify the product’s versatility, the Yale YDM series Rebate kit provides users with the option of fitting this lock with a set of rebated double doors, further heightening the product’s effectiveness.
  Works with your Smart Home The Yale YDM Home Module (included) allows users with a YDM series lock to utilise the functions and features of the Yale Home App.

Features:

• Lock and unlock your door via your mobile device
• Grant access to others for one time access
• Grant access for a set period of time or a date rang
• Keep track of visitor access
• Check the door status from your mobile device
• The Yale Connect Plus Bridge is required to enable the Works with Amazon Alexa and Google Home functionality, allowing you to control your lock with voice commands. Upgrade your YDM7220 lock with the Yale Connect Plus Wi-Fi Bridge (Item code: AYR-BDG-CB2-ANZ, sold separately) to access your lock remotely, enjoy the full benefits through the Yale Home App, and seamlessly integrate voice commands with Alexa, Siri and Google Assistant

Specifications:

• Lock Type: Mortice lock (95mm deep mortice required)
• Door Thickness: 40 to 95mm Timber door
• Backset: 60mm
• Includes: RFID 4 x Contactless Key Tags
• Power: 4 x AA Alkaline batteries
• Battery Life on lock: Approximately 12 months
• Low Battery Warning: Yes
• Operating Temperature: -25 to 70 degrees celsius
• Humidity: 0 to 95 percent
• IP Rating: IPX4
• Break in/ tamper alarm: Yes
• Height: 306.6mm
• Width: 68.6mm
• Finish: Silver

Note:

• Yale YDM series Rebate kit (SYDMRK01) is sold separately.
• Yale Connect Plus Wi-Fi Bridge is required and sold separately.
• Use Entry doors. Not for use on doors where the internal escutcheon is exposed to outside elements. Eg: Outdoor gate

Compliant:

• Compliance Regulatory Compliance Mark (RCM & R-NZ) for Australia and New Zealand
