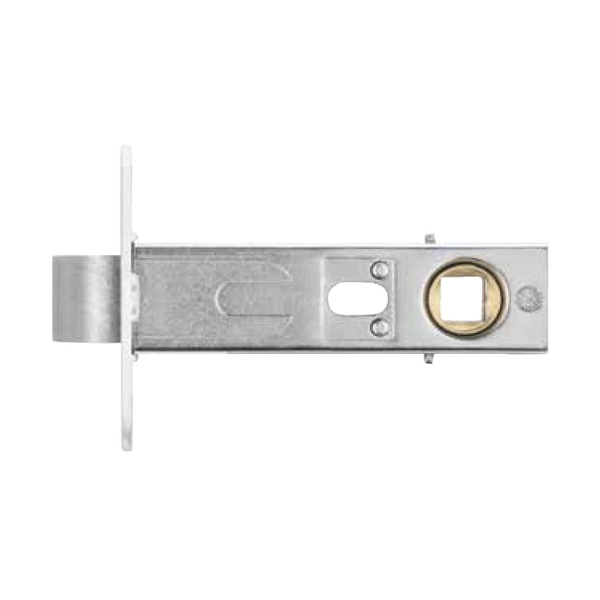

Yale Passage Latch
YSH1LATCH

Passage is ideal for interior hallways, closets and other rooms that don't need privacy locks.

Passage Function - Both outside and inside levers are always free.

Features:

• The Yale Simplicity Series door furniture is finished in 304 grade stainless steel making it ideally suited to compliment modern apartment interiors
• Conforming to the specific requirements of multi-residential developments, the Simplicity Series includes 2 hour fire rating and features two AS1428.1 compliant lever options in both passage and privacy configurations. The Privacy Lever Sets come complete with privacy latches
• Designed for use with Australian oval cylinder style mortice locks as Entrance Sets and Tubular Latches

Specifications:

• Application: Suitable for use in multi-residential developments
• Dimensions: Lever Rose has a 54mm diameter x 12mm
• Handing: A removable stop plate allows these symmetrically designed levers to be handed as either an operableor fixed lever on site
• Materials: All visible surfaces 304 stainless steel.
• Door Thickness: 32 to 55mm
• Backset: 60mm
• Fire Rated: Yale Simplicity Series Leversets have been successfully tested up to 2 hours with a fire rated Lockwood mortice lock on fire door assemblies (depending on typeof doorset) in accordance with Australian Standard AS1905.1:2005, Fire Resistant Doorsets.
• AS1428.1: The range includes AS1428.1 compliant levers as shown
• Finish: Satin Stainless Steel
