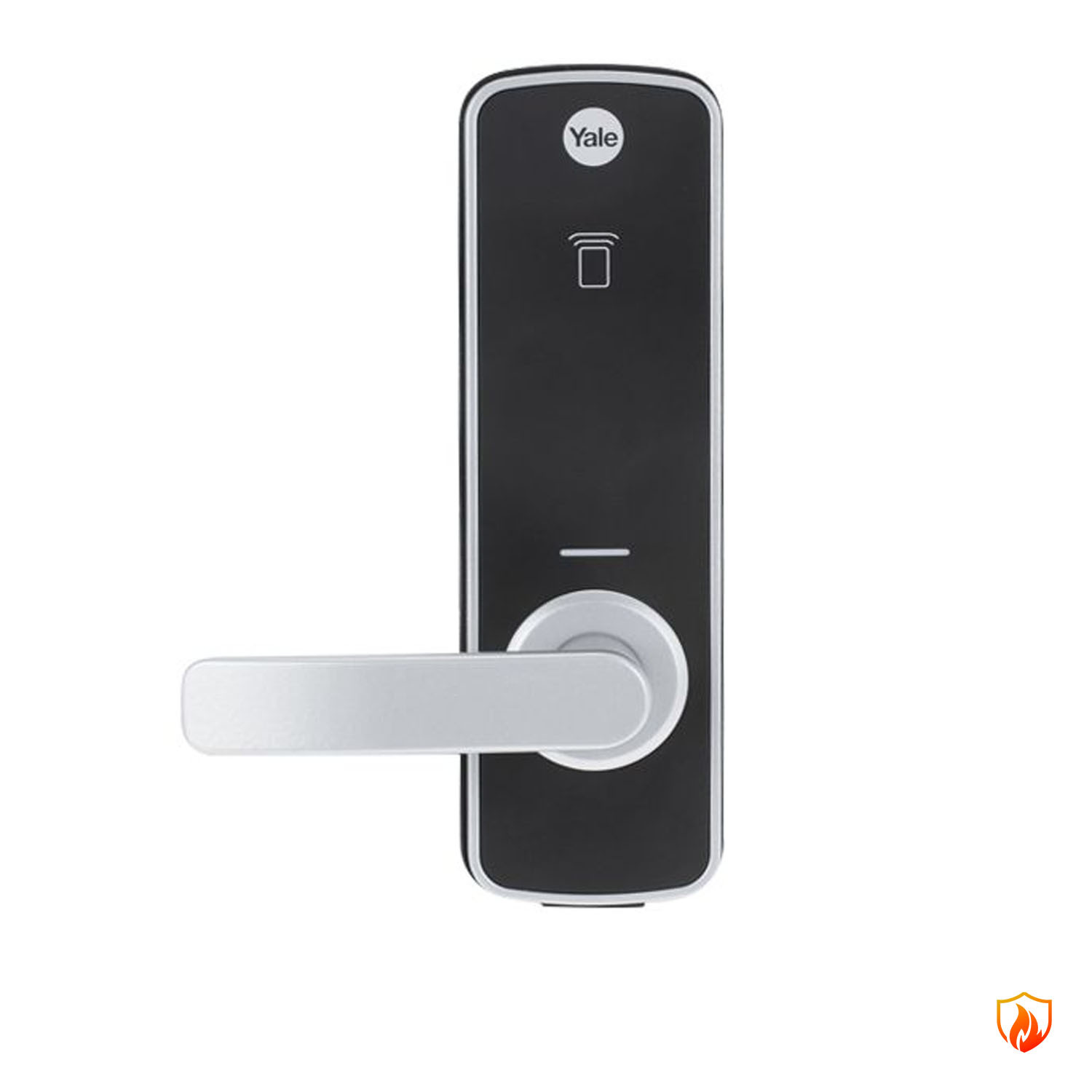

Yale Unity Entrance Smart Lock (FIRE RATED)
YUR/DEL/FR/SIL.

Features:

• Lock alert indications show users the lock mode via a built-in LED. The lock has two modes, Unlock (Green) and Locked (Yellow)
• Controllable by either the Yale Access App, key card or Yale Smart Keypad*, the Unity Entrance Lock provides you with a range of options to control your lock
• The Yale Access App allows you to lock and unlock your door, grant access to others and keep track of visitor access, all via your smartphone
• Grant users one-time access, access for a set period of time or a date range, avoiding any lost keys or having your keys stolen or copied
• Using varying technologies including Bluetooth, Wi-Fi and GPS as well as the Yale Access App, the auto-unlock feature unlocks your door as you approach
• The door position sensor checks the status of the door and tells you if your door is securely closed and locked. This avoids inadvertently locking your door whilst the door is open
• The Unity Entrance Lock can be upgraded with the Yale Connect Bridge.
• The Yale Connect Bridge allows you to access your lock from wherever you are. Allowing you to lock and unlock, change PIN codes and lock settings remotely.
• Alows Works with ability, integrating into your Google, Samsung or Alexa smart home hubs
• With the Yale Smart Keypad* you can lock and unlock your door via PIN codes
• Suits entry doors. Not for use on doors where the internal escutcheon is exposed to outside elements such as outdoor gates
• Supplied With Fixings

Specifications:

• IP Rating: IP54
• Operating temperature range: -25 to 70 celsius
• Humidity range: 0-90 percent
• Powered by: 4 x AA Alkaline batteries
• Battery Life on lock: approximately 12 months
• RFID MiFare: 2 x Contactless Key Cards
• Backset: 60mm or 70mm backset (70mm latch sold separately refer SKU L530-222SC)
• Lock type: 530 latch
• Door Thickness: 35mm to 60mm
• Phone requirement: iOS (11.0 or higher) or Android (8.0 or higher with Bluetooth 4.0) smartphones

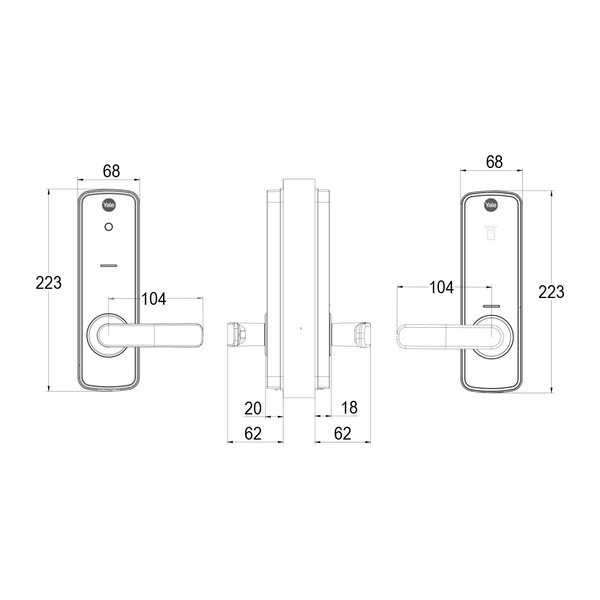

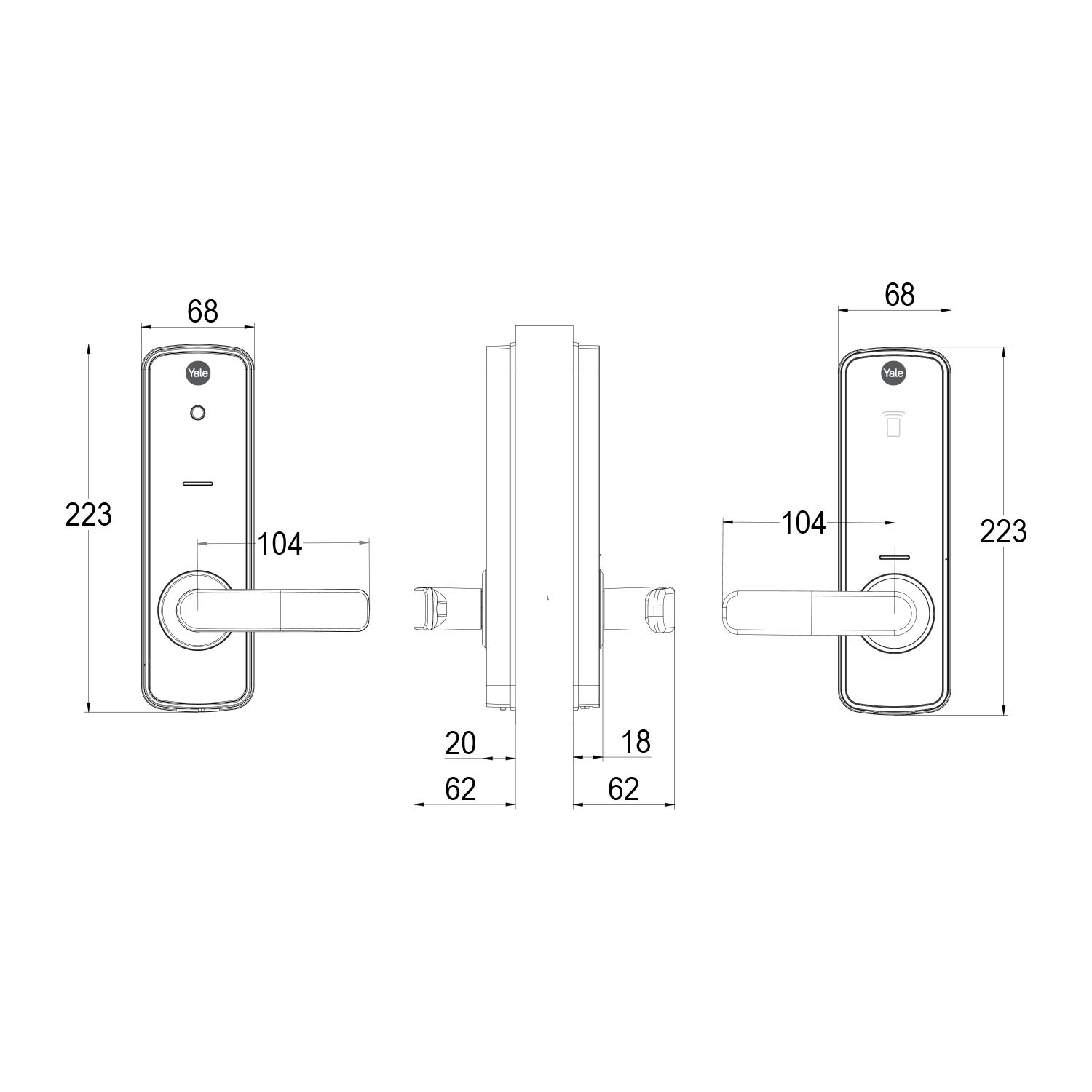

• Height: 223mm
• Width: 68mm
• Door Thickness: 35mm to 60mm
• Lever Length: 104mm
• Height: 223mm
• Width: 63mm
• Finish: Silver

Note:

• Yale Connect Bridge and Yale Smart Keypad sold separately.

Ratings/Compliant:

• Meeting Australian lock standards AS4145.2:2008, SL8 and D8, you can be sure that the Unity Entrance Lock meets your security needs.
• The Yale Unity Entrance Lock Fire Rated is certifiied (up to 2hrs) on most popular fire door models, in accordance with Australian Standard AS1905.1-2015 Fire Resistant Doorsets.
