YAMAHA TTN503B MUSICCAST VINYL 500 TURNTABLE

Image 1
Image 2
Image 3
Image 4
Hurry! 2 items left!
$1099

Collect 1099 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping
Sold & shipped by MAD Electronics Australia
Secure ways to pay at checkout

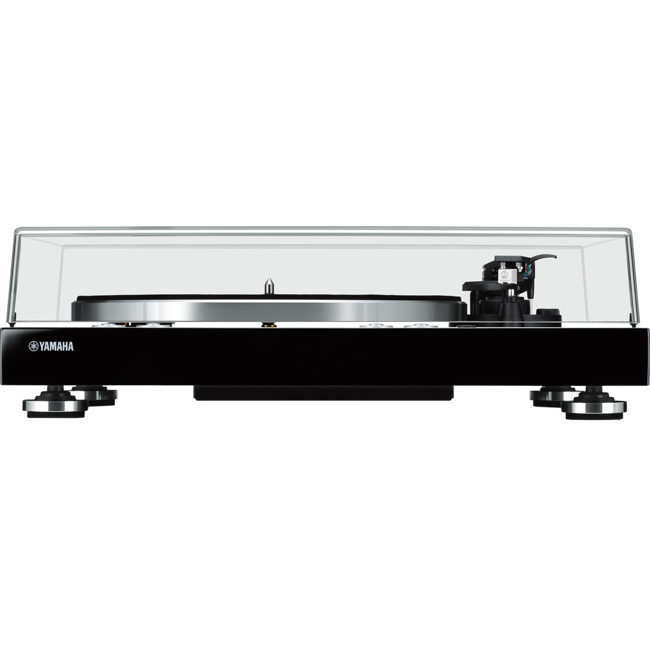

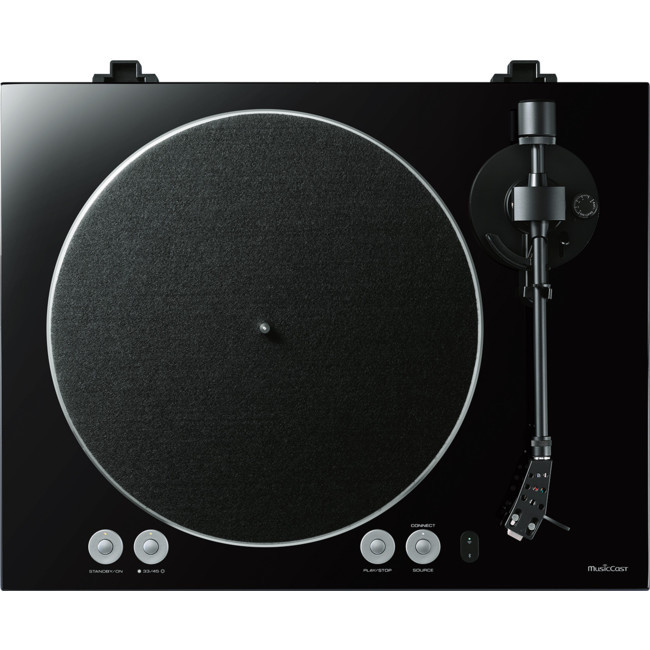

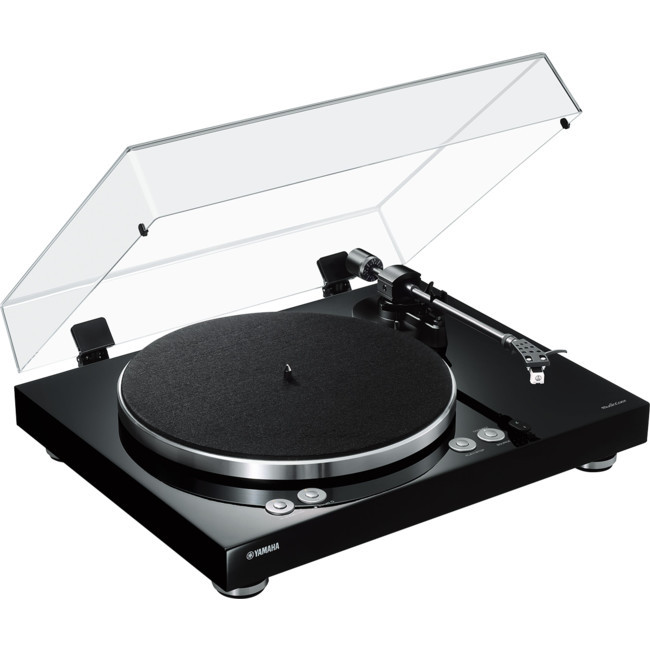

MUSICCAST BLACK VINYL 500 TURNTABLE. - A NEW SPIN ON SOUND ( TTN503B )


A step into the future with a tribute to the past.


Meet our game-changing wireless turntable designed for a new generation of audiophiles.


Featuring MusicCast multi-room capabilities, share the joy of your record collection in any room.



  • Wirelessly connect to any MusicCast device forseamless listening

  • Straight tonearm contributes to sound transparency and openness

  • Belt drive turntable

  • Music streaming services built-in

  • Wi-Fi built-in including support for 2.4 GHz and 5 GHz bands







MusicCast VINYL 500 (TT-N503)




































































































































































MusicCast VINYL 500 (TT-N503)
Turntable
Network Section File Format MP3 / WMA / MPEG-4 AAC: up to 48 kHz / 16-bit, ALAC: up to 96 kHz / 24-bit, FLAC / WAV / AIFF: up to 192 kHz / 24-bit, DSD: up to 11.2 MHz
Ethernet Yes
Wi-Fi Yes (2.4 / 5 GHz)
AirPlay Yes
Bluetooth Section Version/Profile Ver. 4.2 / A2DP, AVRCP
Audio Codec SBC, AAC
Maximum Communication Range 10 m / 32.8 ft. 10 in. (without interferene)
Turntable Drive Method Belt drive
Motor DC motor
Rotation Speed 33-1/3 rpm, 45 rpm
Rotation Speed Variation 2%
Wow And Flutter 0.2%
Platter Aluminium die-cast (Diameter 30 cm)
Output Level 450 mV (-7 dBV, with RIAA EQ, 1 kHz, 3.54 cm / sec), 2.5 mV 3 dBV (without RIAA EQ, 1 kHz, 3.54 cm/ sec)
Signal To Noise Ratio 67 dB or higher (A-weighted, 20 kHz, LPF)
Tonearm Tonearm Static balance straight tonearm
Effective Arm Length 223.5 mm
Overhang 19 mm
Stylus Pressure Adjustment Range 0-4 g
Acceptable Cartridge Weight 15.5-19 g (including headshell)
Attached Cartridge Cartridge Type MM type
Output Voltage 2.5 mV (1 kHz, 3.54 cm / sec)
Stylus Pressure 3.5 0.5 g
Cartridge Weight 5.0 0.3 g
Cartridge Height 17.0 0.7 mm
Head-shell Weight 10 g (including screws, nuts and wires)

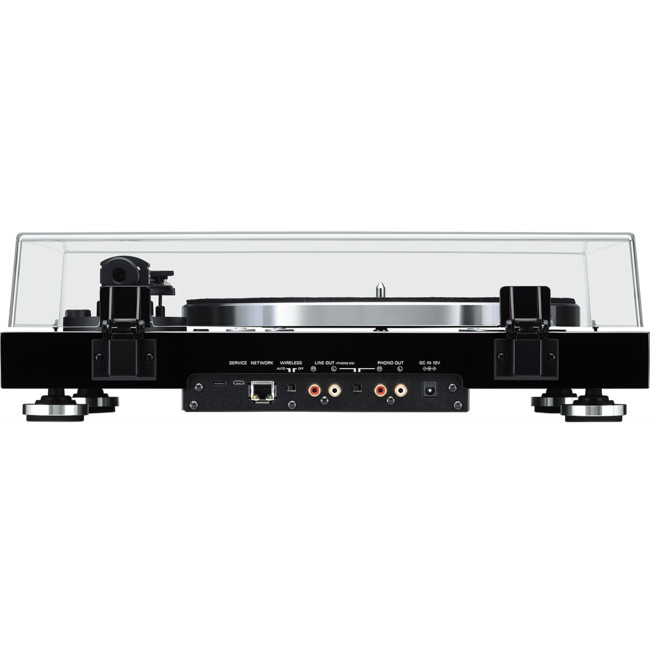

Audio Specifications Output Terminal RCA: 2 (PHONO, LINE)
Output Level 2.0 0.3 V (1 kHz, 0 dB, Fs 44.1 kHz)
Signal to Noise Ratio [IHF-A network] 110 dB or higher (Infinity zero, Fs 44.1 kHz)
Dynamic Range 100 dB or higher (1 kHz, -60 dB, Fs 44.1 kHz)
Harmonic Distortion 0.003 % or lower (1 kHz, 0 dB, Fs 44.1 kHz)
Frequency Response Fs 44.1 kHz; 2 Hz to 20 kHz ( 0 / -3 dB), Fs 48 kHz; 2 Hz to 24 kHz ( 0 / -3 dB), Fs 96 kHz; 2 Hz to 48 kHz ( 0 / -3 dB), Fs 192 kHz; 2 Hz to 96 kHz ( 0 / -6 dB)
General Power Consumption 6 W
Eco-Standby (reference date) 0.3 W
Standby Power Consumption 1.4 W (Network standby ON, Bluetooth(R) standby OFF, Wired), 1.8 W (Network standby ON, Bluetooth standby ON/OFF, Wi-Fi), 1.6 W (Network standby ON, Bluetooth standbyON, Wired)
Dimension (WxHxD) 450 x 136 x 368 mm; 17-3/4" x 5-3/8" x14-1/2"
Weight 5.7 kg; 12.6 lbs.

GTIN: 4957812637374
