In addition to multi-cam streaming over a variety of platforms, the Instream allows you to add graphic overlays, picture-in-picture, chroma key, and use transition effects when switching camera inputs. Stream at up to 1080p60 using the H.264 codec and record to an optional SD card. Featuring a 7" LCD touchscreen display, two HDMI and one USB-A input, and one HDMI output for viewing your stream on a local device. The Instream doesn't neglect audio as it has a line-level audio input as well as mic input and a headphone jack for direct audio monitoring.
Touchscreen Control
The Instream provides you with a touchscreen interface for easy streaming and control.
Streaming Platforms
Major streaming platforms such as Instagram & TikTok are directly integrated in the Instream device. You can simply login to your social account and stream. The Instream supports RTMP and RTMPS streaming for compatibility with many livestreaming services.
Functions
The Instream works as a switcher with a variety of picture-in-picture templates as well as graphic layers. It has a built-in encoder that allows for live streaming, and it can record to optional SD cards.
Three Ways to Connect
Overlays
SD Card Input
Roll in pre-recorded videos for intro, countdown, B-rolls, or special segments from an SD media card.
Use Only as a Monitor & Recorder
You can use the Instream, even when you are not live streaming. Record, switch, add overlays and transitions to level up your video production efficiency.
Battery
The 10,000mAh internal battery can power your Instream for approximately 3 hours. The Instream charges via the USB-C connection, which is used for power only.
Specs
IP Encoding/Decoding
IP Video | H.264: 720 x 480 to 1920 x 1080 Encoding |
IP Audio | AAC-LC: Encoding |
Transport Protocols | RTMP, RTMPS |
Simultaneous Streams | 1 Streams |
Compatible Services | Instagram, TikToK |
Wireless
Wi-Fi | 2.4/5 GHz |
Cellular
SIM Card Slots | 1 x Nano SIM |
Interfaces

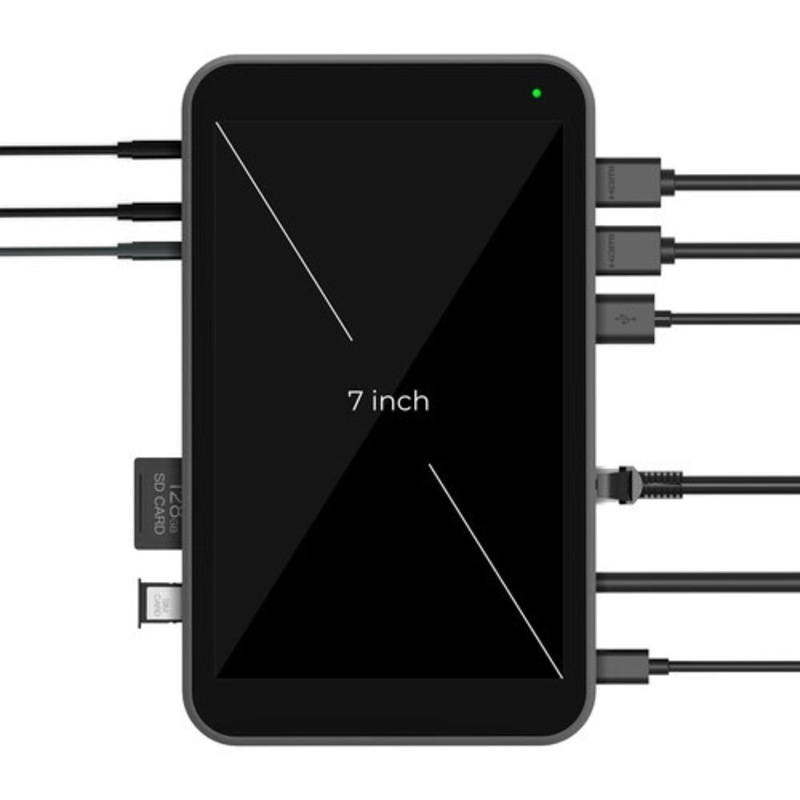

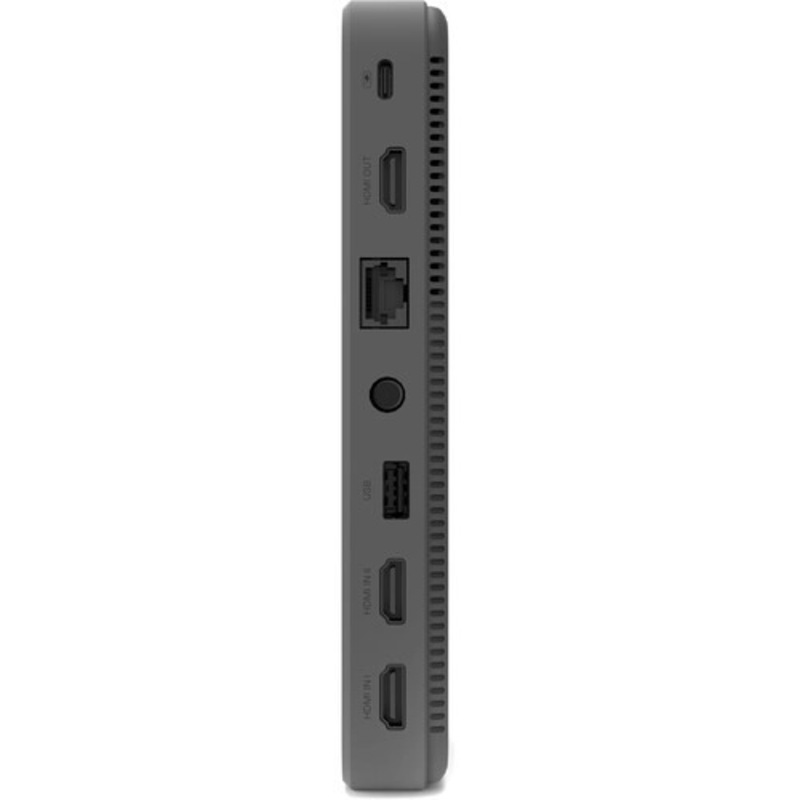

Video Connectors | 2 x HDMI Input 1 x HDMI Output |
Audio Connectors | 1 x 1/8" / 3.5 mm TRS Stereo Analog Input 1 x 1/8" / 3.5 mm TRS Mono Analog Input 1 x 1/8" / 3.5 mm TRS Stereo Analog Output |
Other I/O | 1 x RJ45 10/100 Ethernet Input/Output 1 x USB Type-A USB 3.1 Gen 1 Input |
Embedded Audio | HDMI: 2-Channel |
Internal Recording
Recording Media | 1 x SD (Unspecified Type) |
Recording Modes | 1920 x 1080p up to 60 fps |
Built-In Battery | 10,000 mAh |
Power Connector | 1 x USB Type-C (5 to 12 VDC at 1.5 A) Input |
Operating Temperature | 14 to 104°F / -10 to 40°C |
Storage Temperature | 41 to 104°F / 5 to 40°C |
Display | LCD |
Dimensions | 188 x 112.5 x 25 mm |
Weight | 600 g |
