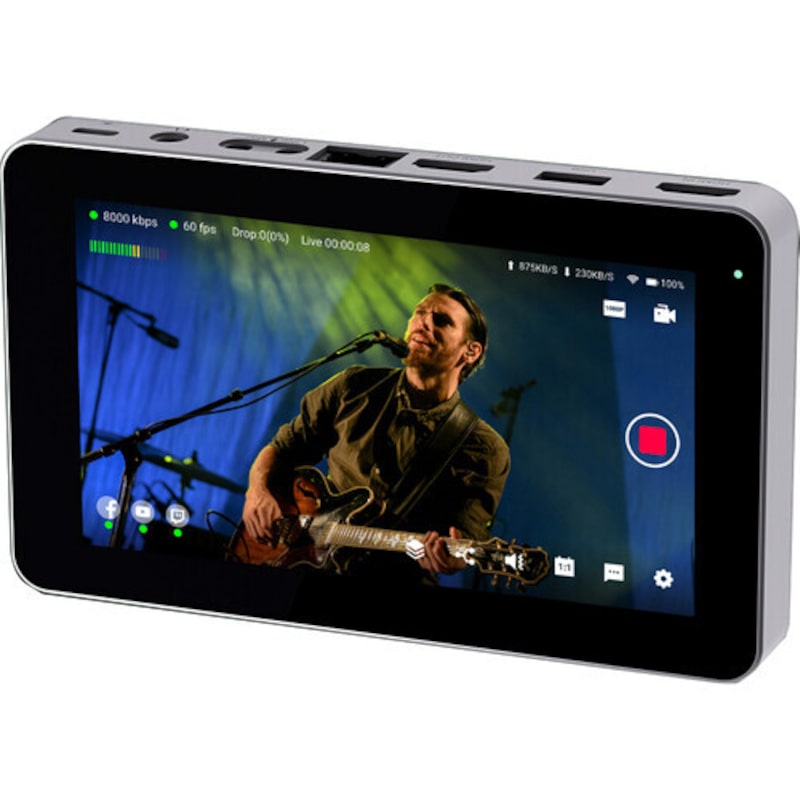

The YoloBox Mini is ideal for streaming from a single camera or when connected to a switcher's output, as it will not only encode and stream, but also add graphic overlays freeing you from needing a computer. Simply connect your video input to either HDMI or USB 2.0, then connect to a local area network via Wi-Fi, Ethernet, or LTE (LTE connection requires SIM card and data plan not included). It also features an HDMI output to display your stream locally on an optional HDMI display. The YoloBox Mini supports input resolutions ranging up to 1080p60 and can stream to YouTube, Twitch, and other streaming services via custom RTMP presets. You can record your stream directly in MP4 format to an optional SD card with up to 1TB capacity using the built-in SD card slot.
Key Features
Touchscreen Control
The YoloBox Mini provides you with a touchscreen interface for easy streaming and control.
Functions
The device works as an encoder that allows for live streaming, and it can record to optional SD cards up to 1TB.
Overlays
Internet
You can connect to the internet using the integrated RJ45 (Ethernet) port, Wi-Fi, and via cell service using an optional SIM card and data plan.
Streaming Platforms
Major steaming platforms such as Facebook live, YouTube, and twitch as well as YoloLIV are supported.
RTMP protocols allow you to stream to custom RTMP destinations including YouTube.
Specs
IP Encoding/Decoding
IP Video | H.264: 960 x 540 to 1920 x 1080 Encoding |
IP Audio | AAC-LC: Encoding |
Transport Protocols | RTMP |
Simultaneous Streams | 3 Streams |
Compatible Services | Facebook Live, Twitch, YouTube Live |
Wireless
Wi-Fi | 2.4/5 GHz |
Cellular

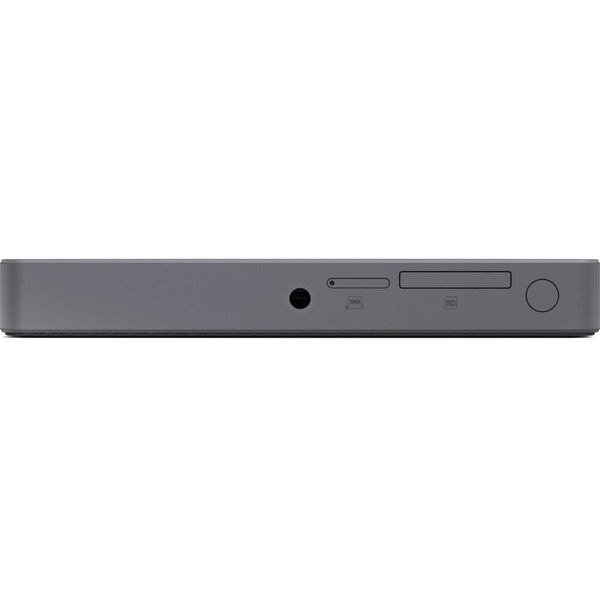

SIM Card Slots | 1 x Nano SIM |
4G LTE | LTE |
Interfaces

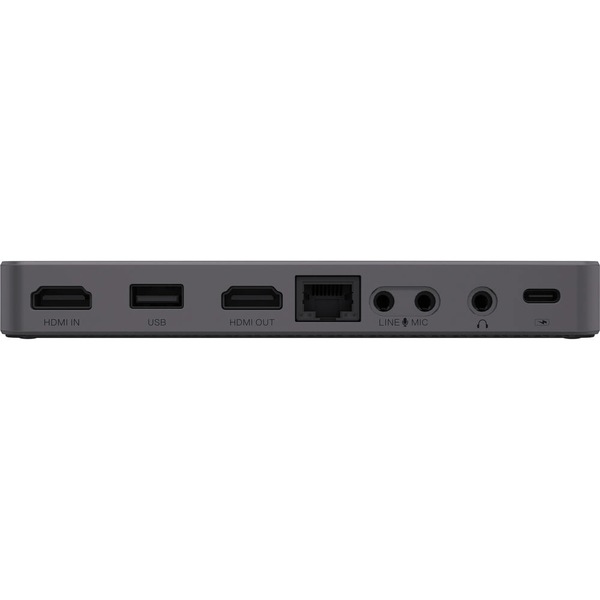

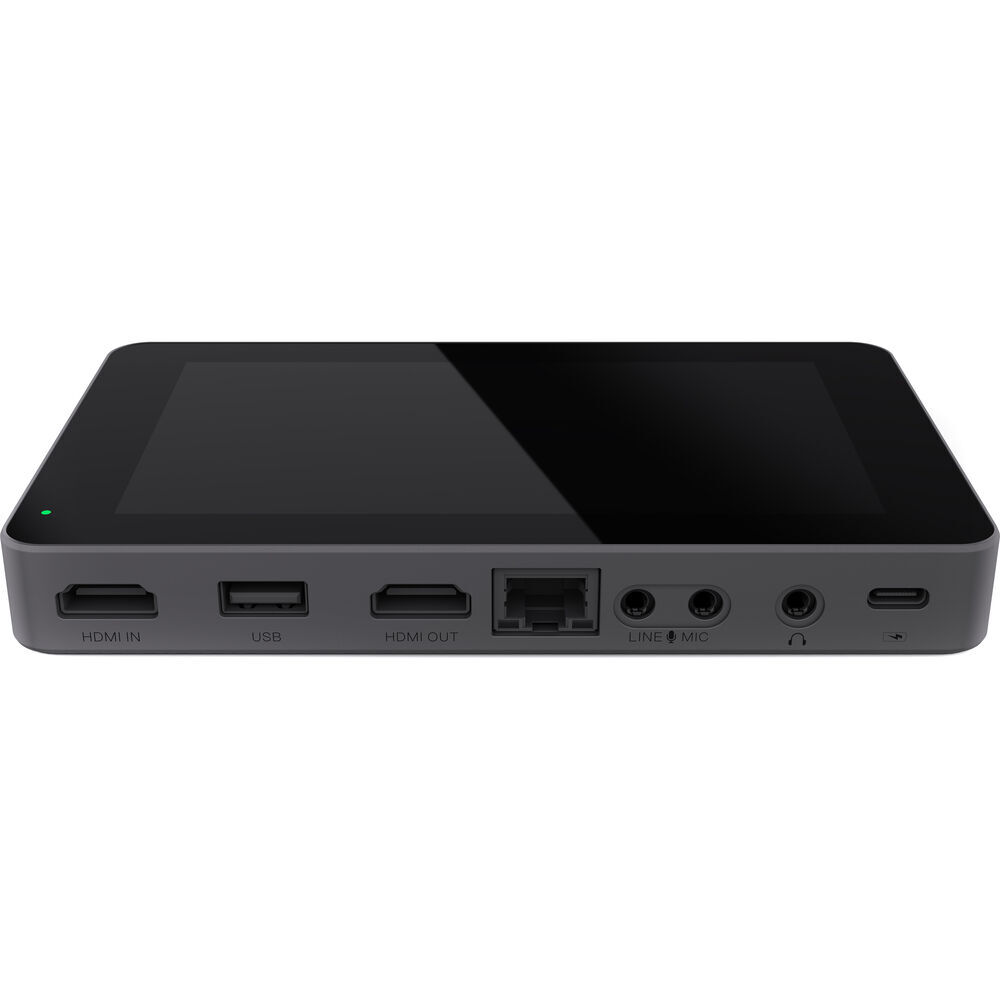

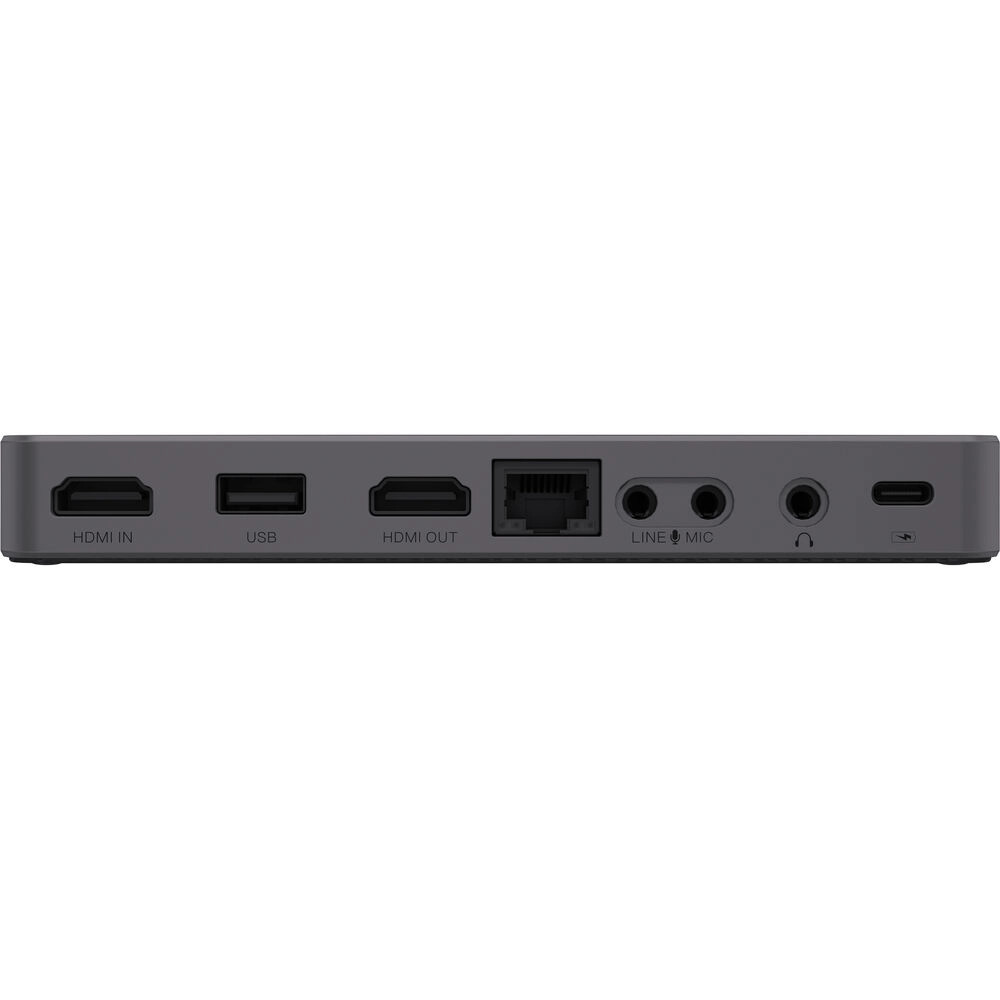

Video Connectors | 1 x HDMI Input 1 x HDMI Output |
Audio Connectors | 1 x 1/8" / 3.5 mm TRS Stereo Analog Input 1 x 1/8" / 3.5 mm TRS Mono Analog Input 1 x 1/8" / 3.5 mm TRRS Headphone/Microphone Stereo Analog Output |
Other I/O | 1 x RJ45 10/100 Ethernet Input/Output 1 x USB Type-A USB 3.1 Gen 1 Input 1 x USB Type-C USB 3.1 Gen 1 Input/Output |
Embedded Audio | HDMI/USB Type-C/Wireless: 2-Channel |
Internal Recording
Recording Media | 1 x SD (Unspecified Type) |
Recording Modes | 1920 x 1080p up to 60 fps |
Built-In Battery | 4700 mAh |
Power Connector | 1 x USB Type-C (5 to 12 VDC at 1.5 A) Input |
Operating Temperature | 32 to 104°F / 0 to 40°C |
Operating Humidity | 15 to 85% |
Storage Temperature | 41 to 104°F / 5 to 40°C |
Display | LCD |
Dimensions | 155 x 92.6 x 20Â mm |
Weight | 320Â g |
