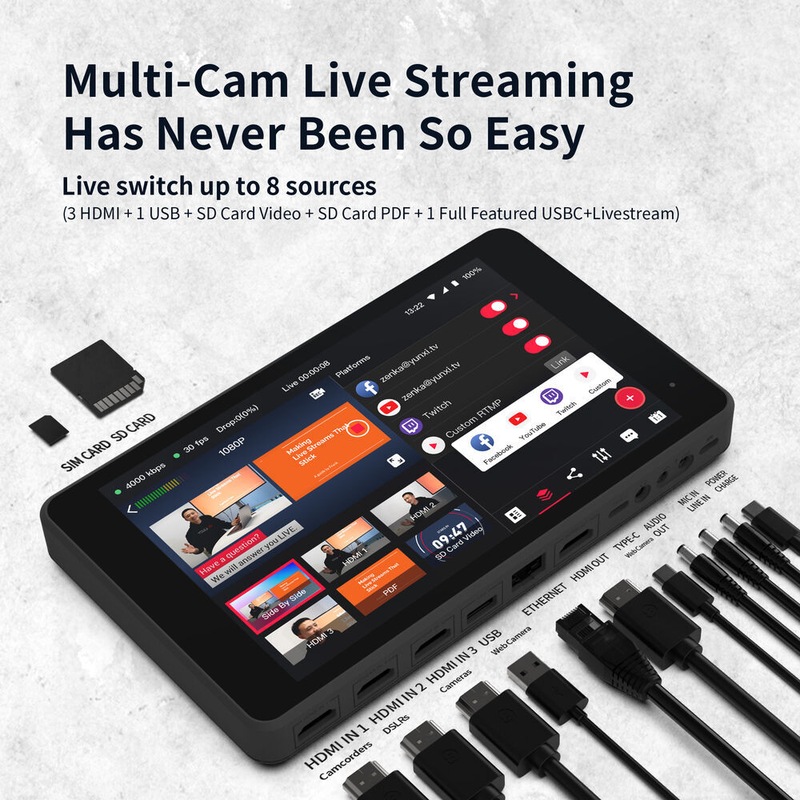

The YoloBox Pro allows you to connect and live switch up to 8 video sources, and then connect to a local area network via Wi-Fi, Ethernet, or LTE (LTE connection requires SIM card and data plan not included). The large 8" touchscreen display shows the streaming image, the input streams as well as the control interface, which allows you to switch between the info sources with a touch. It also features an HDMI output to display your stream locally on an optional HDMI display. It also has a line-level audio input, a mic-level audio input, and a discrete headphone audio out.
The YoloBox Pro supports input resolutions ranging up to 1080p using the H.264 codec, and you can stream resolutions from 540p to 1080p to YouTube, Twitch, and other streaming services via custom RTMP presets. Stream to the Internet using a 4G cellular network such as Verizon, T-Mobile, and AT&T, using a separately available nano-size SIM card and a separately available data plan. You can record your stream directly in .mp4 format to an optional SD card with up to 128 GB capacity using the built-in SD card slot.
New Firmware 1.6.0 Update
As of the 1.6.0 update:
Key Features

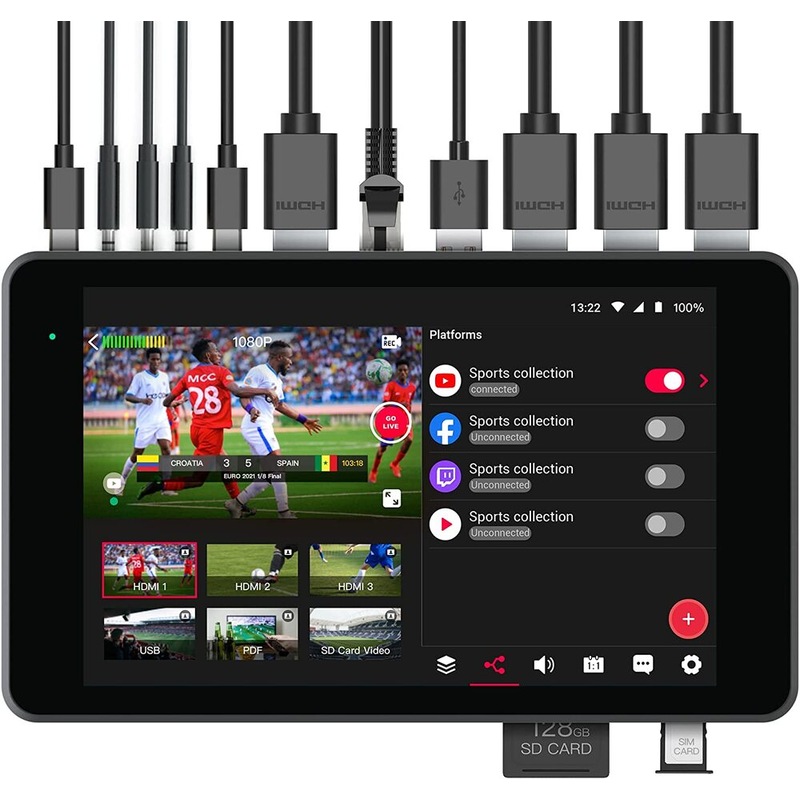

Touchscreen Control
The YoloBox Pro provides you with a large touchscreen interface for easy streaming and control.
Functions
The device works as a switcher, with a variety of picture-in-picture templates as well as graphic layers. It has a built-in encoder that allows for live streaming, and it can record to optional SD cards up to 128GB.
Overlays
Internet
You can connect to the internet using the integrated RJ45 (Ethernet) port, Wi-Fi, and via cell service using an optional SIM card.
Simultaneous Streaming
YoloBox Pro will first push your feed to the YoloLIV platform, from where it automatically forward your feed to a maximum of 3 destinations simultaneously.
Streaming Platforms
Major steaming platforms such as Facebook live, YouTube, and twitch as well as YoloLIV are supported.
RTMP protocols allow you to stream to custom RTMP destinations including YouTube.
SD Card Input
Roll in pre-recorded videos for intro, countdown, B-roll, or special segments from an SD media card.
You can load a PDF as a local source to your YoloBox.
Battery Life
The internal 10,000mAh battery can power your YoloBox Pro for approximately 3 hours. The YoloBox Pro charges via a USB Type-C input, which is used for power only.
Specs
IP Encoding/Decoding
| IP Video | H.264: 960 x 540 to 1920 x 1080 Encoding |
| IP Audio | AAC-LC: Encoding |
| Transport Protocols | RTMP |
| Simultaneous Streams | 3 Streams |
| Compatible Services | Facebook Live, Twitch, YouTube Live |
Wireless
| Wi-Fi | 2.4/5 GHz |
Cellular
| SIM Card Slots | 1 x Nano SIM |
| 4G LTE | LTE: 1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 20, 25, 26, 28, 38, 39, 40, 41, 66, 71 Bands |
Interfaces
| Video Connectors | 3 x HDMI Input 1 x HDMI Output |
| Audio Connectors | 1 x 1/8" / 3.5 mm TRRS Headphone/Microphone Stereo Analog Input 1 x 1/8" / 3.5 mm TRRS Headphone/Microphone Mono Analog Input 1 x 1/8" / 3.5 mm TRRS Headphone/Microphone Stereo Analog Output |
| Other I/O | 1 x RJ45 10/100 Ethernet Input/Output 1 x USB Type-A USB 3.1 Gen 1 Input 1 x USB Type-C USB 3.1 Gen 1 Input/Output |
| Embedded Audio | HDMI/USB Type-C/Wireless: 2-Channel |
Internal Recording
| Recording Media | 1 x SD (Unspecified Type) |
| Recording Modes | 1920 x 1080p up to 60 fps |
| Built-In Battery | 10,000 mAh |
| Power Connector | 1 x USB Type-C (5 to 12 VDC at 1.5 A) Input |
| Operating Temperature | 14 to 104°F / -10 to 40°C |
| Storage Temperature | 41 to 104°F / 5 to 40°C |
| Display | LCD |
| Dimensions | 218 x 129 x 27 mm |
| Weight | 750 g |
