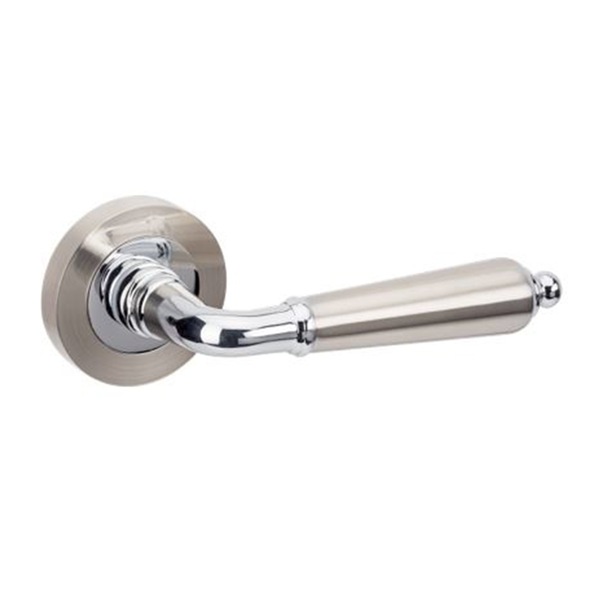

Zanda Oxford Door Lever Handle on Round Rose Brushed Nickel/Chrome Plate

Zanda Oxford Door Lever Handle on Round Rose
10072.BNCP

Privacy Door Lever used for internal doors that require locking. (e.g. bathrooms, bedrooms, and any room where privacy is needed)

Privacy Door Lever Function - can be locked by a button or a turn piece on the inside with no key function.

Includes:

• 1 x Zanda Oxford Leverset with Integrated Privacy Kit
• 1 x Zanda Latch 60mm Backset For Integrated Privacy Kit 1358

Features:

• 15 Year Warranty – your assurance of a fine quality product.
• Finish with a subtle dash of chrome – tie in with your chrome bathroom fittings.
• 54mm screw on rose concealed Fixing. Sleek and durable.
• Micronized Finish wont corrode over time if maintained.
• Through door bolts for secure Fixing wont twist out of square.
• Backsets are 60mm on Passage, Privacy and Entrance Sets.
• Rebate kit to suit passage set and privacy sets is 1102.A.SC. Rebate Kit to suit the Entrance Set is 1146.SS.

Specifications:

• Finish: Brushed Nickel/Chrome Plate
• Function: Integrated Privacy Set

Note:

• The image is a standard lever but the listing is for an Integrated door lever with a push button on rose

Zanda Leverset Kits

With this listing, by answering a couple of short questions, you can create a kit customised to your needs:

This listing includes premade kits to suit standard applications.

However, if you have specific requirements e.g. a different backset to what is provided in the standard kits, please use the "Leverset and Build Your Own Kit" option and add items to your cart as per your custom requirements.

Please Use the Below as a Guide

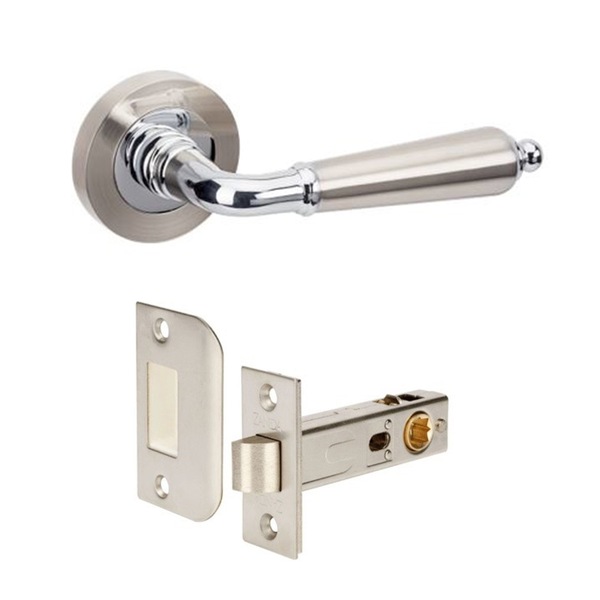

For "Passage" doors (e.g. a bedroom that doesn't need locking), you will generally need a Lever Door Handle/knob + a Tube Latch. If it's a double door, you may also require flush Bolts. If it's a rebated double door you will need a "rebate kit".

Flush Bolts are used to secure Double Doors, You can choose non-lockable and key-lockable option in various lengths.

When using flush bolts:

We recommend you use one at the top and another at the bottom to keep the door secure and from rattling.
For taller doors (2100mm and above) most customers prefer to use a 300mm on top of the door and 150mm on the bottom for extra security and protection against the wind. Alternatively, some customer's use a magnetic catch (such a PLS24PRO Magnetic Catch).

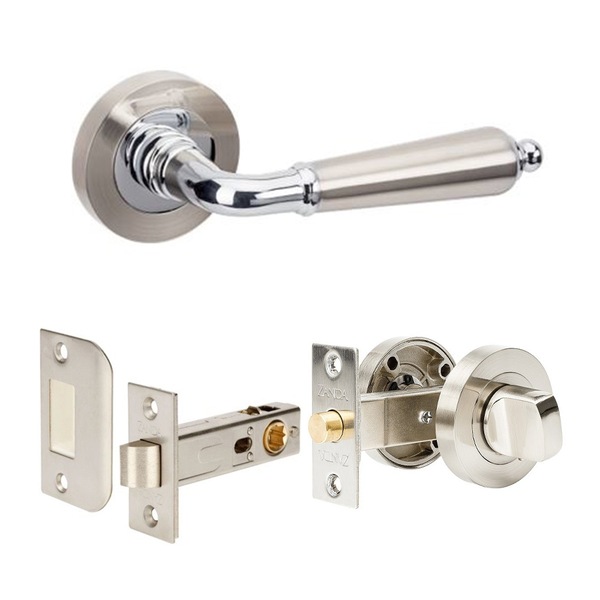

For "Privacy" doors (e.g. a bathroom, en suite or a bedroom that you want to lock from the inside by turning a snib) you will generally need a tube latch as well a privacy bolt

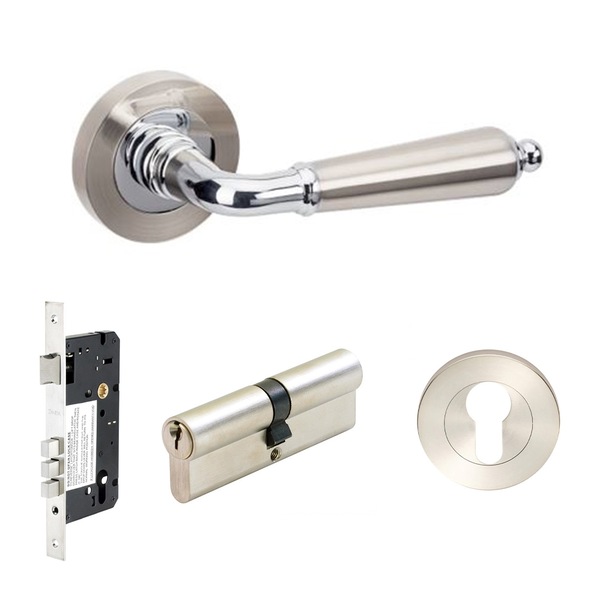

For "Entrance" doors (e.g. a front / back door or any door that you want to lock with a key) you will generally need:

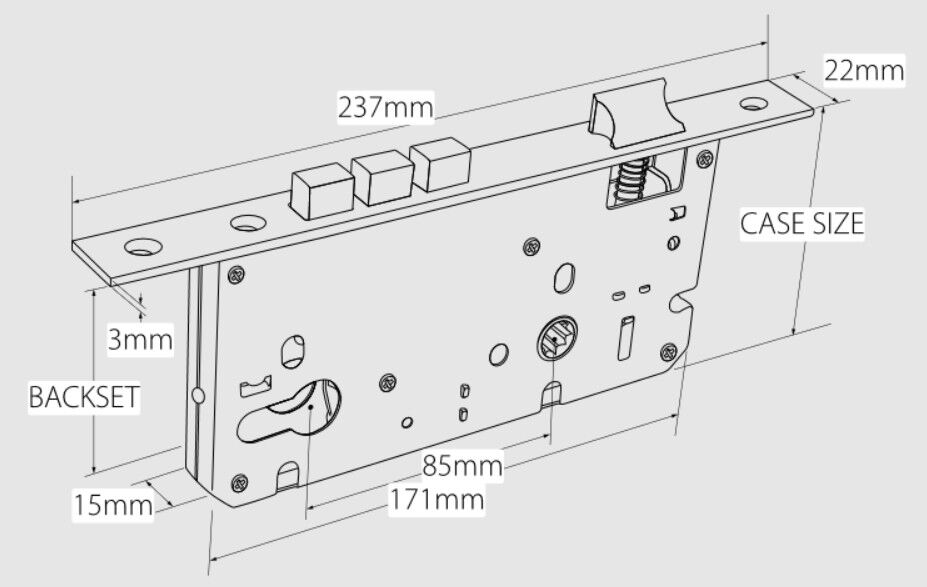

A Mortice lock (if you have a rebated (slightly overlapping) double door, please choose a "rebated" version (which also comes with a rebate kit)

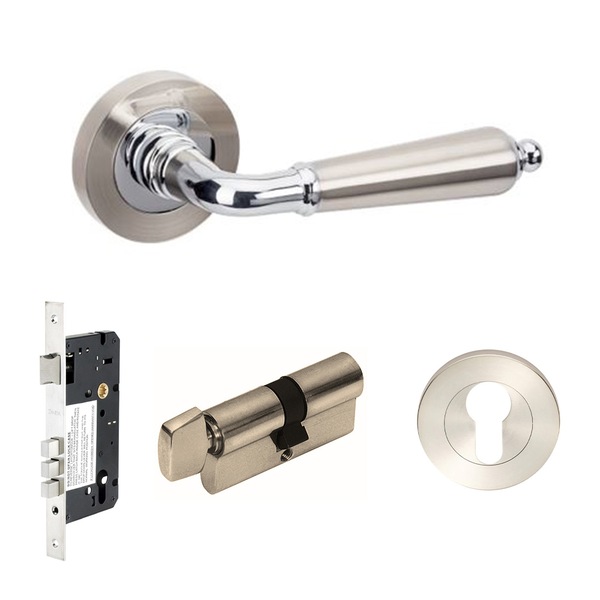

Once you've determined the thickness of your door, you can select either a "Key/Key" (lock and unlock with a key from both sides) or a "Key/Thumb" (meaning you can lock the door from the inside using thumb turn, instead of a key). The choice here is one of personal preference.

Flush Bolts

For double doors, you will also need flush bolts.
Flush Bolts are used to secure Double Doors, You can choose non-lockable and key-lockable options in various lengths.
When using flush bolts, most customers prefer to use a 300mm on top of the door (as it's easier to reach) and 150mm on the bottom for extra security and protection against the wind.

Hinges

(Amongst others) we offer Ball Bearing, Fixed Pin and Lift Off hinges:

Ball Bearing - We recommend using these for Entrance and heavier doors. This is because the ball bearing reduces friction on the hinge and stops squeaking and wearing of the hinge
Fixed Pin - Mainly used on internal doors. They can also be used on entrance doors that are not heavy
Lift Off - Internal use only. Mostly used on bathroom door so the door can be removed (lifted off) in the locked position (e.g. in case of an emergency)
Depending on the weight of your door, you will generally need 3 hinges for an Entrance door (which are more solid) and 2 hinges for internal doors.

Please use the tables below as a guide on the number of hinges you require, as well as the recommended hinge positioning.
