ZCase Fuse Bolt Down Style 40 - 600amp 12 - 32vdc

Amp Rating: 40 - 600amp

Operating temperature: -40 to 125 C

Housing Material: PPA-GF33HS

Insulating Tube: Out of ceramic

Terminal: Tin plated Copper

Voltage Rating: 32V DC

Bolt Size: M6 for 40 - 250 amp Fuse

Bolt Size: M8 for 300 - 600 amp Fuse

Interrupting Rating: 2000A @ 32V VDC

Mounting Torque M6: 9.8Nm 1.4Nm

Mounting Torque M8: 14Nm 2Nm

Amp Rating: 40 - 600amp

Operating temperature: -40 to 125 C

Housing Material: PPA-GF33HS

Insulating Tube: Out of ceramic

Terminal: Tin plated Copper

Voltage Rating: 32V DC

Bolt Size: M6 for 40 - 250 amp Fuse

Bolt Size: M8 for 300 - 600 amp Fuse

Interrupting Rating: 2000A @ 32V VDC

Mounting Torque M6: 9.8Nm 1.4Nm

Mounting Torque M8: 14Nm 2Nm

The Single ZCASE is a Minimal Footprint Bolt Down Fuse with a wide rating range up to 600A in the same packaging size.

The Time Current characteristic is similar to the well known MEGA Design and can used as full wire protection until 250A.

Higher ratings mostly used for typically Starter Fuse application as a protector fuse.

The fuse design is optimized for a one bolt connection M6 (40A - 250A) or M8 (300A - 600A) and can used directly on a battery post
or busbar connection.

Littelfuse is offering a complete solution for the necessary stud and different busbar connections including some battery clamps.

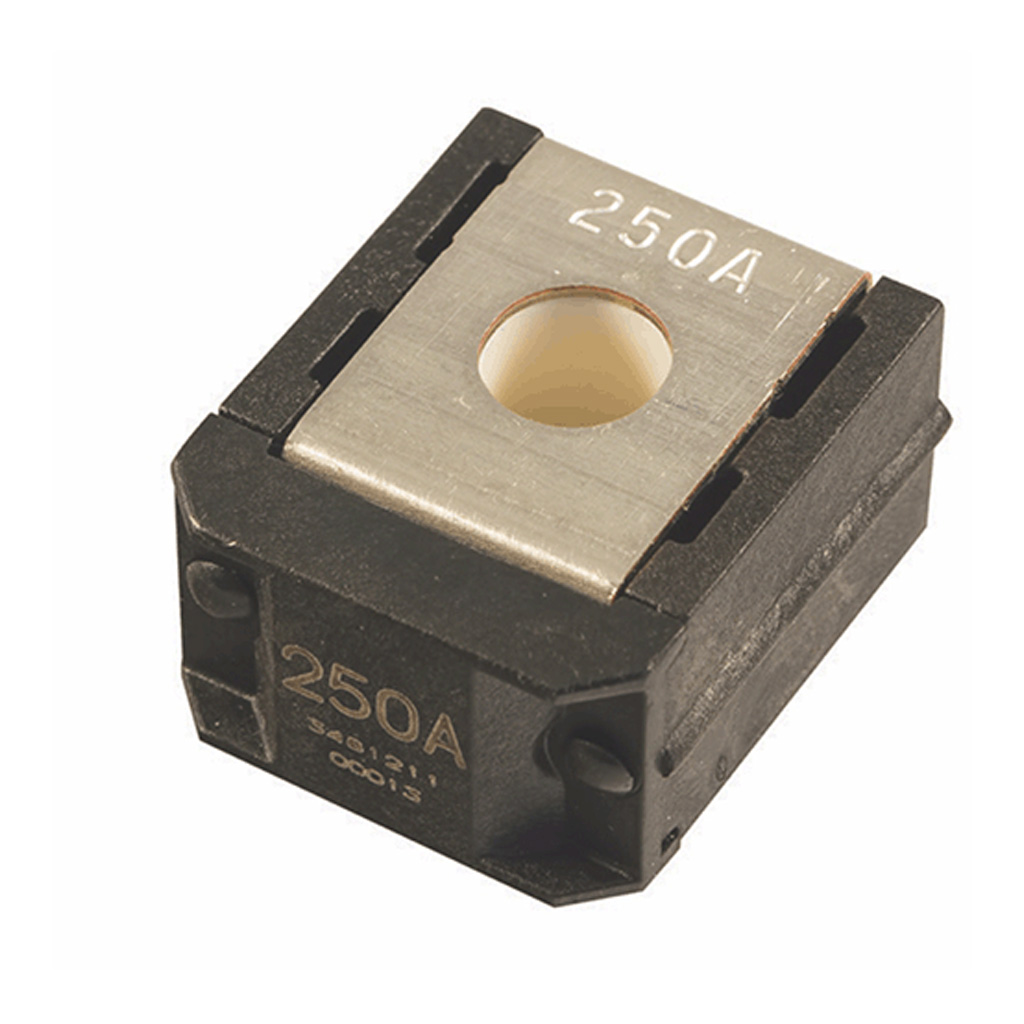

** ZCase fuse shown is 250 amp rating

***ZCase mounts also available
