1X white dome camera

1X instructions

（note：no cable included）

Press OSD joystick to switch the output mode:

• Default / UP for 5 seconds: CVBS 960H
• Right for 5 seconds: TVI
• Down for 5 seconds: CVI
• Left for 5 seconds: AHD

Noted: this is a wired security camera, and it could be the additional or replacement camera for the wired security system.

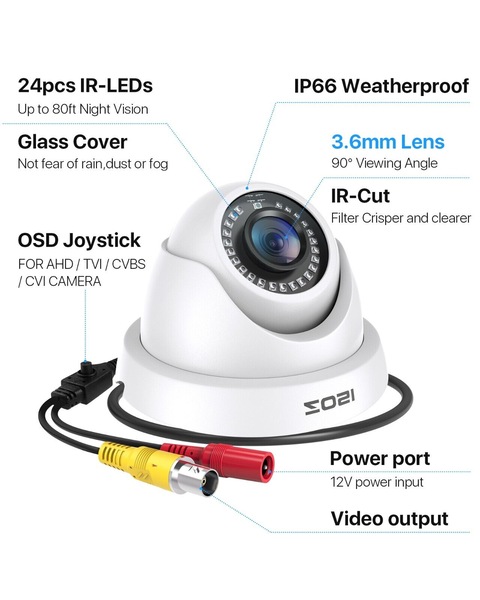

• Image Sensor: 1/3〞CMOS CMOS with IR-Cut.
• Active Pixels: 1920(H)×1080(V).
• Lens: 3.6mm
• IR LEDs Amount: 24pcs, 5mm LEDs
• IR Distance: up to 80ft.
• Viewing angle:90 degree
• Weather - Resistant
• Singal mode: TVI / AHD / CVI / CVBS 960H.

This 1080p full HD camera has a built-in OSD menu that can change the 4 different video outputs：HD-TVI, AHD, CVI, and CVBS(960H)， and adjust the video settings.

Operation Mode：

• Switch from AHD: Press Leftward for 5 Seconds
• Switch from TVI: Press Rightward for 5 Seconds
• Switch from CVBS: Press Upward for 5 Seconds
• Switch from CVI: Press Downward for 5 Seconds

Noted: Default Video Mode is Analog 960H Mode

See everything in details with true 1080p HD resolution. Get clearer and smoother images/videos than 720p cameras.

Equipped with 24pcs infrared LEDs, this camera can see up to 80ft in darkness. 3.6mm HD lens with IR-CUT captures clear image and video at night.

Mount this camera on the ceiling or on the wall. It’s simple to place it anywhere indoor and outdoor for all-round surveillance.
