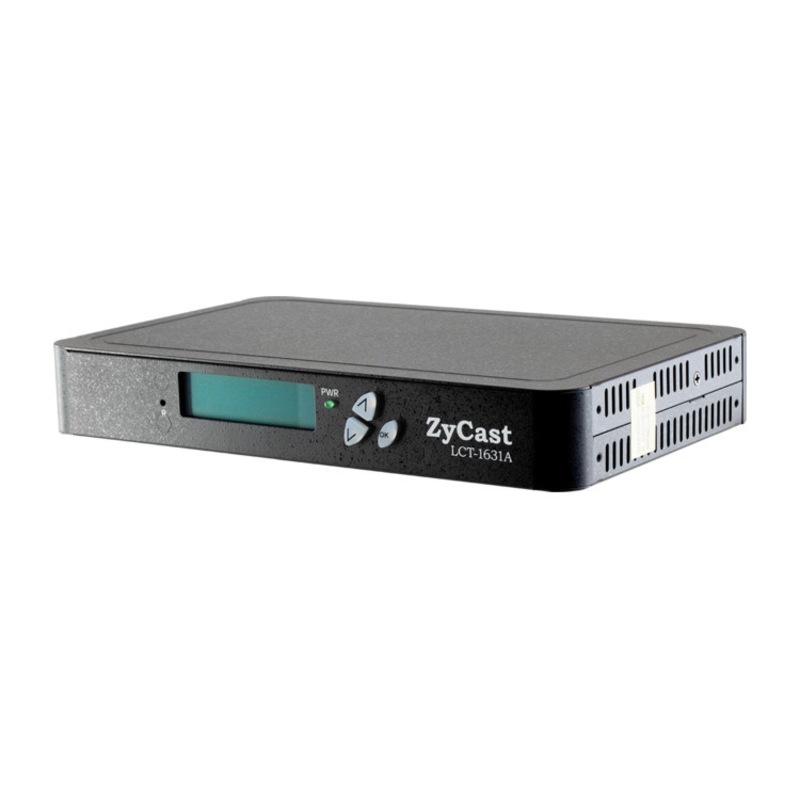

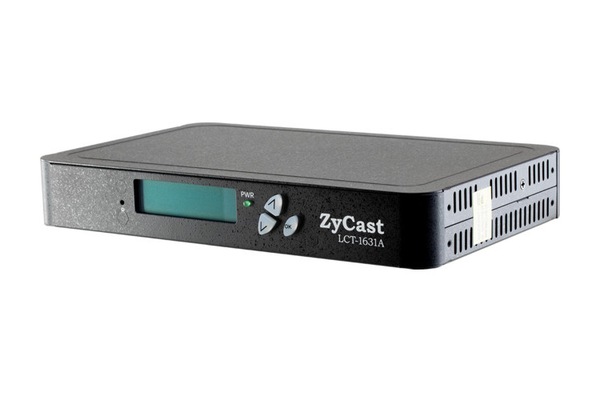

Zycast DVB-T MPEG-2 HD Encoder Modulator w/ HDMI Inputs LCT1631A

Image 1
Hurry! 6 items left!
$699

Collect 699 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping

Dispatch in 2 business days

Sold & shipped by Elite Electronics
Secure ways to pay at checkout
LCT-1631A MPEG-2 HD Digital Modulator
  • HDMI, Component, Composite Inputs, RF Output
  • Gain Control (20dB Manual Attenuation)
  • RJ-45 port for Web Management
  • Video resolution: Up to 1080i/1080p
  • Perfect, clean & clear HD picture on high motion video
  • Front Panel LCD
  • Cool & silent operation
  • Single input MPEG-2 HDEncoder/Modulator
  • Converts Digital Video Broadcasting (DVB) HD video
  • Converts audio signals to COFDM
  • Easy configuration & adjustments
  • Ideal for multi-video distribution solutions in the commercial & institutional market, indoor use
  • Adjust settings through a web interface
  • Remote management is enabled via PC



  • HDMI 1.4
  • Connector - Single
  • Audio - Embedded PCM
  • HDCP Compliance (Test Mode) - 1.4

  • Video/ Audio Encoding Profile
  • Video Codecs - MPEG-2 VBR
  • Bitrate (Adjustable) - DVB-T:, HD: 12.0 to 24.0Mbps
  • (Suggested Max. Bitrate 17Mbps for 16-QAM), SD: 4.0 to 9.0Mbps
  • Resolution Output - Same as Input, Accepting Resolution as Follows: 1080p30 / 1080p25, 1080i60 / 1080i50, 720p60 / 720p50, 576p / 480p, 576i / 480i
  • Audio Codecs - MPEG1 Layer II / MPEG4 AAC /AC-3 Encode

  • Output
  • Standard - DVB-T
  • Connector - 1x “F” Female
  • Output Level - 95 dBµV Typical (With 20dB Range Manually Adjustable)
  • Flatness Across Full Band ± 2 dB Typical
  • MER - 38 dB Typical @ 480.5 MHz under DVB-T Mode
  • Output Impedance - 75 ohm
  • RF Output Return Loss - 10 dB Typical

  • ModulatorSTD - DVB-T (COFDM)
  • RF Mode - Normal / Inverted
  • Frequency Range (AU / NZ) - AU: 104.5 MHz to 816.5 MHz (Channel 5 to Channel 69) & NZ : 107.5 MHz to 858.0 MHz (Channel S1 to Channel 69)
  • Constellation (Output Bitrate, Max.) - AU : 64-QAM (27.70Mbps), NZ : 64-QAM (31.66 Mbps)
  • FEC - 7/8
  • LCN Mode - AU / NZ
  • OFDM Mode - 2k, 8k
  • Guard Interval - 1/32

  • General
  • Local Monitoring - LCD
  • Web GUI Supported - Firefox, Chrome
  • Password Protected - GUI: User Settable
  • Power Supply - 12VDC 1.5A
  • Consumption - 5W
  • Operation Temperature - 0°C to +55°C
  • Storage Temperature -20°C to +70°C
  • Dimension - Housing: 236(L) x 145(W) x 34(H) mmWeight
  • Language - English
  • Connector - RCA x1 Set for Each
  • Audio - Analog 3.5mm (Phone Jack)

  • Package Contents
  • LCT-1631A Encoder / Modulator
  • 12V DC 1.5A Power Adapter
  • 3.5mm to 2 RCA Audio Lead
  • One installation / configuration manual
