Zycast Q4KR1 HDMI 4K To 1080P Digital DVB-T 1CH Modulator

Image 1
Hurry! 3 items left!
$649

Collect 649 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping

Dispatch in 2 business days

Sold & shipped by Elite Electronics
Secure ways to pay at checkout

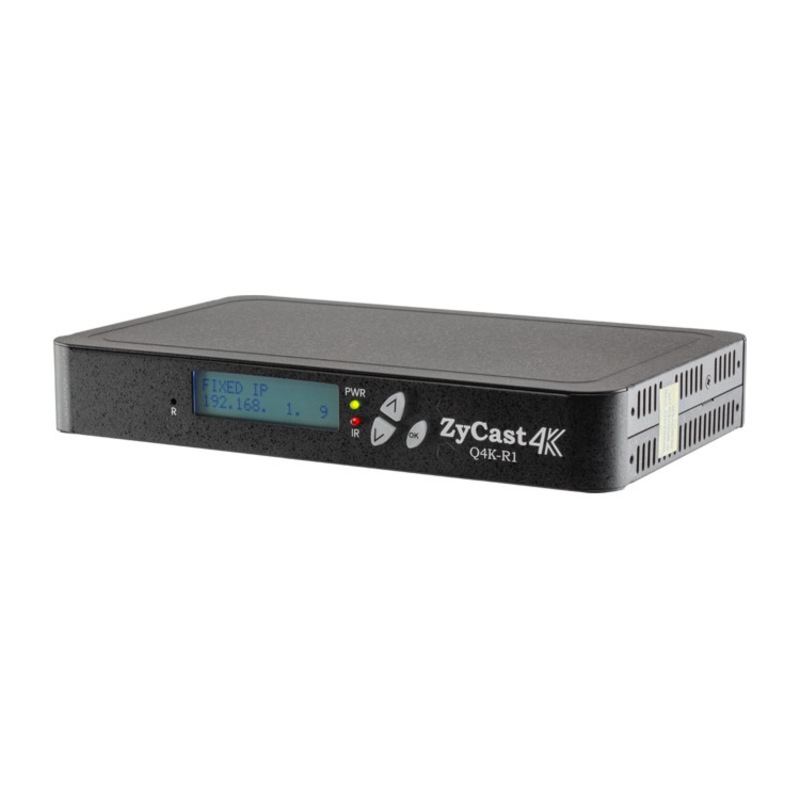

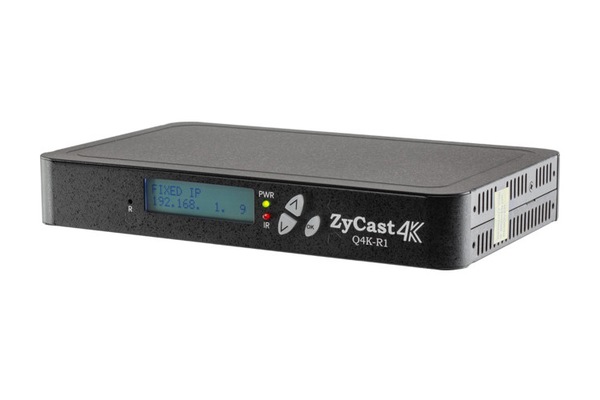

ZyCast Q4K-R1 Single Input HD Modulator with 4K Loopout
  • Single input digital modulator encoding HD video & stereo audio signals to MPEG-4 only(H.264) DVB-T COFDM TV channels
  • Compatible input resolutions 576i/720P/1080i & 1080P/UHD/4K for HD picture quality
  • HDMI input-with HDMI loop through for local connectivity
  • IR return path- compatible with resi-linx RL-RF380(video hub) & Rl-RF210(IR target)
  • Superior error rate (MER 39)
  • Full function front LCD display with menu driven configuration
  • New Zealand channel plan selectable
  • 2K/8K carriers
  • Adjustment of settings available via WEB GUI
  • Remote management with a PC
  • Adjustable VHF/UHF output (6-69)
  • 85dB launch with adjustable attenuation
  • Compact design
  • Silent operation - NO FAN NOISE!



  • Video/ Audio Encoding Profile
  • Video Resolution - 1080p / 1080i / 720p
  • Video Codecs - H.264
  • Audio Codecs - MPEG1 Layer II MPEG4 AAC

  • General
  • Local Monitoring - LCD
  • IR Emitter - Single
  • Web GUI Supported - Firefox, Chrome, Safari
  • Password Protected - GUI:User Settable
  • Power Supply - 12VDC 1.5A
  • Consumption - 6.5 Watts
  • Operation Temperature - 0c to +45c
  • Storage Temperature - -20c to +70c
  • Dimension - 236mm x 145mm x 34mm
  • Language - English

  • Video / Audio Input
  • Connectors - Dual (One for Input ; One for Loop-through)
  • Audio - Embedded PCM
  • HDCP Compliance - 1.4 and 2.2
  • Resolution - 4k / UHD / 1080p / 1080i / 720p

  • Output
  • Standard - DVB-T
  • Connector - 1x "F" Female
  • Frequency Range - 177.5MHz to 816.5MHz (Ch6-Ch69)
  • Output Level - 85 dBµV Typical (With 20dB Range Manually Adjustable)
  • Flatness Across Full - 2 dB
  • MER - 39 dB Typical
  • Carrier (OFDM Mode) - 2K / 8K
  • Guard Intervals - 1/32
  • Code Rate (FEC) - 7/8
  • Modulation - 64-QAM
  • Output Impedance - 75 ohm
  • RF Output Return Loss - 10 dB Typical
  • LCN - Embedded, Varies by Country Regulations
