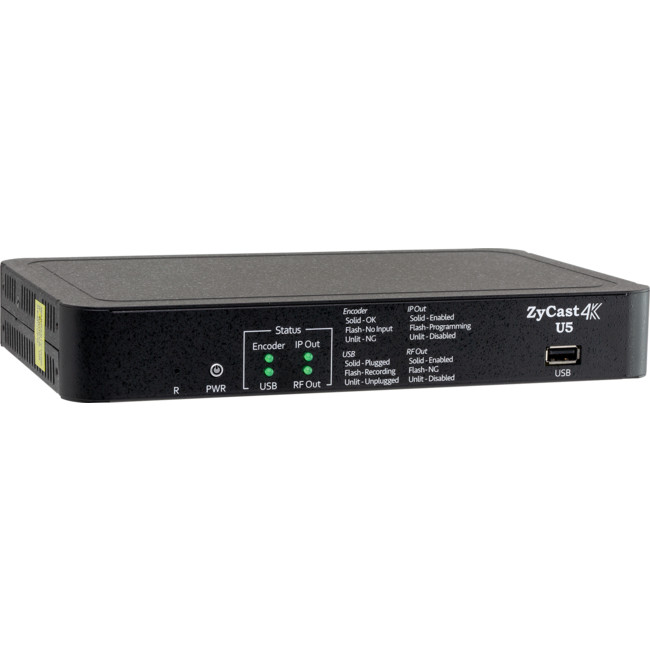

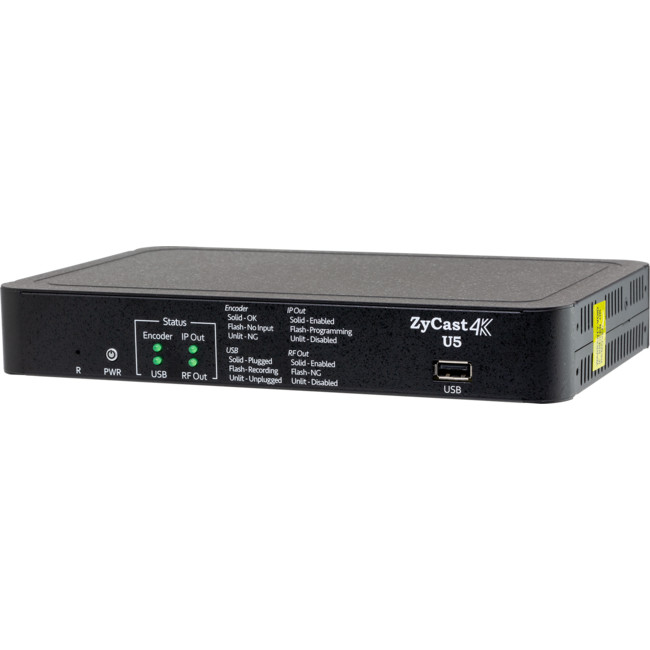

U5 ZYCAST SINGLE CHANNEL 4K HEVC MODULATOR AND IP STREAMER

ZyCast's Single Channel U5 HEVC Encoder is a cutting-edge broadcasting solution that combines versatility, efficiency, and ultra-high-definition video encoding. Designed to meet the demands of modern broadcasters and content creators, this encoder is engineered to deliver exceptional performance and flexibility.

With the ZyCast Single Channel U5 HEVC Encoder, you can effortlessly encode video content into the RF standard of your choice (DVB-C, DVB-T, J.83B, ISDB-Tb, DVB-T2*¹). Whether you require RF output or prefer the convenience of an IP video stream, this encoder has you covered.

Equipped with state-of-the-art HEVC (High-Efficiency Video Coding) technology, the ZyCast U5 encoder maximizes video compression efficiency, reducing bandwidth requirements without compromising on visual quality. This advanced encoding capability allows for the delivery of stunning, high-resolution content up to 4096 x 2160 pixels, ensuring an immersive viewing experience for your audience.

Thanks to its simultaneous RF and IP output capabilities, this encoder offers exceptional flexibility in content distribution. Whether you need to broadcast content over traditional RF networks or deliver content over IP-based platforms (UDP/RTP Multicast/Unicast, RTSP, SRT).

In summary, the ZyCast Single Channel U5 HEVC Encoder combines the power of HEVC encoding, multiple standard RF output, and simultaneous IP streaming in resolutions up to 4096 × 2160 pixels. This encoder is the ideal solution for broadcasters and content creators seeking to deliver exceptional video content across various platforms. Upgrade your broadcasting capabilities with the ZyCast U5 encoder and unlock a world of possibilities.

Features

Video Resolution Up To 4096 × 2160p60.
HDMI 2.0 & HDCP 2.2 Compliant.
Video Codec: HEVC (H.265) and AVC (H.264).
Audio Codec: MP2, AAC, AC3.
HEVC (H.265) Profile: Main 4:2:0 8-Bit.
RF Out Standards: DVB-T, ATSC, QAM-B (J.83), ISDB-Tb, DVB-C, DVB-T2*¹.
Supports Multicast/Unicast, RTSP, and SRT Streaming Protocol.
Friendly and Powerful Web User Interface Saves Your Setup Time (English and Spanish).
Allows for Stream Recoding Using External USB Drive.

1: DVB-T2 Requires Additional Firmware License.

Specifications

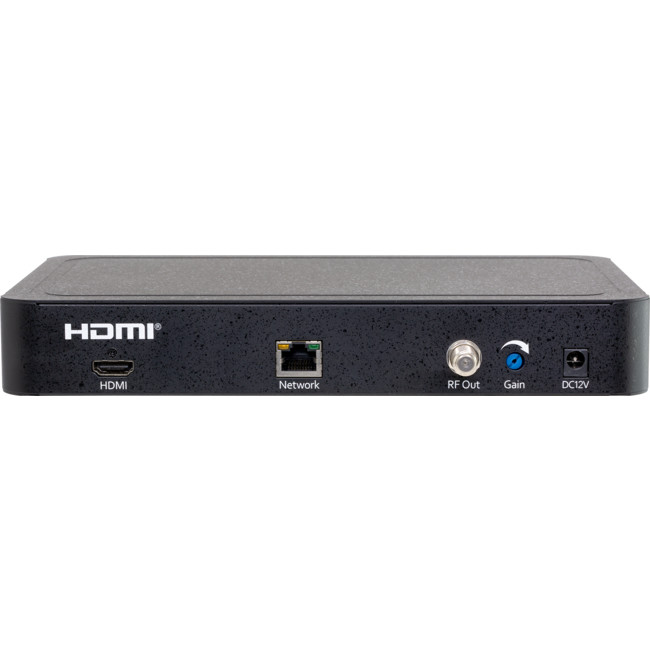

Video / Audio Input
HDMI 2.0	Single Connector
HDCP Compliance	2.2
Loopthrough	To Be Developed
Encoding Profile
Input Resolution	4096 × 2160p (60/59.94/50/30/29.97/25Hz) 3840 × 2160p (60/59.94/50/30/29.97/25Hz) 1920 × 1080p (60/59.94/50/30/29.97/25Hz) 1280 × 720p (60/59.94/50Hz) 720 × 576p (50Hz) 720 × 480p (60/59.94Hz)
Encoding Resolution	Same as Input
HEVC (H.265) Tiers and Levels	4096 × 2160p, Main Tier/Level 5.1 3840 × 2160p, Main Tier/Level 5.1 1920 × 1080p, Main Tier/Level 5.1 1280 × 720p, Main Tier/Level 5.1 720 × 576p, Main Tier/Level 5.1 720 × 480p, Main Tier/Level 5.1
HEVC (H.265) Profile	Main / 4:2:0 / 8-bit
H.264 Encoding	4096 × 2160p, High Profile/Level 4 3840 × 2160p, High Profile/Level 4 1920 × 1080p, High Profile/Level 4 1280 × 720p, High Profile/Level 4 720 × 576p, High Profile/Level 4 720 × 480p, High Profile/Level 4
Encode Bitrate	1Mbps to 30Mbps
Rate Control	VBR, CBR
Audio Codecs	MPEG-1 Layer II / MPEG-4 AAC-LC in ADTS / AC-3
Sampling Rate	44.1 and 48KHz
Recording (Simultaneous Streaming & Recording)
Recording	USB 2.0 (MPEG-TS) FTP Upload (To Be Developed)
IP Output
Connector	RJ-45 × 1
Standard	1000 Base-T Ethernet, Full Duplex
Streaming Protocol	HLS (TS) RTSP SRT UDP Unicast Multicast RTP Unicast Multicast
General

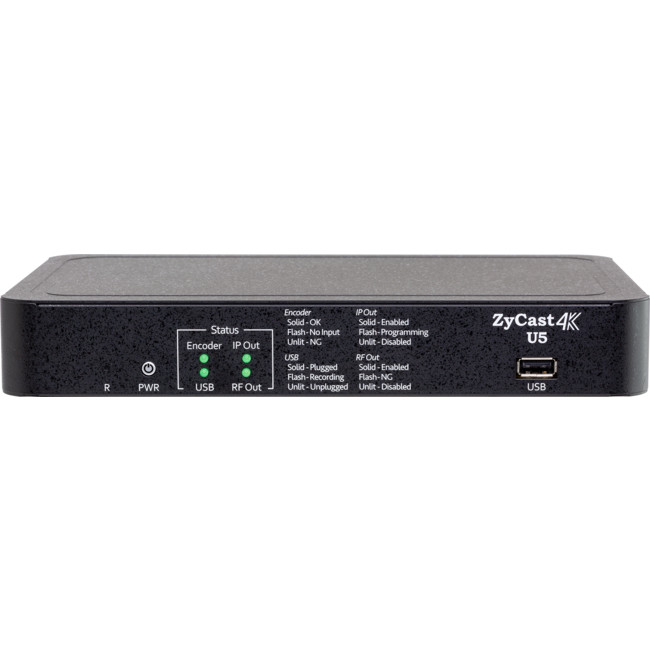

Local Monitoring	4 Indicator LEDs
GUI Supported	Firefox, Chrome and Edge
Password Protected	GUI: Changeable
Power Supply	12V DC, 1.5A
Consumption	0.75A, 9W Typical
Dimensions	236mm × 145mm × 35mm
Language	English or Spanish
RF Output
Connector	1 × "F", Female
Output Level	35dBmV
Output Impedance	75 (Ohm)
Level Adjustment	0 to 20 dB
Carrier Suppression	55 dB
Output Return Loss	10 dB Typical
MER	40 dB Typical
Modulation Standard (I/II)	(I) J.83 Annex B	(II) ATSC-8VSB
RF Mode	Normal / Inverted
Channel Type	STD / HRC / IRC	ATSC-8VSB
Frequency Range (Standard Mode)	57 MHz to 861 MHz (Ch 2 to Ch 135)	57 MHz to 803 MHz (Ch 2 to Ch 69)
Interleaver	I=128, J=1	-
Constellation (Output Bitrate, Max.)	64-QAM (26.970Mbps) 256-QAM (38.810Mbps)	8VSB (19.393Mbps)
VCN	Auto (Major & Minor) Manual (Major & Minor) Manual (One Part)	Auto (Major & Minor) Manual (Major & Minor)
Modulation Standard (III/IV)	(III) DVB-T	(IV) ISDB-Tb
RF Mode	Normal / Inverted
Frequency Range (Under 6MHz)	57 MHz to 803 MHz (Ch 2 to Ch 69)	177.143 MHz to 803.143 MHz (Ch 7 to Ch 69)
Constellation (Output Bitrate, Max.)	16-QAM (15.834Mbps) 64-QAM (23.751Mbps)	16-QAM (15.490Mbps) 64-QAM (23.235Mbps)
FEC	1/2, 2/3, 3/4, 5/6, 7/8	1/2, 2/3, 3/4, 5/6, 7/8
LCN Mode (Default)	Colombia	Brazil
OFDM Mode	2k, 8k	2k, 4k, 8k
Guard Interval	1/32, 1/16, 1/8, 1/4
Modulation Standard (V/VI)	(V) DVB-C	(VI) DVB-T2*¹
RF Mode	Normal / Inverted
Frequency Range (Under 8MHz)	50.500 MHz to 858.000 MHz (Ch E2 to Ch E69)	50.500 MHz to 858.000 MHz (Ch E2 to Ch E69)
Constellation (Output Bitrate, Max.)	PLP Constellation QPSK 16-QAM 64-QAM 256-QAM (Up to 46.590Mbps)	16-QAM (25.656Mbps) 32-QAM (32.071Mbps) 64-QAM (38.485Mbps) 128-QAM (44.899Mbps) 256-QAM (51.313Mbps)
Guard Interval	1/32, 1/16, 1/8, 1/4, 1/128, 19/128, 19/256	-
FFT Mode	1k, 2k, 4k, 8k, 16k	-

1: DVB-T2 Requires Additional Firmware License.

Specifications Subject to Change Without Notice.
