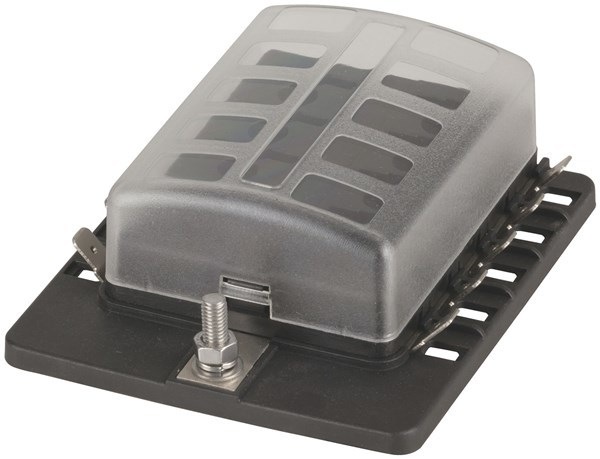

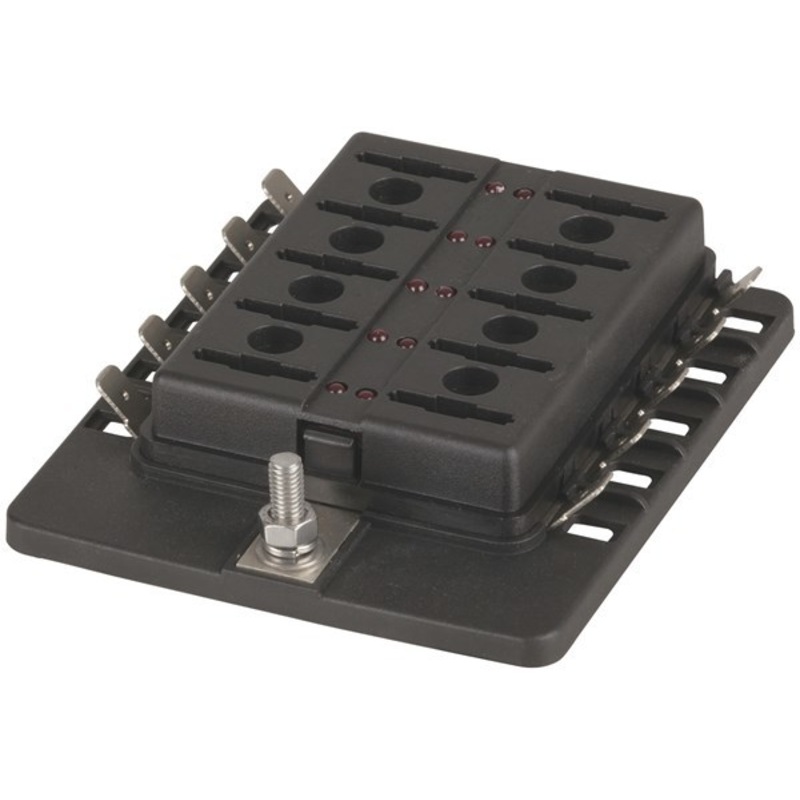

Blade Fuse 10way Block Spade Terminal Connection Output Rating 30A Max per Circuit

A convenient 10-way fuse block with integrated “fuse blown” indicator LEDs. The clear plastic cover allows you to quickly fault-find without disturbing your wiring. Includes convenient spade output connections for straight forward connections. Suitable for use in 12-24V systems, 30A max per fuse channel. Input cable up to 4-gauge. Uses standard automotive blade fuses, and includes a handy sheet of common labels, to make identification of connections even easier.

Features:
- Red LED “blown fuse” indicators
- Convenient spade terminal connections
- Clear fuse cover

Specifications:
Input Terminal Rating: 32VDC @ 100A Max
Input Wire Size: 4-6 AWG
Output Terminal Rating: 30A Max. per Circuit
Output Wire Size: 12-16 AWG
Fuses: Automotive Blade up to 30A
Weight: 100g
Dimensions: 100(D) x 85(W) x 38(H)mm
