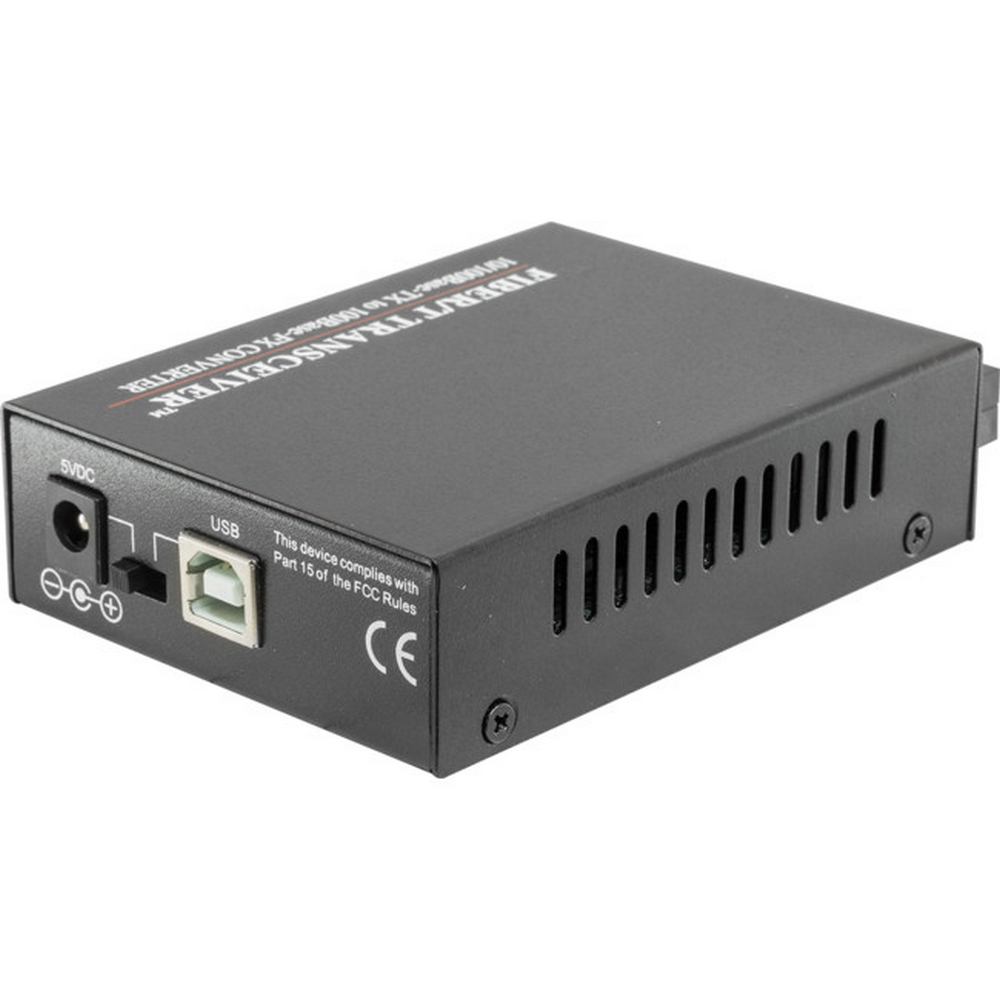

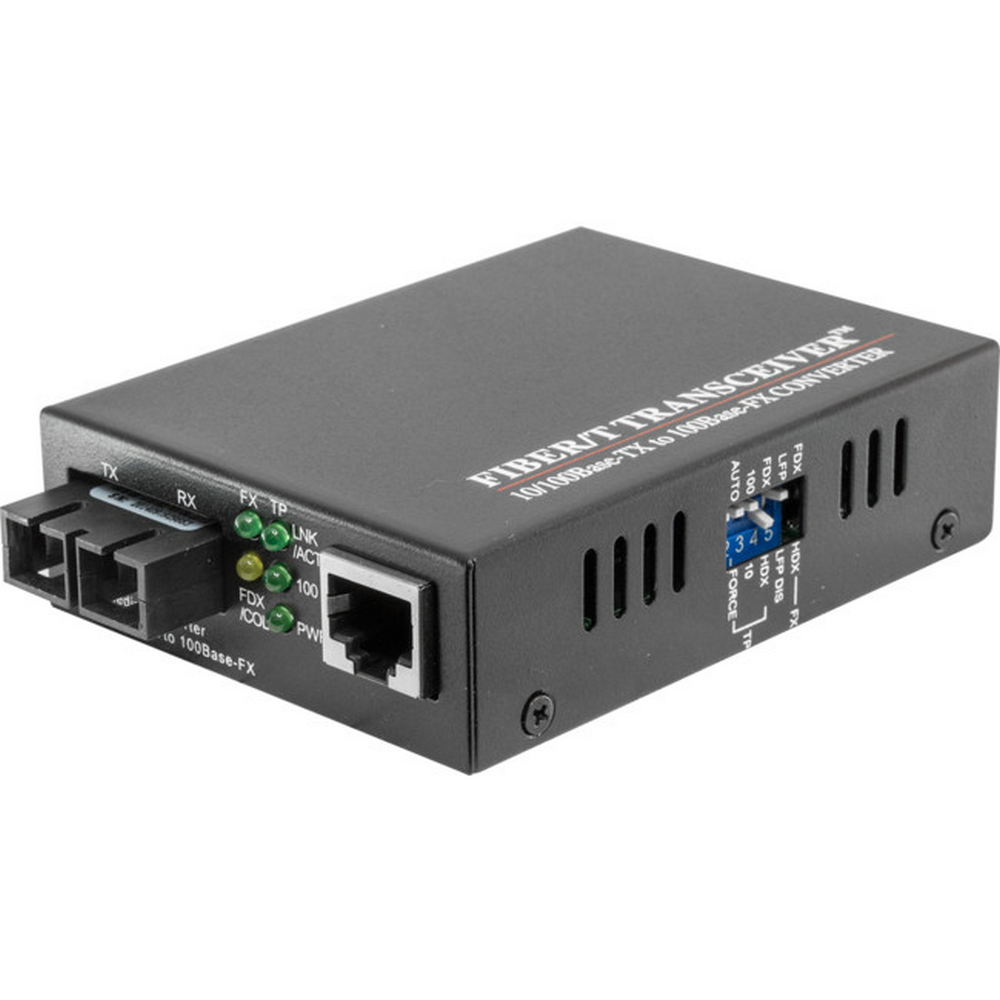

Fibre Media Converter 100MB Speed SM Dual Fibre SC 20km Supports LFP Function

Image 1
Image 2
$59

Collect 59 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping
Sold & shipped by Bourne Superstore
Secure ways to pay at checkout

10/ 100M Fibre Media Converter translates the signal froma twist-pair 10/100Base-TX cable to 100Base-FX fibre optic cable, extends data transmission distance from 100m via copper cables to 20km by fibre optic cable, which supports LFP (Link Fault Pass-through) function & USB Powered.

Features
  • 10/ 100Mbps auto-sensed, easily upgrade
  • Full-duplex and half-duplex auto-sensed
  • MDI/ MDI-X Auto Negotiation
  • 10/ 100Mbps store-and-forward
  • 100Mbps cut-through transmission
  • Packet size up to 1518bytes
  • Supporting VLAN/ VoIP/QoS packets
  • Support flow control and reduce broadcast packets
  • Supporting STP to form a redundant network
  • Extremely low power consumption, low heat and stable performance
  • Providing Desktop, Wall-mounted, Chassis and DIN-rail installation
  • LFP (Link Fault Pass-through) Function
  • External Power Adapter or USB power source
  • DIP Switch to set configurations
  • Supporting extra-long packets up to 1600 bytes
Applications
  • Network Communication
  • FTTH/ FTTB/ FTTx
  • ISP Backhaul Networking

 Specifications

Standard IEEE802.3 10Base-T Ethernet,
IEEE802.3u 100Base-TX/ FX Fast Ethernet
Data Rate Copper: 10/ 100M;
Fibre: 155M
Flow control Full duplex: flow control;
Half duplex: back pressure
Copper Port No.s of Copper Port: 1
Connector: RJ45 Connector
Distance:100m
Fiber Port No.s of Fiber Port: 1
Connector: SC as default, FC/ST optional
Wavelength: MMF 1310nm, SMF: 1310nm, Bi-di 1310/ 1550nm
Distance: MMF 2km, SMF 20/ 40/ 80/ 100/ 120Km, Bi-di20/ 40/ 80/ 100km
LED indicators PWR (power supply);
FL/A (optical link/action)
FDX (FX full duplex),
TL/A (twisted pairs link/ action)
100 (100M transmission rate of twisted pairs),
FX (100M transmission rate of optical fibre)
Power supply Working power: DC5V 1A
AC Power Supply: 100V~ AC 240V to 5V 1A
Or DC Power Supply: -36~-72V to 5V1A
External / Internal Power Supply Optional
Power consumption <2W
Environment Operating temperature : -10~55°C
Storage Temperature: -40~85°C
Relative Humidity: 5% to 95% non-condensing
Dimensions External: 94mmx70mmx26mm
Internal: 140mmx110mmx30mm
Gross Weight External : 0.4kg
Internal: 0.5kg

FAQs

What are the DIP switches on the side used for?

Switch 1 - The default setting is (AUTO), which is maximum speed and diagnostic features (LFP)on. This is recommended for normal operation. Force is used when trouble shooting or for special applications.
Switch 2 - Allows user to select a smaller bandwidth (10mpbs or 10BASE-T).
Switch 3 - Fiber has a Send (Tx) and Receive (Rx) channel. When both are enabled, you have FDX orFull Duplex. Some add-on modules are only capable of sendingor receiving and not both. This is called half-duplex (HDX).You can override the FDX using this switch. Switch3 addresses the ethernet ports.
Switch 4 - LFPT will indicate if a fault is present. Without LFPT you may not be aware of an issue. It's suggested to leave LFPT on, but when trouble shooting, LFPT can be set to off.
Switch 5 - Half or full duplex settings for the fiber ports.

Specifications:

12 Months

GTIN: 9328202001764

Estimated Delivery Time Frame:5-7 business days
