Features��

100% brand new and high quality.

Build-in industrial micro controller.

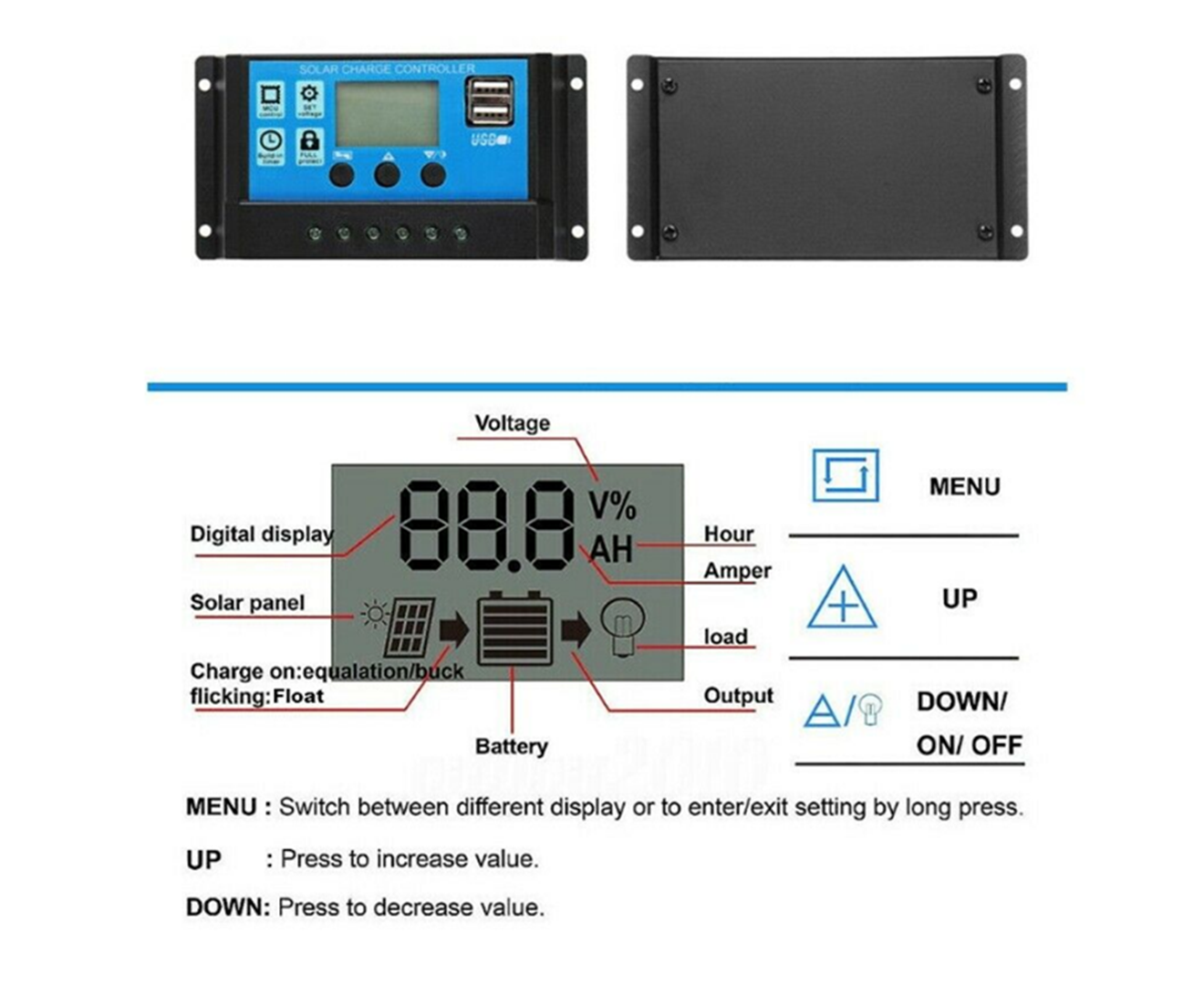

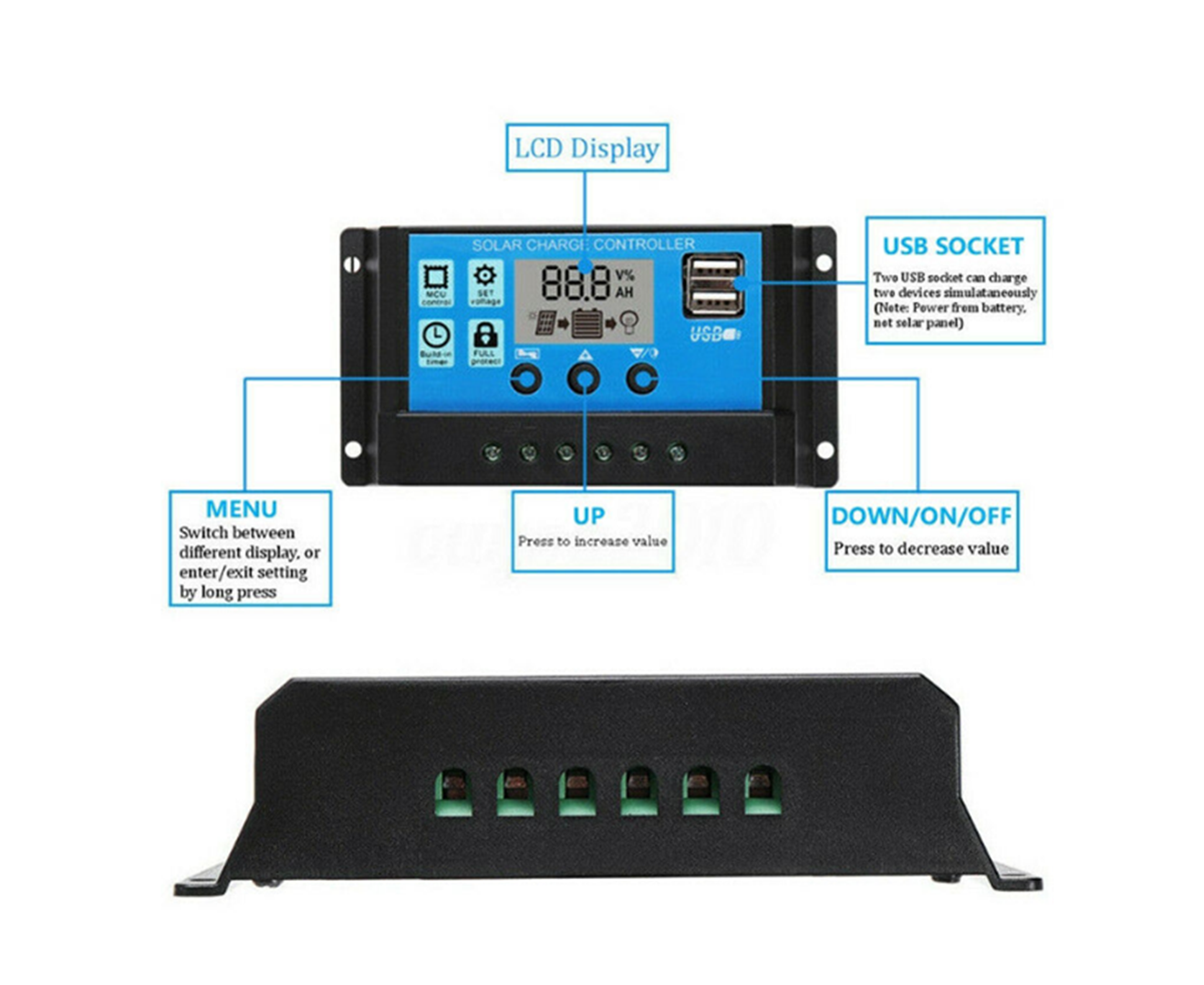

One-key setting,digital display,auto memory function.

Fully 4-stage PWM charge management.

Build-in short-circuit protections, open-circuit protections, reverse protections, over-load protections

Dual mosfet reverse current protections, low heat productions.

With double USB ports charge

Free One pair Anderson Style Plug included

The Regulator is only suitable for lead acid batteries:OPEN, AGM, GEL

It is not suited for nickel metal hydride, lithium ions or other batteries

Specifications��

• Rated Voltage: 12V 24V Auto
• Application: Solar System Controller
• Rated Current: 10A
• Max. PV Voltage: 50V
• Max. PV Input Power:
• 10A: 130W (12V) 260W (24V)

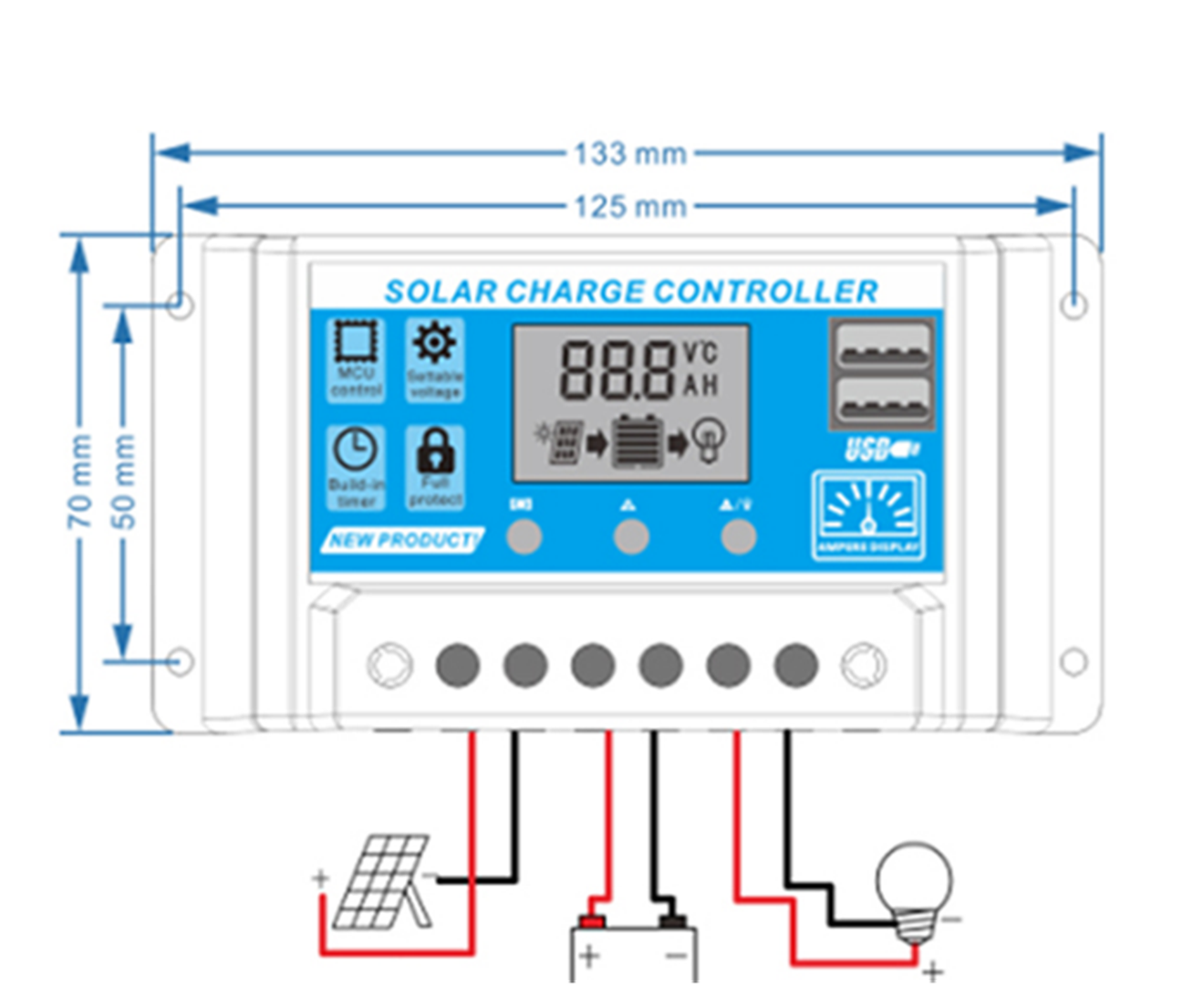

• Size: 133 x 70 x 34mm
• System Connection:Connect the battery to the charge regulator - plus and minus. it will show 1, if it detects 12V battery, 2 if it detects 24V battery.Connect the photovoltaic module to the regulator - plus and minus.Connect the consumer to the charge regulator - plus and minus.
• Package��1 x Solar Panels Battery Charge Controller��1 x User Manual��2 x Free Connectors
