Specification :

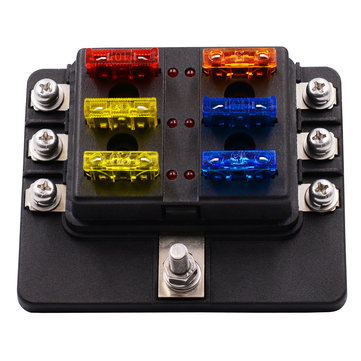

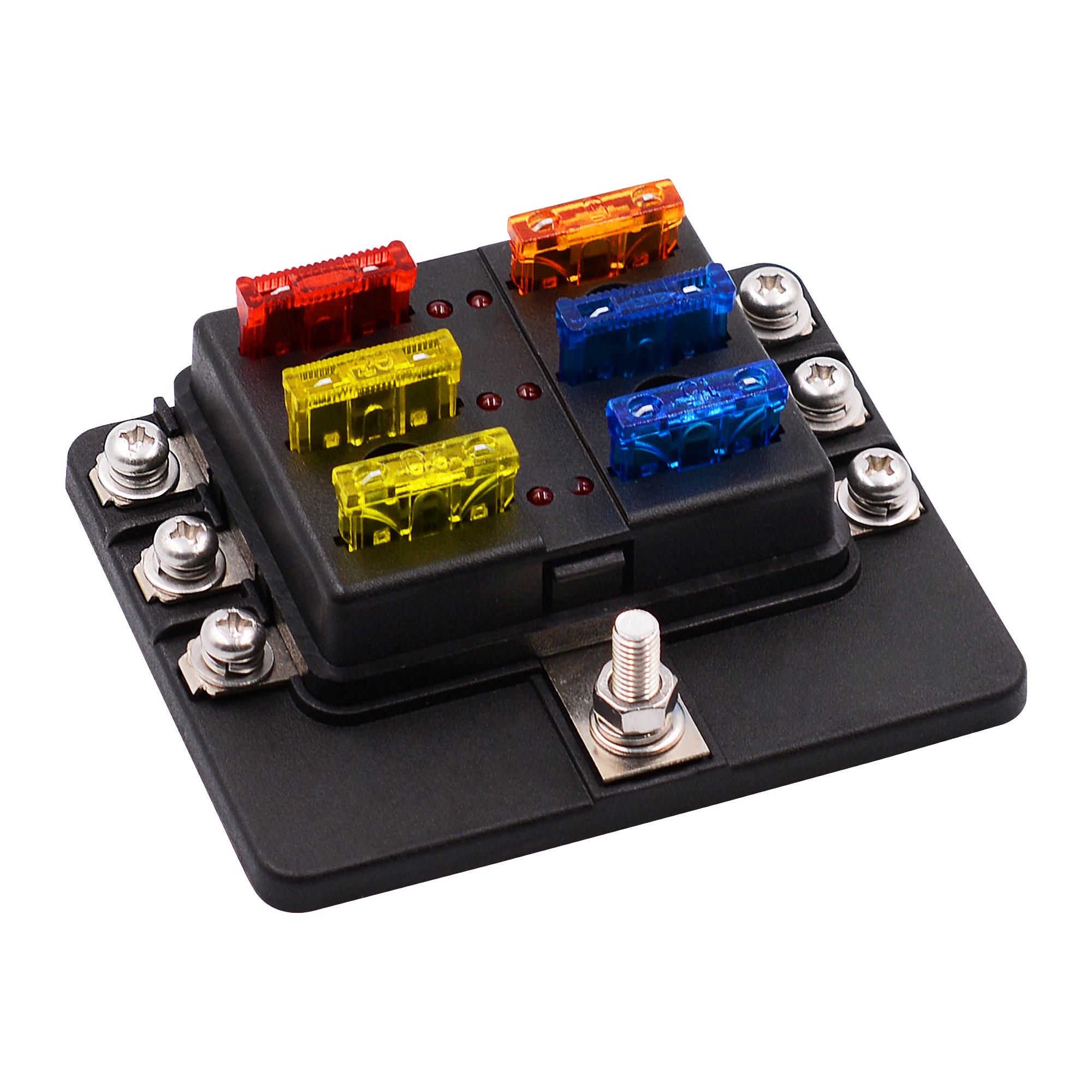

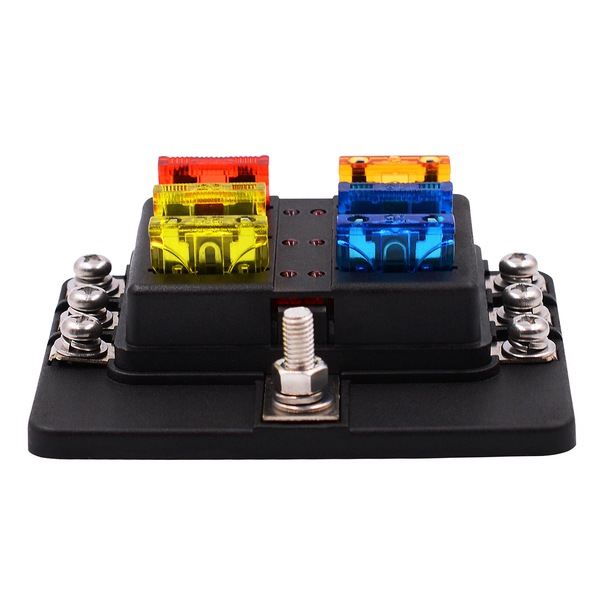

Product name : 6 ways fuse blade box

Model number : CS-579A1

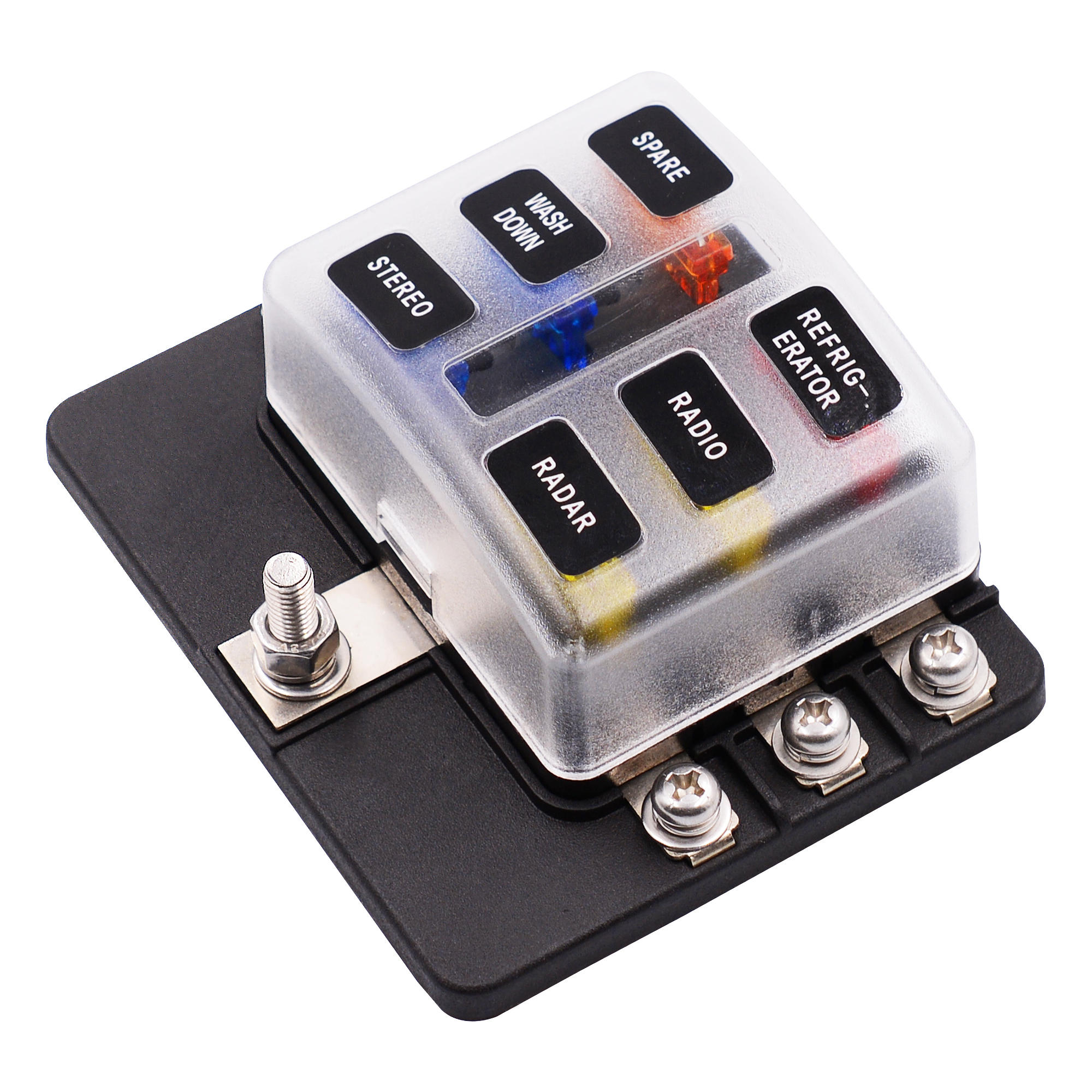

Product material : PBT body, PC waterproof and dustproof cover,? nickel-clad copper binding post, PPX40 sticker?

Rated input voltage: 32 V?

Rated input current: 100 A?

Maximum output current: 30A for each circuit?

Specification of input wires: #4-6 AWG?

Specification of output wires: #12-16 AWG?

Color of indicator light: Red?

Application : Car, off-road vehicle, touring car, bus, yacht, boat, etc.?

Installation method : Can be connected any circuit of electronic appliances on the car/ boat (such as hall light,headlight , wedge light ,fog light, warning light, car refrigerator, car charger, car fan,car TV,)

Size : 7cm/2.76in x 8.5cm/3.35in x 3.5cm/ 1.38in (L x W x H )

?

Featrues:

1.The feature of fuse :

When circuit faults or abnormal, accompanied by rising current,, this condition may be damage some important or expensive component of the circuit or burn the circuit even cause fire.Fuse can protect electronic appliance from current damage as well as prevent electronic components from being damaged by internal faults.Each fuse has their rated specification,when the current exceeds rated specification it will cut off current automatically.If fuse is placed in the electronic correctly ,fuse will cut off current automatically when the current and temperature up to certain rated that can protect circuit .

2.The function of indicator : while the red LED lights up which indicate the fuse has been disconnection, at this time you need to replace fuse timely.

3.This product adopts flame-retardant and environment friendly PBT material with high and low temperature resistance which completely meets the requests that fuse should have great mechanical strength, insulation property, heat resistance and flame retardancy to prevent it from breakup, deformation, burning, short circuit and other phenomena in operation.?

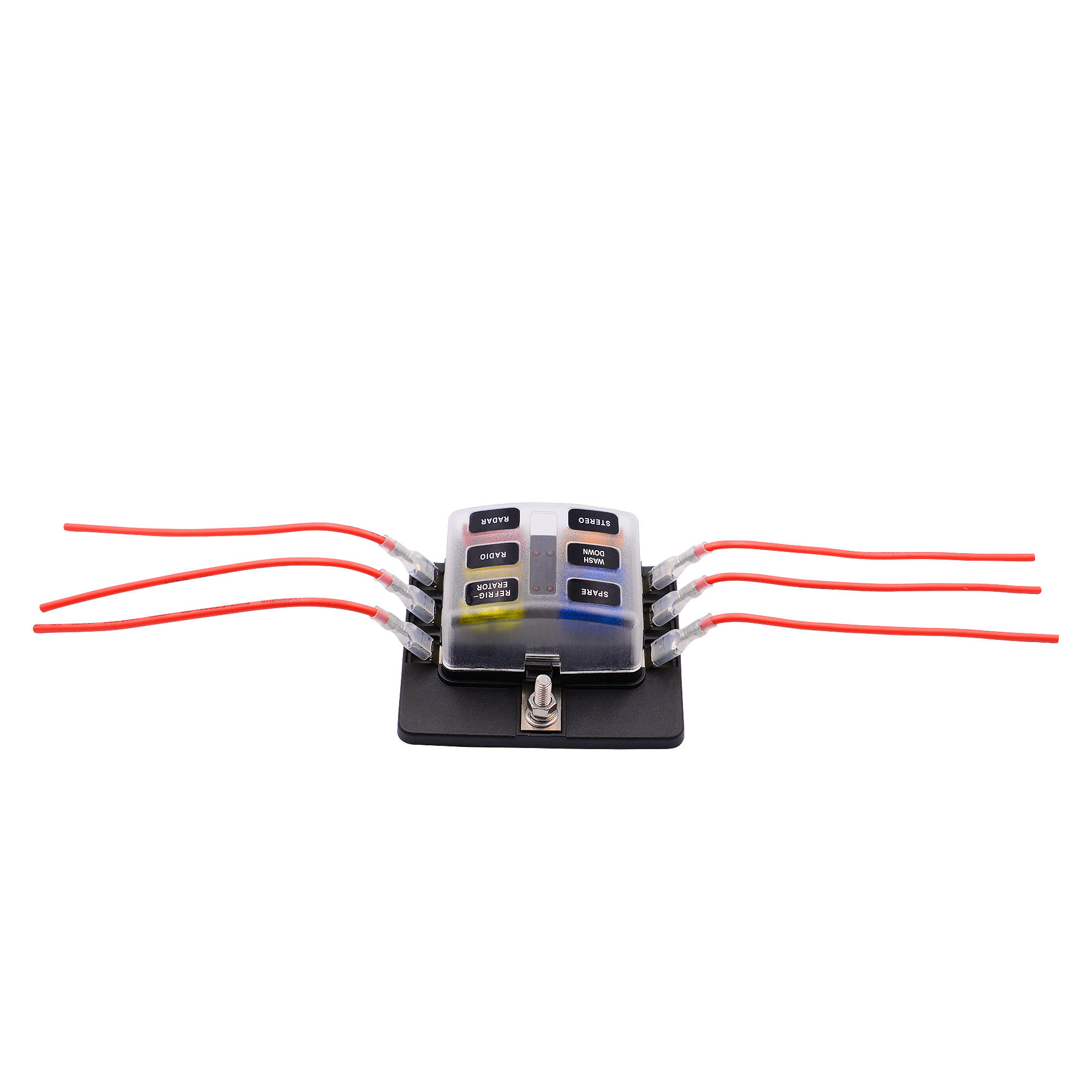

4.The design of 6 ways allows on line to connect the positive of battery ,another one connect fuse box.Then 6 terminals of fuse can be connected to different positive of electric appliances conveniently.

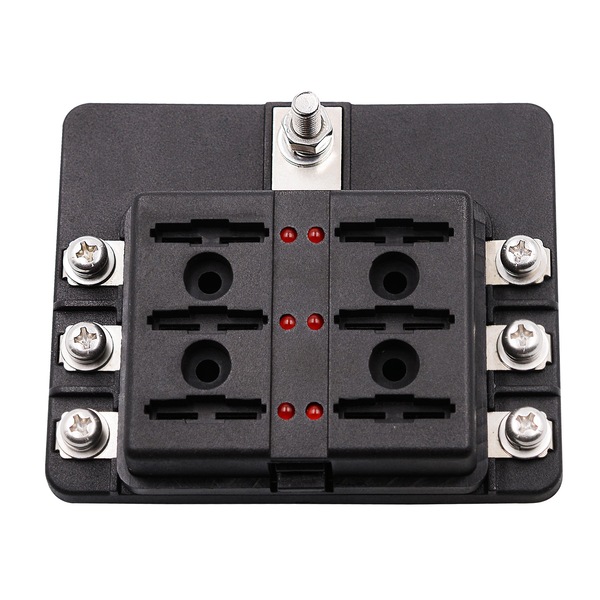

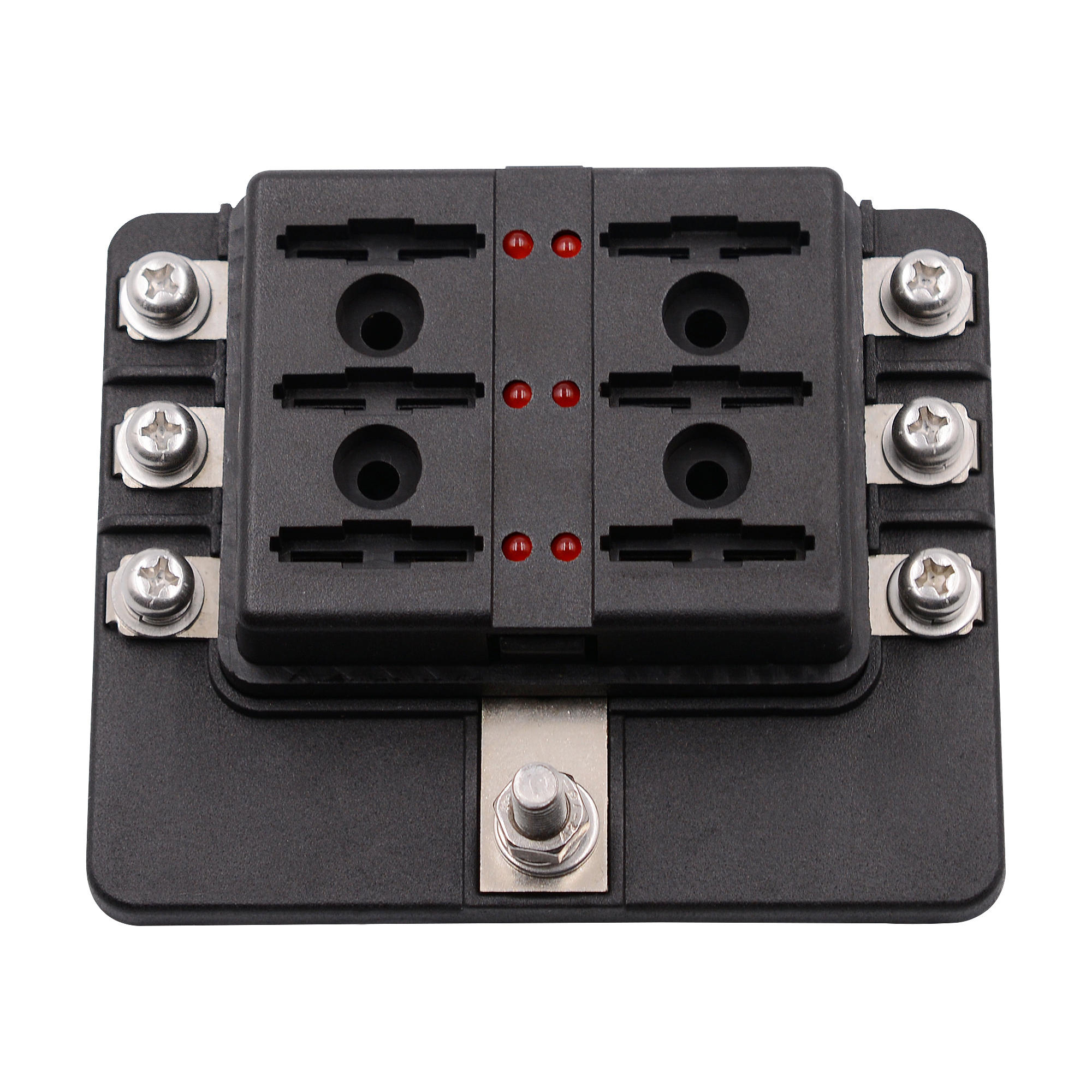

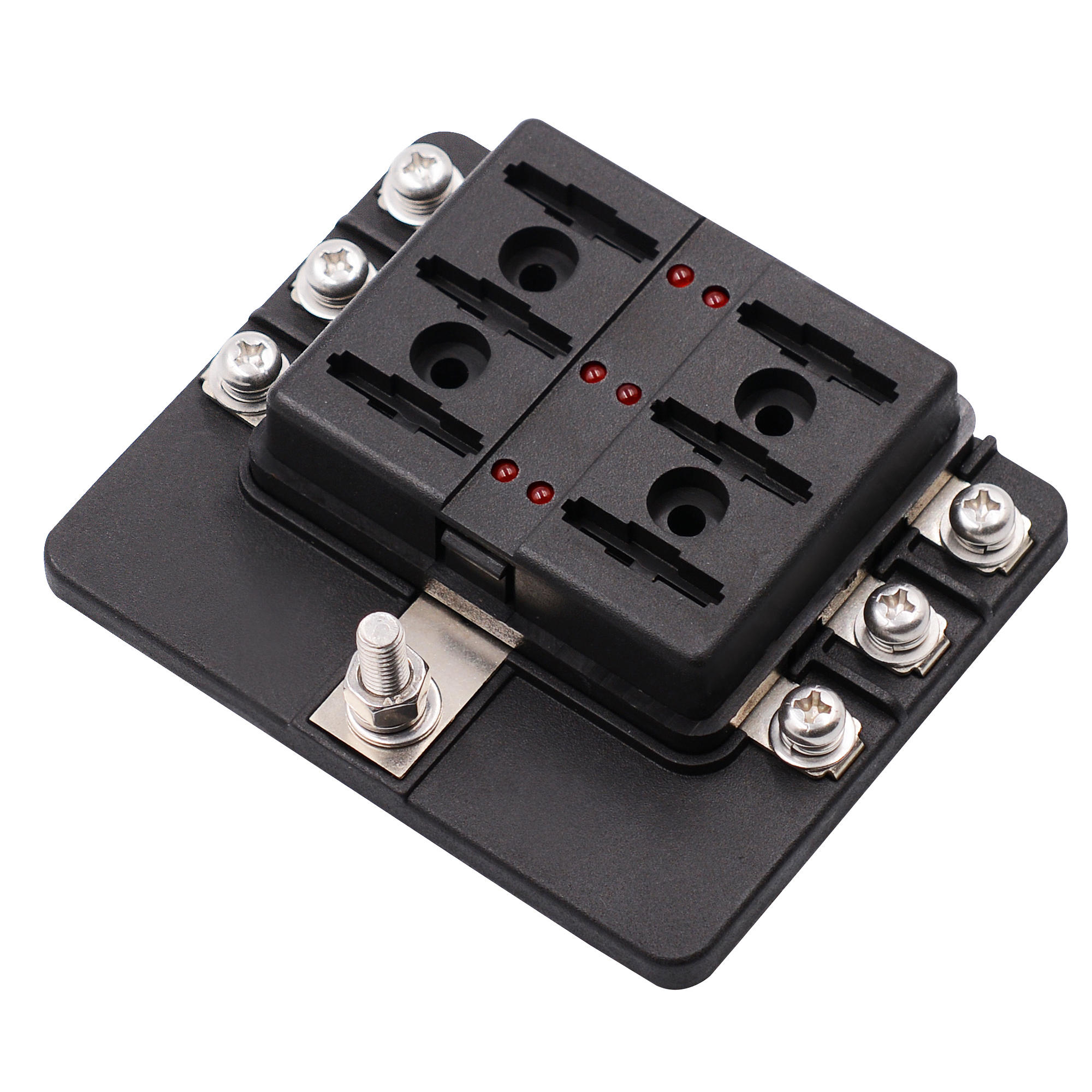

5.Having red LED indicator design which is corresponding to each electrical appliance connecting with each fuse piece. When fuse is broken ,the red indicator will light up convenient to know which fuse damage and treat it timely.

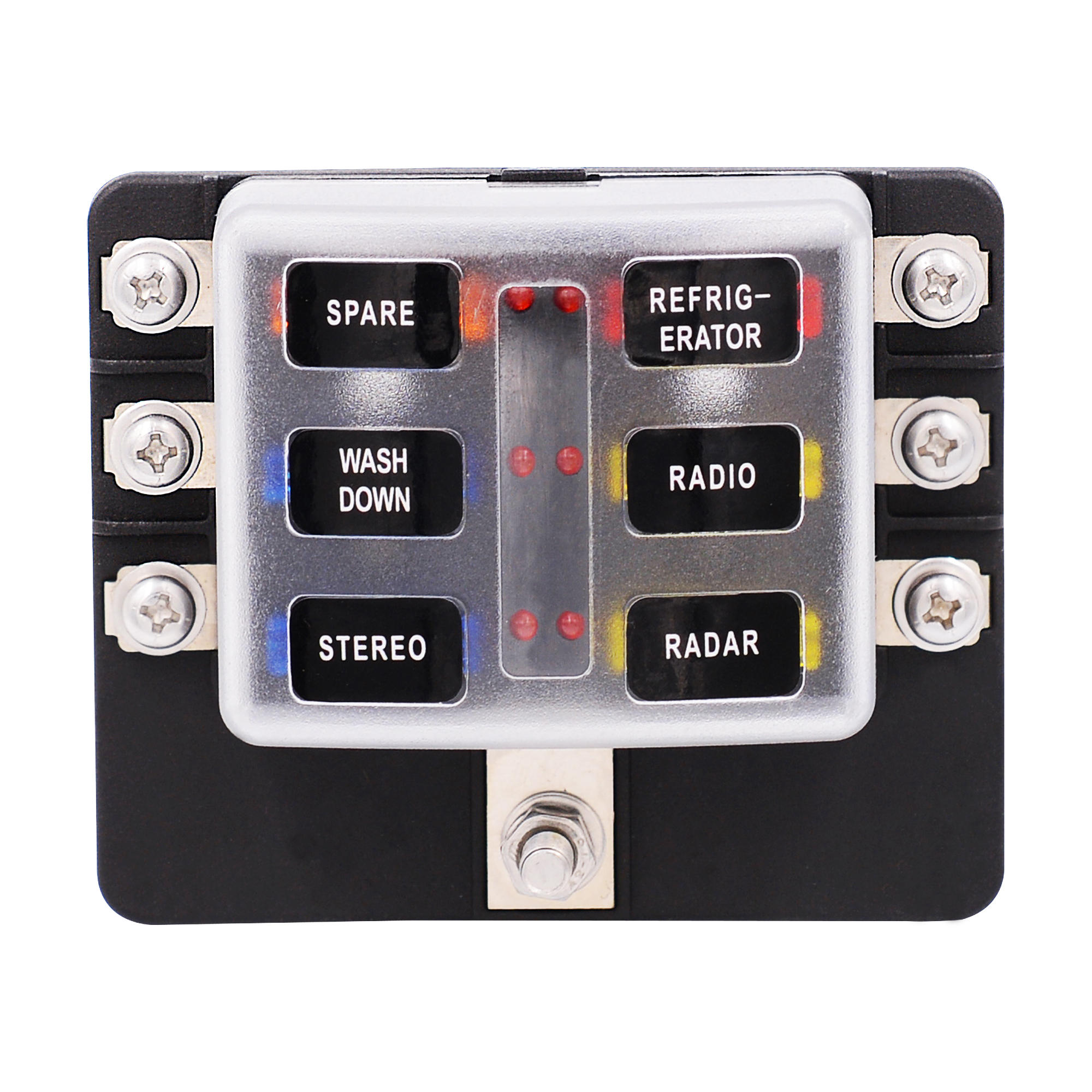

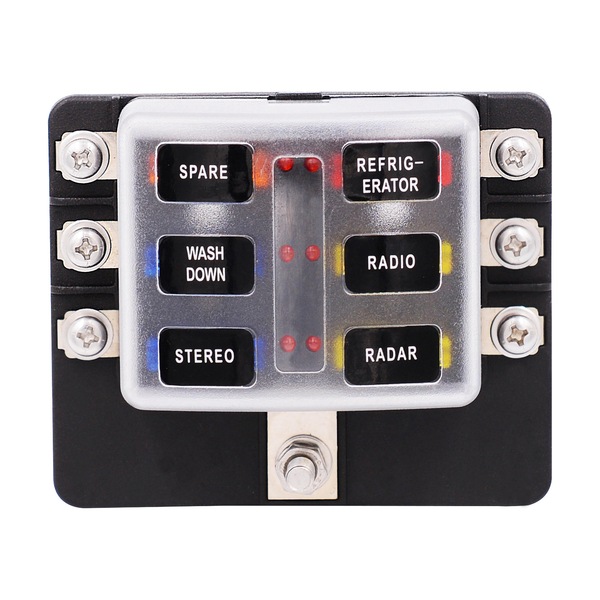

6.Sticker free! Sticker can paste on the corresponding electric appliance and fuse box ,when the red LED light up ,we can distinguish which appliance had problem at fist time.

7.This product comes with double fuses which has multiple amperes for you to conveniently take place of broken fuse in operation with spare fuse of corresponding ampere.?

?

Note :

1.We provide clear pictures ,measurement where possible.Please check as much as possible to make sure the item the one that you need.

2.The actual item maybe has slight color distinct with listing image due to different computer screens ,thanks for your understanding.

3.The size of item is manual measurement,please allow 0.5-1inch difference.(1inch=2.54cm)

4.Installation manual is not included.Professional Installation Is Highly Recommended

?

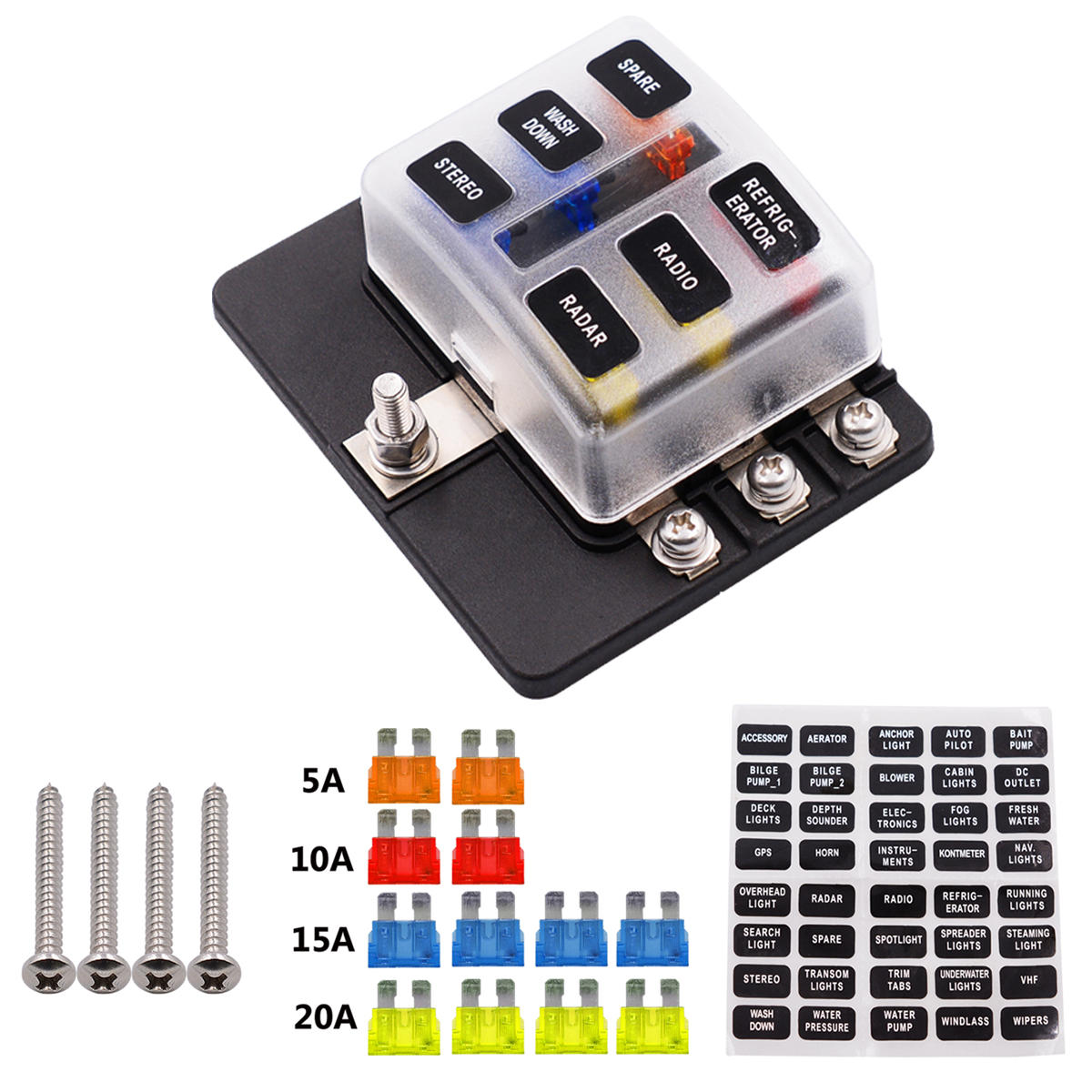

Packing Included :

1 X Sticker?

4 X Self-tapping Screws?

4 X 20A Fuses?

4 X 15A Fuses?

2 X 10A Fuses?

2 X 5A Fuses
