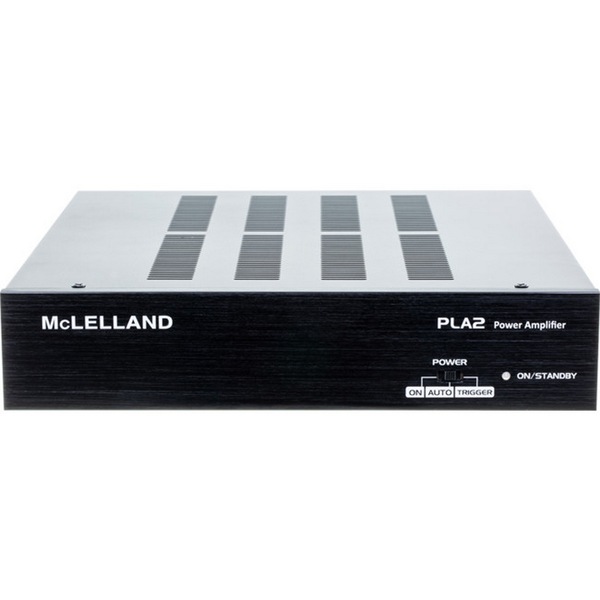

120W Power Amplifier Compact 100V Or 8Ohm Spk

120W Power Amplifier Compact 100V Or 8Ohm Spk

Be the first to review this product 00
SOLD OUT

Features
  • It used 9.5 inches special tiny design.
  • Two Channels Model – 120W RMS/Per channel.
  • Stereo into 4-8 Ohm loads.
  • Bridged mode 240W output for 70V or 100V (Direct Drive)
  • Power down after ~15 minutes of no signal and comply with Energy Star Power consumption limits of < 0.5W in standby.
  • Red LED ( Front Panel) to indicated Standby mode is active.

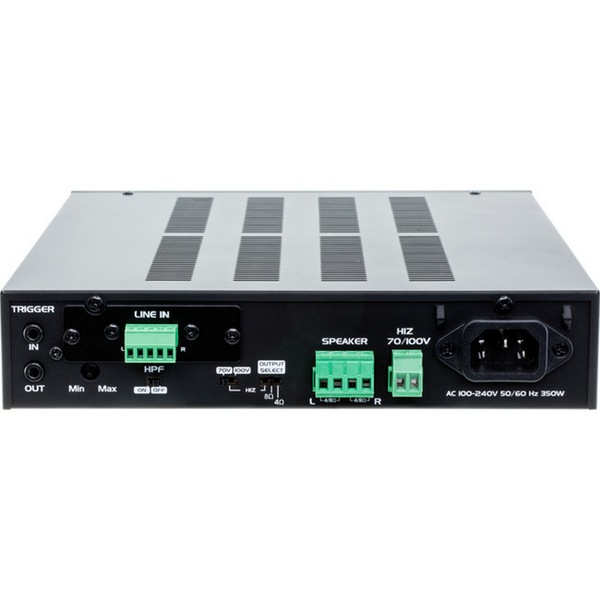

  • Terminal Block analog audio inputs.
  • Selection for Power-Up mode.
  • Switch for High Pass Filter.
  • Natural cooling without Fan.
  • TRIGGER could be external remoting ON/OFF.
  • Short circuit protection.
  • Overheating protection.
Specifications
  • Stereo Mode (all channels driven)
  • 120W x 2, 8O (31 V) RMS output (steady state), per channel @ < 1 % THD+N
  • 120W x 2, 4O (22 V) RMS output (steady state), per channel @ < 1 % THD+N
  • Bridged Outputs For 70V/100V (Switch at “HIZ” position)
  • 240W, 70V @ < 1 % THD+N
  • 240W, 100V @ < 1 % THD+N
  • Frequency Response   20 Hz - 20 kHz, +/- 2 dB @ 4O Load
  • Signal to Noise           >90dB  @ 1W(20 Hz - 20 kHz)
  • Input Sensitivity         1.0V (+0dBu) @  Max Output 4O
  • Gain Value ?            25 dB @ 4O
  • Input Impedance       >10k, Balanced.
  • Maximum Input Level  12.3 V (+24 dBu)
  • Trigger In/Out           DC 12V
  • High Pass Filter          80 Hz(±2dB)
  • Input Connector         5 pin Euro terminal
  • Trigger Connectors     3.5 mm Jacks
  • Output Connectors     4 pin Euro terminal (4O/8O)
  • Dimensions               214mm(W) x 249.8mm(D) x 44mm(H)
  • Net Weight               1.94 Kg
  • Power Requirements   100 - 240 VAC, 50 - 60 Hz, 350W

Specifications:

12 Months
MPN: PLA2
