VoltX 12V 30A DC to DC MPPT LiFePO4 Battery Charger RV Camping Power

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
Limited Stock
$339.99

Collect 339 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping

Dispatch in 2 business days

Sold & shipped by Ozzie Energy
Secure ways to pay at checkout
Pay in 4 interest-free payments of $85.00 with Learn More

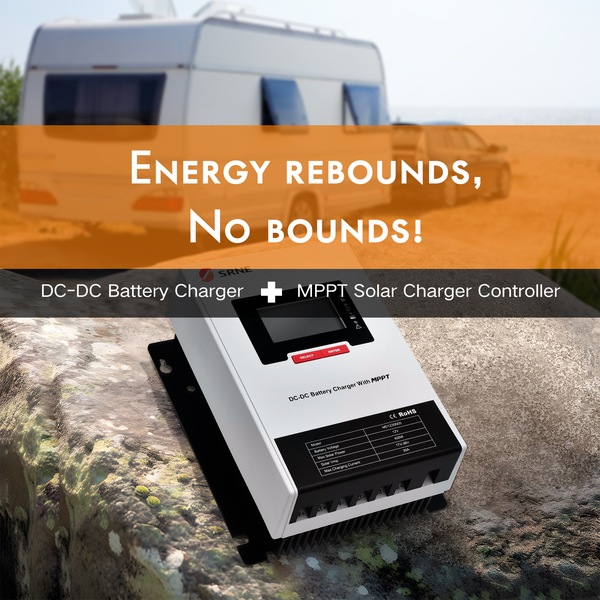

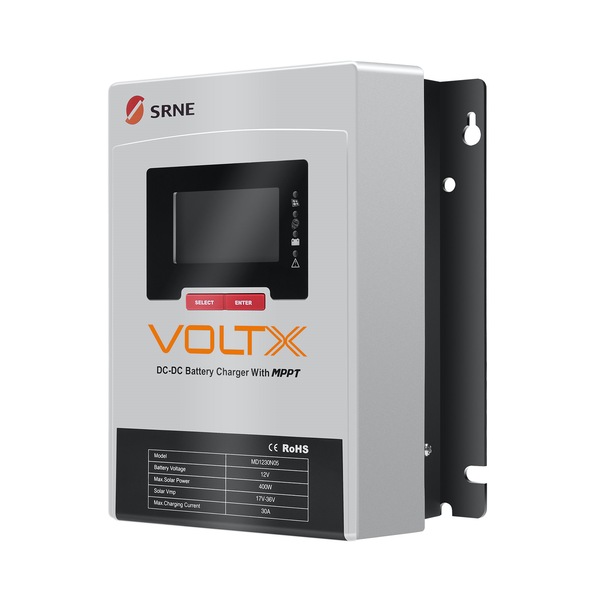

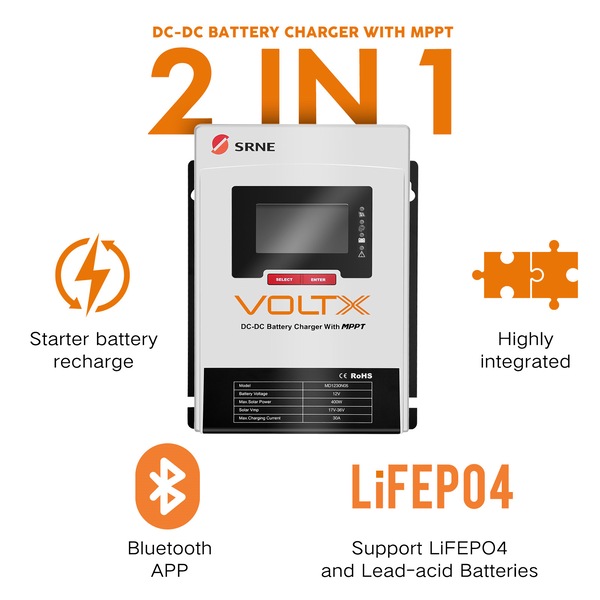

VoltX 30A DC/DC&MPPT Solar Charging Controller
Every reliable photovoltaic system needs a perfect controller. Here is a DC/DC intelligent charger for vehicle or ship system.

Features:
  • DC/DC&MPPT solar charging controller is based on multi-phase synchronous rectifier technology and advanced MPPT control algorithm, adopting all-digital intelligent design, which has fast response speed, high reliability and high industrialized standard.
  • Polyphase synchronous rectifier technology can ensure high conversion efficiency under any charging power, and greatly improve the energy utilization of the system;
  • The industry-leading PowerCatcher MPPT technology realizes the maximum energy tracking of solar panels, so that it can quickly and accurately track the maximum power point of solar panels in any environment and obtain the maximum energy of solar panels in real time.
  • Back up battery charging voltage line loss compensation function makes the battery charging voltage control more accurate.
  • High quality aluminum radiator and high temperature derating process ensure reliable and efficient operation under various working conditions.
  • Our controller can be used in photovoltaic systems to replace traditional solar controllers to improve charging efficiency and light energy utilization, and can also be used in DC-DC boost control circuits to achieve a better constant voltage and constant current output function.
  • 100% brand new and high-quality, and have the advantage of low price at the same time.

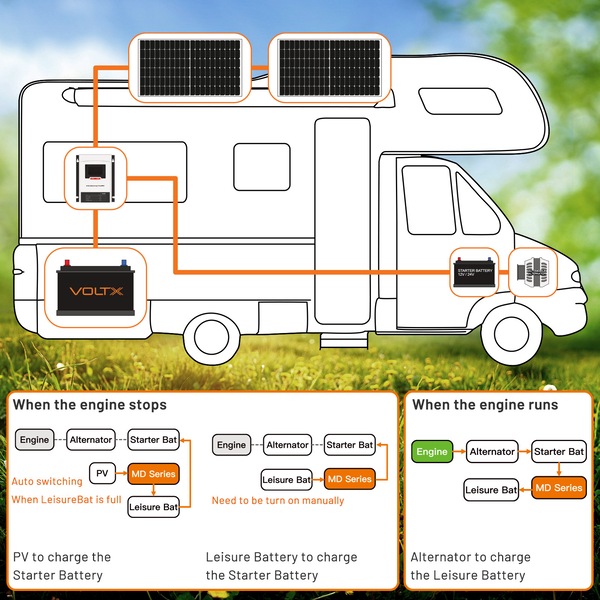

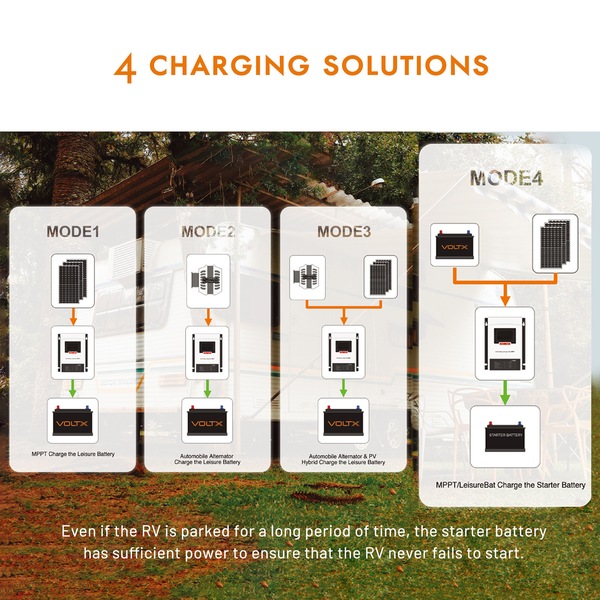

  • It also has 4 different charging phase( bulk charge, equalization charge, boost charge and floating charge) for charging your lead-acid battery and 3generator charging mode(buck, boost, buck-boost), preferentially using the vehicle generator for charging while the vehicle is starting.
  • What's more, parameters can be monitored and set by mobile phone APP and PC monitoring setting software.
  • Built-in overheating, over-current, short circuit, open circuit protection and fault elimination and supporting external remote switch control charging, prepare a controller for your trip now!


  • Specifications:
  • 30A DC/DC&MPPT Controller:
  • Model: MD1230N05
  • Backup Battery System Voltage: 12V
  • Backup Battery Voltage Range: 9~16V DC
  • Backup Battery Type: Sealed Battery, Gel Battery, Vented Battery, Lithium Iron Phosphate Battery, User-defined Battery
  • Rated Charging Current: 30A
  • Maximum PV Input Voltage: 55V DC
  • Max. power point voltage range: 17~36V
  • Maximum PV Input Current: 27A
  • Solar Panel Charging Mode: Buck MPPT
  • MPPT Efficiency:>99%
  • PV input power is recommended: 400W
  • Generator (Starter Battery) System Voltage:12/24V
  • Starter Battery Type: Lead-acid Battery
  • Maximum Generator Input Voltage: 32V DC
  • Maximum Generator Input Current:35A
  • Conventional Generator: 13.2~16V/26.4~32V DC
  • Intelligent (Euro 6 Standard) Generator: 12~16V/24~32V DC
  • Generator charging mode: Buck , Boost , Buck-Boost
  • 12V Backup Battery:400W
  • Charging Voltage: 13.8V
  • Charging Current: ≤15A
  • No-load loss: <0.6W
  • Maximum Charging Conversion Efficiency: 98%
  • Communication method: TTL
  • Operating temperature: -35°C~65°C
  • Altitude: ≤3000m
  • Waterproof level: IP32


  • Dimension & Weight:
  • Product dimensions: 221x175.8x82.4mm
  • Net Weight: 2.08kg


  • Package:
  • 1x 30A DC/DC&MPPT Solar Charging Controller


  • GTIN: 9355348040500
