Features

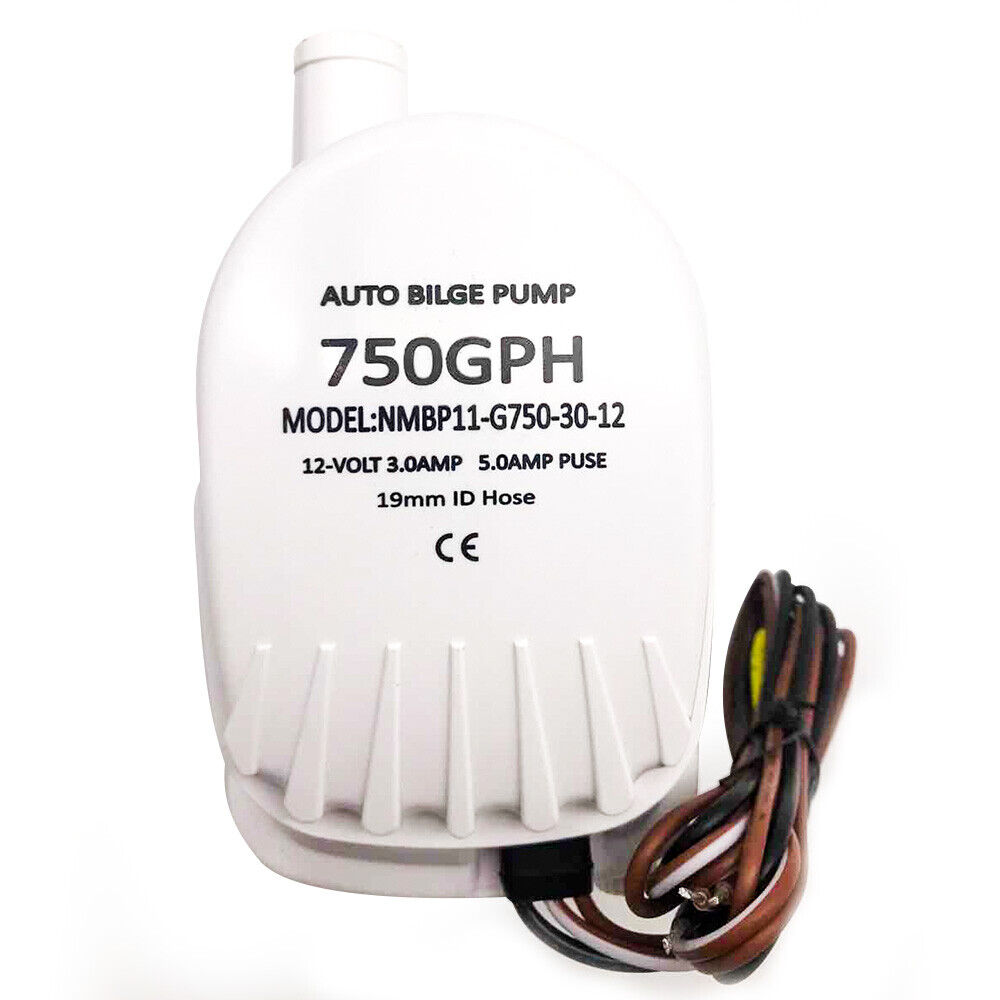

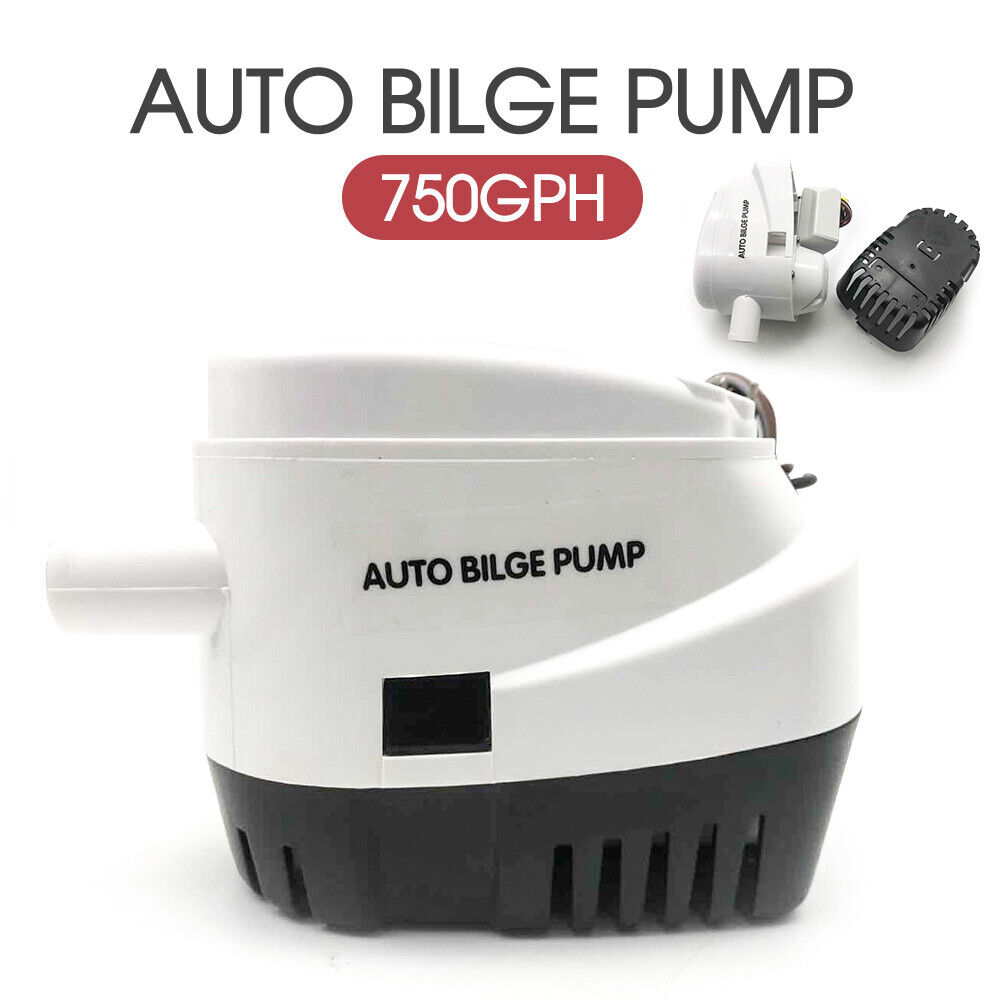

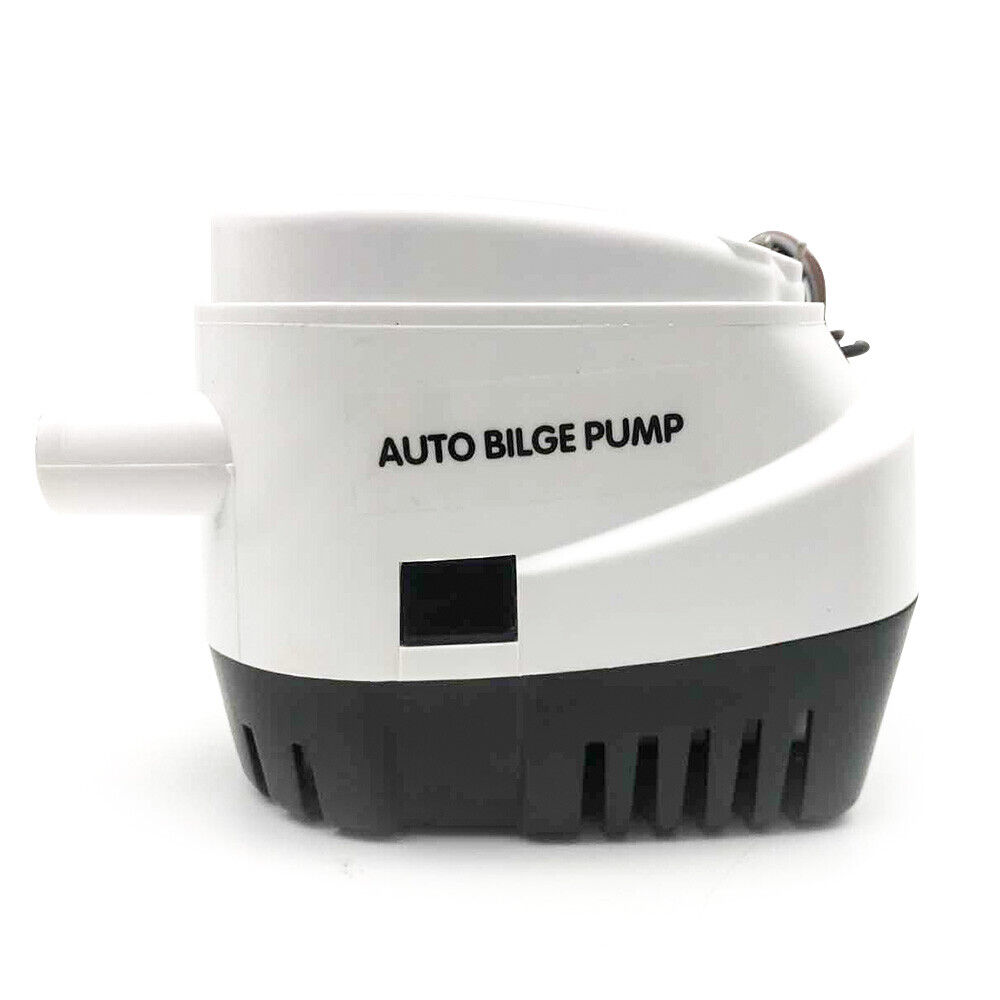

Compact, automatic, fully submersible electric pump

Built-in float switch! (No separate float switch is needed)

Equipped with built-in an electronic controlled reed sensor system for easy fully automatic operation

No power use until the pump is activated by internal float switch (when the water level rises)

Compact, efficient, long-life motor

Rustproof and corrosion resistant

Stainless steel shaft

High-impact durable plastic housing

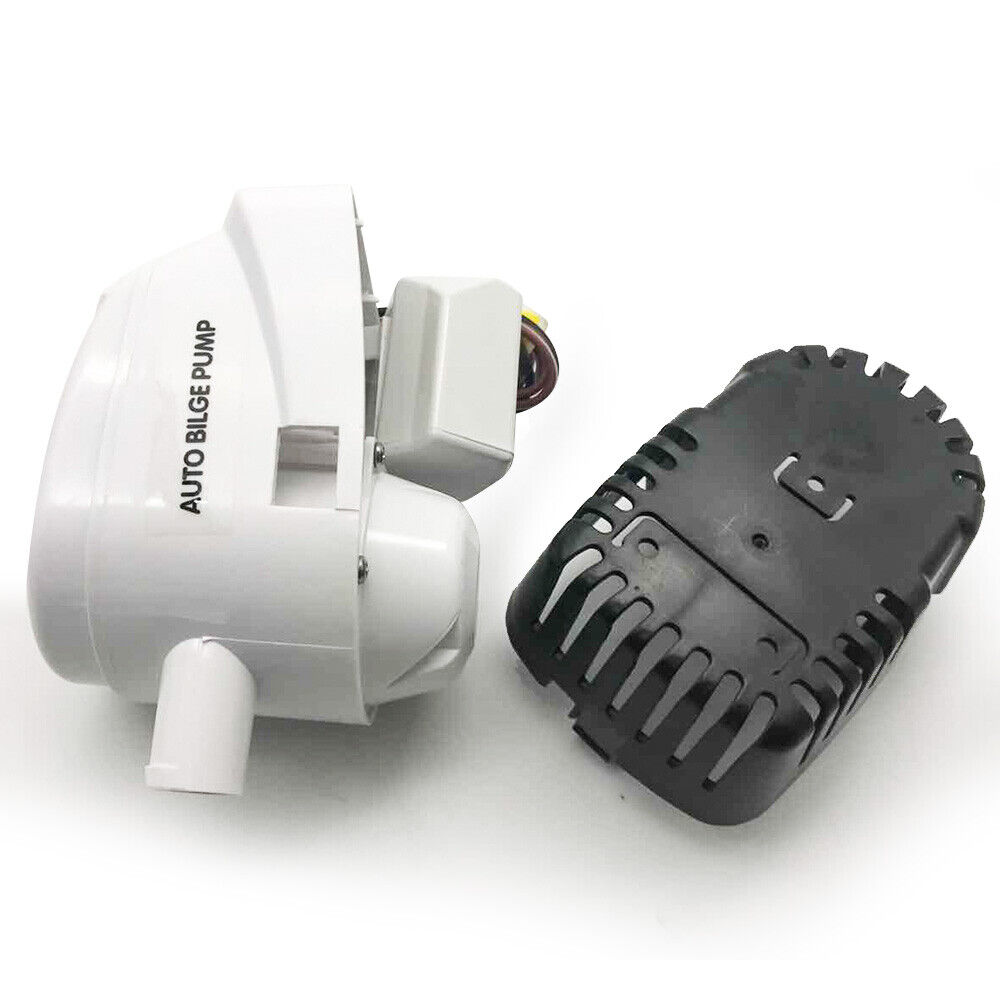

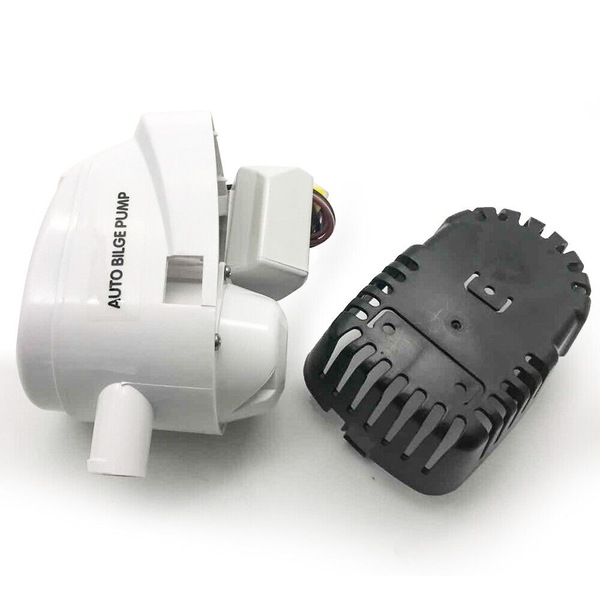

Quick-release strainer for easy maintenance

Extremely efficient, very low current draw and offer high capacity output

Water-cooled long-life motors

Ignition protection to protect the pump against high current

Water/moisture tight seals

Silent and vibrationless operation

Anti-air lock protection

Will not burn out when running dry

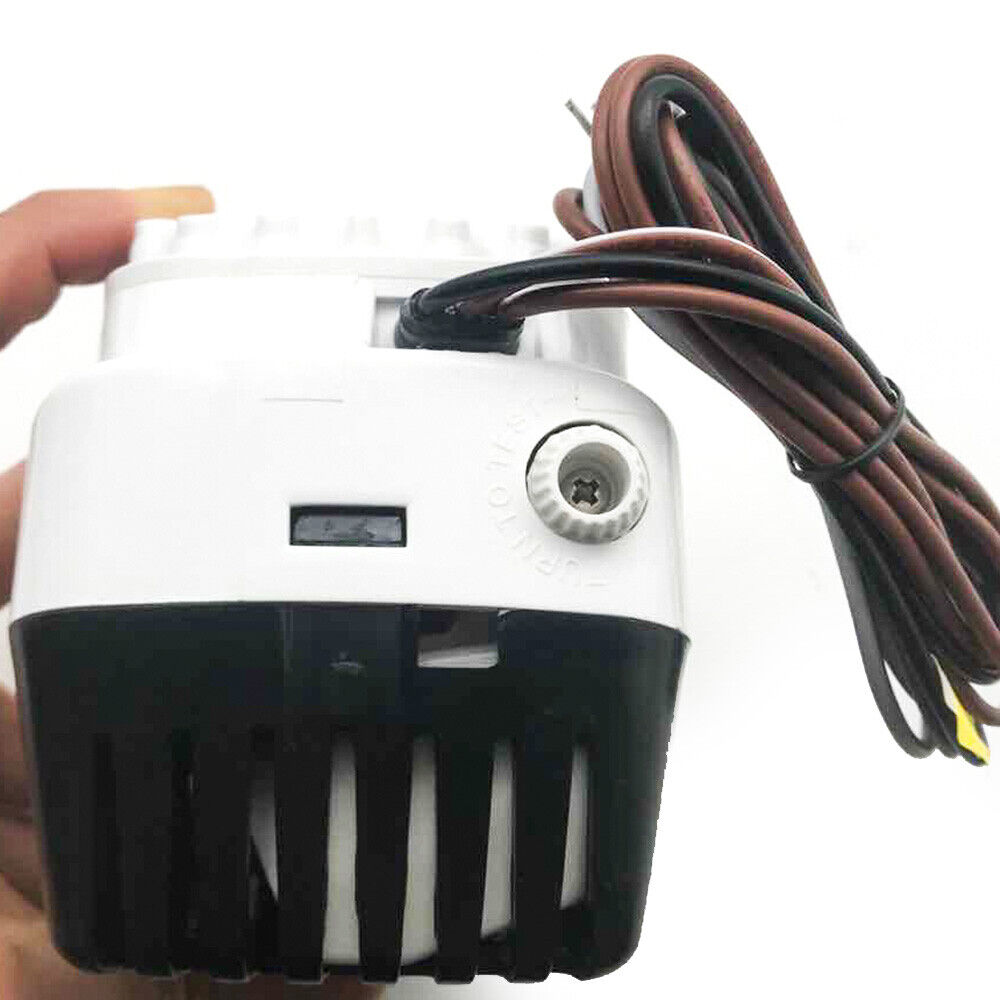

Integrated float switch TEST button at the rear of the unit

Can be used with a switch panel for manual override

Includes comprehensive user manual with installation instructions and wiring diagram

Specifications

Material: ABS

Voltage: 12V DC

Flow capacity: 750 Gallons per hour (2850 Litres per hour) - 47.5 Litres per minute

Max. delivery head: 3.8 meters (height of vertical water flow up pipe)

Current draw: 3 Amp

Hose Outlet: 19mm (3/4")

Dimensions: Length 145mm (5.71") x Width 83mm (3.27") x 103mm (4.05")

3-wire lead, approx. 1m long

Approvals: CE

Color: White+blue

Applications

Typically used in boat hulls/bilges

Bait tanks

Ponds, pools, spas

Other applications where you have to remove water from

Note: These pumps are designed for intermittent use only, NOT designed for continuous use

Package

1 x 750GPH Auto Bilge Pump

1 x User Manual
