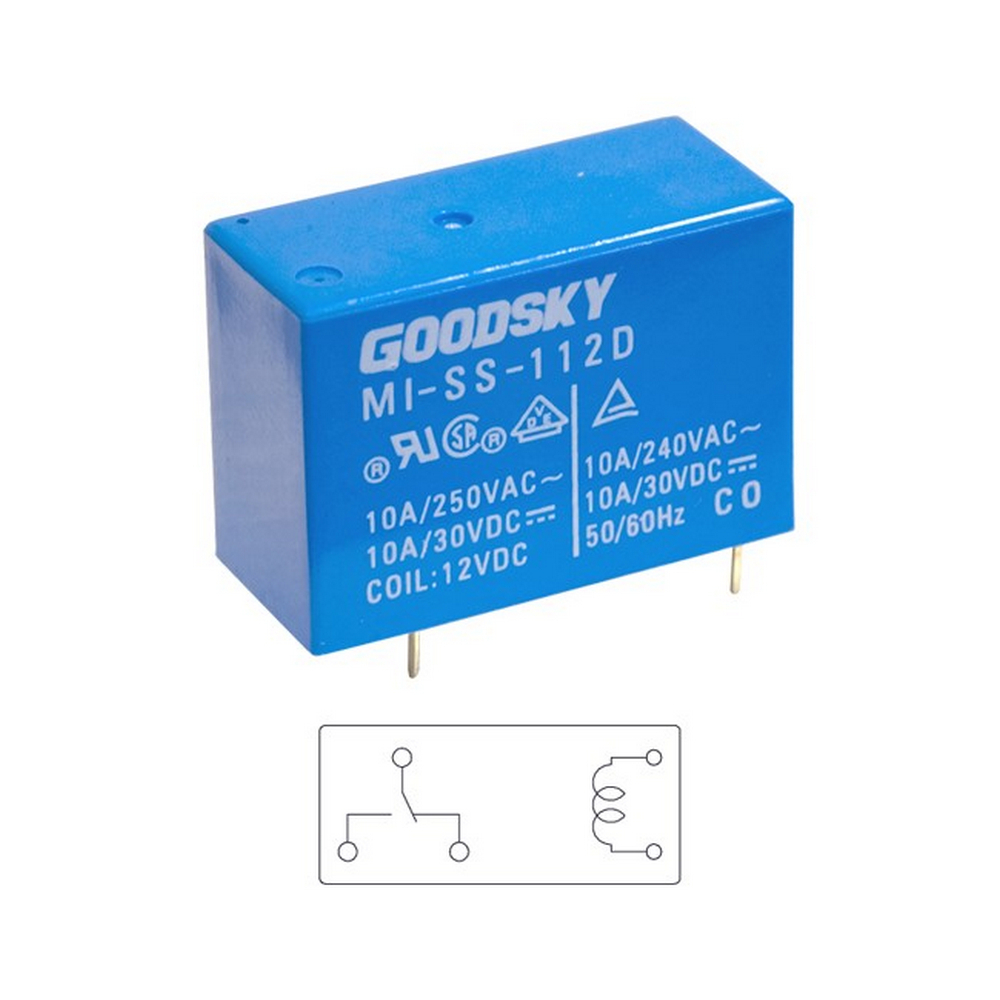

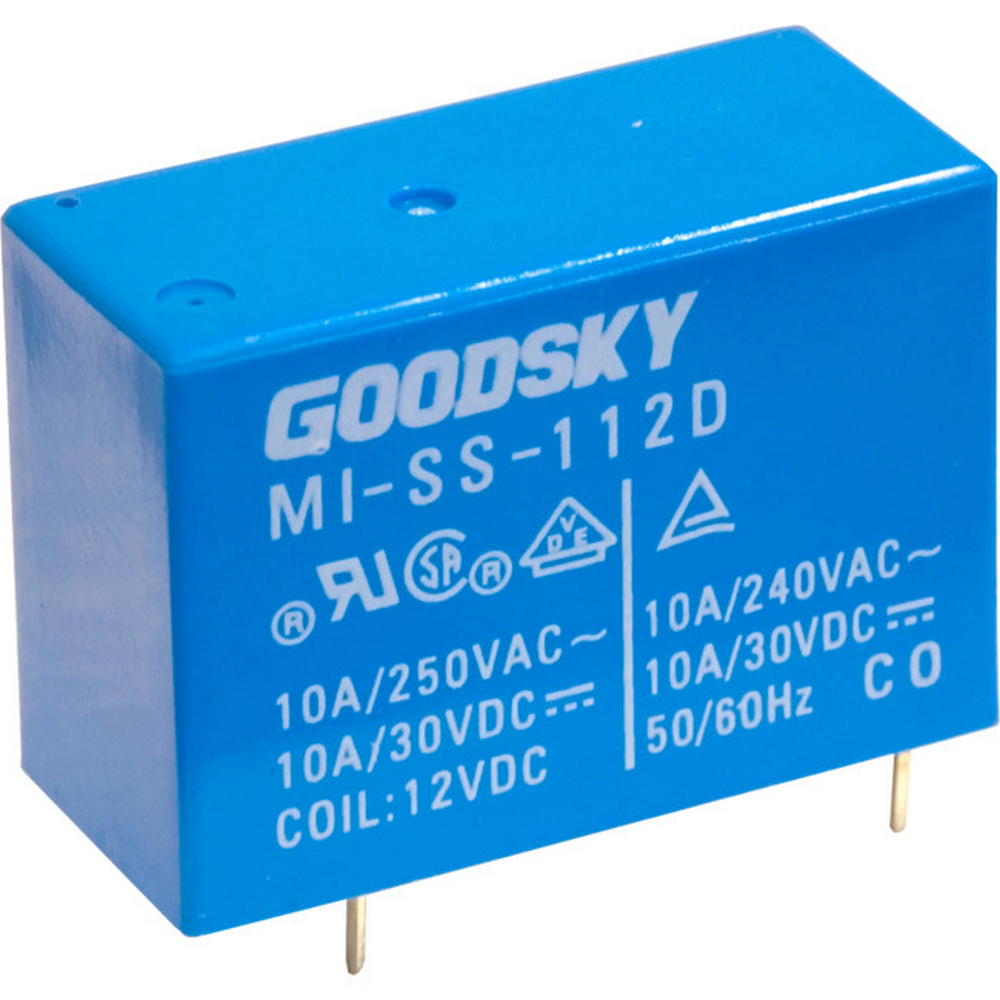

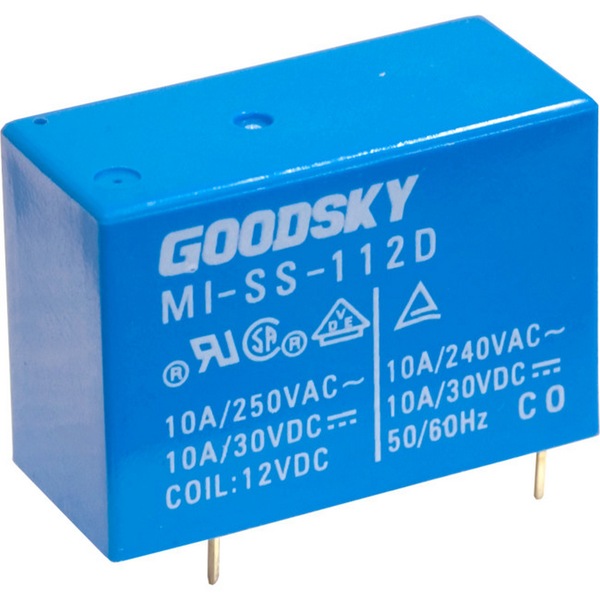

GOODSKY MI-SS-112D 12V DC 10A Single Pole Relay

Image 1
Image 2
$21

Collect 21 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping
Sold & shipped by Bourne Superstore
Secure ways to pay at checkout
12VDC 10A SINGLE POLE RELAY

Application : Cooking Appliances, Air Conditioner, Audio Equipment, Domestic Appliances, Controlling Equivalent, etc.

FEATURES:
  • Designed with an insulation distance of 8mm Mininimum. The employment of insulation material is meeting to JIS insulation class E. Thus a Dielectric Strength of 5,000V Min. and Surge Strength of 10,000V Min. can be reached.
  • The employment of suitable plastic materials is applied under high temperature condition and various chemical solutions.
  • Complete protective construction is designed to protect the relay from dust and soldering flux. The plastic sealed type is available for washing procedure.
SPECIFICATIONS:
  • Contact Resistance.............100mΩMax.@1A,6VDC
  • Operate Time.......................15 mSec. Max. (D Type) 20mSec. Max. (L Type)
  • Release Time......................8 mSec. Max.
  • Dielectric Strength:
    • Between Coil & Contact......5,000VAC at 50/60Hz for one minute.
    • Between Contacts...............1,000VAC at 50/60 Hz for one minute.
  • Surge Strength....................10,000V (between Coil & Contact 1.2x50μSec.)
  • Insulation Resistance..........100 MegaΩ Min. at 500VDC.
  • Max. On/Off Switching:
    • Electrical..............................6 Cycles per Minute.
    • Mechanical..........................300 Cycles per Minute.
  • Temperature Range.............-30 - 55°C
  • Humidity Range...................45- 85% RH.
  • Coil Temperature Rise.........45°C Max. (D Type) 35°C Max. (L Type)
  • Vibration :
    • Endurance............................10 to55 Hz dual amplitude width 1.5mm.
    • Error Operation....................10 to 55 Hz dual amplitude width 1.5mm.
  • Shock :
    • Endurance ..........................1,000 m/S2.
    • Error Operation....................100 m/S2.
  • Life Expectancy :
    • Mechanical .........................100,000,000 Operations at No Load condition.
    • Electrical..............................1,000,000Operations at Rated Resistive Load.
  • Weight..................................About 12.2 g.
  • Safety Standard & Its File Number
    • UL .......................................E141060
    • CSA ....................................LR76598-6
    • TÜV ....................................R9854160
    • FIMKO (MI-L/LM Type).......FI 11385
    • SEMKO (MI-L/LM Type).......9834069/01
    • VDE (MI-L/LM/D/DM Type)..6486ÜG

Specifications:

12 Months

MPN: MISS112D
