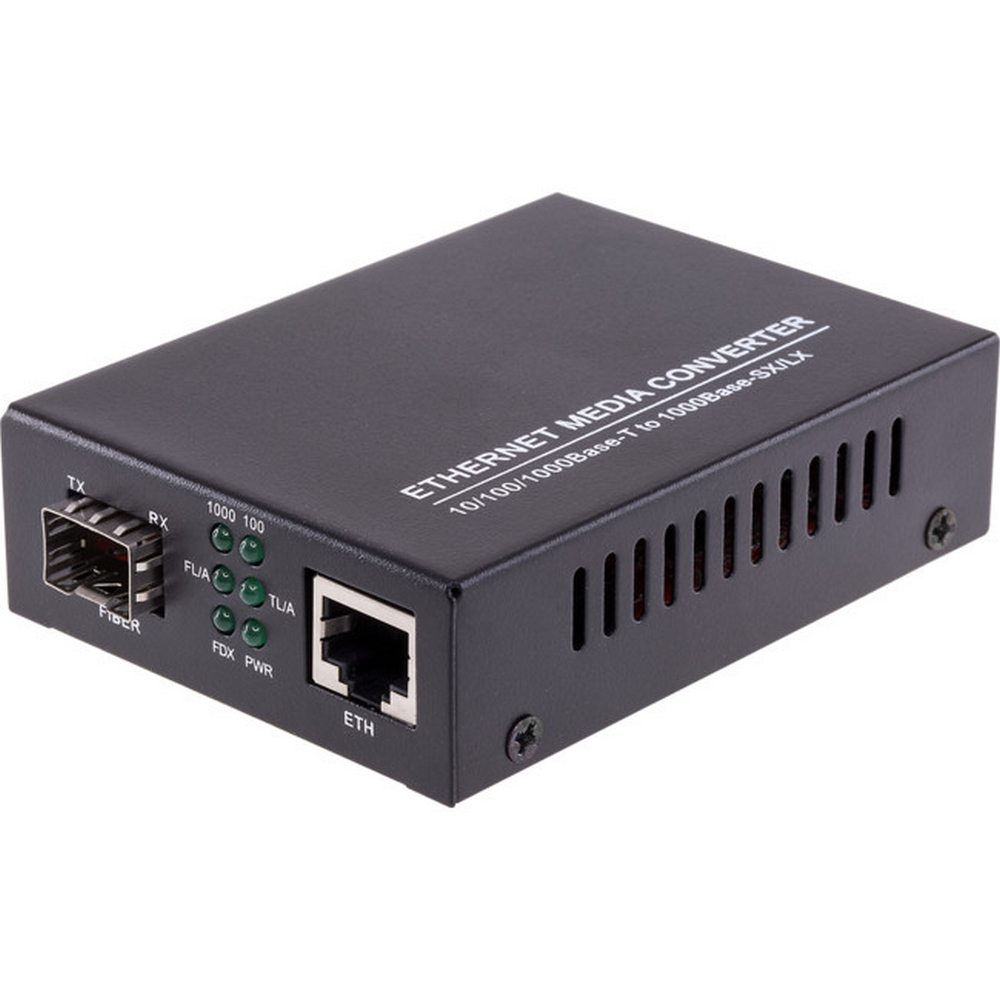

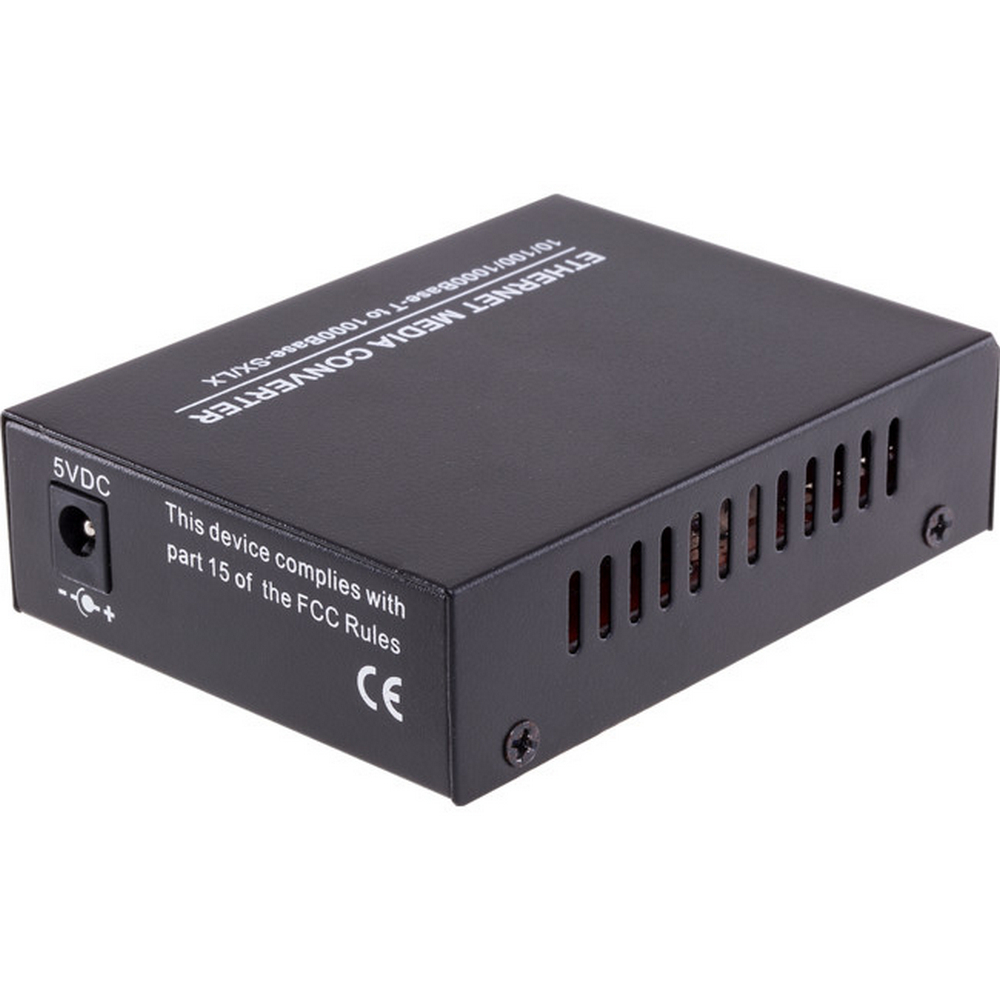

Gigabit 1G SFP Slot Module Ethernet Media Converter

Image 1
Image 2
$49.95

Collect 49 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping
Sold & shipped by Bourne Superstore
Secure ways to pay at checkout
Overview


FMC1GBSFP series 10/1001000M SFP slot media converter are effective solution, while uplink interface upgrade or network re-design. It can implement date transmission between twisted pair electrical signals and optical signals (SFP module).

Features
  • Compliant with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-TX, IEEE 802.3z 1000Base-FX Standards.
  • Provide one 10/100/1000Base-T port with RJ-45 connector, one SFP Slot socket.
  • Full-duplex and half-duplex auto-sensed
  • Supports Auto MDI / MDI-X function
  • Supporting the transmission of extra-long VLAN packets
  • Supporting Quality of Service (QoS) and ensuring the transmission of VoIP packets
  • Supporting STP to form a redundant network
  • Front panel Diagnostic LED Indications



Technical Indexes

Parameter

Specifications

Access mode

10/100/1000Mbps Gigabit Ethernet

Standard

IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-TX, IEEE 802.3z 1000Base-FX, IEEE802.3x Flow control

Wavelength

850nm/1310nm/1550nm

Transmission distance

Up to SFPmodule

Port

One RJ45 connector, connected
One SFP Socket

Conversion means

Media conversion

Delay

<10us

BER

<10-9

MTBF

100,000 hours

LED

PWR (power supply); FX LINK/ACT (optical link/action)
FDX (FX full duplex); TP LINK/ACT (twisted pairs link/action)
TP 1000 (1000M transmission rate of twisted pairs),
TP 100 (100M transmission rate of twisted pairs)

Power

AC220 0.5A/DC-48 (built-in)

Power consumption

5W

Operating temperature

-10~55ºC

Operating humidity

5%~90%

Maintaining temperature

-40~70ºC

Maintaining humidity

5% ~ 90% non-condensing

Dimensions

94mm *71mm * 26 mm (external power supply)





Specifications:

12 Months

GTIN: 9328202025081

Estimated Delivery Time Frame:5-7 business days
