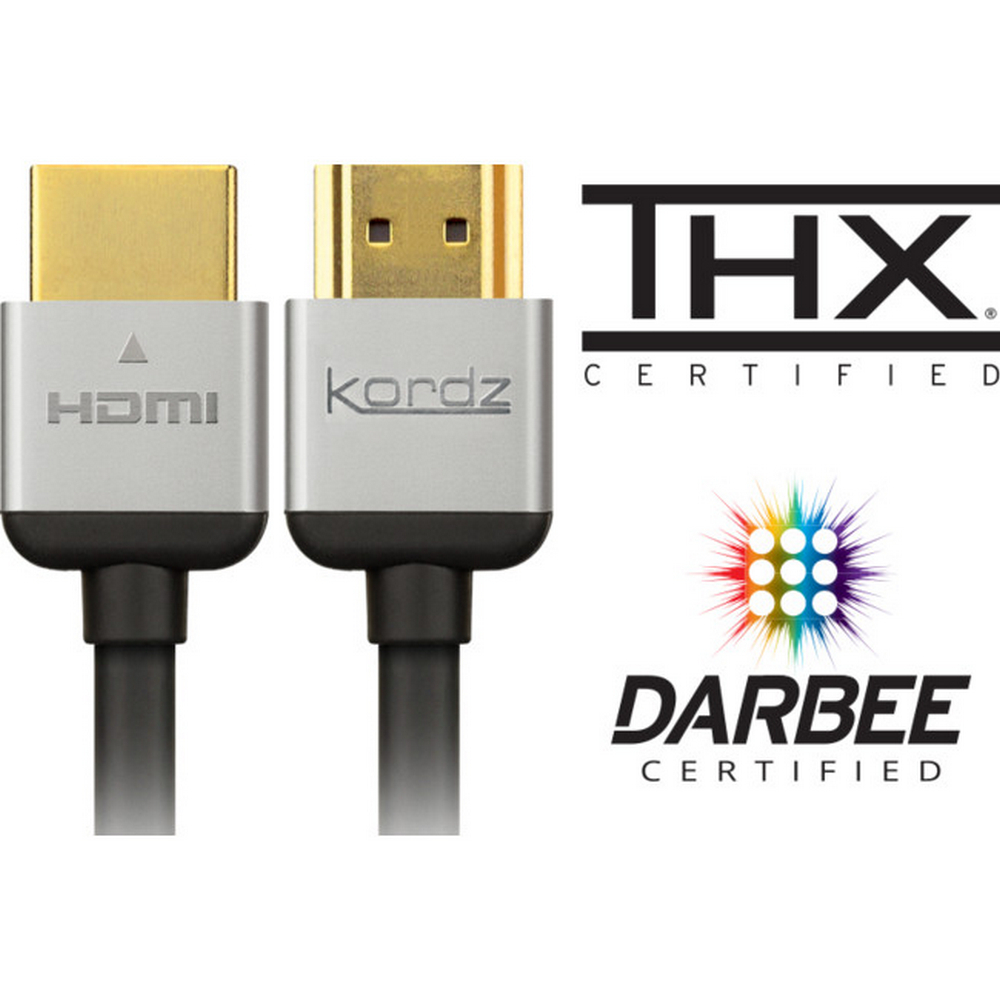

2.4M THX Certified HDMI Lead Rack Install Kordz

2.4M THX Certified HDMI Lead Rack Install Kordz

$94.90

Collect 94 Everyday Rewards points

Log in to MyDeal to link your card

Free Shipping

Sold & shipped by Bourne Superstore

Secure ways to pay at checkout

R.3 Rack Install HDMI® Cable Series

Kordz R.3 is engineered for bespoke commercial AV rack installations.

The unique combination of the die-cast HDMI connector, flexible 32AWG halogen free cable and small profile lightweight design results in unrivalled installation flexibility and robustness.

Engineered and built to deliver maximum commercial up-time,
1-10ft lengths in 1ft (0.3m) increments for precision rack fitoffs,
Solid 32AWG OFC conductors,
Induction soldered pin transitions for benchmark inter-terminal uniformity,
Anti-fatigue Die-cast Zn alloy connectors tested to >l1,000 cycles & 2kg retention force,
100% of units tested on the production line for NIL Bit Error Rate (BER) @ 340Mcsc, <0.05% in-field failure rate,
Halogen free construction,
Limited lifetime warranty,
Licensed HDMI 2.0 Adopter company.

Certifications

THX® Certification involves a rigorous suite of some 75 tests over and above the HDMI® Compliance Test Specification (CTS), including tests for high bandwidth stability to 18Gbps (aggregate data rate), dependable interoperability, benchmark connector fit and overall premium build quality.

It's the most comprehensive cable test regime onthe planet, certifying cables as the best available. Read more about the THX Interconnect Certification program

DarbeeVision Inc. is the creator of Darbee Visual Presence™ (DVP), the visual perception processing methodology as featured in their DVP-5000 Darblet and DVP-5100CIE (Custom Installer Edition) stand-alone devices, and is also integrated into the premium 'D' series Oppo Blu-ray players for the best possible picture quality.

Darbee have uniquely certified the Kordz R.3 HDMI cablefor its robust connection, signal transfer accuracy and shielding properties.

This ensures fully tested FCC (Federal Communications Commission) compliance not only at the Darbee HDMI port, but at the far end of the interconnect for high integrity delivery of the processed signal to the display.

Technical Specifications

HDMI Compliance

HDMI CTS Certification High Speed with Ethernet (Category 2)
Certified Data Rate 3.4Gbpsc, 10.2Gbps aggregate
Supported HDMI Clock 27-340MHz

Construction

Primary Conductors Solid 32AWG OFC
Insulation on TMDS Skinned foam PE ≤1.45 relative permittivity
Insulation on 4C + HEAC Pairs Solid polyolefin ≤ 2.0 relative permittivity
Shielding on TMDS Pairs Al/Mylar, 25% overlap
Shielding Overall Al/Mylar + Cu 90% coverage braid
Cable Jacket Halogen-free TPE, black 4.8mm
HDMI Connector Shell Anti-fatigue die cast Zn alloy, 1µ" 24K Gold plated
HDMI Connector Pins Solid OFC, 15µ" 24K Gold plated
Termination Contactless IR induction soldering
HDMI Backshell Al anodised front with Halogen-free TPEstrain relief

Mechanical

Mounting Length 47.0mm / 1.85"
Cable Bend Radius 20.0mm / 0.79"
Retention Force (nominal) 20N (approx. 2kg / 4.4lbs) +10/-5%

Electrical

DUT 2.5m length, according to HDMI CTS standards (sample size:12)

TMDS Pair impedance 101.91 Ω +/- 1.57% test Mean
TMDS Resistance 1.332 Ω @ 20°C
Attenuation (mean)
300KHz -0.034dB
825MHz -3.688dB
2.475GHz -7.217dB
4.125GHz -10.563dB
5.1GHz -11.908dB
Far-end Skew -20dB (Max)
Skew
Intrapair 29.11ps (min 13.67 / max 54.69, as tested)
Interpair <1.78ns
HEAC
Impedance 100 Ω +/- 10%
Common mode 24-36 Ω
Intra-pair skew 46.875ps mean
Voltage +30V rated (+5.2V CTS limit)
Temperature Rating +75°C

Applications

Mission critical rack installations to mitigate risk typically associated with HDMI connectivity;
- high shielding permits cable bundling with immunity from interference & alien crosstalk,
- benchmark low failure rate and robust constructionfor maximum commercial reliability,
0.3m length increments enables optimised routing without surplus cable,
UHD video and professsional graphics,
Marine,
Hotels and bars,
Board room and training centres, suitable for repetitive plug/unplug events,
Short range digital signage & video wall connectivity,
HDMI 2.0 scaleable.

Application Specifications

Video Format Support Data rate per channel / Aggregate, TMDS Bandwidth
480i/p, 576i/p = 540Mbpsc/1.62Gbps, 270MHz
720p/60, 1080i/60 742.5Mbpsc/2.22Gbps, 371.25MHz
1080p
8-bit RGB/YCbCr 4:4:4, 10/12-bit 4:2:2 or 4:2:0
23.98/24/29.97/30 742.5Mbpsc/2.22Gbps, 371.25MHz
50/59.94/60 1.485Gbpsc/4.455Gbps, 742.5MHz
3D-24/30 1.485Gbpsc/4.455Gbps, 742.5MHz
3D-50/60 2.97Gbpsc/8.91Gbps, 1.485GHz
10/12/16-bit RGB/YCbCr 4:4:4
50/59.94/60fps 1.86-2.97Gbpsc/5.57-8.91Gbps, = 1.485GHz
2160p (UHD/4K)
HDMI 1.4b, 8-bit RGB/YCbCr 4:4:4, 10/12-bit 4:2:2 or 4:2:0
4096x2160p/24 (SMPTE) 2.97Gbpsc/8.91Gbps, 1.485GHz
3840x2160p/23.98/24/29.97/30 2.97Gbpsc/8.91Gbps, 1.485GHz
HDMI 2.0, 8-bit YCbCr 4:2:0
2160p*/50/59.94/60 2.97Gbpsc/8.91Gbps, 1.485GHz
HDMI 2.0 mode, 8-bit 4:4:4, 10/12-bit 4:2:2 or 16-bit 4:2:0
2160p*/50/59.94/60-2D (CEA-861-F) 5.94Gbpsc/17.82Gbps,2.97GHz
2160p*30-3D 5.94Gbpsc/17.82Gbps, 2.97GHz
VESA graphics Supports all as defined by HDMI specification
3D Video Supports all as supported and/or mandated by HDMI specification
Color Spaces RGB, YCbCr, xvYCC, Adobe sRGB, sYCC601, ITU-BT.2020
Audio Formats Support PCM 2.0-7.1, DD/DTS HD 7.1, 3D Audio
3D Audio (10.2 / 22.2 / 30.2ch Supported, device &video format dependent
HDMI Ethernet Channel Supported, system dependent
HDMI Audio Return Channel Supported, Single Mode &Common Mode

* HDMI 2.0 2160p modes encapsulate both 4,096 or 3,840 Hres variants & 4:3 anamorphic pixel ratio support
