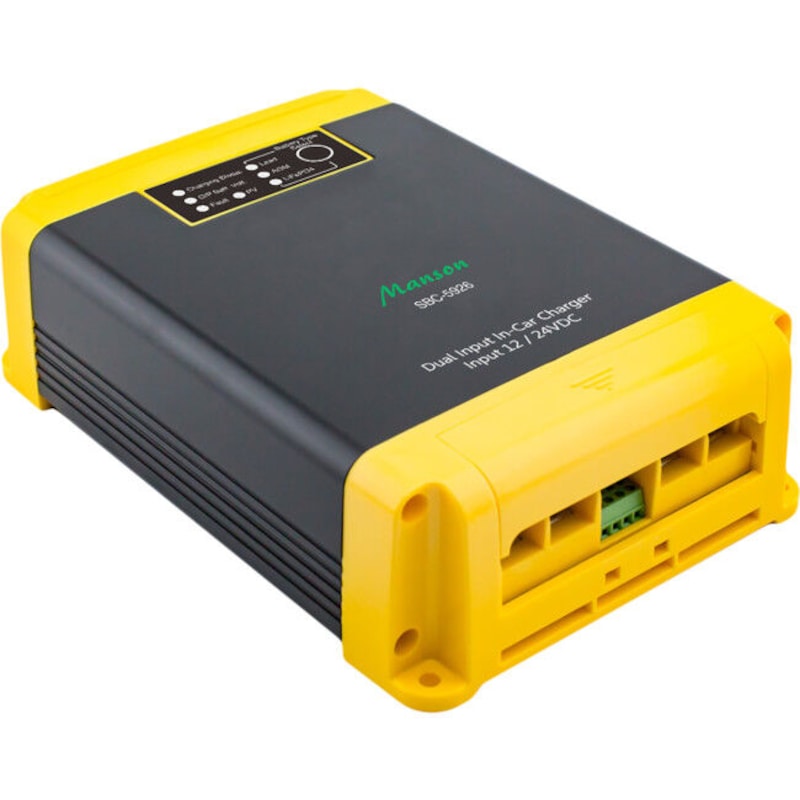

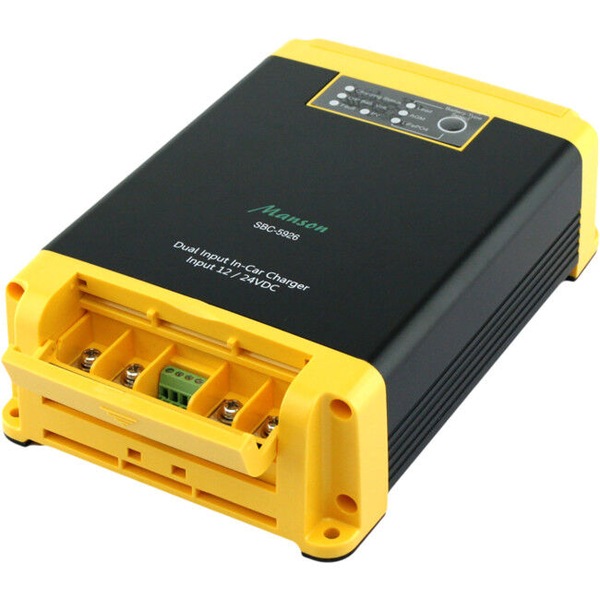

24V 12A DC-DC Battery charger with dual input (SOLAR MPPT & DC) & auto select 12V/24V input
The SBC-5936 is designed to address the issues of the wide swing of output voltages from the smart alternator, start & stop, braking regenerative EURO 5/6 vehicles in fully charging the house battery. It is suitable for use with all old alternator systems and distant house batteries.
There are 3 alternator charging modes available, Factory Preset Mode, Ignition Feed Mode, and Vibration Sensor Mode.
The built-in vibration sensor makes it possible to use the charger by just connecting to the starter battery terminal without touching the car’s electrical/ electronic wiring thus avoiding any possible excuse of revoking the car’s warranty.
The digital control and auto-select design of SBC-5936 make it automatically adapt to a 12V or 24V input alternator/ battery system.
This is an automatic dual-input solar & alternator-battery charger for charging 12V house battery banks of lead acid, AGM type II, and Lithium Fe Po4 batteries.
The built-in Solar charge controller is of Maximum Power Point Tracking (MPPT) technology which maximizes the PV power from your 12V solar panels to your house battery.
In the 12V alternator/ battery system, the house battery is charged by both Solar and alternator/ battery simultaneously to maximize the free solar energy.
**In the 24V alternator/ battery system the house battery is charged by Solar only when the car’s alternator/ battery stops charging operation.
This is a select (battery type) and forget charger designed for fast and accurate recharge of your deep cycle house battery.
The smart multi-stage charging enables the charger to be connected permanently to your battery banks without the worry of overcharging or drying out the electrolyte.
Lead Acid Based Battery
A 3 Stage Bulk, Absorption & Float charging profile with maximum constant charging current at the Bulk Stage a Constant Voltage with decreasing charging at the Absorption Stage, and a reduced voltage Float Charge for maintenance when the battery is full.
LiFePO4 (LFP) Battery
A 2 Stage charging is especially for the LiFePO4 battery and the charging current stops at the end of the Absorption Stage.
Input Voltage
|
9-32VDC
|
PV input
|
Yes (Max OCV 30V)
|
Output Voltage
|
Max 30V
|
Max charging current
|
12A
|
Recommend Max battery size
|
100AH
|
Efficiency
|
89% (Optimal)
|
Support battery types
|
LEAD, AGM, LiFePO4
|
User define battery type
|
Not Apply
|
Power supply mode
|
No
|
Number of output
|
1
|
Number of charging stage
|
3 stage for LEAD and AGM, 2 stage for LiFePO4
|
Equalization
|
No
|
Soft-start
|
Yes
|
standby mode
|
Not Apply
|
Display
|
LED indicators
|
Minimum Battery Voltage
|
10V
|
Protection
|
Input & Output reverse polarity protection, Input Under Voltage protection, Output Over Voltage protection, Over Load, Charger Over Temperature.
|
Cooling Method
|
Thermostatically speed control Fan
|
Remote Battery temp. sensor
|
Bundle
|
Accessories
|
Double side sticker tape, 4 heavy duty electrical eye connectors, One plastic wire guide, Two thin wires for Pin Connections, One spare 8 pin Connection sticker label, Battery Temperature Sensor
|
Operation Temperature
|
-10°C to +50°C (Can give full output at +40°C)
|
Dimensions
|
200x130x55 mm
|
Weight
|
1kg
|
