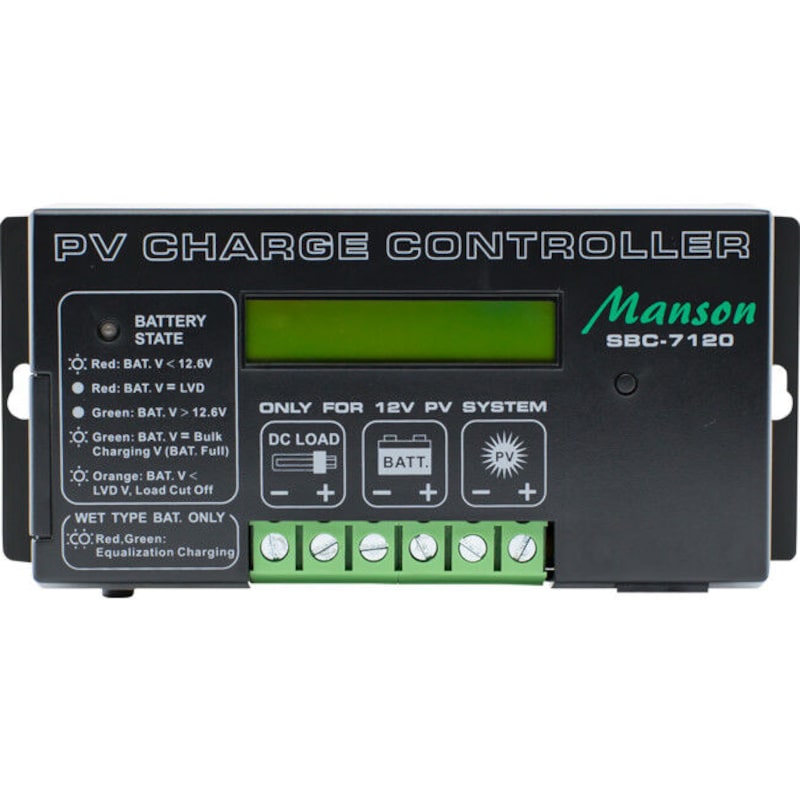

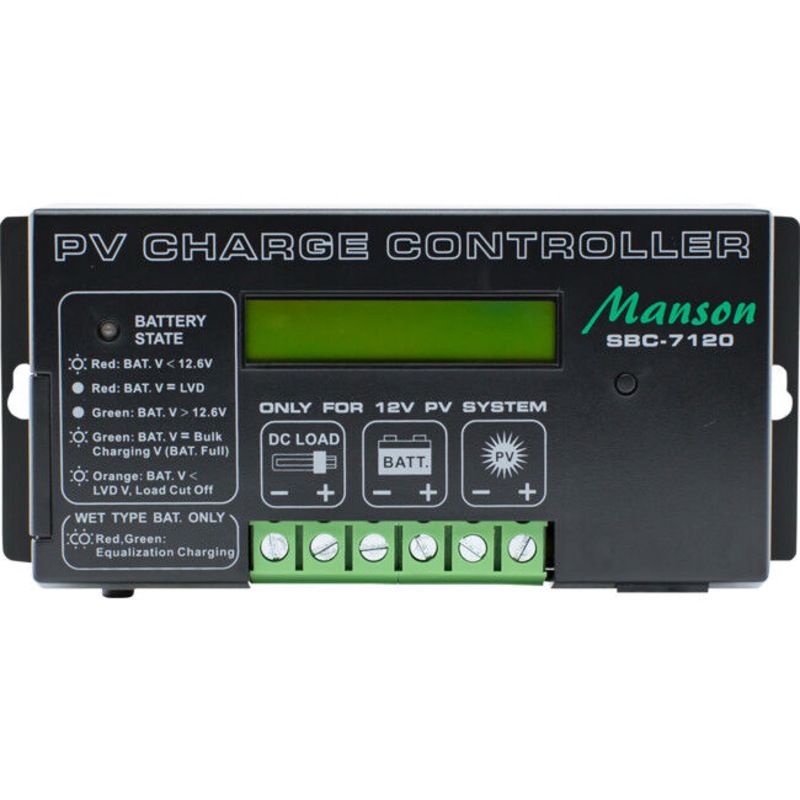

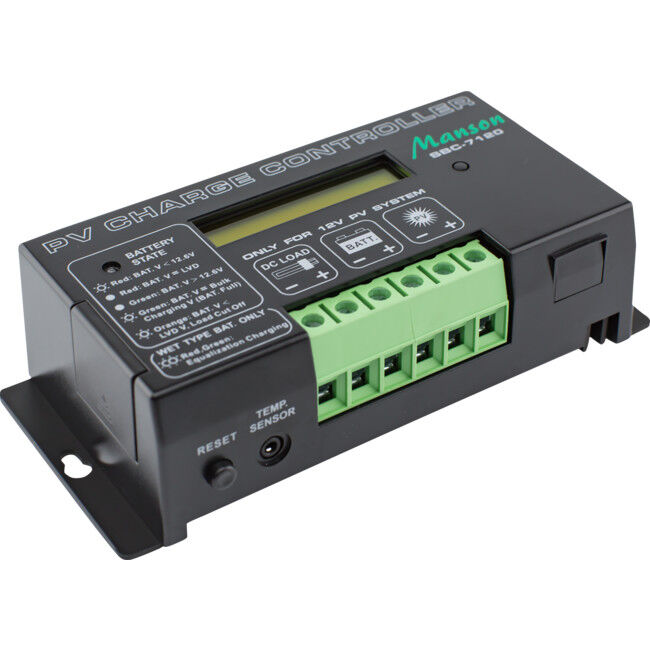

SBC7220 Programmable PWM PV Charge Controller with 10 Night Light Modes
The SBC-7000 Series PV charge controller is designed for use with all types of photovoltaic panels and different types of batteries, such as wet or sealed lead acid, lead calcium, and lead antimony batteries.
The MCU (Microprocessor controller) is programmed with 3 stage charging algorithms and with 0~100% PWM (Pulse Width Modulation) duty cycles to provide the fastest, optimal charging current and voltages from PV panels according to the actual state of charge and type of battery.
The 3 stages (Bulk, Absorption, Float) and *Equalization* charging cycles ensure complete charging cycles and maintenance of lead acid battery automatically.Bulk and Float threshold charge voltage levels are user-adjustable to meet specific battery manufacturers’ recommendations.*Equalization Charging is only for the wet type lead acid Battery, which automatically cycles once a month for 2 hours.Equalization Charging can be de-activated or re-activated manually.
Hence, maximum PV charging efficiency and longer service life span of the battery are ensured.Ampere Hour logging readouts in three sets, today and the last two days are shown on the LCD. This is useful to check the condition of PV data for efficiency and actual capacity of your system.Electronic
Blocking of back current to PV and overcharging battery protection are standard.
Battery Voltage
|
24VDC
|
Maximum PV Panel Open Circuit Voltage
|
52VDC
|
Continuous Load/Charge Current
|
20A
|
Maximum Charger Current
|
25A
|
Maximum Load Current
|
25A
|
Operating Current (no load and no PV)
|
≤15mA
|
Voltage Across Terminal (PV to Battery) | ≤0.8V |
Voltage Across Terminal (Battery to PV) | ≤0.4V |
Fuse | 30A |
Battery Charging Float Voltage Setting | Adjustable from 24.0-33.0V |
Battery Charging Bulk Voltage Setting | Adjustable from 24.0-33.0V |
DC Load Control Mode (for DC load terminal) | |
Low Voltage Disconnect (LVD) | Adjustable from 16.0-32.0V |
Low Voltage Reconnect (LVR) | Adjustable from 16.0-32.0V |
Display
|
LCD + LED
|
Protection
|
Battery Reverse Polarity Protection, Over Charge/ Discharge Protection, Over Temperature Protection
|
LVD
|
Adjustable 18-30VDC
|
LVR
|
Adjustable 20-32VDC
|
Dimensions
|
(WxHxD) 150x85x45 mm 5.9x3.3x1.8 inch
|
Weight
|
470g 16.5 oz
|
Battery Status LED Indication | 5 State LED Indications |
Charging Status LCD Indication | 3 State LCD Indications |
Recommended Wire Size | #10AWG for SBC7220 |
Operating Ambient Temperature | -10ºC to 50ºC |
* All values are based on the Standard ambient Temperature 25°C and Pressure 0.1Mpa. |
