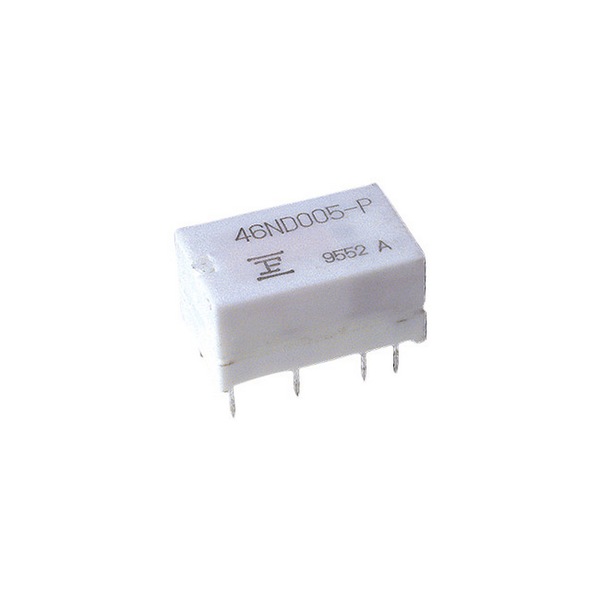

24V DC 1A Micro Mini Relay Double Pole Double Throw

24V DC 1A Micro Mini Relay Double Pole Double Throw

Be the first to review this product 00
SOLD OUT

Microminiature low profilerelays occupy only one-half the volume and three-forths ofthe mounting area of conventional relays.
- Size: 9.9 x 8 x 16mm (WHD).
- Low Power dissipation Built-in highly effective permanent magnet, gives a pickup power dissipation of 85mW. (Rated power dissipation is 150mW).
- High withstand voltage design Dielectric withstand voltage between the coil and the contact >1000V AC, and surge voltage resistance >1500V.
- Formed terminals available for temporary mounting Unique formed terminals allows the relays to be mounted temporarily on the PC board.
- Nominal Coil Voltage: 24V DC
- Coil Resistance (± 10% @ 20°C): 2880 �
- Coil Current (at rated voltage): 6mA
- Rated Power Dissipation: 200mW

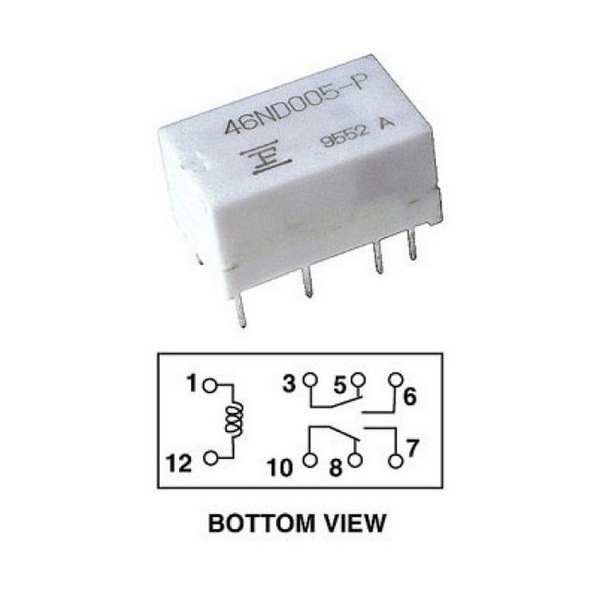

- Contact Arrangement: DPDT (2 Form C)
- Contact Shape: Bifurcated Contact
- Contact Material: Gold-overlay silver
- Contact Rating: 24V DC 1A/120V AC 0.3A
- Maximum Carrying Current: 1A
- Max Switching Voltage/Power: 1

Specifications:

12 Months
MPN: FBR46ND24
