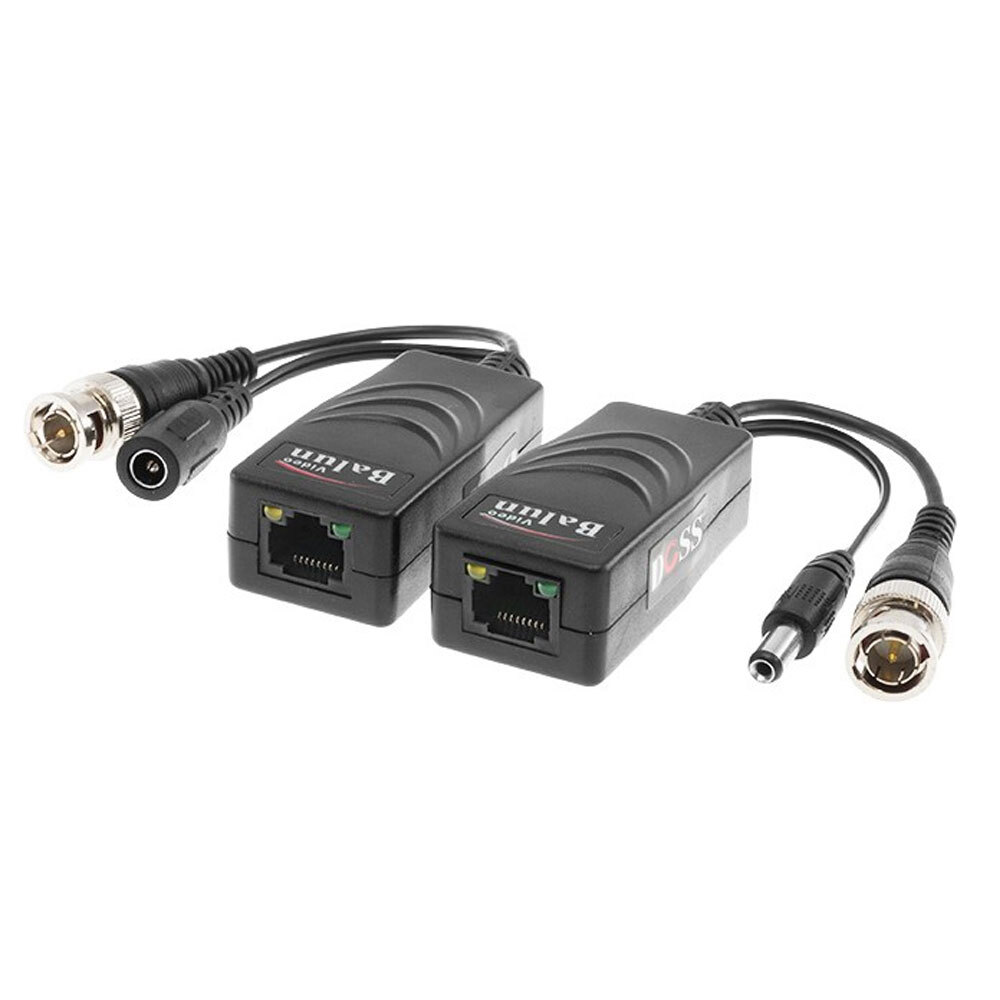

250M RJ45 Jack Passive Video & Power Balun is video & power transmitter and receiver that allows the transmission of real-time CCTV HD video and power signal via cost-effecitve UTP unshielded Twisted Paried cable.
The Doss VPB45HD is compatible with all HD-TVI, HD-CVI and AHD analogue cameras. Used in pairs which eliminates costly and bulky coxial cable.
The superior interference rejection and low emissions of the balun allow video & power signals to coexist in the samewire bundle as telephone, datacom or low-voltage power circuits.
Also it has built in surge suppressor to protect video equipment against damaging voltage spikes. Its crosstalk and noise immunity ensure quanlity video signals.
Single channel HD video & Power transmitter & receiver
Real-time transmission over UPT cat5e/ 6
NTSC, PAL & SECAM video format compatiable
Compatible with all HD-TVI, HD-CVI, AHD & CVBS analogue cameras
Colour video max up to 440m for HD-CVI 720P camera
Colour video max up to 210m for TVT HD-TVI 720P camera
Colour video max up to 300m for AHD 720P camera
Male BNC with extended 150mm mini-coax pigtail
RJ45 jack for UTP cable
Built- in TVS for surge protection
Wave filter design, Anti-static design
Lightning protection design Grade: III
60 dB crosstalk and noise immunity
ABS engineering plastic housing
Applications
Security Monitoring System
Multimedia Network Teaching System
Medical Monitoring Display System
Industrial Automation Control System
Banking, securities, financial information display system
Remote Network Server Monitoring
Department Store Security
Casino Security
Hospitals, Airports and banks
School Campuses
Includes:
1x Jack Video & Power (Male) Balun
1x Jack Video & Power (Power) Balun
Please note: CAT 5e Cable is not included.
Colour: Black

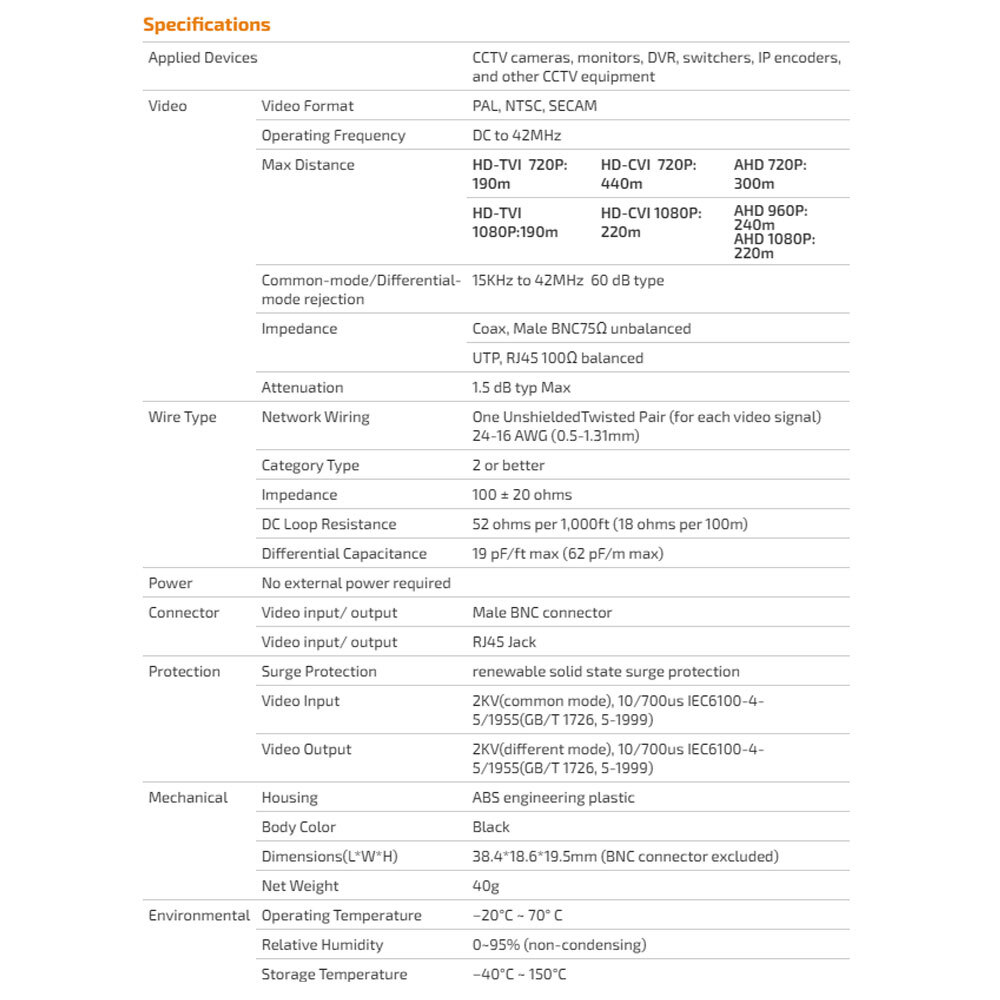

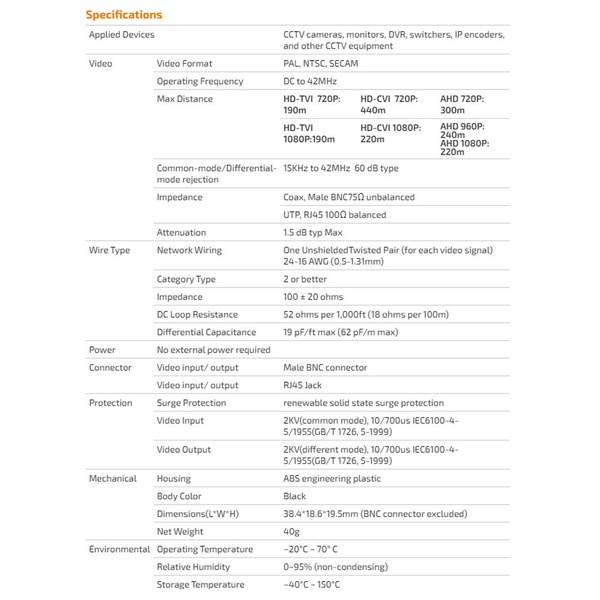

Video Format PAL, NTSC, SECAM
Operating Frequency: DC to 42MHz
Common-mode/Differential-mode rejection: 15KHz to 42MHz 60 dB type
Impedance: Coax, Male BNC75Ω unbalanced UTP, RJ45 100Ω balanced
Attenuatio: 1.5 dB typ Max
Max Distance HD-TVI 720P: 190m/HD-CVI 720P: 440m/AHD 720P: 300m/HD-TVI 1080P:190m/HD-CVI 1080P: 220m/AHD 960P: 240m/AHD 1080P: 220m
Network Wiring: One UnshieldedTwisted Pair (for each video signal) 24-16 AWG (0.5-1.31mm)
Category Type: 2 or better
Impedance: 100 ± 20 ohms
DC Loop Resistance: 52 ohms per 1,000ft (18 ohms per 100m)
Differential Capacitance: 19 pF/ft max (62 pF/m max)
Video input/ output: Male BNC connector
Video input/ output: RJ45 Jack
Surge Protection: renewable solid state surge protection
Video Input: 2KV(common mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999)
Video Output": 2KV(different mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999)
Housing ABS engineering plastic
Dimensions(L*W*H): 38.4*18.6*19.5mm (BNC connector excluded)
Net Weight: 40g
Operating Temperature: −20°C ~ 70° C
Relative Humidity: 0~95% (non-condensing)
Storage Temperature: −40°C ~ 150°C
This item comes with a 12-month warranty.
