4P1GBSM20KSC 4 Port 1G Fibre Media Converter 10/100/1000M Sm Dual Fibre Sc 20Km

4P1GBSM20KSC 4 Port 1G Fibre Media Converter 10/100/1000M Sm Dual Fibre Sc 20Km

Hurry! 1 items left!

$76

Collect 76 Everyday Rewards points

Sold & shipped by Radio Parts

Secure ways to pay at checkout

(0)

4P1GBSM20KSC is Gigabit Ethernet Media Converter and extends the 10,100 and 1000Mbbps twisted-pair network segments up to 20km over the fiber technology. The series media converter is compact and cost-effective design, provide 4-port 10/100/1000Mbps auto negotiation RJ45 connector and 1-port 1.25Gbps full-duplex on the fiber port with SC/FC/ST interface optional. It's widely used in security monitoring, wireless networking, optical fiber access and other application scenarios.

Features

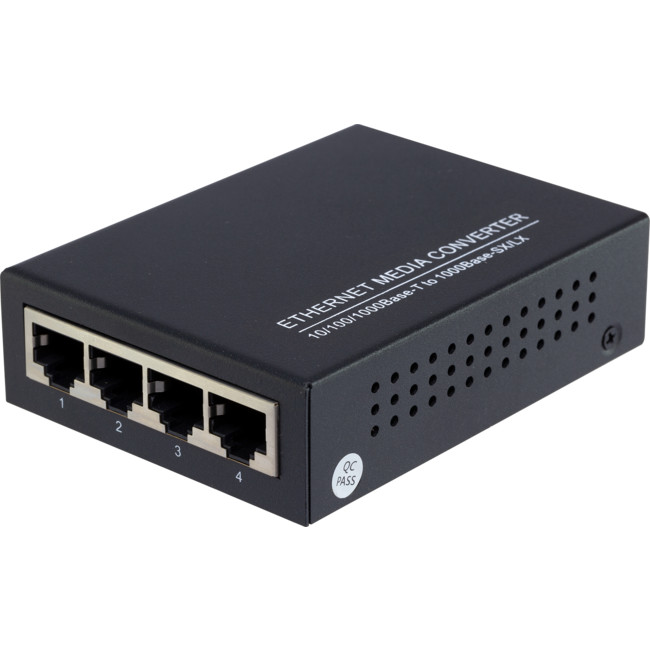

4-port 10/100/1000M auto-negotiation RJ45 with auto-MDI/MDI-X

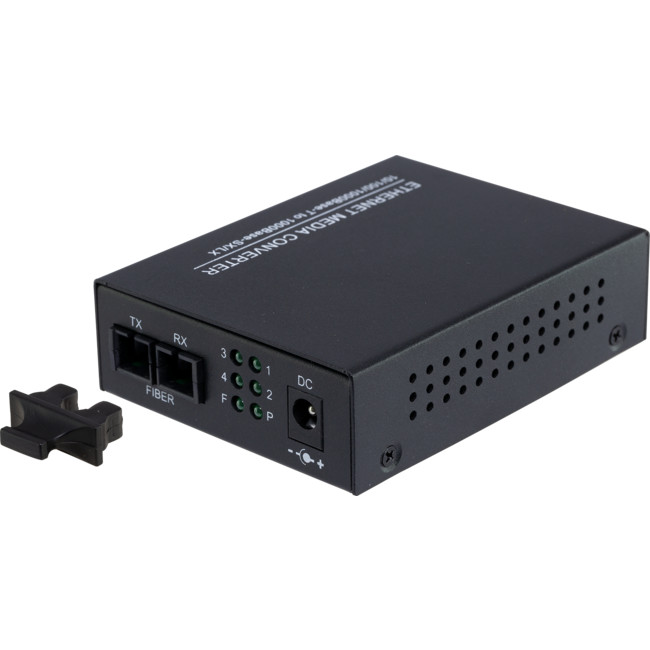

Fiber port: SC single mode
Full duplex and Half duplex operation with IEEE 802.3x flow control
9k Jumbo Frame
LED indicators for working status
Support hot plug and play
5~12Vdc Wide range power input
-20~60ºC working temperature
ESD, surge protection
IP30 enclosure
Low power consumption, lead-free process
CE/FCC/ROHS compliance

Specifications

Performance
Standard	IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x
Data Forwarding	Store and Forward
Switch capacity	12Gbps
Packet forwarding Rate	7.44Mpps
MAC address	2k
Buffer Space	1M
Jumbo Frame	9k bytes
Flow Control	support
Interface
Copper Port	4x 10/100/1000M Auto-negotiation, RJ45 auto-MDI/MDI-X Cat5/Cat5e/Cat6, ≤100m
Fiber Port	1.25G SC Single Mode OS1/OS2 ≤120km; OM1/OM2 ≤550m
LED indicators
Status	PWR, Fiber Link/act, Copper Link/act
Electrical characteristics
Input Voltage	5~12Vdc
Power Consumption	<3W
Power Port	DC socket, Φ2.5mm
Power Adaptor	100~240Vac 50/60Hz input, 5Vdc 1A output
Physical characteristics
Dimension	94x71x26mm
_	_
Enclosure	Metal IP30
Environment
Working Temperature	-20~60ºC
Storage Temperature	-40~85ºC
Relative Humidity	5%~95% (no condensation )
Certification
Safety	EN62368
EMC	EN55032, EN55035, FCC Part 15 Subpart B Class A IEC61000-3-2, IEC 61000-3-3, IEC61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC61000-4-6, IEC61000-4-8, IEC61000-4-11
Reliability	IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-32
ROHS	ROHS 2.0

Available Fibre Media Converters

Code	Model	Ports	Speed	Mode	Dual Fibre	Connector	Distance
09051505		1	100MB	SM	Y	SC	20KM
09051507		1	1GB	SM	Y	SC	20KM
_	_	_	_	_	_	_	_
09051512		1	1GB	MM	Y	SC	550M
_	_	_	_	_	_	_	_
09051550		4	100MB	SM	Y	SC	20KM
09051552		4	1GB	SM	Y	SC	20KM
_	_	_	_	_	_	_	_
09051522		1	1GB	Requires SFP Module, can be SM/MM and LC/SC etc.	_	_	_
