5G 7.5DB CELLULAR ANTENNA

Image 1
Image 2
Hurry! 1 items left!
$224.90

Collect 224 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping
Sold & shipped by Bourne Superstore
Secure ways to pay at checkout



Overview

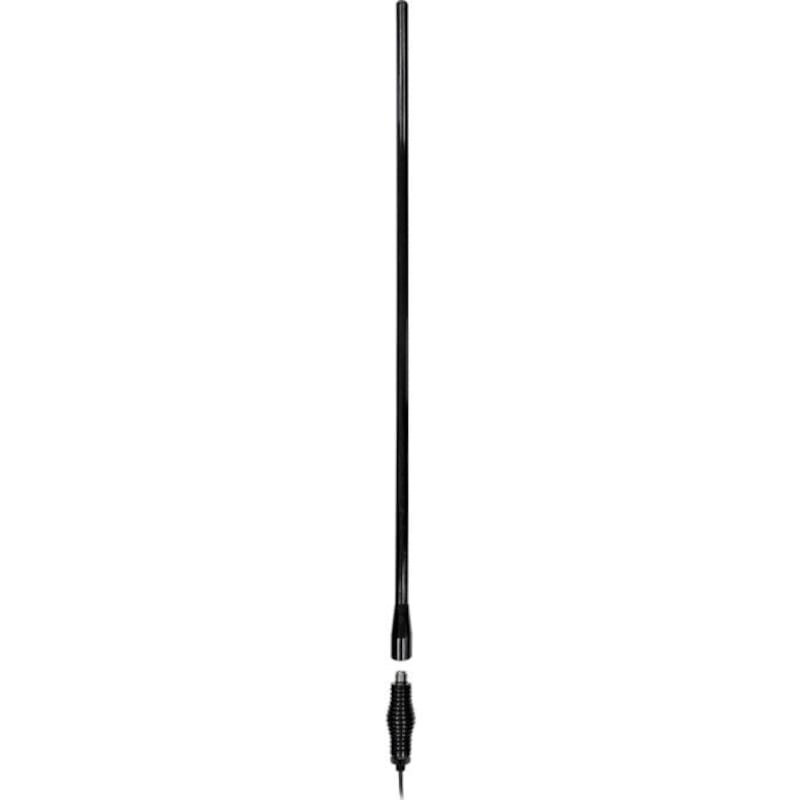

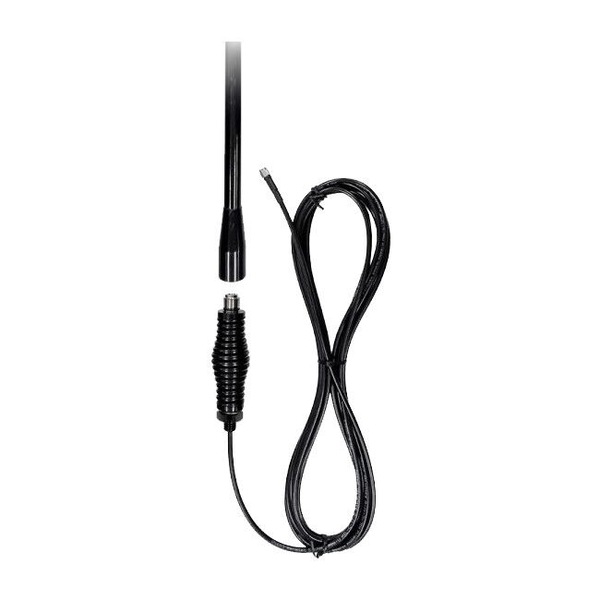

024579R 5G 7.5DB CELLULAR ANTENNA WITH REMOVABLE WHIP

Sealed removable Spring interface, Heavy Duty construction, Covering the full 5G band, 690-960MHz + 1710-2700MHz and 3.5-3.7GHz. Terminated to 5m x Low Loss Cable and SMA plug fitted. Overall length 1220mm.



Features



  • Multi-Band performance
  • Removable antenna
  • Easy to install
  • Fiberglass and thick-walled radom
  • Light weight
  • Plated heavy duty barrel stainless steel spring
  • Designed and manufactured in Australia



specs



  • Frequency
    • 690 – 960 MHz Tuned Bandwidth 270 MHz
    • 1710 – 2700 MHz Tuned Bandwidth 990 MHz
    • 3500 – 3700 MHz Tuned Bandwidth 200 MHz Gain 7.5 dBi (690 – 960 MHz) 3 dBi (1710 – 2700 MHz) 3 dBi (3500 – 3700 MHz)
  • Impedance 50 Ω
  • Operating VSWR < 2:1
  • Radiation Pattern Omni Directional
  • E Plane 3dB Beamwidth 14 Deg @ 690-960MHz
  • Length 1240 mm (includes spring assembly)
  • Width Fiberglass: 16mm (0.6”) Spring: 35mm (1.4”) Weight 0.84 kg (1.8 lbs)
  • Termination SMA Plug, 5m (16.4’Low Loss RG58 Cable Tail (05603)
  • Construction Fibreglass Radom, Black Coated Stainless-Steel Spring and Brass Ferrule



GTIN: 9323229021726
