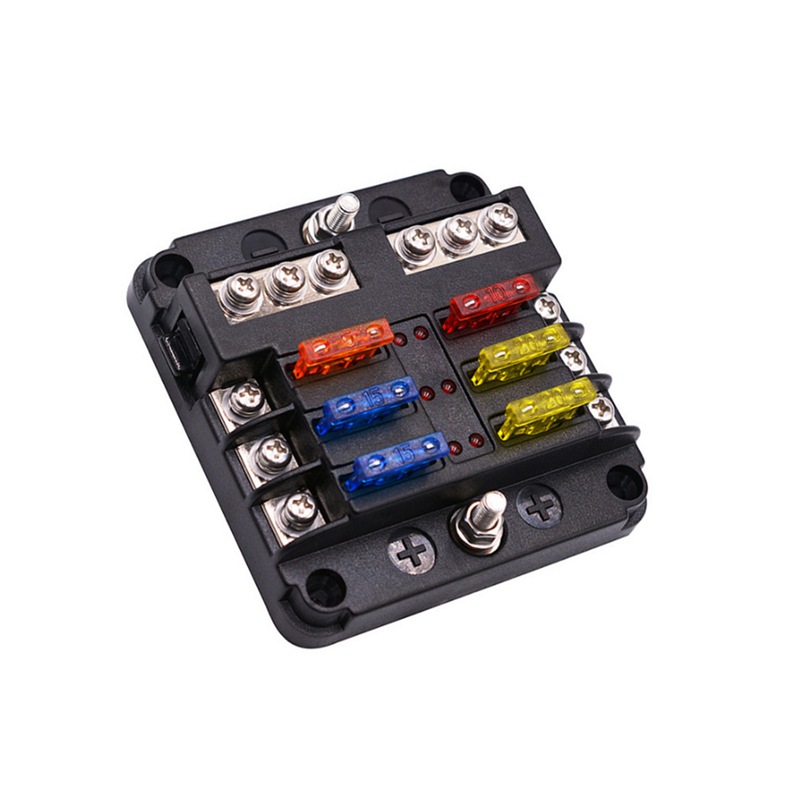

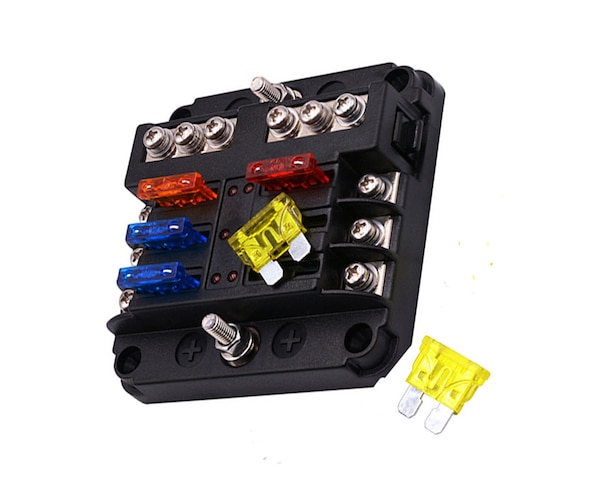

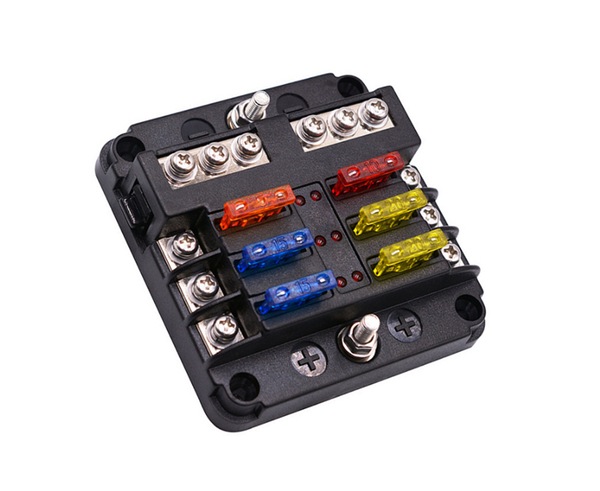

6-Circuit fuse block box for ATC/ATO(middle size) fuses; It has a positive and negative side, meaning for every positive terminal screw there's a negative terminal screw. Max. 32V DC operating voltage. Max. 30 Amp per circuit and 100 Amp per panel
The indicator light flashes red when the fuse is blown, allowing for fast and hassle free identification of a fault. Note : Fuses NOT included in this package

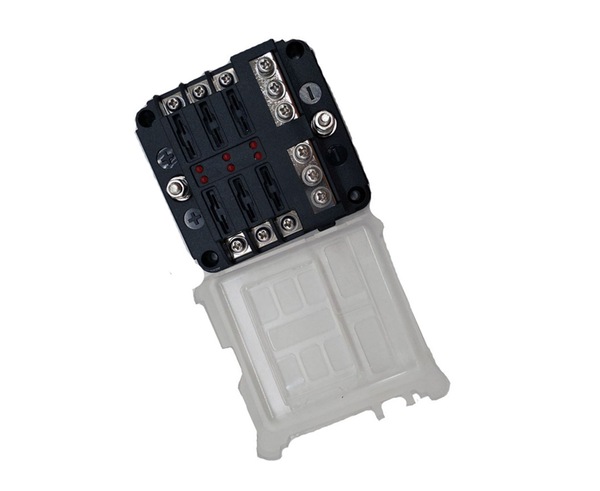

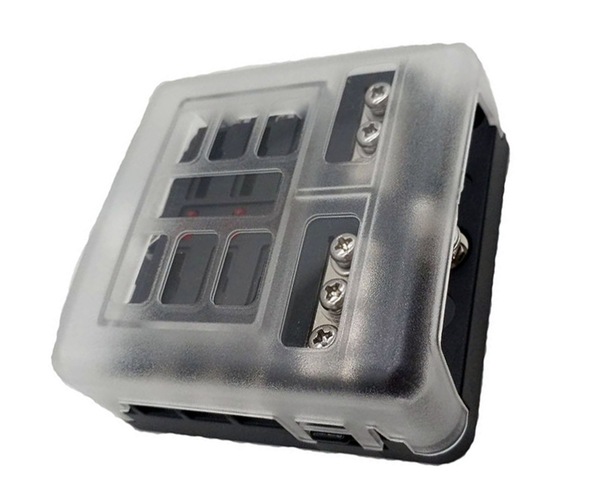

Transparent plastic cover with push latch system, easy to operate, splash and dust-proof design. Adds extra protection to your fuse box and fuses
Easy to install, can be secured via 4 pre-molded holes; Marine-grade stainless steel input and output screws have high performance of anti-corrosion
Come with multi-function stickers for DIY your specific need, convenient for examination and repair, easy to troubleshoot in outdoor; widely used in vehicle, car, marine , bus, ship, tanker, subway etc
Specification:
Fuse: 5A, 10A, 15A, 20A
6-circuit ATC/ATO/ATF blade fuse block; max 30A per circuit.
LED indicator displays circuit issues.
Easy to install and use.
Long service life.
describe:
Net weight: 191g
Gross weight: 223g
Size: 87.75*85*36.5mm
Packing size: 9.3*4.6*12.7cm
Product material: PBT body, PC waterproof and dustproof cover, nickel-plated copper connection terminal, PP sticker
Input rated voltage: 32V
Input rated current: 100A
Output maximum current: 30A per circuit
Indicator color: red
Main wire terminal: M5 threaded stud
Mainline conductors: #4-6
Single wire terminal: M4 threaded stud
Single wire lead: #12-16
Product accessories: sticker X2, self-tapping screw X4, 20A fuse X4, 15A fuse X4, 10A fuse X2, 5A fuse X2
(does not include other things in the picture)
