7 INCH IP VIDEO INTERCOM KIT

Image 1
Image 2
Image 3
Hurry! 4 items left!
$354.90

Collect 354 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping
Sold & shipped by Bourne Superstore
Secure ways to pay at checkout

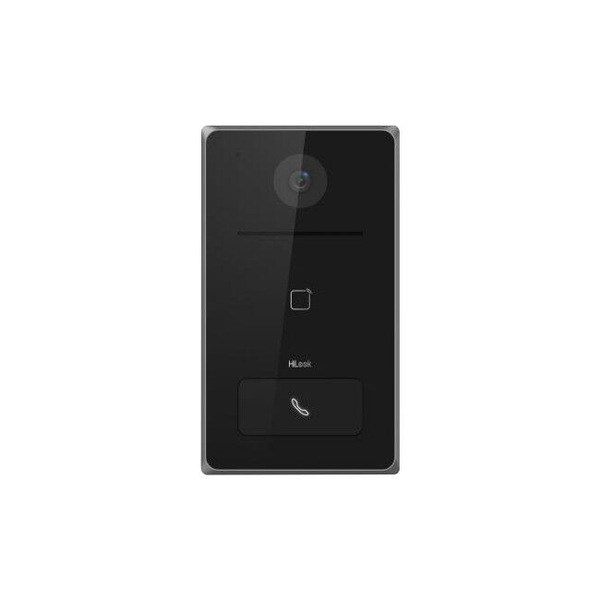

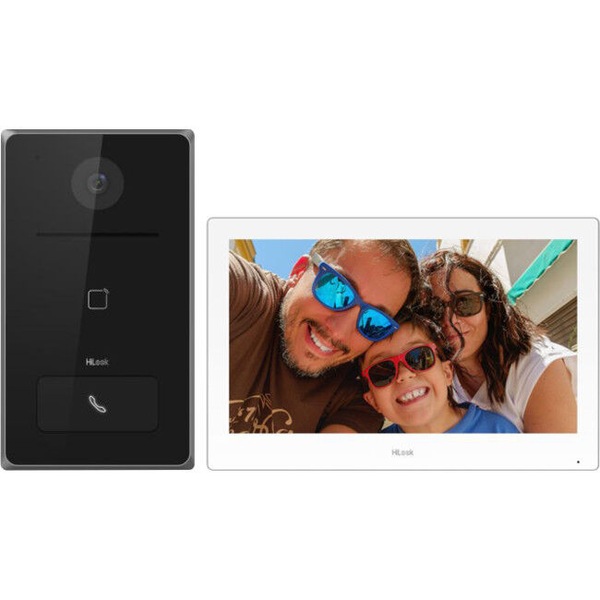

HiLook HA-KIT-IP2 IP Video Intercom Kit

The HA-KIT-IP2 is an IP Video Intercom Kit from Hikvision’s HiLook range, designed for residential and commercial security applications. It includes one door station and one indoor station, providing a comprehensive intercom solution. Key features of the HA-KIT-IP2 include:

  • Convenient Mobile Control: Manage and monitor your intercom system remotely via the Hik-Connect app.
  • Simplified Communication: Equipped with a single call button for straightforward calling functionality.
  • Standard PoE Power Supply: Utilizes Power over Ethernet for easy installation and reliable power delivery.

This kit is ideal for those seeking an efficient and user-friendly intercom system to enhance their property’s security.

Specifications
  • Door station/System parameters
    • Operation systemLINUX
    • Flash32 MB
    • RAM256MB
  • Door station/Video parameters
    • Camera2MP HD camera
    • Night visionLow illumination IR supplement mode:2.5m
    • Backlight compensationSupport
    • Digital noise reductionSupport
    • WDRTrue WDR
    • Field of viewHorizontal: 129° Vertical: 75°
    • Video Compression StandardH.264
    • Stream
      • PAL:Main stream: 1080p@25fps, 720p@25fps Sub stream: 720p@25fps,480p@25fps
      • NTSC:Main stream: 1080p@30fps, 720p@30fps Sub stream: 720p@30fps,480p@30fps
    • Motion detectionSupport
    • Flash-avoid frequency50 Hz, 60 Hz
  • Door station/Audio parameters
    • Audio input1 built-in omnidirectional microphone
    • Audio output1 built-in loudspeaker
    • Audio qualityNoise suppression and echo cancellation
    • Audio compression standardG722.1?OPUS?G711U?G711A?G726 ?AAC_LC? AAC_LD
    • Audio compression Rate16/32/64 Kbps
    • Audio intercomTwo-way audio communication
  • Door station/Network parameters
    • Network protocolTCP/IP, SIP, RSTP
    • Wi-Fi2.4GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n
    • Door station/Device interfaces
    • Network interface1 RJ-45, 10/100 Mbps self-adaptive
    • RS-4851
    • Alarm input4
    • Lock control1 relay, Max. 30 VDC 2 A
    • Door contact input1
    • TAMPER1
    • TF card1(Reserved)
    • Audio output1 external loudspeaker(Reversed)
  • Door station/General
    • Power consumption< 10 W
    • Working temperature-40° C to 53° C(-40° F to 127.4° F)
    • Working humidity10% to 95%
    • Dimension181.6 mm × 103.6 mm × 29.5 mm
    • InstallationSurface mounting, Flush mounting
    • Protection levelIP65
    • Indicator2
    • Power supply
      • IEEE802.3af, standard PoE
      • 12 VDC
  • Indoor station/System parameters
    • Operation systemLinux
    • Memory128 MB
    • Flash32 MB
    • Indoor station/Display parameters
    • Display screen7-inch colorful TFT screen
    • Display resolution1024 × 600
    • Operation methodCapacitive touch screen
  • Indoor station/Audio parameters
    • Audio input1 built-in omnidirectional microphone
    • Audio output1 built-in loudspeaker
    • Audio qualityNoise suppression and echo cancellation
    • Audio compression standardG.711 U
    • Audio compression Rate64 Kbps
  • Indoor station/Network parameters
    • Wired network1 RJ-45, 10/100 Mbps self-adaptive
    • Wireless network2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n
    • ProtocolTCP/IP, SIP, RTSP
  • Indoor station/Device interfaces
    • RS-4851 RS-485 (Half duplex)
    • Alarm input8-ch alarm inputs
    • Relay output2
    • TF cardSupport TF card, up to 128 G
  • Indoor station/General
    • Power consumption≤ 5 W
    • Power supply12 VDC, 1 A,IEEE802.3af, Standard PoE
    • Working temperature-10 °C to 50 °C (14 °F to 122 °F)
    • Working humidity10% to 90%
    • Dimension (L x W x H)175 mm × 113.5 mm × 21 mm (6.9" × 4.5" × 0.83")

MPN: KIT-IP2
