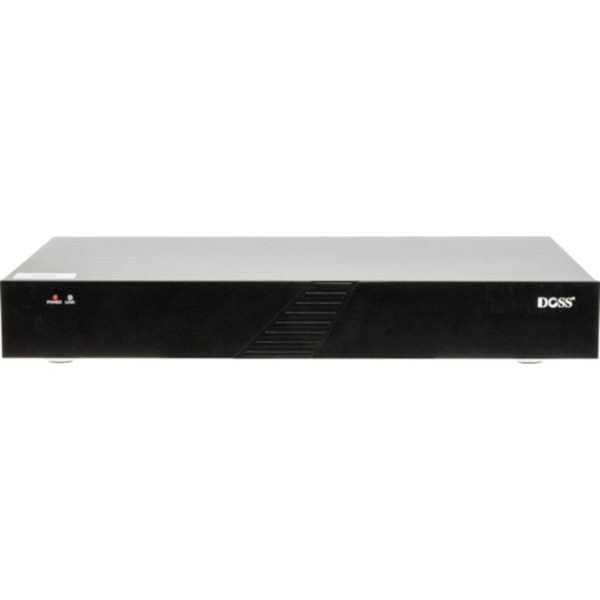

8CH 8 POE IQ ANALYSIS 4K NVR

• Supports up to 4K camera resolution
• Compatible with fisheye camera
• 100M/1000M Ethernet Port
• 8CH full real-time network video access, 1U NVR case
• H.265/H.264 dual-stream decoding, embedded linux operation system
• Support sync video recording, remote monitoring, backup
• HDMI output, support 2160P HD preview
• Support 12 times amplification preview and playback video, 8CH standard PoE
• Standard ONVIF, RTSP, GB28181 protocol
• Support DDNS, EMAIL, UPnP, NTP, P2P,etc
• Support FSAN SMART IPC (Target counting, object left/lost, area detection, line crossing detection)
• Support grouping disk quota, and disk inventory two storage pattern, distribute different video storage capacity or cycle according to different channels
• Support IPC centralized management, including IPC parameters configuration, import and export information, information real time acquisition and upgrade, etc
• Support channel grouping, preview round touring
• Network detection(network flow monitoring, network wireshark, network clear)
• Max 8CH sub-stream record sync playback and multi-channel sync play backward
• The new UI interface, support a key to open the video recording , Instant playback
• Dual password authentication and zero channel function

Notes: Please note there are two network cards built into the NVR. If you use the NVR POE for your IP camera, when you add the IP camera to the NVR, you need to change the IP camera address to different subnet range. Forexample, NVR is Lan1, the IP address will like 192.168.1.189, and all other IP cameras directly connected to the NVR should be set to the address like 192.168.2.xxx;

When you add any ONVIF protocol camera to the NVR, please make sure you have changed the IP address of the ONVIF camera before you add it to the NVR, Lan 2 subnetif connects to NVR directly, Lan 1 subnet if it has own power or connects to POE switch. It is also required to add user name and password info for each ONVIF camera in NVR channel settings, even you have no password set in the camera itself, as NVR has no permission to change ONVIF IP camera address and couldn’t access the camera without login credentials.

The Doss IP NVRs are now smarter with baked in Intelligence features. On top of all that, they also now support higher resolution cameras!

Here's what's new with the IQ NVR range:

• New Graphical User Interface
  The layout and usability on the new NVRs have been greatly improved over their predecessor, making navigating and finding what you want a much easier experience.
• New IQ Features
  Smarter, more intelligent features mean the NVR does all thehard work and gives you the alerts you really need!


With more and more people now turning to CCTV surveillance for their security needs, its no surprise that new technologies are being developed and implemented to helpreduce the need for manual monitoring and the costs associated. One such strategy is the use of Intelligent Video Analytics (IVA).

IVA focuses on automating the video analysis of large amounts of data footage and security alerts, rather than having people monitor each camera manually. The software utilises a range of rules and algorithms to ignore any changes in lighting conditions or non-critical activity, andfocus on specific triggers to identify suspicious behaviour and objects.

A good example of Analytics would be its ability to alertauthorities of suspicious objects left in public places, like airports, and use facial recognition to help track downfugitives. It could also be used in Highway CCTV situations to capture and report a vehicle travelling in the wrong direction or performing an illegal turn. Even for the domestic home, Analytics could alert and monitor a trespasser crossing a property line.
With every aspect of our lives being digitised, video footage will be increasingly tagged to these events. Imagine a person scanning a train ticket at a turn style. The scanning of the ticket and the footage from the CCTV camera will get put together and be readily accessible in real time or a month later.

• RJ45 LAN Port
• 8x POE RJ45 POE ports for cameras
• VGA output
• HDMI Output
• Terminal block for alarm input/output
• Terminal block for RS485
• RCA audio/mic input
• RCA audio/speaker output
• 2x USB2.0 ports for mouse and external drives
• DC Power Input

• NVR
• 48V 2.5A DC Power supply with detachable IEC lead
• USB Mouse
• HDD Connection Kit
  • 2x SATA cable
  • Molex power cable
  • 8 screws
• Software CD

Watch our NVR IQ Series Videos over at our YouTube channel.
